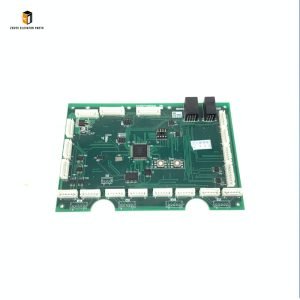

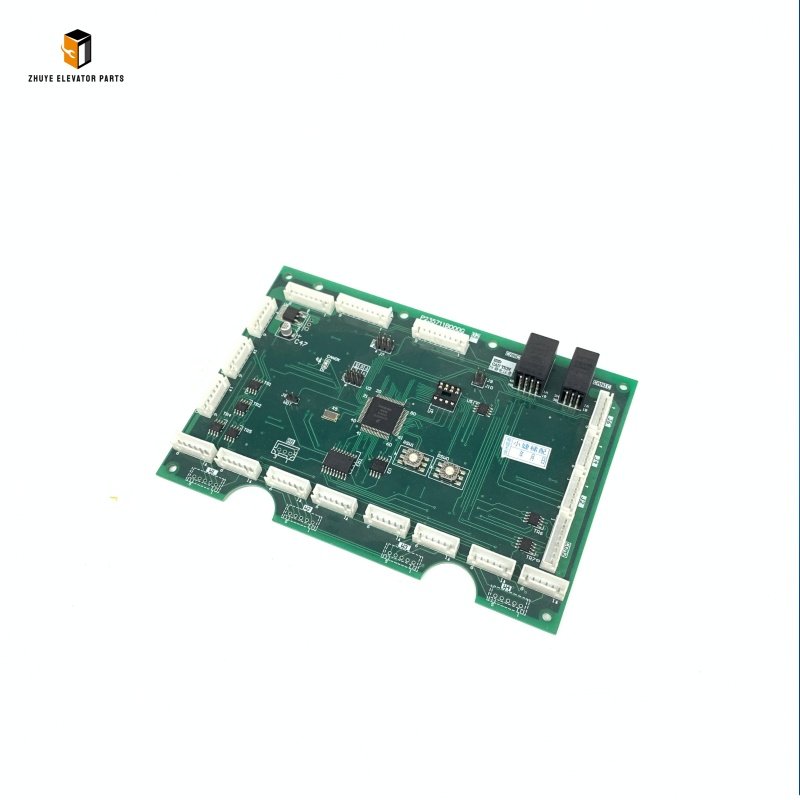

Mitsubishi Elevator Communication Board P235711B000G02: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Mitsubishi Elevator Communication Board P235711B000G02

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Access the Mitsubishi elevator control cabinet (typically located in the machine room) and locate the designated mounting slot for the communication board. Disconnect the old board (if replacing) by releasing the locking latches and disconnecting power, communication, and subsystem cables—label all cables clearly to avoid cross-connection errors. Clean the mounting slot and backplane connector to remove dust or debris that could interfere with electrical contact.
  • Align the P235711B000G02 with the cabinet’s guide rails and backplane connector. Insert the board firmly until it locks into place, ensuring proper seating to establish reliable electrical connections. Secure the board with provided screws (torque to 0.5–0.8 Nm) to prevent vibration-induced loosening. Reconnect the cables to the corresponding terminals: power wires to the 24V DC input, subsystem communication cables to labeled ports, and Ethernet/remote monitoring cables (if applicable).
• Configuration Setup:
  • Power on the control cabinet and confirm the board initializes correctly (status LED illuminates green, and the main controller recognizes the board via Mitsubishi’s diagnostic interface). Access the configuration menu via Mitsubishi-approved software (e.g., MELDAS, GX Works) by certified technicians:
    • Protocol Configuration: Set communication protocols (e.g., CAN bus baud rate, Modbus address) to match the elevator’s subsystem requirements—ensure consistency with push button boards, display units, and remote monitoring systems.
    • Data Mapping: Sync the board with the main controller to define data transmission parameters (e.g., floor selection signals, door status updates, emergency alerts) as specified in Mitsubishi’s communication protocol guidelines.
    • Remote Monitoring Setup: Enable or configure remote access features (if supported) to allow real-time status checks and troubleshooting via Mitsubishi’s maintenance platform.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Communication Integrity Test: Verify data transmission between the board and all subsystems—ensure floor selection signals, door status updates, and safety alerts are transmitted/received without delay (≤10ms response time) in compliance with Mitsubishi’s standards.
    • Fault Simulation Test: Simulate subsystem disconnections or signal interference to confirm the board logs error codes correctly and triggers fail-safe modes (e.g., elevator stop, local alarm) as required.
    • Redundancy Test: For systems with redundant paths, disable one communication channel to confirm the board switches to the backup path seamlessly—no data loss or operational interruption.
  • Document configuration settings and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation on the board, or damaged connectors. Remove dust with compressed air—avoid water or chemical cleaning agents that can damage components or corrode gold-plated ports.
• Monthly Diagnostic Scans: Use Mitsubishi’s diagnostic software to monitor communication error logs, data transmission rates, and subsystem connectivity. Address minor issues (e.g., intermittent signal loss) promptly to prevent major system failures.
• Quarterly Cable Inspections: Inspect communication cables for fraying, corrosion, or loose contacts. Tighten terminals as needed or replace damaged cables with genuine Mitsubishi parts from Nanjing Zhuye—poor cable quality is a leading cause of communication errors.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Mitsubishi or Nanjing Zhuye) to enhance protocol compatibility, fix software bugs, and improve data transmission stability.
• Annual Backplane & Connector Checks: Inspect the control cabinet’s backplane connector for corrosion, wear, or bent pins—clean or replace the connector if necessary to ensure reliable electrical contact with the board.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Communication Failures: Persistent subsystem disconnections, delayed data transmission, or inability to send/receive signals—despite cable checks and configuration resets, indicating hardware failure.
• Error Log Anomalies: Frequent, unresolvable communication error codes (e.g., “Protocol Mismatch,” “Data Corruption”) that appear after firmware updates and troubleshooting.
• Physical Damage: Cracked circuit board, water intrusion, burned components, or irreparable communication port damage—compromising electrical safety and signal reliability.
• Performance Degradation: Significant increases in data transmission latency (≥50ms), or intermittent system crashes linked to the communication board.
• Compatibility Issues: Inability to integrate with Mitsubishi system upgrades (e.g., new remote monitoring features, enhanced safety protocols) due to outdated hardware or firmware.

3. Maintenance to Extend Service Life

• Stabilize Power Supply: Install surge protectors and voltage regulators to shield the board from voltage spikes and transients—common causes of communication chip damage.
• Control Environmental Conditions: Maintain the machine room temperature between 10–35°C and humidity between 30–60%. Ensure the control cabinet is sealed to prevent dust, water, or corrosive gases from entering.
• Minimize EMI Interference: Route communication cables away from high-voltage power lines (minimum distance of 30cm) and install EMI filters (if not factory-fitted) to reduce electromagnetic interference.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Mitsubishi components from Nanjing Zhuye. Counterfeit boards may use inferior communication chips, untested firmware, or incompatible protocols—compromising performance, safety, and Mitsubishi’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Mitsubishi Compatibility: All P235711B000G02 boards are manufactured to Mitsubishi’s original specifications, ensuring seamless integration with Mitsubishi elevator systems and compliance with global safety/electronic standards.
• Strict Mitsubishi-Specific Quality Assurance: Each unit undergoes rigorous testing—including communication protocol validation, data transmission accuracy, EMI resistance, and thermal performance—to guarantee reliable operation in critical control scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Mitsubishi elevator systems, providing 24/7 assistance for installation, configuration, and troubleshooting (e.g., communication errors, firmware updates) in Mitsubishi elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers communication boards promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Mitsubishi’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Mitsubishi elevator components.
