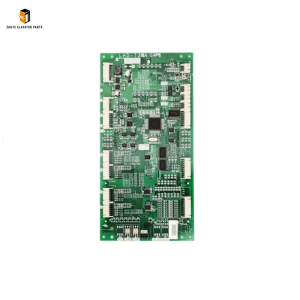

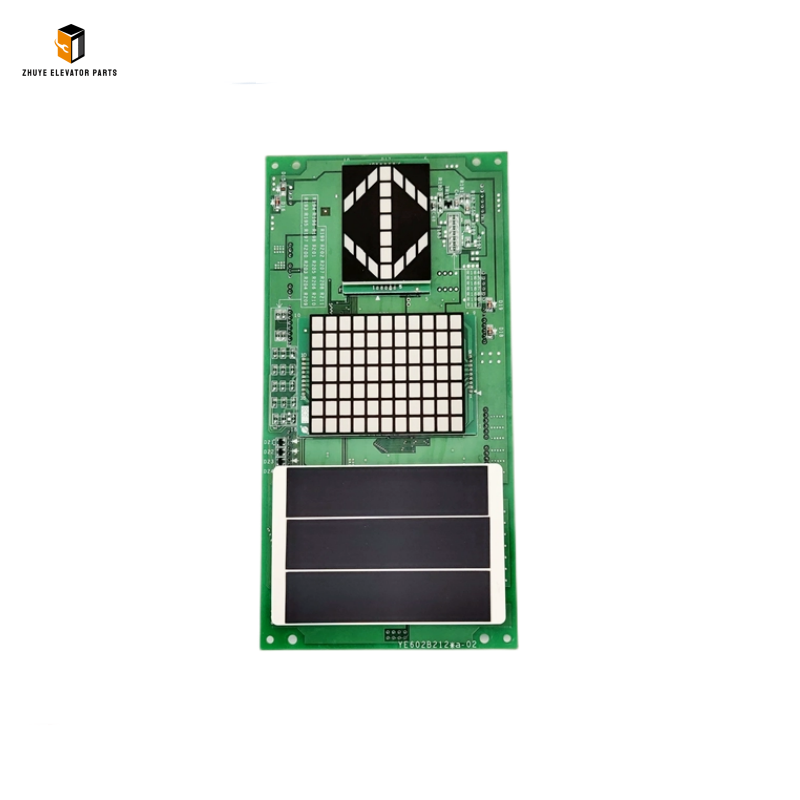

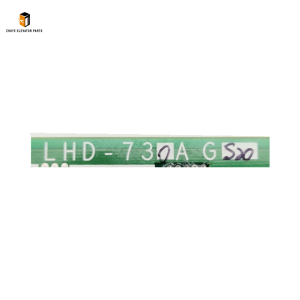

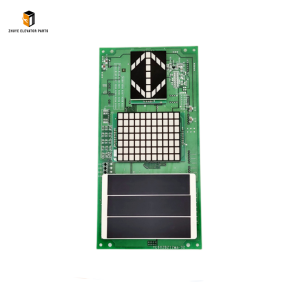

Mitsubishi Elevator Car Display Board LHD-730AGS20: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Mitsubishi LHD-730AGS20 Car Display Board

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Remove the existing display panel from the car control fascia (using precision screwdrivers to avoid damaging the car interior). Disconnect the old board by labeling and removing communication cables (to main controller) and power wires—take detailed photos of the wiring configuration to ensure accurate reinstallation. Clean the mounting recess with a dry cloth to remove dust or debris.
  • Align the new LHD-730AGS20 with the mounting holes and secure it with the provided screws (torque to 0.4–0.6 Nm) to prevent vibration-induced damage during elevator movement. Ensure the board is flush with the fascia for a seamless, passenger-friendly finish. Reconnect the communication cables and power wires, ensuring each connector is fully seated and locked—loose connections are the primary cause of display flicker or blank screens.
• Configuration Setup:
  • Restore power to the car circuit (performed by certified Mitsubishi technicians only) and access the configuration menu via Mitsubishi’s diagnostic software (e.g., MELDAS, GX Works) or the elevator’s main controller. Complete two critical steps:
    1. Car Identification: Program the board to recognize the elevator car number and floor range (e.g., 1–30 floors) to ensure accurate floor display and direction alignment.
    2. Display Customization: Configure settings like brightness level (adjustable for day/night modes), language (if applicable), and alert icon visibility—aligning with building requirements and passenger needs.
• Functional Testing:
  • Conduct comprehensive tests to validate performance:
    • Display Accuracy Test: Operate the elevator through multiple floors to confirm floor numbers update in real time, direction arrows illuminate correctly, and load indicators respond to passenger capacity changes.
    • Visibility Test: Check readability from all positions in the car (front, sides, corners) and under varying lighting (sunlight through windows, car interior lights off) to ensure no glare or dead zones.
    • Alert Function Test: Simulate maintenance mode or emergency scenarios to verify critical alerts display clearly and trigger the appropriate visual cues (e.g., flashing icons).
  • Document installation details, configuration settings, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for display flicker, dead pixels, scratches on the glass lens, or loose fascia panels. Wipe the lens with a soft, lint-free cloth (slightly dampened with water if needed) to remove fingerprints and dust—avoid harsh chemicals or abrasive materials.
• Monthly Functional Checks: Verify the display updates accurately with elevator movement and status changes. Adjust brightness if needed to compensate for seasonal lighting variations (e.g., brighter in summer, dimmer in winter).
• Quarterly Connection Inspections: Remove the display fascia (by authorized technicians) to inspect wiring and connectors for fraying, corrosion, or loose contacts. Retighten terminals as needed or replace damaged cables with genuine Mitsubishi parts from Nanjing Zhuye.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Mitsubishi or Nanjing Zhuye) to enhance display responsiveness, fix software bugs, and support new system features.
• Annual Performance Testing: Verify display resolution, viewing angle clarity, and communication reliability against Mitsubishi’s factory specifications. Conduct a backup of configuration settings for future maintenance or replacement.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Display Failures: Blank screen, persistent flicker, more than 3 dead pixels (clustered or spread), or unreadable text—impairing passenger information and trust.
• Communication Errors: Delayed floor updates (more than 1 second), incorrect direction arrows, or failure to display alerts—indicating a breakdown in communication with the main controller.
• Physical Damage: Cracked glass lens, water intrusion (visible condensation behind the lens), or damaged circuit board—compromising electrical safety and functionality.
• Safety Compromise: Inability to display emergency alerts (e.g., “Fire Mode,” “Evacuation”)—violating Mitsubishi’s safety standards and passenger communication requirements.
• Performance Degradation: Frequent display freezes, faded colors, or inconsistent brightness—attributed to aging internal components.

3. Maintenance to Extend Service Life

• Environmental Protection: Ensure the elevator car’s climate control (if equipped) is functional to avoid extreme temperatures or humidity—prolongs display panel life. Avoid direct sunlight exposure by using window tinting or car interior shades if needed.
• Power Stabilization: Install surge protectors in the car display circuit to shield the board from voltage spikes (common during elevator operation or building power fluctuations).
• Gentle Handling: Train maintenance teams to handle the display board carefully during inspections, avoiding pressure on the glass lens or pulling on wiring harnesses.
• Genuine Parts Only: For replacements, rely exclusively on authentic Mitsubishi LHD-730AGS20 display boards from Nanjing Zhuye. Counterfeit boards use low-quality displays, weak connectors, or pirated firmware—compromising visibility and system integration.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi LHD-730AGS20?

• Authenticity & Compatibility: All boards meet Mitsubishi’s original manufacturing specifications, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators.
• Strict Quality Assurance: Each unit undergoes rigorous testing—including display clarity, viewing angle performance, communication reliability, and durability—to guarantee passenger satisfaction.
• Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, firmware updates, and troubleshooting (e.g., display glitches, sync errors).
• Global Efficient Delivery: Fast shipping to worldwide locations minimizes downtime for elevator car interfaces—critical for maintaining passenger trust and building reputation.
• Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or usability.
