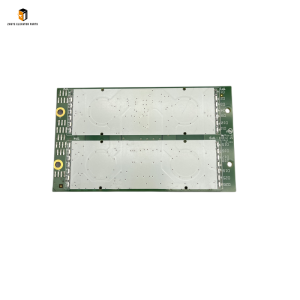

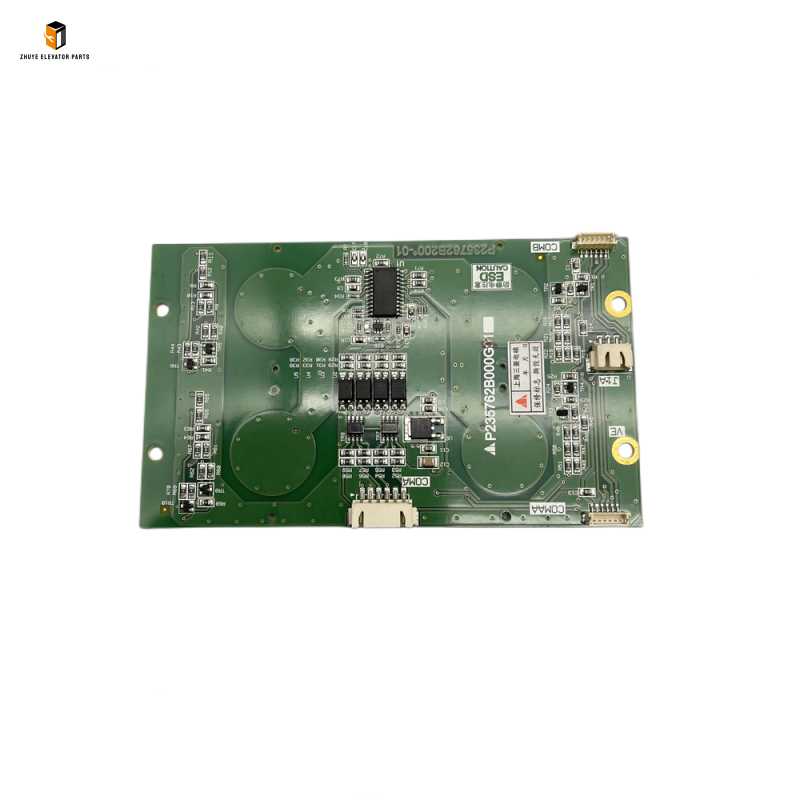

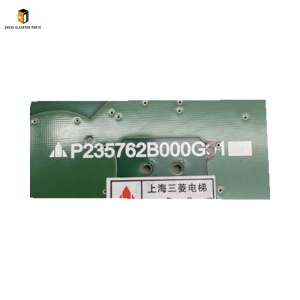

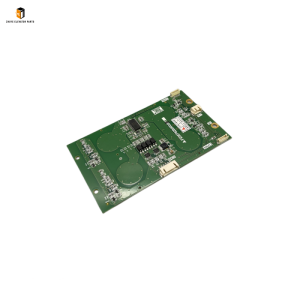

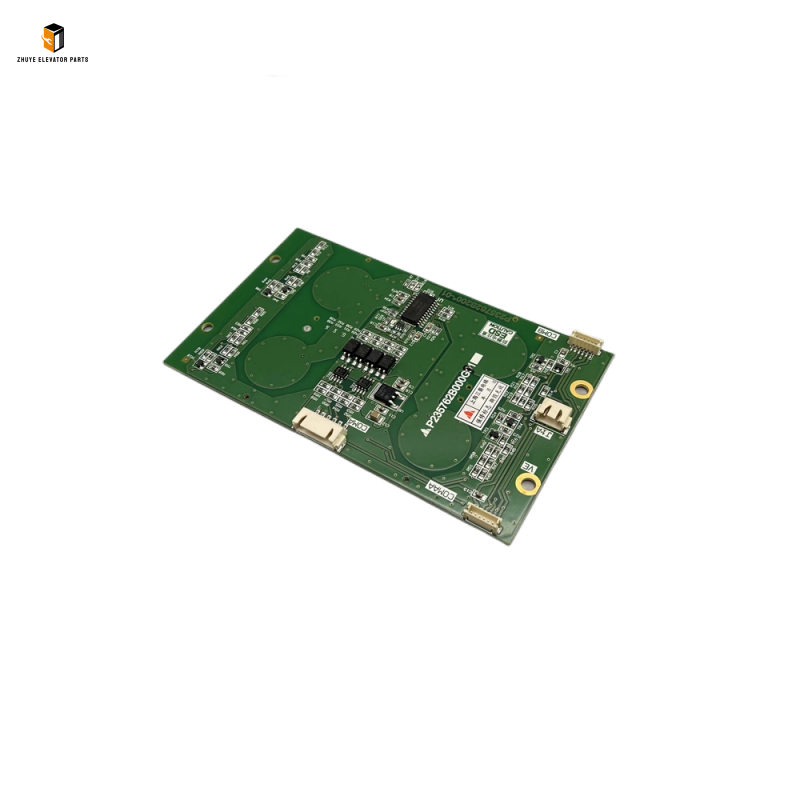

Mitsubishi elevator button board P235762B000G01/3/23/31/33 Introduction

Product Name	Mitsubishi elevator button board
Model Number	P235762B000G01 P235762B000G03 P235762B000G23 P235762B000G31 P235762B000G33
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

33: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator Button Board P235762B000G01/3/23/31/33 is a versatile multi-variant user input family exclusively engineered for Mitsubishi elevator systems—including NexWay, ELENESSA, and MAXIEZ series—essential for residential complexes, commercial buildings, transit hubs, and public facilities worldwide. As the primary passenger command interface, these variants (G01/G3 for standard floor selection, G23 for door control + emergency functions, G31/G33 for heavy-duty/high-traffic applications) enable intuitive operations: floor selection, door open/close, emergency calls, fire service activation, and VIP mode. Each board integrates Mitsubishi’s proprietary tactile switch technology, energy-efficient LED backlighting, and anti-interference circuits—upholding the brand’s strict standards for responsiveness (1.5–3N actuation force), durability (≥1 million press cycles), and operational reliability in 24/7 environments.

Compliant with global elevator safety and usability standards (EN 81-20/50, ISO 13407, UL 94, JIS A4300), the P235762B000 series features an industrial-grade rugged design: flame-retardant ABS housing (UL94 V0 rating), scratch-resistant polycarbonate button caps (matte finish to reduce glare), low-power LED backlights (≤2W per board), and dust/water-resistant connectors (IP54 protection). This robust construction withstands the harsh conditions of elevator interiors and landings—temperature fluctuations (-15°C to +55°C), humidity (up to 90% non-condensing), mechanical vibration, and frequent passenger interaction—critical for preventing button failures, unregistered commands, or safety hazards. For maintenance teams and facility managers, mastering proper installation, configuration, and replacement protocols is vital to ensuring user experience, regulatory compliance, and elevator operational efficiency. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the P235762B000 series that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, responsive operation, and long-term durability.

Proper Usage Methods of Mitsubishi P235762B000G01/3/23/31/33 Elevator Button Board

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the work area (COP panel for in-car use, landing panel for exterior use) with lockout-tagout (LOTO) devices. Position the elevator car at a convenient floor to access the button board mounting location. Inspect the new P235762B000 variant for physical damage—cracked housing, broken button caps, loose connectors, bent pins, or damaged circuit traces. Nanjing Zhuye’s strict quality control ensures each unit arrives intact: functional tactile switches, uniform LED backlights, secure wiring harnesses, and pre-loaded Mitsubishi-compatible firmware.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the variant’s functionality (e.g., G23 for emergency functions, G33 for heavy-duty use) matches the application requirements, (2) mounting dimensions (170x95x28mm, consistent across variants) fit the panel cutout, and (3) the communication protocol (Mitsubishi’s CANopen) is compatible with the main control board. Using an incompatible variant can result in unregistered commands, mismatched LED feedback, or communication errors. Prepare the installation area: Clean the panel cutout to remove dust/debris, disconnect the old board’s wiring harness (label cables by function/pin), and gather tools (Phillips screwdriver, anti-static wristband, multimeter, wire crimpers).

2. Installation & Configuration Steps

Panel Preparation: Remove the old button board by unscrewing the mounting brackets (2–4 screws) from the panel housing. Disconnect the wiring harness by pressing the locking tab—avoid pulling cables to prevent insulation damage. Inspect internal wiring for fraying, corrosion, or loose connections; repair or replace with genuine Mitsubishi-compatible wires from Nanjing Zhuye if needed.
Board Installation: Align the P235762B000 variant with the panel cutout, ensuring buttons face outward and mounting holes align. Secure with corrosion-resistant screws (torque to 0.6–0.8 Nm) to prevent vibration-induced loosening—over-tightening can crack the housing or damage switches. Connect the wiring harness to the board’s connector until it clicks, verifying pin alignment via Mitsubishi’s wiring schematic to avoid reverse polarity.
Configuration & Testing: Restore power (performed by certified Mitsubishi technicians) and conduct functional tests:
1. Button Responsiveness: Press each button to confirm immediate registration (LED backlight illuminates) and elevator response—no delayed/unregistered commands. Test special functions (e.g., emergency call for G23, fire service for G31) to ensure activation.
2. LED Backlight Check: Verify uniform illumination; adjust brightness via the main control board (200–400 cd/m²) for optimal visibility in bright/dim environments.
3. Communication Validation: Run a test cycle to confirm seamless communication with the main control board—no “Button Interface Fault” codes or command misinterpretation.

  Document installation details, variant model, and test results in maintenance records for compliance.

3. Routine Usage Maintenance

To extend the P235762B000 series’ lifespan, implement proactive maintenance:

Daily Visual Inspections: Check for broken button caps, stuck buttons, or dim/unlit backlights. Ensure the housing is intact and free of debris.
Weekly Cleaning: Wipe button caps and housing with a soft, lint-free cloth and mild detergent—avoid abrasive cleaners or excessive moisture to preserve switch responsiveness.
Monthly Wiring Check: Inspect the wiring harness connection for looseness, corrosion, or overheating (discolored wires)—re-seat connectors or clean contacts with a contact cleaner if needed.
Quarterly Function Test: Use the elevator’s diagnostic system to check for “Button Board Fault” codes and verify all buttons (including special functions) operate correctly.
Semi-Annual Firmware Update: Install Mitsubishi’s recommended firmware updates to enhance response time, resolve compatibility issues, and optimize LED performance.

Recommended Replacement Cycle

The service life of the Mitsubishi P235762B000 series depends on usage intensity, environmental conditions, and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s expertise:

1. Standard Replacement Cycle

Under normal conditions (regular cleaning, moderate-to-high traffic, -15°C to +55°C), the P235762B000 variants should be replaced every 7–9 years. This aligns with the typical lifespan of tactile switches (1–2 million press cycles) and LED backlights (50,000–70,000 operating hours), ensuring proactive replacement before responsiveness degrades.

2. Signs That Require Immediate Replacement

Replace the button board immediately if:

Button Failures: Stuck, unresponsive, or intermittent buttons—cannot be resolved by cleaning/wiring adjustments.
LED Malfunctions: Dim, flickering, or non-functional backlights that reduce visibility.
Physical Damage: Cracked housing, broken button caps, or water intrusion—risks electrical shorts or passenger injury.
Communication Errors: Recurring “Button Board Fault” codes—unresolved by re-seating harnesses/firmware updates.
Safety Compromises: Emergency/special function buttons (e.g., fire service, emergency call) fail to activate—violates EN 81-20/50 standards.

3. Maintenance to Extend Service Life

User Care Promotion: Post guidelines (e.g., “Press buttons gently”) to reduce physical damage.
Environmental Control: Maintain elevator interiors/landings at 15°C–35°C with humidity <70%—extreme conditions accelerate switch wear.
Connector Protection: Apply dielectric grease to the wiring harness connector annually to prevent corrosion.
Genuine Parts Only: Use authentic Mitsubishi P235762B000 variants from Nanjing Zhuye. Counterfeit units use low-quality switches and lack compatibility—risking safety hazards or costly downtime.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi P235762B000G01/3/23/31/33?

When sourcing this critical user input component, Nanjing Zhuye offers unmatched advantages:

Authenticity & Compatibility: Genuine Mitsubishi components ensure seamless integration with NexWay/ELENESSA/MAXIEZ systems—eliminating command registration issues across all variants.
Strict Quality Assurance: Each board undergoes rigorous testing (responsiveness, LED brightness, durability, environmental resistance) to meet Mitsubishi’s standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, variant selection, and troubleshooting—even for legacy models or specialized variants (e.g., G23 emergency functions).
Global Efficient Delivery: Fast shipping minimizes downtime, critical for facilities where button board failures disrupt passenger flow.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen—cost-effective solutions without compromising quality.

Conclusion

The Mitsubishi Elevator Button Board P235762B000G01/3/23/31/33 series is a foundational user input family that enables intuitive, reliable passenger interaction with Mitsubishi elevators across diverse applications. By following proper installation, testing, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can extend the board’s lifespan, enhance passenger satisfaction, and reduce operational downtime. Whether you need a single replacement (any G01/G3/G23/G31/G33 variant), bulk orders for a fleet, or technical support for variant-specific setup, Nanjing Zhuye delivers premium Mitsubishi parts and tailored services. Invest in elevator user experience and safety—choose Nanjing Zhuye for your P235762B000 series button board needs.
