Description

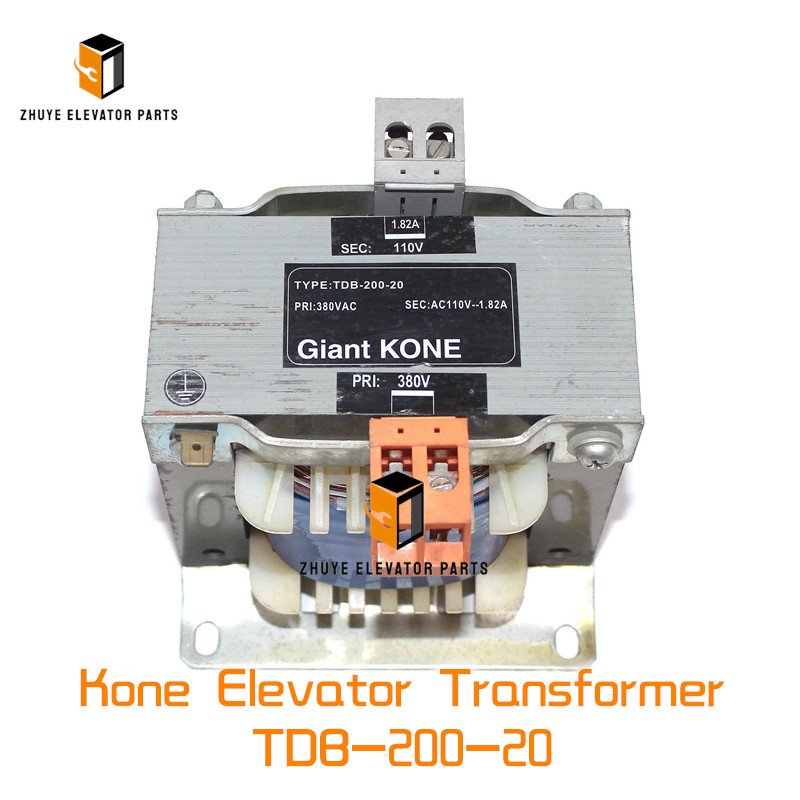

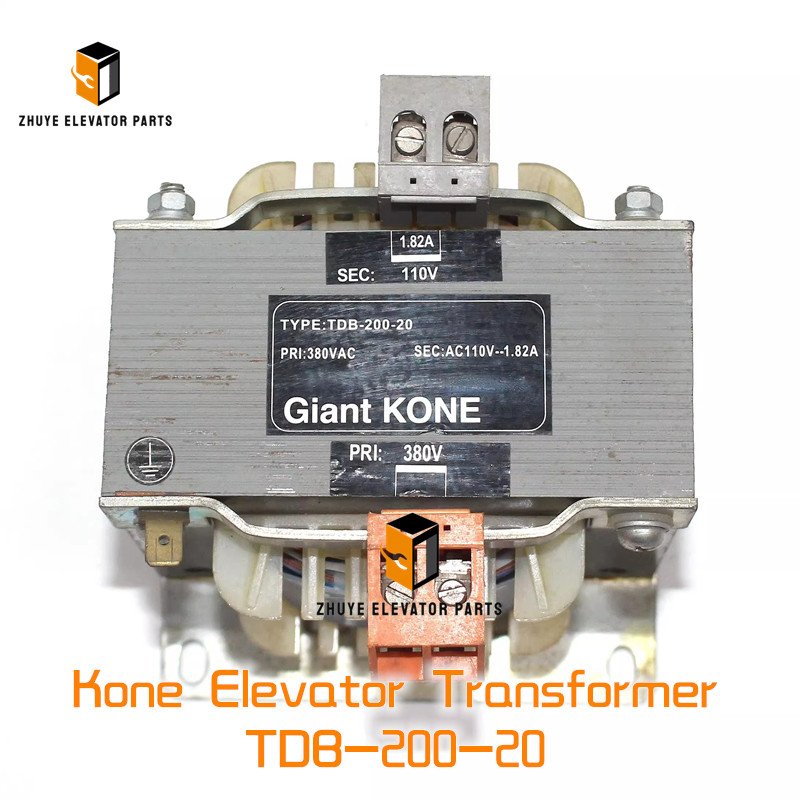

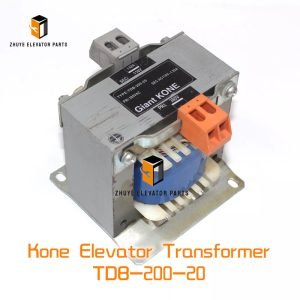

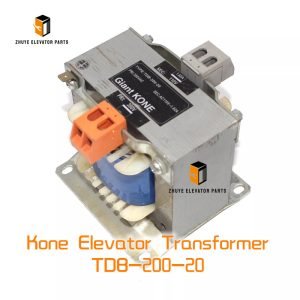

Kone Elevator Transformer TDB-200-20 Brief introduction

Brand	Original
Name	Kone Elevator Transformer
Goods No.	TDB-200-20 TDB-200-26
MOQ	1
Warranty Time	1 year
Certificates	ISO9001
Brand	KONE

Kone Elevator Transformer TDB-200-20: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Kone Elevator Transformer TDB-200-20 is a foundational electrical component engineered to deliver stable, regulated power for Kone elevator systems. As a key part of the elevator’s electrical infrastructure, this 200VA-rated transformer converts high-voltage input (typically 220V/380V AC) into precise low-voltage output (e.g., 24V DC/AC) required for critical components like control boards, safety sensors, intercoms, and door operators. Reliable power transformation is essential for elevator safety, operational consistency, and compliance with global standards (EN 81, IEC 61558, ISO 9001). For elevator maintenance teams, property managers, and facility operators, mastering the correct usage, installation, and replacement timelines of the TDB-200-20 is vital to minimize downtime, avoid electrical hazards, and ensure seamless elevator performance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Kone components, delivers the TDB-200-20 transformer that meets Kone’s original manufacturing specifications, guaranteeing full compatibility, efficient power conversion, and long-term reliability for Kone elevator systems.

Proper Usage Methods of Kone Elevator Transformer TDB-200-20

1. Pre-Installation Preparation

Before installing the TDB-200-20 transformer, prioritize safety by shutting off the elevator’s main power supply and securing the control panel with a lockout tag to prevent electrical shock. Inspect the transformer for physical damage—such as dented casings, loose terminal blocks, frayed wiring, or corrosion—defects that can cause short circuits, voltage irregularities, or fire risks. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each TDB-200-20 unit arrives in optimal condition, with intact windings, secure terminals, and no manufacturing flaws. Additionally, verify compatibility with your Kone elevator model by cross-referencing the elevator’s technical manual or consulting Nanjing Zhuye’s technical support team—ensure the transformer’s input/output voltage ratings, power capacity (200VA), and mounting dimensions match your system’s requirements.

2. Installation & Operation Steps

Mounting the Transformer:
- Locate the designated installation bracket in the elevator’s control cabinet—typically marked with voltage or model identifiers.
- Position the TDB-200-20 on the bracket, ensuring it is level and aligned with the mounting holes. Secure it using the provided bolts, torquing them to the manufacturer’s recommended value (1.5–2.0 Nm) to minimize vibration during operation. Excessive vibration can loosen connections and degrade internal windings over time.
Wiring Connection:
- Follow the wiring diagram provided by Kone or Nanjing Zhuye to connect the transformer to the main power supply and downstream components. Key steps include:
  - Connect the high-voltage input wires (L1, L2, neutral) to the transformer’s input terminals, ensuring proper phase alignment and tight connections (loose wires can cause arcing or overheating).
  - Attach the low-voltage output wires to the corresponding terminals (e.g., 24V DC for control boards, 12V AC for sensors), matching the polarity marked on the transformer casing.
  - Use insulated cable glands to secure wiring entries, preventing dust, moisture, or debris from entering the transformer housing. Label all wires clearly to simplify future maintenance or troubleshooting.
Safety & Insulation Checks:
- Test the transformer’s insulation resistance using a megohmmeter (minimum 10 MΩ at 500V DC) to ensure no electrical leakage between windings or the casing.
- Inspect all wiring for proper insulation—damaged insulation can lead to short circuits or electrical hazards. Ensure wires are routed away from high-temperature components (e.g., resistors, motors) to prevent insulation melting.
Functional Testing:
- Restore power to the elevator and conduct a comprehensive performance test:
  - Use a multimeter to verify the output voltage matches the rated specification (±5% tolerance is acceptable for most elevator systems).
  - Operate the elevator through full cycles (ascending, descending, door opening/closing) to confirm stable power supply to all connected components—no flickering lights, unresponsive controls, or sensor errors.
  - Monitor the transformer’s surface temperature during operation; normal operating temperature should not exceed 85°C. Overheating indicates a potential issue with wiring, overload, or internal component damage.

3. Routine Usage Maintenance

To preserve the TDB-200-20’s performance and extend its lifespan, implement these routine practices:

Conduct monthly visual inspections to check for loose terminals, damaged wiring, or signs of overheating (e.g., discolored casing, melted insulation, or burning odors).
Clean the transformer and control cabinet quarterly to remove dust and debris—accumulated dust blocks ventilation, leading to overheating and component degradation.
Test the output voltage semi-annually to ensure stability; consistent fluctuations (exceeding ±10%) may indicate early signs of internal winding wear.
Inspect the transformer’s cooling system (if equipped) annually to ensure unobstructed airflow—proper ventilation is critical for heat dissipation.

Recommended Replacement Cycle

The service life of the Kone Elevator Transformer TDB-200-20 depends on operating conditions (voltage stability, load capacity, environmental factors) and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise, the following replacement guidelines are recommended:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, stable input voltage, moderate load), the TDB-200-20 should be replaced every 7–10 years. This timeframe accounts for the gradual deterioration of internal windings, insulation materials, and terminal connections—ensuring the transformer maintains efficient power conversion and compliance with global safety standards. Proactive replacement reduces the risk of sudden power failure, which can lead to costly elevator downtime and safety hazards for passengers.

2. Signs That Require Immediate Replacement

Replace the transformer immediately if you encounter any of the following issues:

Persistent voltage fluctuations (exceeding ±10% of the rated output) that cannot be resolved by adjusting the input power or troubleshooting wiring.
Unusual operational noises (e.g., loud humming, buzzing, or cracking sounds)—indicative of loose internal windings, core damage, or partial discharge.
Overheating (surface temperature exceeding 90°C) or burning odors—signs of insulation breakdown, which poses fire risks and requires immediate shutdown.
Physical damage, such as oil leaks (for oil-immersed models), cracked casing, or corroded terminals that cannot be repaired.
Frequent failures of connected elevator components (e.g., control boards, sensors, intercoms) linked to unstable power supply from the transformer.

3. Maintenance to Extend Service Life

To maximize the TDB-200-20’s lifespan, adopt these proactive maintenance measures:

Ensure the control cabinet is kept at a stable temperature (15–35°C) and low humidity to prevent insulation degradation and corrosion.
Protect the transformer from voltage spikes and surges by installing surge protectors in the elevator’s main power system.
Avoid overloading the transformer—ensure the total power consumption of connected components does not exceed the transformer’s rated capacity (200VA, refer to the product label for details).
Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit components can compromise safety, performance, and compliance with industry standards.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the Kone Elevator Transformer TDB-200-20, Nanjing Zhuye Elevator Parts offers unmatched advantages for elevator professionals:

Authenticity & Compatibility: All TDB-200-20 transformers are manufactured to Kone’s original specifications, ensuring full compatibility with Kone elevator systems and adherence to global safety certifications (EN 81, IEC 61558, ISO 9001).
Strict Quality Assurance: Each unit undergoes comprehensive testing—including voltage stability, insulation resistance, temperature endurance, and durability—to guarantee reliable operation in critical scenarios.
Expert Technical Support: Nanjing Zhuye’s team of certified engineers provides 24/7 assistance, from installation guidance and wiring advice to load calculation and troubleshooting, ensuring a smooth user experience.
Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers orders promptly to locations worldwide, minimizing elevator downtime and ensuring timely maintenance.
Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you reduce maintenance costs while maintaining safety and operational efficiency.

Conclusion

The Kone Elevator Transformer TDB-200-20 is a foundational component that ensures stable, reliable power supply for critical elevator systems—directly impacting passenger safety, operational consistency, and maintenance costs. By following proper usage methods, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your Kone elevators remain compliant, efficient, and downtime-free. Whether you need a replacement transformer, technical support, or customized solutions, Nanjing Zhuye is committed to delivering premium elevator parts and professional services tailored to your needs. Invest in safety and reliability—choose Nanjing Zhuye Elevator Parts for your Kone TDB-200-20 transformer requirements.
