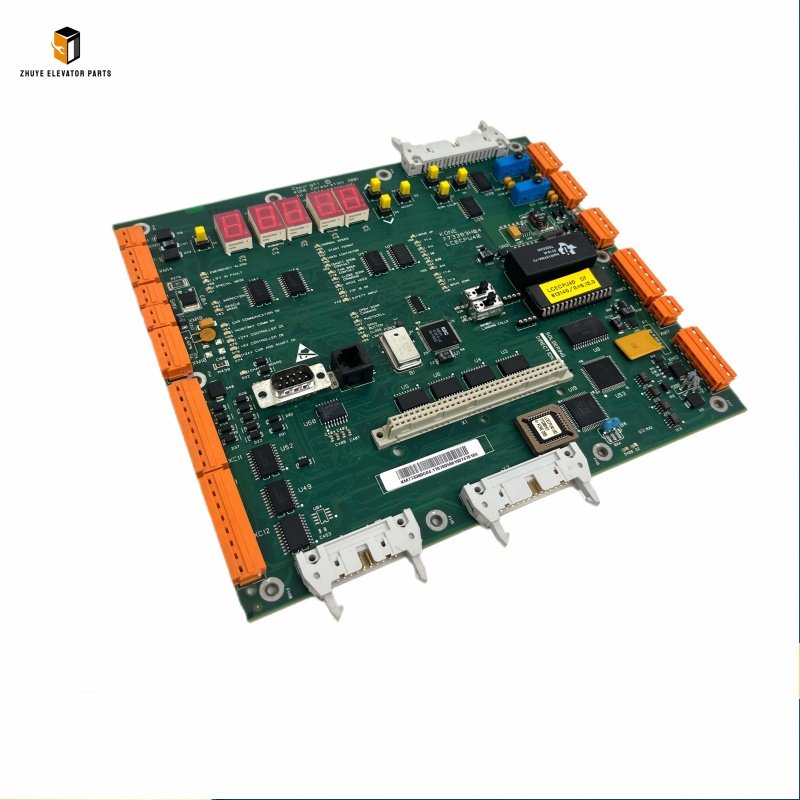

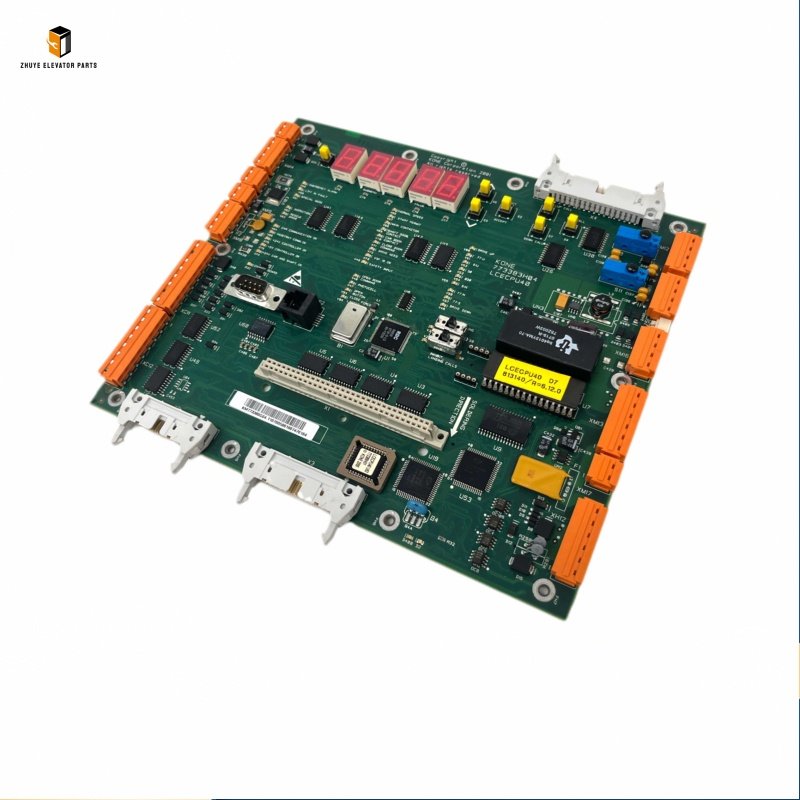

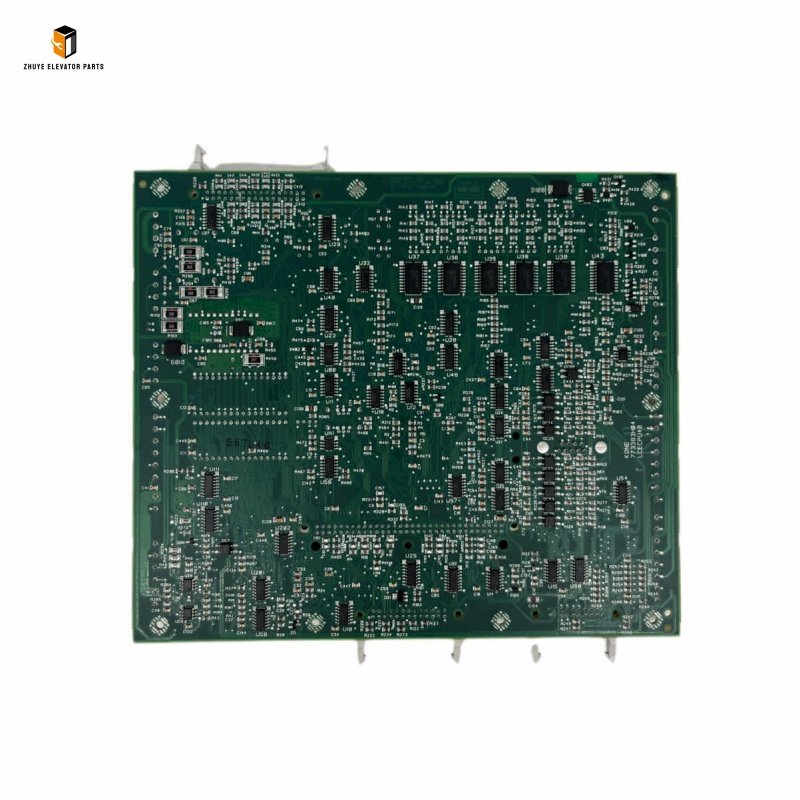

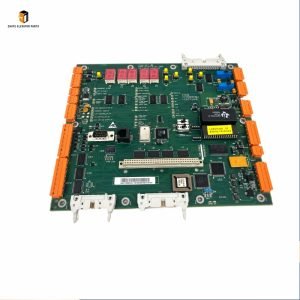

KONE elevator main board LCECPU40 KM773380G04 Brief Introduction
|
Product Name |
KONE elevator main board |
| Model Number | LCECPU40
KM773380G04 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Nanjing Zhuye Elevator Parts: KONE LCECPU40 Main Board KM773380G04 – Core Control for Elevator Performance
Elevator operational efficiency and safety rely on advanced main control boards, and the KONE Elevator Main Board LCECPU40 KM773380G04 stands as the “brain” of KONE’s elevator control systems. This high-performance CPU board coordinates all critical elevator functions – including car movement, floor leveling, door operation, and safety interlock monitoring – ensuring seamless, reliable performance for commercial and residential KONE elevators. Nanjing Zhuye Elevator Parts, a globally trusted supplier of premium elevator components, proudly offers KONE-compatible LCECPU40 KM773380G04 main boards, engineered to match the exacting technical specifications and reliability standards of KONE’s original equipment. This article provides a comprehensive guide to the product’s features, proper usage methods, replacement cycles, and why Nanjing Zhuye Elevator Parts is the preferred choice for KONE elevator professionals worldwide.
Product Overview: KONE LCECPU40 Main Board KM773380G04 by Nanjing Zhuye Elevator Parts
The KONE LCECPU40 Main Board KM773380G04 is a dedicated central processing unit designed exclusively for KONE elevator control systems, compatible with popular KONE models (including MiniSpace, MonoSpace, and TranSys series). As the core of KONE’s LCE (Lift Control Equipment) platform, it features a 32-bit microprocessor for fast data processing, integrated communication ports (CANopen, RS485) for seamless connectivity with peripheral boards (e.g., door control, safety circuit), and non-volatile memory for storing elevator parameters and fault logs. The board’s modular design adheres to KONE’s original form factor, ensuring plug-and-play compatibility without modifying the control cabinet or wiring harness.
At Nanjing Zhuye Elevator Parts, quality and precision are non-negotiable. The LCECPU40 KM773380G04 main board features an industrial-grade PCB with gold-plated traces for corrosion resistance, high-temperature resistant capacitors (125°C rating) for voltage stability, and shielded communication interfaces to prevent electromagnetic interference. Each board undergoes rigorous quality control, including functional testing with KONE’s LCE software, signal integrity validation, and environmental endurance trials (operating range: -10°C to 60°C), complying with KONE’s internal standards, ISO 9001, and CE. This commitment to excellence ensures the board delivers consistent performance, minimizing downtime and maintaining KONE’s signature smooth elevator operation.
How to Use the KONE LCECPU40 Main Board KM773380G04
Proper installation, configuration, and calibration are critical to ensuring compatibility with KONE’s control system and maximizing performance. Follow these professional guidelines for effective use:
Installation Steps
- Safety Preparation: Before installation, shut off the elevator’s main power supply and disconnect the control cabinet power. Implement LOTO (Lockout/Tagout) procedures to prevent electrical hazards. Wear an anti-static wristband, insulating gloves, and safety glasses to protect sensitive electronic components from static damage and injury.
- Remove the Old Board: Locate the existing LCECPU40 KM773380G04 board in the KONE control cabinet (typically mounted on the backplane with a locking lever). Take detailed photos of all wiring connections, jumper settings, and module positions – note the labels of each connector (e.g., X1, X2 for power; X10, X11 for communication) to ensure correct reconnection. Disconnect the power cables and communication harnesses gently, then release the locking lever to remove the old board from the backplane.
- Prepare the Mounting Area: Clean the backplane connectors with a dry, lint-free cloth to remove dust or debris. Inspect the connectors for bent pins or corrosion (straighten minor bends with a precision tool or replace the backplane if damaged) to ensure reliable electrical contact. Verify the control cabinet’s ventilation system is functioning to prevent overheating.
- Install the New Board: Align the Nanjing Zhuye Elevator Parts LCECPU40 KM773380G04 board with the backplane guides, ensuring the edge connector fully seats into the backplane socket. Lock the board in place using the integrated lever. Reconnect the power cables, communication harnesses, and peripheral module connectors according to the photos – ensure each connector clicks into place to avoid loose connections.
- Configure and Test: Restore power to the control cabinet (follow KONE’s power-up sequence: main power → control power). Access KONE’s LCE Tools software via the service port to verify the board is recognized. Upload the elevator’s original parameter file (saved from the old board) to the new CPU – this includes floor heights, speed settings, and safety parameters. Conduct a comprehensive test: run the elevator through 20+ full cycles, checking floor leveling accuracy (±2mm), door operation smoothness, and safety interlock response. Confirm no fault codes (e.g., E01 for CPU communication, E02 for parameter mismatch) appear on the KONE service panel.
Usage Precautions
- Parameter Backup: Always back up the old board’s parameters before replacement. Lost or incorrect parameters can cause elevator malfunctions or safety hazards.
- Anti-Static Handling: Store the board in an anti-static bag when not in use. Never touch exposed circuits or connectors with bare hands, as static electricity can damage the microprocessor.
- Voltage Compatibility: Ensure the control cabinet’s power supply matches the board’s requirements (24V DC ±10%) – using the wrong voltage can burn out the board’s power module.
- Software Compatibility: Use only KONE-approved LCE Tools software versions for configuration. Outdated software may cause parameter mismatches or communication failures.
Replacement Cycle of KONE LCECPU40 Main Board KM773380G04
The replacement cycle depends on usage intensity, environmental conditions, and maintenance practices. Follow these KONE-specific guidelines:
General Timeline
- High-Traffic Areas: Shopping malls, airports, or high-rise buildings (KONE elevators operating 12+ hours daily, 1,000+ cycles per day) – replace every 7-9 years. Continuous data processing and power cycling accelerate component aging.
- Medium-Traffic Areas: Residential buildings, hotels, or offices (8-10 hours daily, 500-1,000 cycles per day) – replace every 9-11 years.
- Low-Traffic Areas: Villas, industrial facilities, or low-occupancy buildings (4-6 hours daily, 00 cycles per day) – replace every 11-13 years, with annual software and parameter checks.
Signs of Replacement Need
Replace the main board immediately if:
- Persistent Fault Codes: Recurring “CPU communication error,” “parameter corruption,” or “processor failure” codes (e.g., E01, E03, E05 on KONE LCE displays) that persist after software resets.
- Operational Failures: Elevator fails to start, exhibits erratic movement, or cannot complete floor leveling – indicating processor or memory module degradation.
- Physical Damage: Burnt components, swollen capacitors, or corrosion on the PCB – common in control cabinets exposed to humidity or power surges.
- Boot Failure: The board fails to initialize (no LED activity on the status indicators) or enters a continuous reboot loop.
- Incompatible Software Updates: The board cannot support KONE’s latest firmware updates, limiting access to critical safety or performance enhancements.
Importance of Timely Replacement
A faulty LCECPU40 KM773380G04 main board can disable the entire elevator system or compromise safety, leading to costly downtime, passenger entrapment, or non-compliance with safety regulations. Timely replacement ensures consistent elevator performance, maintains KONE’s safety standards, and prevents secondary damage to peripheral components (e.g., door control boards, safety relays).
Why Choose Nanjing Zhuye Elevator Parts’ LCECPU40 KM773380G04?
Nanjing Zhuye Elevator Parts stands out as a trusted partner for KONE elevator maintenance:
- 1:1 KONE Compatibility: Engineered to match KONE’s original hardware and software specifications, ensuring seamless integration with existing LCE control systems.
- KONE-Grade Reliability: Manufactured with industrial-grade components and precision assembly, delivering the same durability as KONE’s OEM boards.
- Rigorous Quality Assurance: 100% pre-delivery testing, including functional validation with KONE’s LCE software and long-term stability trials.
- Expert KONE Support: Our team of engineers specializes in KONE control systems, providing professional guidance on installation, parameter configuration, and troubleshooting.
- Fast Delivery: We maintain a large inventory of KONE-compatible main boards to fulfill emergency replacement orders within 24-48 hours, minimizing elevator downtime.
Whether you’re an elevator maintenance firm specializing in KONE, a building manager with KONE elevators, or a service engineer, the KONE LCECPU40 Main Board KM773380G04 from Nanjing Zhuye Elevator Parts delivers the performance, compatibility, and reliability you need. Invest in a product that prioritizes KONE elevator efficiency and passenger safety – choose Nanjing Zhuye Elevator Parts for your KONE elevator component needs.
