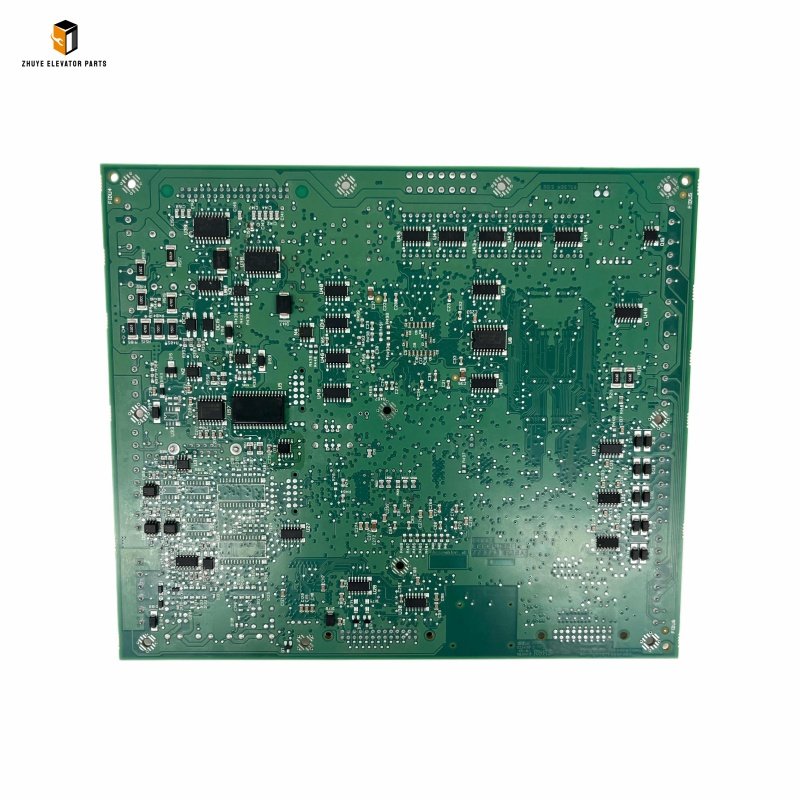

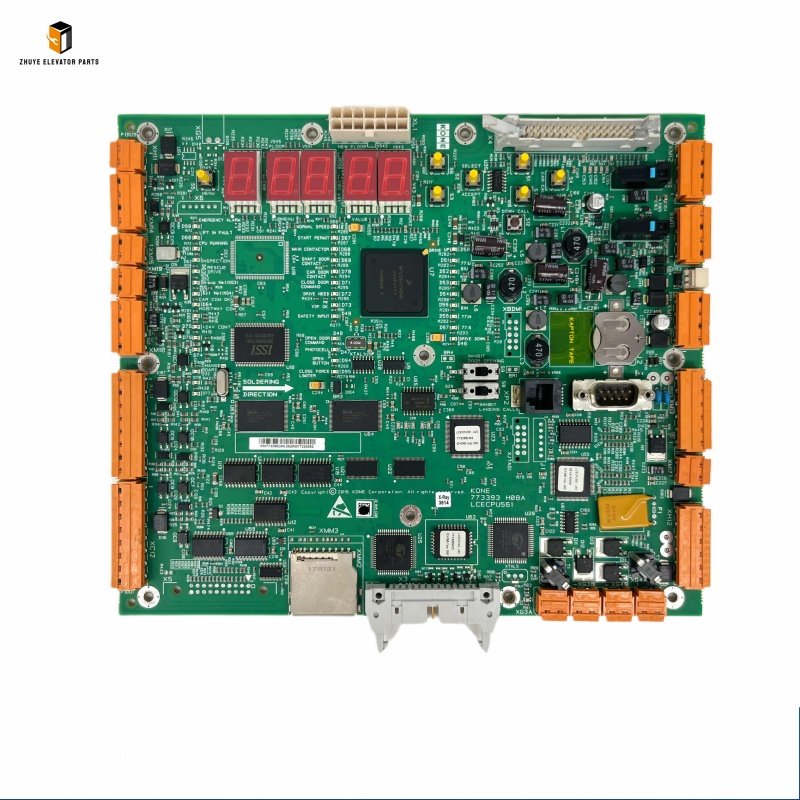

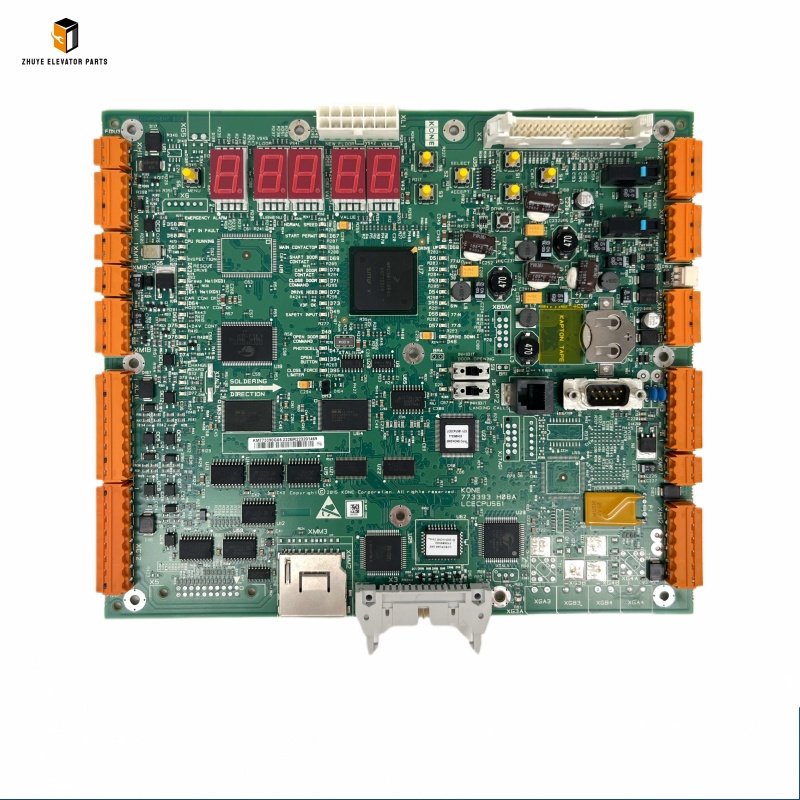

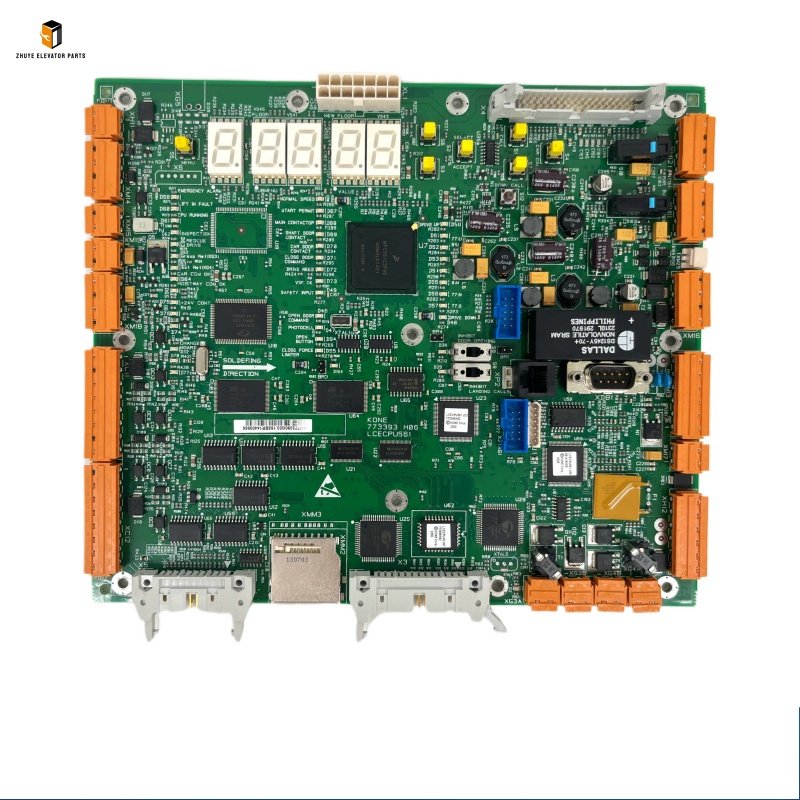

KONE elevator LCECPU561 main board KM773390G03/G04/G05 Brief Introduction

Product Name	KONE elevator LCECPU561 main board
Model Number	KM773390G03 KM773390G04 KM773390G05
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

G05: Core Control & Maintenance Guide by Nanjing Zhuye Elevator Parts

In the digital heart of modern KONE elevators, the LCECPU561 main board serves as the central processing unit—or “brain”—orchestrating all critical operations, from elevator movement and door control to safety protocols and system communication. The KONE LCECPU561 Main Board series, including models KM773390G03, KM773390G04, and KM773390G05, stands as a benchmark of precision, reliability, and compatibility, engineered to meet KONE’s rigorous quality standards for diverse elevator configurations. As a trusted global supplier of genuine elevator components, Nanjing Zhuye Elevator Parts is proud to offer these high-performance main boards, supporting maintenance, upgrades, and new installations for commercial buildings, residential towers, hospitals, and public facilities worldwide.

Product Overview: KM773390G03/G04/G05 LCECPU561 Main Boards

The LCECPU561 series (KM773390G03/G04/G05) is designed as the core control unit for KONE elevators, unifying seamless functionality across different use cases. While sharing the same foundational architecture—managing traction motor operations, floor positioning, safety interlocks, and user input processing—each model is optimized for specific elevator capacities and features. The G03 caters to standard residential elevators, the G04 to mid-capacity commercial elevators, and the G05 to high-traffic, high-rise applications with advanced features like destination dispatch.

Crafted with industrial-grade electronic components and a rugged, anti-interference circuit design, these main boards resist voltage fluctuations, electromagnetic interference, and temperature variations—critical for stable performance in demanding environments. Nanjing Zhuye Elevator Parts sources the series directly from authorized KONE manufacturers, guaranteeing 100% authenticity and perfect compatibility with specified KONE elevator systems. Each unit undergoes rigorous quality inspections, including functionality tests, signal accuracy verifications, and compliance with international safety standards such as EN 81 and ISO 9001.

How to Use the KM773390G03/G04/G05 LCECPU561 Main Boards

As the most critical control component in an elevator system, the LCECPU561 main board requires professional handling for installation, operation, and maintenance. Below is a detailed usage guide:

Professional Installation: Certified elevator technicians must perform installation. First, power off the entire elevator system and disconnect the main power supply to avoid electrical hazards. Mount the board securely in the designated control cabinet slot, aligning with pre-drilled holes. Connect wiring harnesses to corresponding ports according to KONE’s technical schematics, ensuring all connectors are fully seated and insulated to prevent short circuits.
System Configuration & Calibration: Post-installation, technicians use KONE’s dedicated diagnostic software to configure the board. This involves inputting elevator parameters (capacity, floor count, speed), calibrating floor positioning sensors, and verifying communication with subordinate components (door operators, display panels, safety circuits). Nanjing Zhuye Elevator Parts recommends a full system test to ensure smooth coordination between all functions, including emergency stop and overload protection.
Routine Operational Checks: Maintenance personnel should conduct regular inspections during scheduled service. Monitor the board’s indicator lights—steady green indicates normal operation, while flashing or red lights signal system faults. Access the diagnostic interface to review error codes, which help identify issues like wiring failures, sensor malfunctions, or communication breakdowns with other components.
Emergency Troubleshooting: For temporary system disruptions, trained technicians can perform a soft reset by powering off the elevator for 10 minutes and restarting. Persistent faults require cross-referencing error codes with KONE’s technical manual to isolate root causes. Never attempt to modify the board’s circuitry, rewrite firmware, or disconnect wiring without professional authorization.

Nanjing Zhuye Elevator Parts emphasizes that improper installation or unauthorized tampering can disable critical safety functions, leading to elevator downtime or severe safety risks. All operations must be performed by qualified professionals familiar with KONE’s LCE control system.

Recommended Replacement Cycle for KM773390G03/G04/G05

The service life of the LCECPU561 main board depends on usage frequency, environmental conditions, and maintenance quality. Nanjing Zhuye Elevator Parts provides the following replacement guidelines:

Standard Usage Scenarios: For residential buildings or low-traffic commercial spaces (300-600 daily operations), the boards typically have a service life of 7-10 years. Regular dust removal, ventilation checks, and system diagnostics can extend this cycle by 1-2 years.
High-Traffic Environments: In shopping malls, airports, or high-rise office buildings with over 1,200 daily operations, the replacement cycle shortens to 5-7 years. Frequent data processing, power cycles, and continuous communication with peripheral components accelerate wear on electronic components.
Environmental Considerations: Elevators in harsh conditions—high humidity, dust, extreme temperatures, or coastal areas with salt air—require more frequent replacements (every 4-6 years). These environments can corrode circuit traces, damage capacitors, or degrade connector pins.
Signs of Urgent Replacement: Key indicators include persistent, unresolvable error codes; intermittent elevator shutdowns; inaccurate floor positioning; unresponsive door operations; or visible damage (burnt resistors, bulging capacitors, or corroded ports). Ignoring these signs can lead to complete system failure and costly downtime.

Nanjing Zhuye Elevator Parts advises scheduling annual maintenance inspections to assess the board’s condition, ensuring early detection of issues and minimizing operational disruptions.

Why Choose Nanjing Zhuye Elevator Parts for KM773390G03/G04/G05

When sourcing the core control component of an elevator system, partnering with a reliable supplier is non-negotiable. Nanjing Zhuye Elevator Parts earns global trust for these reasons:

Genuine Product Guarantee: We provide 100% authentic KONE LCECPU561 main boards, eliminating the risk of counterfeit parts that compromise compatibility, performance, and safety.
Technical Expertise: Our team of elevator control system specialists offers professional guidance on product selection, installation, configuration, and troubleshooting.
Rigorous Quality Control: Every unit undergoes strict testing to verify functionality, signal transmission accuracy, and durability, adhering to international safety and performance standards.
Efficient Global Logistics: With a robust supply chain network, we deliver products to over 60 countries, ensuring timely delivery to support maintenance and installation schedules.

The KONE LCECPU561 Main Board KM773390G03/G04/G05 is the lifeline of elevator operation, ensuring safe, smooth, and efficient vertical transportation. By choosing Nanjing Zhuye Elevator Parts as your supplier, you gain access to genuine parts, expert technical support, and a commitment to quality that aligns with your operational goals.

Whether you’re a building manager, elevator maintenance company, or equipment manufacturer, these main boards deliver the reliability, precision, and longevity required to keep elevators running seamlessly. Contact Nanjing Zhuye Elevator Parts today to learn more about our product range and secure tailored solutions for your elevator component needs.
