Description
Kone Elevator Door Sensor FCU0735 Brief introduction
| Kone Elevator Door Sensor FCU0735 | |
| Brand | Original |
| Model | Door sensor |
| Goods No. | FCU0735RX FCU0735TX |
| MOQ | 1 |
| Warranty Time | 1 year |
| Certificates | ISO9001 |
| Brand | Xizi Otis Thyssen KONE |

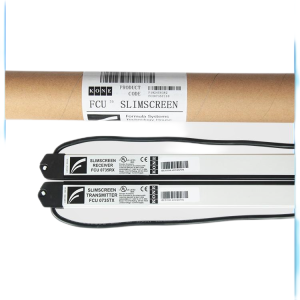

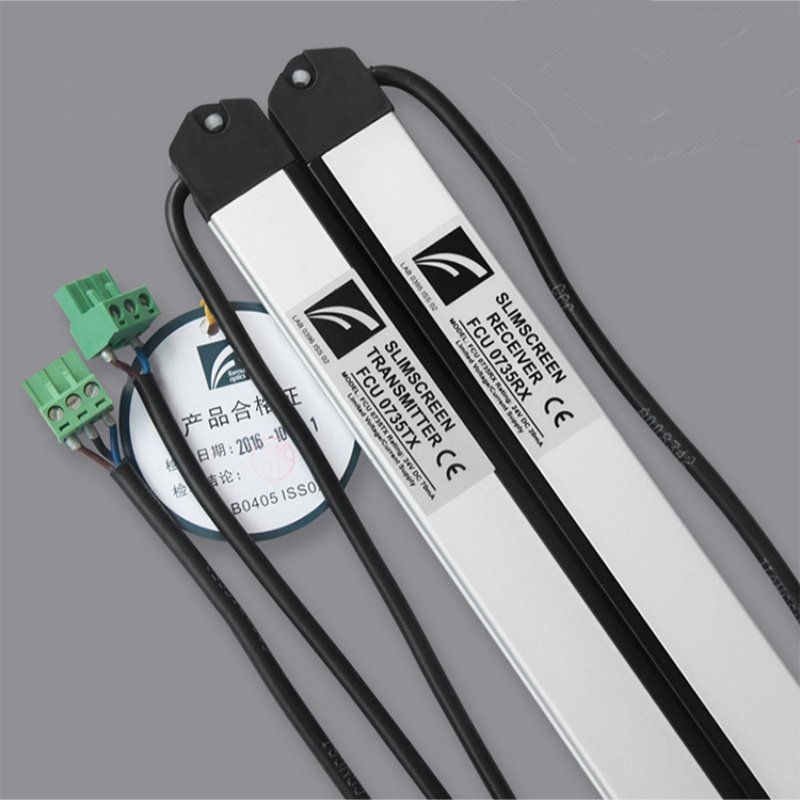

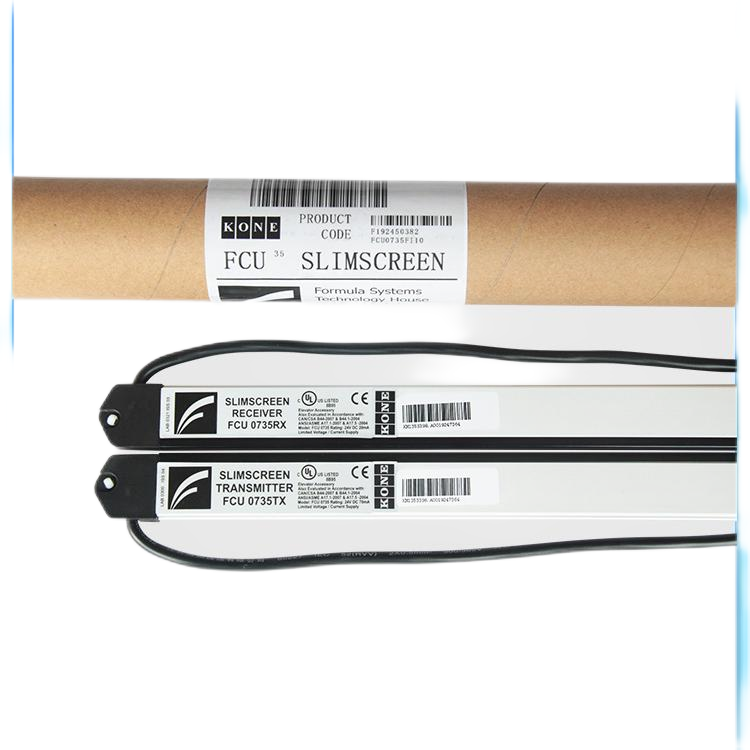

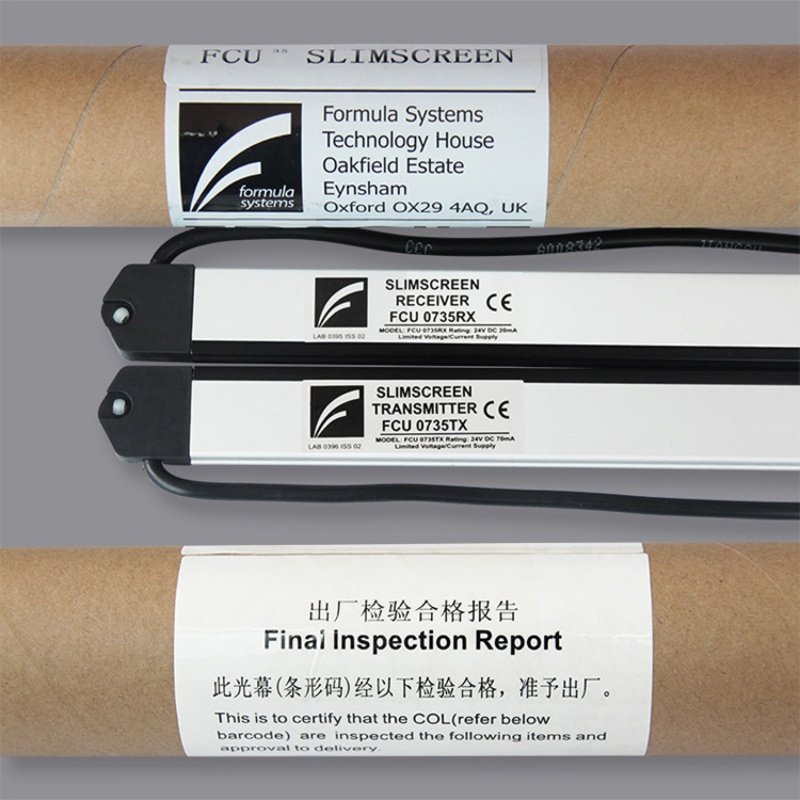

Kone Elevator Door Sensor SLIMSCREEN RECEIVER Light Curtain FCU0735: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Kone Elevator Door Sensor SLIMSCREEN RECEIVER Light Curtain FCU0735 is a mission-critical safety component exclusively engineered for Kone elevator systems—indispensable for commercial high-rises, residential complexes, public transit facilities, and office buildings worldwide. As the “obstacle detection backbone” for Kone’s modern elevator models (including MonoSpace, MiniSpace, and TranSys series), this slim-profile light curtain works in tandem with a transmitter to create an invisible infrared safety barrier across elevator doorways. It instantly detects passengers, objects, or debris in the door path and triggers an immediate door reversal or stop—preventing entrapment, crushing, or pinching hazards. The FCU0735 integrates Kone’s proprietary technology: high-density infrared LED arrays (up to 40 beams), anti-interference signal processing, and durable slimline housing—upholding the brand’s strict standards for safety, responsiveness, and operational reliability.
Compliant with global safety and electronic standards (EN 81-20, EN 954-1, ISO 13849-1, UL 1998), the SLIMSCREEN RECEIVER FCU0735 features a rugged, wear-resistant construction: impact-resistant polycarbonate housing, IP54-rated dust and moisture protection, anti-glare optical lenses, and corrosion-resistant mounting brackets. This design withstands 24/7 operation in elevator doorways, enduring temperature fluctuations (-10°C to +50°C), mechanical vibration from door movement, and exposure to cleaning chemicals or environmental contaminants—critical for uninterrupted safety monitoring. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, calibration, and replacement timelines of this light curtain is vital to ensuring regulatory compliance, passenger safety, and liability mitigation. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Kone components, delivers the FCU0735 that meets Kone’s original manufacturing specifications—guaranteeing seamless compatibility, precise detection, and long-term durability.
Proper Usage Methods of Kone SLIMSCREEN RECEIVER Light Curtain FCU0735
1. Pre-Installation Preparation
Before installation, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the work area (elevator car doorway or landing door frame) with warning signs. Inspect the new FCU0735 for physical damage—such as cracked housing, scratched lenses, damaged connectors, or faulty infrared arrays—defects that can impair detection accuracy or signal transmission. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact housing, clear lenses, functional LED arrays, and tested signal reception.
Verify compatibility with your Kone elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure two key details align: (1) the light curtain’s slim profile (typically 20mm thickness) fits the elevator’s door frame dimensions, and (2) the electrical specifications (input voltage: 24V DC, signal output: NPN/PNP) match the elevator’s door control system. Using an incompatible light curtain can result in false triggers, failed detection, or door system malfunctions. Additionally, prepare the installation area: clean the door frame mounting surface to remove dust, debris, or old adhesive, and inspect the corresponding transmitter unit (paired with FCU0735) for wear—replace the transmitter if necessary to ensure synchronized operation.
2. Installation & Calibration Steps
- Mounting the Receiver:
- Align the FCU0735 vertically on the elevator car door frame (or landing door frame) using the provided mounting brackets and screws (torque to 1.0–1.5 Nm). Ensure the receiver is parallel to the paired transmitter (mounted on the opposite door frame) with a maximum alignment deviation of ±2mm—misalignment can cause signal loss. Maintain a clear line of sight between receiver and transmitter, free from obstructions or reflective surfaces.
- If replacing an old receiver, remove the existing unit by disconnecting the electrical connector and unfastening the mounting screws. Take detailed photos of the old unit’s position and wiring to replicate during installation—consistent placement ensures accurate detection coverage.
- Electrical Connection:
- Connect the FCU0735’s electrical connector to the elevator’s door control harness, following Kone’s wiring schematic. Verify correct polarity (24V DC positive/negative) and signal output connections (normally open/normally closed) to avoid wiring errors. Use cable ties to secure the wiring and prevent contact with moving door components.
- Calibration & Function Testing:
- Restore power to the elevator (performed by certified Kone technicians only) and initiate the light curtain calibration process via the elevator’s control panel. The FCU0735 will automatically sync with the transmitter to establish the infrared safety barrier—confirm a solid green status LED (indicates normal operation).
- Conduct three critical tests:
- Obstacle Detection Test: Pass a hand, cardboard, or test rod through the door path at multiple heights (from floor to ceiling) to verify immediate door reversal—no delays or missed detections allowed.
- False Trigger Test: Expose the light curtain to bright sunlight, fluorescent lighting, or cleaning sprays to confirm no unintended door reversals—anti-interference technology should filter out external signals.
- Fault Simulation Test: Block the receiver lens partially to trigger a fault code—confirm the elevator’s control system logs the error and disables normal door operation (safety interlock).
- Document installation details, calibration results, and test logs in maintenance records to demonstrate compliance with Kone’s service requirements and safety regulations.
3. Routine Usage Maintenance
To preserve the FCU0735’s performance and extend its lifespan, implement these proactive maintenance practices:
- Daily Visual Inspections: Check the light curtain for physical damage, dirty lenses, or loose wiring. Verify the status LED is green (normal operation)—address red or flashing LEDs immediately (indicates fault).
- Weekly Lens Cleaning: Wipe the receiver lens with a soft, lint-free cloth and mild cleaning solution (avoid harsh chemicals) to remove dust, fingerprints, or smudges—dirty lenses can reduce detection range.
- Monthly Alignment Check: Use a laser level to confirm the receiver and transmitter remain parallel. Adjust mounting brackets if misalignment exceeds ±2mm—vibration from door movement can shift positions.
- Quarterly Connection Inspections: Tighten all electrical connectors and mounting screws. Test the wiring continuity with a multimeter—replace frayed or damaged cables with genuine Kone parts from Nanjing Zhuye.
- Annual Performance Test: Conduct a full obstacle detection test at varying door speeds and load conditions. Verify the light curtain’s response time (≤50ms) and detection range (full door width) meet Kone’s specifications.
Recommended Replacement Cycle
The service life of the Kone SLIMSCREEN RECEIVER Light Curtain FCU0735 depends on usage intensity (daily door cycles), environmental conditions, and maintenance quality. Based on Kone’s engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, regular cleaning, ambient temperature -10°C to +50°C), the FCU0735 should be replaced every 5–7 years. This timeframe accounts for gradual LED degradation, lens wear, and electronic component fatigue—proactive replacement avoids unexpected detection failures.
2. Signs That Require Immediate Replacement
Replace the light curtain immediately if you encounter any of the following issues:
- Detection Failures: Missed obstacles in the door path, delayed door reversals, or failure to trigger safety interlocks—posing entrapment or crushing risks.
- False Triggers: Unintended door reversals during normal operation, caused by degraded anti-interference technology or damaged LEDs.
- Physical Damage: Cracked housing, shattered lenses, or water intrusion—compromising signal integrity and safety performance.
- Electrical Issues: Faulty status LEDs, no power response, or persistent error codes that cannot be resolved with troubleshooting.
- Performance Degradation: Reduced detection range (≤80% of original), slow response time (>100ms), or inconsistent barrier formation.
3. Maintenance to Extend Service Life
- Environmental Control: Protect the light curtain from excessive moisture, dust, or extreme temperatures. Use door frame seals to prevent water intrusion in humid environments.
- Cleaning Best Practices: Avoid abrasive materials or harsh chemicals when cleaning lenses—use Kone-approved cleaning solutions or isopropyl alcohol.
- Mechanical Protection: Install protective covers (if not factory-fitted) to shield the receiver from physical impact or debris.
- Genuine Parts Only: For replacements or repairs, use exclusively authentic Kone SLIMSCREEN RECEIVER FCU0735 light curtains and components from Nanjing Zhuye. Counterfeit units use inferior LEDs and lack anti-interference technology—risking passenger safety.
Why Choose Nanjing Zhuye Elevator Parts for Kone FCU0735?
When sourcing the Kone Elevator Door Sensor SLIMSCREEN RECEIVER Light Curtain FCU0735, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:
- Authenticity & Compatibility: All units are genuine Kone components, ensuring seamless integration with Kone MonoSpace, MiniSpace, and TranSys elevator models.
- Strict Quality Assurance: Each light curtain undergoes rigorous testing (detection accuracy, anti-interference performance, environmental resilience) to meet Kone’s original manufacturing standards.
- Expert Technical Support: Certified engineers provide 24/7 assistance for installation, calibration, troubleshooting, and maintenance—even for complex door safety systems.
- Global Efficient Delivery: Fast shipping to worldwide locations minimizes elevator downtime, ensuring uninterrupted passenger safety.
- Competitive Pricing: Direct sourcing from Kone’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.
Conclusion
The Kone Elevator Door Sensor SLIMSCREEN RECEIVER Light Curtain FCU0735 is a foundational safety component that serves as the first line of defense against elevator door-related hazards. By following proper installation, calibration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can ensure Kone elevators remain compliant with global safety standards, reliable in operation, and safe for passengers. Whether you need a single replacement light curtain, technical support for safety system upgrades, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Kone components and tailored professional services. Invest in the safety and reliability of your Kone elevators—choose Nanjing Zhuye Elevator Parts for your FCU0735 light curtain requirements.
