Description

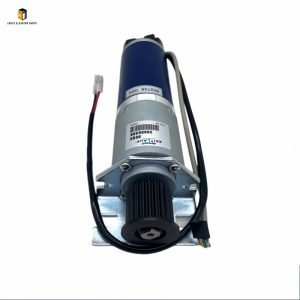

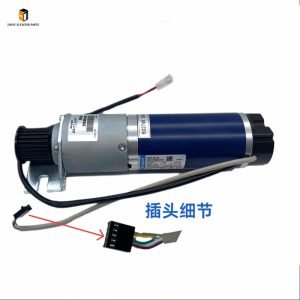

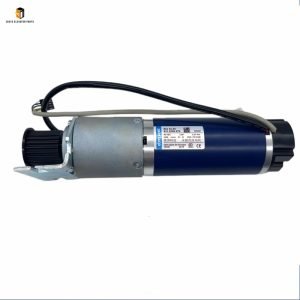

KONE elevator door motor KM602748G03/04 Brief Introduction
|
Product Name |
KONE elevator door motor |
| Model Number | KM602748G03
KM602748G04 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Nanjing Zhuye Elevator Parts: High-Performance KONE Elevator Door Motor KM602748G03/04 – Powering Smooth Door Operation
Elevator door motors are the driving force behind reliable door movement, directly influencing passenger safety, comfort, and operational efficiency. For KONE elevators, the KM602748G03 and KM602748G04 door motors are industry-leading components, renowned for their durability and precision. Nanjing Zhuye Elevator Parts, a trusted global supplier of premium elevator components, proudly offers KONE-compatible KM602748G03/04 door motors, engineered to meet the exacting standards of KONE’s elevator systems. This article provides a comprehensive guide to the product’s features, step-by-step usage instructions, replacement cycles, and why Nanjing Zhuye Elevator Parts is the preferred choice for elevator professionals worldwide.
Product Overview: KONE Elevator Door Motor KM602748G03/04 by Nanjing Zhuye Elevator Parts
The KONE Elevator Door Motor KM602748G03/04 is a specialized drive unit designed exclusively for KONE elevator door systems, with the two model variants (G03 and G04) catering to different KONE elevator series. KM602748G03 is optimized for KONE’s mid-range commercial and residential elevators, while KM602748G04 is tailored for high-traffic, high-performance KONE models, delivering enhanced torque and speed control. Both motors share core specifications that ensure seamless compatibility with KONE’s door machine assemblies, making them ideal for replacements, maintenance, and new installations.
At Nanjing Zhuye Elevator Parts, we prioritize engineering excellence and durability. The KM602748G03/04 door motors are constructed with high-grade materials, including a robust aluminum alloy housing for heat dissipation, precision copper windings for efficient power transmission, and sealed bearings for reduced friction and noise. Each motor undergoes rigorous quality control, including load testing, speed accuracy checks, and endurance trials, complying with international standards such as ISO and CE. This commitment to quality ensures the motors deliver consistent performance, low energy consumption, and resistance to wear, even in demanding operating environments.
How to Use the KONE Elevator Door Motor KM602748G03/04
Proper installation and operation are critical to maximizing the lifespan and performance of the KM602748G03/04 door motor. Follow these professional guidelines for safe and effective use:
Installation Steps
- Safety Preparation: Before installation, shut off the elevator’s main power supply and lock the control panel using LOTO (Lockout/Tagout) procedures. Wear insulating gloves, safety glasses, and protective footwear to prevent electric shock or injury.
- Remove the Old Motor: Locate the existing door motor in the elevator door machine assembly. Disconnect the power cables and signal wires from the motor terminal block – take photos of the wiring layout to ensure accurate reconnection. Loosen the fixing bolts or brackets securing the motor to the door machine frame and carefully remove the old motor.
- Inspect and Clean Mounting Area: Check the door machine frame for dust, debris, or corrosion. Clean the surface with a soft brush or cloth, and inspect the drive pulley or gear mechanism for wear (replace if damaged to avoid premature motor failure).
- Install the New Motor: Align the Nanjing Zhuye Elevator Parts KM602748G03/04 motor with the mounting holes on the door machine frame. Secure it firmly with the original bolts, ensuring the motor shaft is properly aligned with the drive pulley (misalignment can cause noise or damage).
- Reconnect Wiring: Refer to the photos taken earlier to connect the power cables and signal wires to the correct terminals on the new motor. Ensure connectors are tight and properly insulated to prevent short circuits. Double-check the wiring against KONE’s technical manual to avoid polarity errors.
- Calibrate and Test: Restore power to the elevator. Access the door system’s calibration mode (follow KONE’s diagnostic guidelines) to set the motor’s speed, torque, and door travel limits. Conduct a test run: operate the doors through multiple cycles, checking for smooth movement, consistent speed, and no abnormal noise. Verify that the doors open and close fully, and that the motor stops promptly when the doors reach their limits.
Usage Precautions
- Avoid Overloading: Operate the motor within its specified load capacity (refer to KONE’s technical specifications). Forcing the doors open/closed manually can strain the motor and damage internal components.
- Maintain Ventilation: Ensure the motor’s cooling vents are free of obstruction to prevent overheating. Avoid installing the motor in areas with excessive dust, moisture, or extreme temperatures (-10°C to 60°C is the optimal operating range).
- Regular Lubrication: Periodically lubricate the motor’s drive pulley or gear mechanism (as per KONE’s maintenance schedule) to reduce friction and extend motor life. Use only recommended lubricants to avoid damaging components.
- Do Not Modify the Motor: Never alter the motor’s wiring, terminals, or internal components – modifications can void the warranty and compromise elevator safety.
Replacement Cycle of KONE Elevator Door Motor KM602748G03/04
The replacement cycle of the KM602748G03/04 door motor depends on usage intensity, operating environment, and maintenance practices. Below are general guidelines:
General Replacement Timeline
- High-Traffic Environments: For elevators in shopping malls, airports, or office buildings (operating 12+ hours daily with frequent door cycles), the recommended replacement cycle is 4-5 years. Continuous use accelerates wear on the motor’s bearings and windings.
- Medium-Traffic Environments: Residential buildings, hotels, or small office complexes (8-10 hours daily usage) can extend the cycle to 5-7 years.
- Low-Traffic Environments: Elevators in villas, industrial facilities, or low-occupancy buildings (4-6 hours daily) may use the motor for 7-9 years, provided regular inspections are conducted.
Signs Indicating Replacement Is Needed
Replace the KM602748G03/04 motor immediately if you notice the following:
- Abnormal Noise: Grinding, squealing, or humming sounds during door operation, indicating worn bearings or damaged windings.
- Slow or Erratic Door Movement: Doors open/close sluggishly, jerk, or hesitate – a sign of reduced motor torque or electrical failure.
- Motor Overheating: The motor housing feels excessively hot to the touch (above 70°C) after normal operation, which can damage internal components.
- Electrical Issues: Frequent tripping of circuit breakers, flickering lights in the elevator, or error codes related to the door motor (e.g., “motor overload” or “signal loss”) on the controller.
- Visible Damage: Cracked motor housing, loose wiring, or signs of corrosion, which can lead to complete motor failure.
Importance of Timely Replacement
Delaying replacement of a faulty KM602748G03/04 motor can result in serious consequences, including elevator door malfunctions, passenger entrapment, extended downtime, and costly repairs to other door system components (e.g., gears, pulleys). Timely replacement ensures safe and efficient door operation, reduces maintenance costs, and extends the overall lifespan of the elevator system.
Why Choose Nanjing Zhuye Elevator Parts’ KONE Door Motor KM602748G03/04?
Nanjing Zhuye Elevator Parts is a trusted partner for elevator professionals, and our KM602748G03/04 door motors stand out for their quality and reliability:
- Perfect Compatibility: Engineered to match KONE’s original specifications, ensuring seamless integration with KONE elevator door systems without modifications.
- Superior Performance: High-grade materials and precision manufacturing deliver consistent torque, quiet operation, and energy efficiency.
- Rigorous Quality Control: Each motor undergoes comprehensive testing to meet or exceed industry standards, guaranteeing long-term reliability.
- Expert Technical Support: Our team of engineers provides professional guidance on installation, calibration, and troubleshooting, ensuring a smooth user experience.
- Efficient Supply Chain: We maintain a large inventory of KM602748G03/04 motors to fulfill orders promptly, minimizing elevator downtime for maintenance and replacement.
Whether you’re an elevator maintenance company, building manager, or KONE elevator owner, the KM602748G03/04 door motor from Nanjing Zhuye Elevator Parts delivers the performance and reliability you need. Invest in a product that prioritizes safety, efficiency, and durability – choose Nanjing Zhuye Elevator Parts for your KONE elevator component needs.
