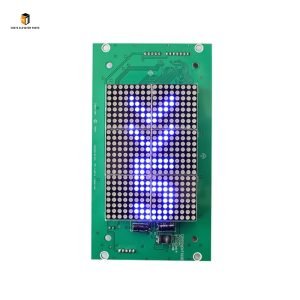

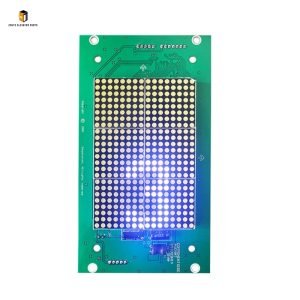

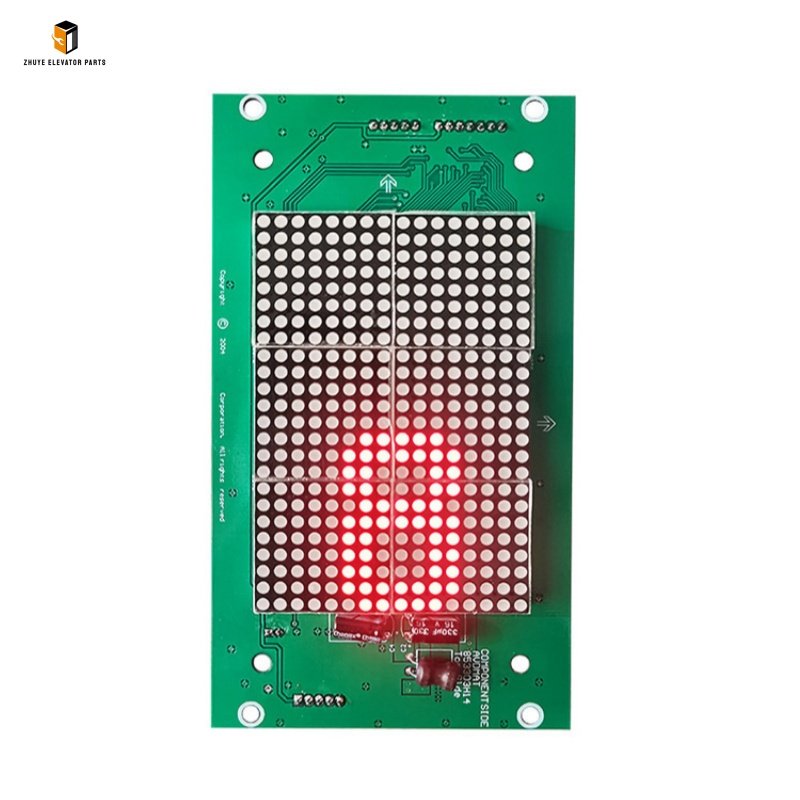

Description

1. Safety Preparation: Before installation, shut off the elevator’s main power supply and disconnect the car control panel power. Implement LOTO (Lockout/Tagout) procedures to prevent electrical hazards. Wear an anti-static wristband and insulating gloves to protect sensitive electronic components from static damage and injury.

2. Remove the Old Display Board: Locate the existing KM853300G01/G11 board in the elevator car panel (typically secured by hidden clips or screws behind the front bezel). Carefully pry off the bezel using a plastic pry tool (avoid metal tools to prevent scratches). Take detailed photos of the wiring connections – note the terminal labels (e.g., VCC, GND, CAN-H, CAN-L) and cable colors to ensure correct reconnection. Disconnect the wiring harness gently, then remove the fixing screws or release the clips to detach the old board.

3. Prepare the Mounting Area: Clean the mounting bracket and car panel cutout with a dry, lint-free cloth to remove dust or debris. Inspect the wiring harness for fraying or damage (replace if necessary) and verify the connector pins are straight and intact.

4. Install the New Board: Align the Nanjing Zhuye Elevator Parts KM853300G01/G11 board with the mounting bracket, ensuring the display is oriented correctly (floor numbers upright). Secure the board with the original screws (torque: 1.0-1.5 N·m) or snap it into place until the clips lock. Reconnect the wiring harness according to the photos, matching each wire to the correct terminal – push the connector until it clicks into place to avoid loose connections.

5. Test and Calibrate: Restore power to the car control panel and elevator. Verify the display initializes correctly: check that floor numbers, direction indicators, and door status lights update in real time as the elevator moves. Access KONE’s LCE Tools software via the main controller to confirm communication – ensure no “display communication error” codes appear. Test multi-language functionality (if applicable) and adjust brightness (for G11 variant) via the controller settings to match the car’s lighting conditions. Run 10+ floor cycles to confirm consistent performance with no flickering or frozen displays.

• Voltage Compatibility: Ensure the car control panel’s power supply matches the board’s requirements (12V DC ±10%) – using the wrong voltage can burn out the LED modules or control circuit.

• Anti-Static Handling: Store the board in an anti-static bag when not in use. Never touch the LED modules or exposed circuits with bare hands, as static electricity can cause permanent damage.

• Physical Protection: Avoid striking or scratching the front panel. Clean the display with a soft, damp cloth (no harsh chemicals) to maintain visibility and prevent panel damage.

• Wiring Integrity: Do not pull or twist the wiring harness, as this can disrupt communication with KONE’s control system or cause short circuits.

• High-Traffic Areas: Shopping malls, airports, or high-rise buildings (KONE elevators operating 12+ hours daily, frequent display updates) – replace every 5-7 years. Continuous LED illumination and power cycling accelerate component aging.

• Medium-Traffic Areas: Residential buildings, hotels, or offices (8-10 hours daily usage) – replace every 7-9 years.

• Low-Traffic Areas: Villas, industrial facilities, or low-occupancy buildings (4-6 hours daily usage) – replace every 9-11 years, with annual visibility and functionality checks.

• Display Malfunctions: Flickering LEDs, dim or unlit floor numbers, frozen direction indicators, or incomplete character display – indicating LED module failure or circuit damage.

• Communication Errors: Recurring “display communication loss” codes on KONE’s LCE controller (e.g., E31, E32) that persist after checking wiring.

• Physical Damage: Cracked front panel, scratched display surface, or loose mounting (causing the board to rattle during elevator movement).

• Power Issues: The display fails to turn on or shuts off intermittently – signs of power supply module degradation.

• Inconsistent Updates: Floor numbers or door status do not sync with the elevator’s actual position (e.g., display shows “3” while the car is on floor 5) – indicating communication protocol failure.

• 1:1 KONE Compatibility: Engineered to match KONE’s original form factor, wiring specifications, and communication protocols, ensuring plug-and-play integration with no modifications.

• KONE-Grade Visibility: High-contrast LEDs and scratch-resistant panels deliver the same clear visibility as KONE’s OEM boards, even in high-traffic environments.

• Rigorous Quality Assurance: 100% pre-delivery testing, including display functionality, communication sync with KONE’s LCE system, and durability trials.

• Expert KONE Support: Our team of technicians specializes in KONE elevator interfaces, providing professional guidance on installation, calibration, and troubleshooting.

• Fast Delivery: We maintain a large inventory of both KM853300G01 and G11 variants to fulfill emergency replacement orders within 24-48 hours, minimizing elevator downtime.
