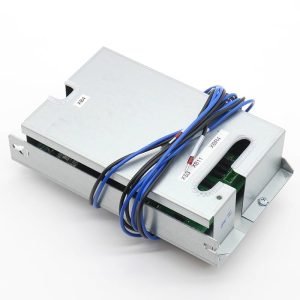

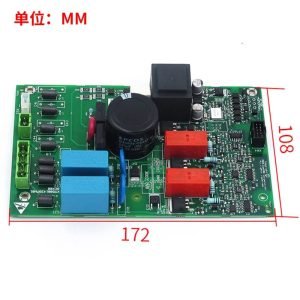

Kone elevator brake module KM50022850G02 Brief Introduction
|
Product Name |
Kone elevator brake |
| Model Number |
KM50022850G02 KM50040576 KM50014396G01 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Kone Elevator Brake Module KM50022850G02: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Kone Elevator Brake Module KM50022850G02 is a safety-critical electronic control component exclusively engineered for Kone elevator traction systems—widely deployed in commercial high-rises, residential complexes, public transit hubs, and office buildings. As the core of the elevator’s braking system, this module regulates the activation, release, and holding of the mechanical brake, ensuring precise stopping at target floors, emergency braking during faults, and stable stationary positioning. It integrates seamlessly with Kone’s traction motor controllers, safety interlock systems, and power supplies (such as KM803942G01/G02), upholding the brand’s strict standards for passenger safety, operational reliability, and regulatory compliance.
Compliant with global safety and electronic standards (EN 81, ASME A17.1, IEC 61800, ISO 9001), the KM50022850G02 features a robust, fault-tolerant design: industrial-grade power switching components, redundant control circuits, overcurrent/overvoltage/short-circuit protection, and Kone-specific firmware optimized for brake control logic. This construction withstands 24/7 operation and harsh machine room environments—including temperature fluctuations (-5°C to +45°C), electromagnetic interference (EMI), dust, and vibration. For maintenance teams, facility managers, and property operators, mastering the correct installation, configuration, and replacement timelines of this module is vital to avoid brake failure, elevator overrun, or catastrophic safety hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Kone components, delivers the KM50022850G02 brake module that meets Kone’s original manufacturing specifications—guaranteeing seamless compatibility, reliable braking performance, and long-term durability.
Proper Usage Methods of Kone Elevator Brake Module KM50022850G02
1. Pre-Installation Preparation
Before installing the brake module, prioritize safety by shutting off the elevator’s main power supply, securing the drive cabinet, and engaging the mechanical safety lock to prevent unintended movement. Inspect the new module for physical damage—such as cracked circuit boards, damaged connectors, loose components, or burn marks on power chips—defects that can cause brake misoperation or short circuits. Nanjing Zhuye Elevator Parts conducts rigorous Kone-specific quality control checks, so each unit arrives in optimal condition: intact electronic components, pre-loaded Kone-compatible firmware, functional protection circuits, and pre-tested insulation resistance (≥10MΩ at 500V DC).
Additionally, verify compatibility with your Kone elevator model (e.g., MiniSpace, MonoSpace, TranSys, MaxiSpace) by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure the module’s part number (KM50022850G02), voltage rating (typically 220–415V AC input, 110V DC output for brake coils), and firmware version match your elevator’s traction system requirements—incorrect compatibility can lead to brake failure or safety interlock triggers.
2. Installation & Configuration Steps
- Module Installation:
- Access the elevator’s drive cabinet (located in the machine room) and locate the designated slot for the KM50022850G02 brake module. Disconnect the old module (if replacing) by detaching power cables (from the brake power supply), brake coil connectors, communication lines (to the main controller), and safety interlock wires—label all cables clearly to avoid cross-connection errors. Clean the module slot and backplane connector with compressed air to remove dust or debris that could interfere with electrical contact.
- Align the new KM50022850G02 module with the slot guides and insert it firmly until it locks into the backplane. Secure the module with the provided mounting screws (torque to 0.8–1.2 Nm) to prevent vibration-induced loosening. Reconnect all cables—ensure power cables are connected last to avoid ESD damage, and verify connectors are fully seated and locked to prevent intermittent connectivity.
- Configuration Setup:
- Power on the drive cabinet (performed by certified technicians only) and access the configuration menu via Kone’s diagnostic software (e.g., Kone DiagTools, MONITOR):
- Brake Parameters: Load the elevator’s specific brake settings (e.g., coil voltage, release delay, braking force calibration, holding current) into the module—these parameters are critical for matching the mechanical brake’s characteristics and ensuring smooth, safe operation.
- Safety Limits: Verify or set safety thresholds (e.g., overcurrent trip level, brake release confirmation timeout, overspeed detection) to comply with Kone’s safety protocols.
- Communication Sync: Sync the module with the main controller and traction drive to ensure seamless data exchange for brake commands, status feedback, and fault detection.
- Power on the drive cabinet (performed by certified technicians only) and access the configuration menu via Kone’s diagnostic software (e.g., Kone DiagTools, MONITOR):
- Functional Testing:
- Conduct comprehensive tests to validate performance:
- Normal Braking Test: Run the elevator through empty and loaded cycles to confirm the brake engages smoothly at target floors and releases without delay during startup—no jerking, squealing, or unexpected stopping.
- Emergency Brake Test: Simulate fault conditions (e.g., power loss, overspeed, door interlock failure) to verify the module triggers immediate emergency braking, and the elevator comes to a complete stop within Kone’s specified distance (≤0.5m for rated speed ≤1.6m/s).
- Hold Test: Verify the brake holds the elevator stationary at a mid-floor for 30 minutes (empty and loaded) without slipping—critical for safety compliance and preventing unintended movement.
- Document configuration settings and test results in maintenance records to demonstrate compliance with Kone’s service requirements.
- Conduct comprehensive tests to validate performance:
3. Routine Usage Maintenance
To preserve the module’s performance and extend its lifespan, implement these proactive maintenance practices:
- Weekly Visual Inspections: Check for loose cables, dust accumulation, or component overheating (discoloration of the module casing or connectors). Remove dust with compressed air—avoid water or chemical cleaners that can damage electronic parts.
- Monthly Diagnostic Scans: Use Kone’s diagnostic software to review brake system logs, error codes, and parameter integrity. Address minor alerts (e.g., “Brake Coil Voltage Warning,” “Communication Glitch”) promptly to prevent system degradation.
- Quarterly Cable Inspections: Inspect power cables, brake coil wires, and communication lines for fraying, corrosion, or loose contacts. Tighten connectors as needed or replace damaged cables with genuine Kone parts from Nanjing Zhuye.
- Semi-Annual Firmware Updates: Update the module’s firmware (as recommended by Kone or Nanjing Zhuye) to enhance brake control algorithms, fix software bugs, and improve compatibility with system upgrades.
- Annual Comprehensive Inspection: Verify brake parameters and safety settings remain aligned with Kone’s specifications. Test the module’s redundancy features (if applicable) to ensure fail-safe operation during component failures.
Recommended Replacement Cycle
The service life of the Kone KM50022850G02 Brake Module depends on usage intensity (daily braking cycles), environmental conditions (temperature, EMI, dust), and maintenance quality. Based on Kone’s engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, regular maintenance, stable environment), the brake module should be replaced every 7–9 years. This timeframe accounts for gradual degradation of power components (e.g., capacitors, transistors), firmware obsolescence, and reduced protection circuit reliability—ensuring the module maintains consistent braking performance, responsive safety features, and compatibility with Kone system upgrades. Proactive replacement reduces the risk of unexpected brake failure and costly downtime.
2. Signs That Require Immediate Replacement
Replace the brake module immediately if you encounter any of the following issues:
- Brake Malfunctions: Brake fails to engage (elevator slips) or release (elevator cannot start), or engages abruptly—indicative of control circuit failure or parameter drift.
- Persistent Critical Errors: Repeated brake-related error codes (e.g., “Brake Coil Fault,” “Emergency Brake Triggered,” “Power Supply Mismatch”) that cannot be resolved with troubleshooting or firmware updates.
- Physical Damage: Cracked circuit board, burned power chips, or water damage—compromising electrical safety and brake control functionality.
- Performance Degradation: Noticeable delays in brake engagement/release, inconsistent braking force, or increased brake coil heating—attributed to aging components or internal circuit damage.
- Safety Compromise: The module fails to trigger emergency braking during fault conditions, or the brake cannot hold the elevator stationary—violating Kone’s safety standards and posing severe passenger risks.
3. Maintenance to Extend Service Life
To maximize the module’s lifespan and minimize replacement costs:
- Stabilize Power Supply: Install surge protectors and voltage regulators to shield the module from power spikes and transients—common causes of power component damage.
- Control Environmental Conditions: Maintain the machine room temperature between 10–35°C and humidity between 30–60%. Ensure the drive cabinet is sealed and ventilated to prevent dust accumulation and overheating.
- Minimize EMI Interference: Route power cables and communication lines separately (minimum distance of 20cm) and use shielded cables for brake coil connections to reduce electromagnetic interference.
- Use Genuine Parts Only: For replacements or repairs, rely exclusively on authentic Kone KM50022850G02 modules from Nanjing Zhuye. Counterfeit modules may use inferior components, untested firmware, or incorrect wiring—compromising performance, safety, and Kone’s warranty coverage.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the Kone Elevator Brake Module KM50022850G02, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:
- Authenticity & Kone Compatibility: All modules are manufactured to Kone’s original specifications, ensuring seamless integration with Kone brake systems and compliance with global safety/electronic standards.
- Strict Kone-Specific Quality Assurance: Each unit undergoes rigorous testing—including brake control precision, safety protection functionality, communication reliability, and thermal stability—to guarantee reliable operation in critical Kone systems.
- Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Kone elevator systems, providing 24/7 assistance for installation, configuration, and troubleshooting (e.g., brake errors, parameter mismatches) in Kone elevators.
- Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers safety-critical components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Kone’s reliability.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Kone elevator components.
Conclusion
The Kone Elevator Brake Module KM50022850G02 is the foundational safety component that ensures reliable stopping and holding of Kone elevators. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can ensure your Kone elevators remain compliant, downtime-free, and passenger-safe. Whether you need a single replacement module, technical support for system configuration, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Kone components and tailored professional services. Invest in the safety of your Kone elevators—choose Nanjing Zhuye Elevator Parts for your Kone KM50022850G02 brake module requirements.
