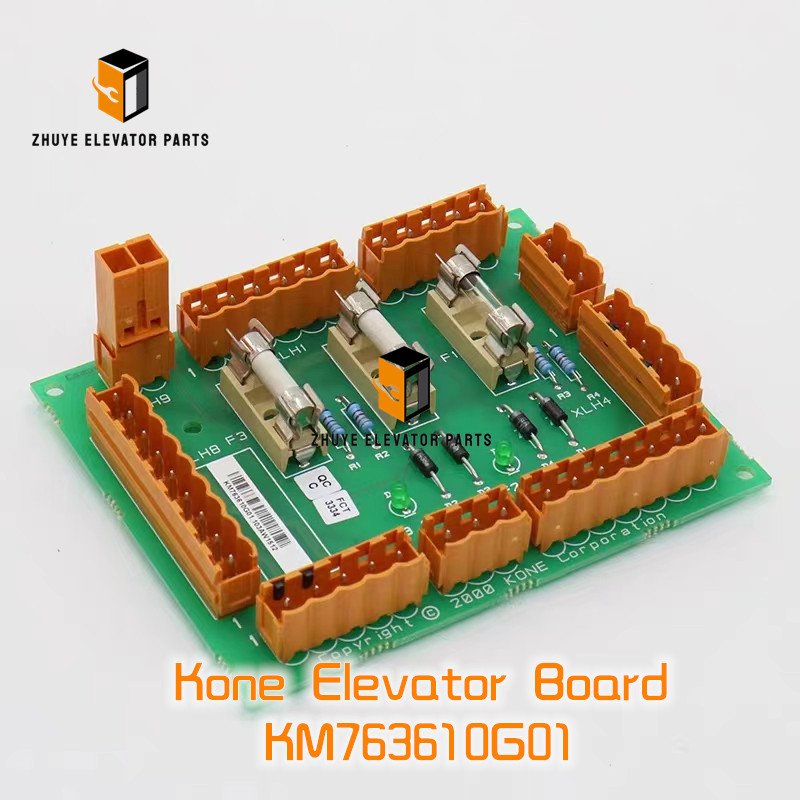

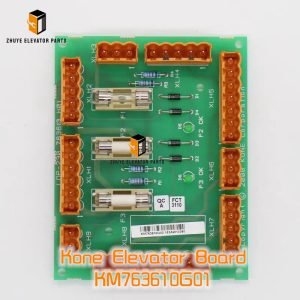

Kone Elevator Board KM763610G01 Brief introduction
| Brand | Original |
| Name | Kone Elevator Board |
| Goods No. | KM763610G01/KM763610G02 |
| MOQ | 1 |
| Warranty Time | 1 year |
| Certificates | ISO9001 |
| Brand | KONE |
KONE Elevator Board KM763610G01 – Advanced I/O & Safety Hub for KONE LCE Systems | Nanjing Zhuye Elevator Parts
Inside every KONE LCE controller, the KM763610G01 board is the “nerve centre” that links the CPU to the shaft. This high-density I/O and safety module handles 96 digital inputs, 64 outputs, 16 analogue channels and dual encoder ports — all over CAN-FD. When it stalls, calls disappear, brakes drop and the whole group can freeze. Nanjing Zhuye Elevator Parts keeps genuine KM763610G01 boards in anti-static packaging, pre-flashed with the latest firmware and ready for same-day despatch — helping you restore full I/O integrity without costly OEM delays.
Product snapshot
-
KONE part number KM763610G01, hardware rev. G01, firmware LCE-IO-42.3
-
96 digital inputs 24 V for calls, limits, locks, safety gear, rope elongation
-
64 digital outputs 24 V / 2 A for indicators, latches, brake, light-barrier, gong
-
16 analogue inputs 0-10 V / 4-20 mA for load cell, current, temperature, position
-
Dual encoder ports: incremental 5 V / 12 V and absolute EnDat 2.2, 250 kHz max
-
3 CAN-FD, 1 RS-485, 1 Ethernet 100/1000 for real-time group, V3F, BMS telemetry
-
RTC with 10-year battery, 8 GB eMMC log, encrypted firmware update via USB-C
-
Operating temperature −10 °C to +70 °C, conformal-coated both sides, UL 94-V0
-
IP20 aluminium heatsink, 300 × 220 × 45 mm, 0.95 kg, plug-in header, hot-swap compatible
-
CE, UL, RoHS, REACH and KONE QES 2024 approved
Where it works
-
KONE MonoSpace® MX10-MX50, LCE CPU racks in single or group installations up to 8 cars
-
High-rise hospital, hotel or residential towers requiring energy-scheduling and dynamic dispatch
-
Modernisation packages replacing obsolete KM763610G00 or relay-based I/O racks
-
Any controller expecting SIL-3 I/O integrity and ±1 mm levelling accuracy
Installation method – 15-minute field swap
-
Place lift on inspection mode; stop at mid-shaft; switch OFF main breaker; lock & tag.
-
Wait 5 min for DC bus to discharge; verify zero energy on a calibrated meter.
-
Photograph existing wiring; note CAN-FD and encoder plug orientation.
-
Release two side latches; slide old KM763610G01 out of DIN rail.
-
Insert new board until latches click — no tools required.
-
Re-connect 24 V supply, all I/O cables, encoders, CAN-FD, Ethernet.
-
Insert supplied SD card with job-specific parameters; power up; green “SYS” LED illuminates in 3 s.
-
Launch KONE LCE Tool (LCT-42) on laptop; auto-load verifies checksum and uploads parameters in 120 s.
-
Run full inspection cycle: calls, brake, door, levelling, group communication; verify no fault codes.
-
Remove SD card; seal tamper sticker; log serial number and firmware v42.3 in maintenance book.
Replacement cycle & preventive maintenance
KONE bulletin SB-LCE-IO-2024-03 recommends:
-
Visual inspection every 6 months: clean dust from fan guard, check for burnt I/O terminals.
-
Functional test every 12 months: measure contact resistance of safety-chain inputs < 50 mΩ.
-
Replace entire board every 12 years or 40 000 operating hours, whichever comes first.
-
Immediate replacement if:
– “I/O FAULT” LED red with car stopped,
– encoder inputs show “position deviation” after cable swap,
– RTC battery < 2.4 V (clock resets on power loss),
– Ethernet/CAN-FD communication lost (blue LED dark).
Pro tip: 70 % of premature failures are traced to loose 24 V terminals — re-torque to 0.8 Nm every year.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use shielded encoder cables, foil facing inward, grounded at board only, to prevent noise faults.
-
Never hot-plug I/O while the lift is running; transients can weld relay contacts.
-
Keep a spare KM763610G01 in every service room; at 0.95 kg it fits in a laptop bag and saves a night call.
-
After lightning storm, check 24 V ripple < 1 V; high ripple overheats the DC-DC converter.
-
Order the “LCE I/O Bundle” (board + SD card + torque tool) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are a KONE-authorised distributor, importing KM763610G01 directly from the Finnish factory, pre-loading firmware LCE-IO-42.3 and testing every unit on a 128 I/O simulator for 60 min under full load. Boards are shipped in anti-static foam with a 24-month replacement warranty. Our 3 000 m² Nanjing warehouse holds 200+ units year-round; orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at three pieces; we can pre-load site-specific parameters and include a loaner board to keep your lifts intelligent during the swap.
Conclusion
The KONE Elevator Board KM763610G01 is the silent I/O hub that turns steel and copper into a smooth, safe ride. By installing the genuine KONE unit, following the torque schedule and replacing it before capacitors age, you eliminate mysterious stops, I/O faults and costly passenger complaints. Stock genuine KM763610G01 from Nanjing Zhuye Elevator Parts today — because when the I/O stops, the whole building stops.
