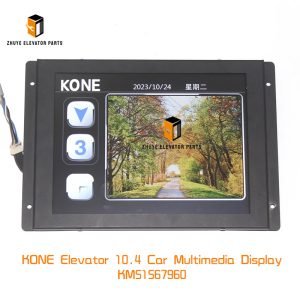

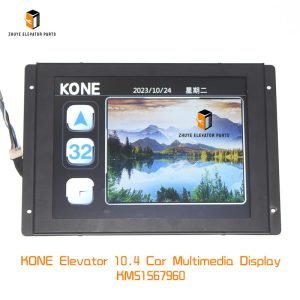

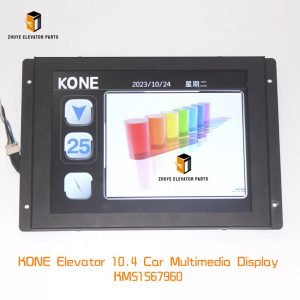

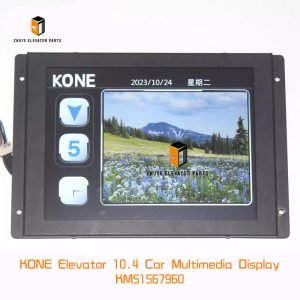

KONE Elevator 10.4 Car Multimedia Display KM51567960 Brief introduction
| Brand | Original |
| Name | KONE Elevator 10.4 Car Multimedia Display |
| Goods No. | KM51567960
WTFT-104C EOAD-104E |
| MOQ | 1 |
| Warranty Time | 1 year |
| Certificates | ISO9001 |
| Brand | KONE |
KONE Elevator 10.4 Car Multimedia Display KM51567960: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The KONE Elevator 10.4 Car Multimedia Display KM51567960 is an innovative interior component designed to enhance passenger experience while delivering critical information in elevator cabs. Featuring a 10.4-inch high-resolution screen, this display serves dual purposes: providing real-time elevator status (floor numbers, direction, load capacity) and supporting multimedia functions (safety announcements, building navigation, or promotional content). As a key part of KONE’s passenger-centric elevator systems, it ensures clarity, usability, and durability—essential for commercial buildings, residential complexes, and public facilities. For property managers, elevator maintenance teams, and facility operators, understanding the correct usage, installation, and replacement timelines of the KM51567960 is vital to maintain passenger satisfaction and operational efficiency. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic elevator components, delivers the KM51567960 display that meets KONE’s original manufacturing specifications, guaranteeing seamless compatibility, crisp display quality, and long-lasting performance for KONE elevator systems.
Proper Usage Methods of KONE 10.4 Car Multimedia Display KM51567960
1. Pre-Installation Preparation
Before installing the KM51567960 display, prioritize safety by shutting off the elevator’s main power supply and securing the control panel with a lockout tag. Inspect the display unit for physical damage—such as cracked screens, scratched casings, loose connectors, or damaged wiring harnesses—defects that can impair functionality or visual clarity. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each KM51567960 unit arrives in flawless condition, with intact screens and pre-tested electronic components. Additionally, verify compatibility with your KONE elevator model by cross-referencing the elevator’s technical manual or consulting Nanjing Zhuye’s technical support team—ensure the display’s voltage rating (typically 24V DC), communication protocol (e.g., CAN bus), and mounting dimensions match your elevator’s control system.
2. Installation & Operation Steps
- Mounting the Display:
- Locate the designated installation position in the elevator cab—typically on the front panel or side wall, at eye level (1.5–1.7 meters above the floor) for optimal visibility.
- Remove the existing display (if replacing) by unscrewing the mounting brackets. Align the KM51567960 with the mounting holes, ensuring the screen is level and free from glare. Secure the display with the provided screws (torque to 0.6–1.0 Nm) to avoid damaging the internal circuitry or screen.
- Wiring Connection:
- Follow the wiring diagram provided by KONE or Nanjing Zhuye to connect the display to the elevator’s control system and power supply. Key steps include:
- Connect the power wires (positive/negative) to the corresponding terminals—incorrect polarity can short-circuit the display.
- Attach the communication wires to the elevator’s control board to transmit floor data, direction signals, and load capacity information.
- For multimedia functions, connect auxiliary cables (if applicable) to external devices (e.g., USB drives for content updates) as per the manual.
- Secure all connections with terminal blocks and route wiring neatly to avoid interference with elevator moving parts.
- Follow the wiring diagram provided by KONE or Nanjing Zhuye to connect the display to the elevator’s control system and power supply. Key steps include:
- Configuration & Functional Testing:
- Restore power and configure the display via the elevator’s control panel or remote setup tool:
- Set the display language, brightness level (adjust to 30–50% for energy efficiency and passenger comfort), and screen timeout settings.
- Sync real-time data: Verify floor numbers, direction arrows, and load indicators update accurately as the elevator operates.
- Test multimedia functions: Play a sample safety announcement or navigation video to ensure audio (if equipped) and video clarity.
- Conduct a usability test: Ensure the display is visible from all areas of the cab, with no dead pixels or distorted graphics.
- Restore power and configure the display via the elevator’s control panel or remote setup tool:
3. Routine Usage & Maintenance
- Daily Operation: The KM51567960 is designed for plug-and-play usability—no manual operation is required from passengers. Facility managers can update content (e.g., safety messages, building maps) via USB or remote management (if supported) as needed.
- Routine Checks: Conduct weekly visual inspections to ensure the screen is clean, free from smudges, and the casing is intact. Wipe the screen monthly with a soft, lint-free microfiber cloth—avoid harsh cleaners or abrasive materials that can scratch the surface. Test data synchronization quarterly to confirm real-time updates remain accurate.
Recommended Replacement Cycle
The service life of the KONE 10.4 Car Multimedia Display KM51567960 depends on usage intensity, environmental conditions (humidity, temperature), and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise, the following replacement guidelines are recommended:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, moderate passenger traffic), the KM51567960 should be replaced every 5–7 years. This timeframe accounts for gradual wear of the LCD screen (pixel degradation), backlight dimming, and electronic component aging—ensuring the display maintains optimal visibility and functionality. Proactive replacement prevents issues like unreadable text or frozen screens, which can frustrate passengers and undermine building safety communications.
2. Signs That Require Immediate Replacement
Replace the display immediately if you encounter any of the following issues:
- Screen damage: Cracked glass, persistent dead pixels (more than 5), or significant discoloration that impairs visibility.
- Functional failures: Frozen screens, failure to update floor/direction data, or unresponsive controls (for content updates).
- Audio issues (if equipped): Distorted sound, no audio output, or intermittent playback of announcements.
- Physical damage: Loose mounting, damaged wiring, or water intrusion (from cab leaks) that cannot be repaired.
- Obsolescence: Inability to support software updates or integrate with elevator system upgrades—older displays may lack compatibility with new control protocols.
3. Maintenance to Extend Service Life
To maximize the KM51567960’s lifespan, implement these proactive measures:
- Maintain elevator cab humidity between 30–60% to prevent moisture damage to internal electronics.
- Protect the display from direct sunlight or extreme temperatures (10–35°C) to avoid screen fading or component overheating.
- Avoid physical impact: Install a protective film (optional) to reduce the risk of scratches or cracks from accidental contact.
- Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit components can cause compatibility issues or premature failure.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the KONE Elevator 10.4 Car Multimedia Display KM51567960, Nanjing Zhuye Elevator Parts offers unmatched advantages for facility professionals:
- Authenticity & Compatibility: All KM51567960 displays are manufactured to KONE’s original specifications, ensuring seamless integration with KONE elevator systems and adherence to global quality standards (ISO 9001, EN 81).
- Strict Quality Assurance: Each unit undergoes comprehensive testing—including screen clarity, data synchronization, durability, and environmental resistance—to guarantee reliable performance in high-traffic environments.
- Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation guidance and content configuration to troubleshooting functional issues, ensuring a smooth user experience.
- Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers orders promptly worldwide, minimizing downtime during replacement and keeping elevators operational.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you balance passenger experience and maintenance budgets.
Conclusion
The KONE Elevator 10.4 Car Multimedia Display KM51567960 is more than a display—it’s a critical tool for enhancing passenger experience and delivering essential information in elevators. By following proper usage and installation methods, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your KONE elevator systems remain user-friendly, reliable, and up-to-date. Whether you need a replacement display, technical support, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium elevator parts and professional services tailored to your needs. Invest in passenger satisfaction and operational excellence—choose Nanjing Zhuye Elevator Parts for your KONE KM51567960 multimedia display requirements.
