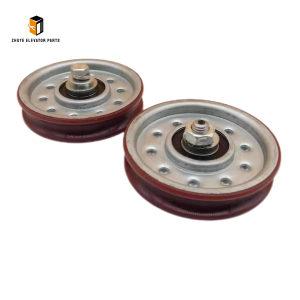

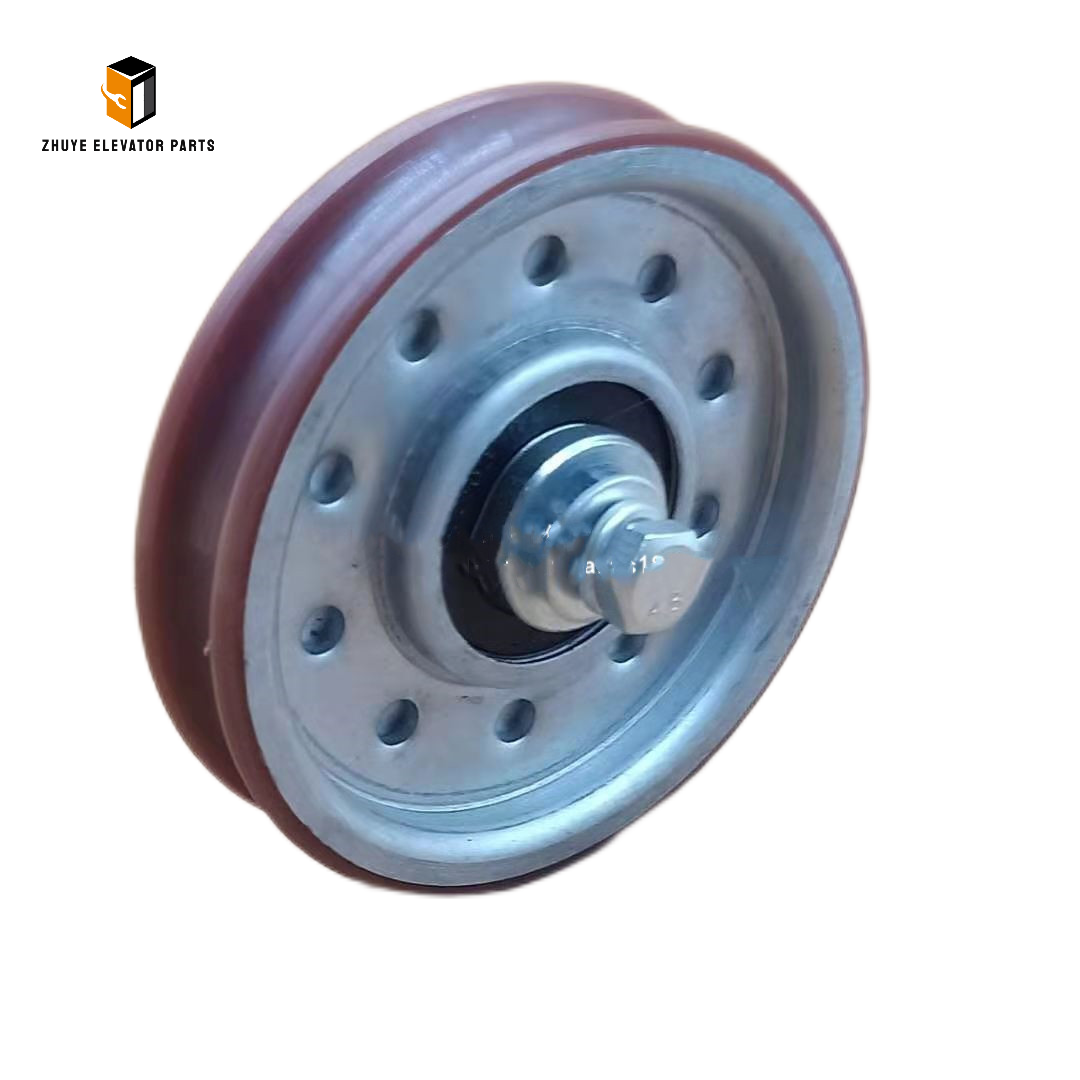

KONE Elevator Door Hanger Roller KM601106G01: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of KONE Elevator Door Hanger Roller KM601106G01

1. Pre-Installation Preparation

2. Installation & Alignment Steps

• Removal of Old Roller:
  • Access the door hanger assembly (located at the top of the elevator door panel). Use pliers or a socket wrench to remove the retaining clip, cotter pin, or bolt securing the old roller to the hanger bracket. Carefully slide the old roller off the mounting shaft, taking note of its orientation (sealed bearing side inward). Clean the hanger bracket, mounting shaft, and door rail with a wire brush and degreaser to remove dust, grease buildup, or rust that could interfere with alignment.
• Installation of New Roller:
  • Slide the new KM601106G01 roller onto the hanger bracket’s mounting shaft, ensuring the sealed bearing side faces the interior of the assembly (to protect against contamination). Secure the roller with the provided retaining clip, cotter pin, or bolt—torque the bolt to KONE’s specified range (2.5–4 Nm) to prevent vibration-induced loosening. Verify that the roller rotates freely without binding and sits flush against the door rail.
• Mechanical Alignment:
  • Manually lift and lower the door panel to check for smooth movement. Ensure the roller contacts the door rail evenly (no side-to-side wobble) and that all rollers on the hanger assembly are parallel—misalignment (even 0.5mm) can cause uneven wear, noisy operation, or door sticking. Adjust the hanger bracket position (using adjustment screws if available) to align the roller with the rail, following KONE’s door system alignment guidelines.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Smooth Operation Test: Power on the elevator and test automatic, manual, and emergency door modes—confirm doors slide open/close without jitter, hesitation, or unusual noise (e.g., squeaking, grinding), consistent with KONE’s performance standards.
    • Load-Bearing Test: Verify the roller supports the door panel’s weight without deformation or excessive deflection—measure the roller’s compression under load (should not exceed 0.2mm).
    • Cycle Durability Test: Run 50 consecutive door cycles to ensure the roller performs consistently, with no bearing heating or rail damage.
  • Document installation details and test results in maintenance records to demonstrate compliance with KONE’s service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose retaining hardware, roller wear (cracks, flat spots), or debris on the door rail. Remove dust and residue from the roller surface with a soft brush—avoid harsh cleaners that can degrade the PU material.
• Monthly Operational Checks: Listen for unusual noises during door operation (e.g., rattling, scraping) that may indicate bearing wear or misalignment. Manually spin the roller to confirm smooth rotation (no stiffness or play).

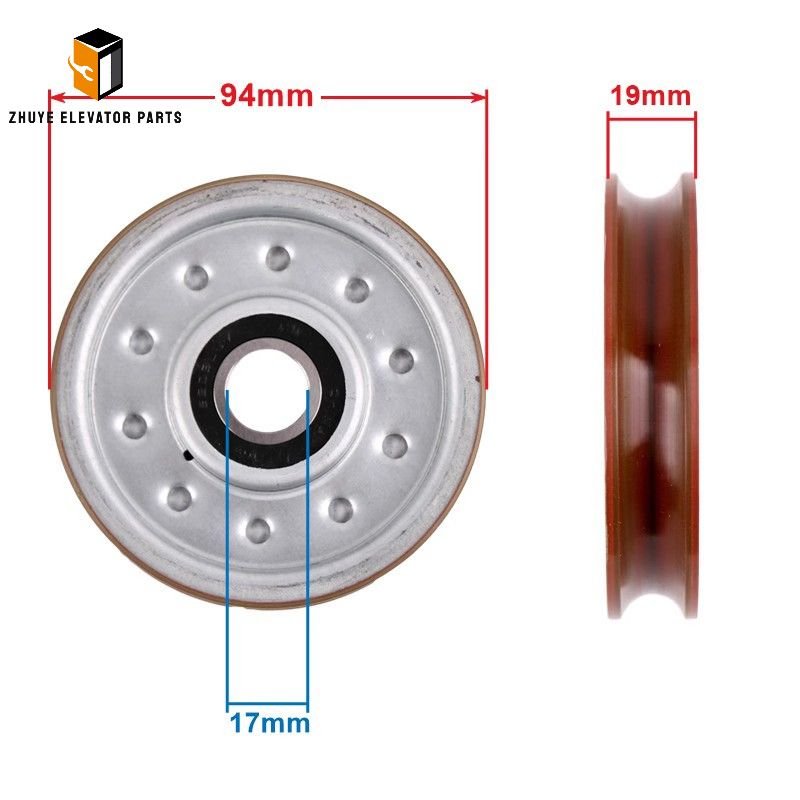

• Quarterly Rail & Roller Inspections: Inspect the door rail for wear, scratches, or debris—clean the rail and replace worn rails with genuine KONE parts from Nanjing Zhuye. Measure the roller’s outer diameter (wear beyond 1mm exceeds KONE’s tolerance) and check the bearing for smoothness.
• Semi-Annual Lubrication (If Applicable): For rollers with accessible lubrication points, apply KONE-approved lubricant to the bearing to minimize friction—avoid over-lubrication, as excess grease attracts dust and debris.
• Annual Comprehensive Inspection: Remove the roller to inspect internal bearings for corrosion or wear. Verify alignment with the door rail, re-secure retaining hardware, and check for signs of premature wear.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Operational Failures: Doors stick, move unevenly, or fail to open/close fully—indicative of seized bearings, worn roller surfaces, or misalignment that cannot be adjusted.
• Excessive Wear: Roller outer diameter wears beyond 1mm (measured with a caliper), or the PU surface develops cracks, flat spots, or permanent deformation—causing door misalignment or rail damage.
• Bearing Issues: Roller rotates with stiffness, grinding, or excessive play (indicating bearing damage) or becomes hot to the touch after short operation—violating KONE’s safety thresholds.
• Physical Damage: Bent shafts, cracked roller housing, or broken retaining hardware—compromising mechanical integrity and safety.
• Rail Damage: The roller causes uneven wear on the door rail (e.g., grooves or scratches)—attributed to a damaged or misaligned roller.

3. Maintenance to Extend Service Life

• Protect from Contamination: Keep the door assembly area clean and free from dust, debris, or water—contamination accelerates bearing wear and PU surface damage. Install dust covers (if not factory-fitted) to shield rollers from environmental debris.
• Maintain Rail Health: Replace worn or damaged door rails promptly—damaged rails increase friction and wear on rollers. Use only genuine KONE rails from Nanjing Zhuye to ensure compatibility.
• Avoid Overloading: Minimize unnecessary door cycles (e.g., disable automatic re-opening during low-traffic periods) to reduce wear on the roller and bearings, aligning with KONE’s maintenance best practices.
• Use Genuine Parts Only: For replacements, rely exclusively on authentic KONE door hanger rollers (KM601106G01) from Nanjing Zhuye. Counterfeit rollers may use inferior materials (e.g., low-grade PU, untested bearings) or incorrect dimensions—compromising performance, safety, and KONE’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & KONE Compatibility: All KM601106G01 rollers are manufactured to KONE’s original specifications, ensuring seamless integration with KONE door systems and compliance with global safety/mechanical standards.
• Strict KONE-Specific Quality Assurance: Each unit undergoes rigorous testing—including bearing durability, PU wear resistance, dimensional accuracy, and rotation smoothness—to guarantee reliable operation in critical KONE door systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in KONE elevator systems, providing 24/7 assistance for installation alignment, compatibility verification, and troubleshooting (e.g., noisy operation, door misalignment) in KONE elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers mechanical components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on KONE’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant KONE elevator components.
