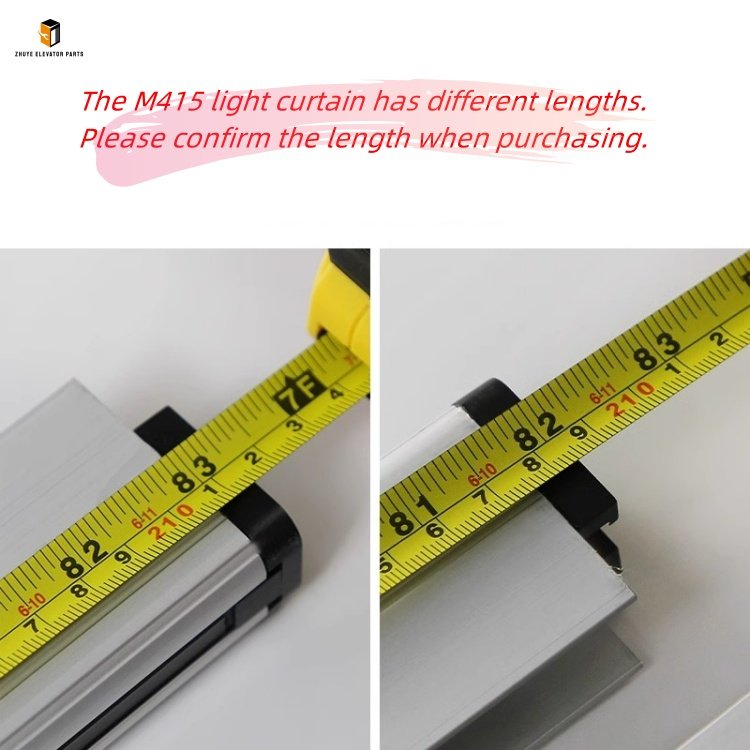

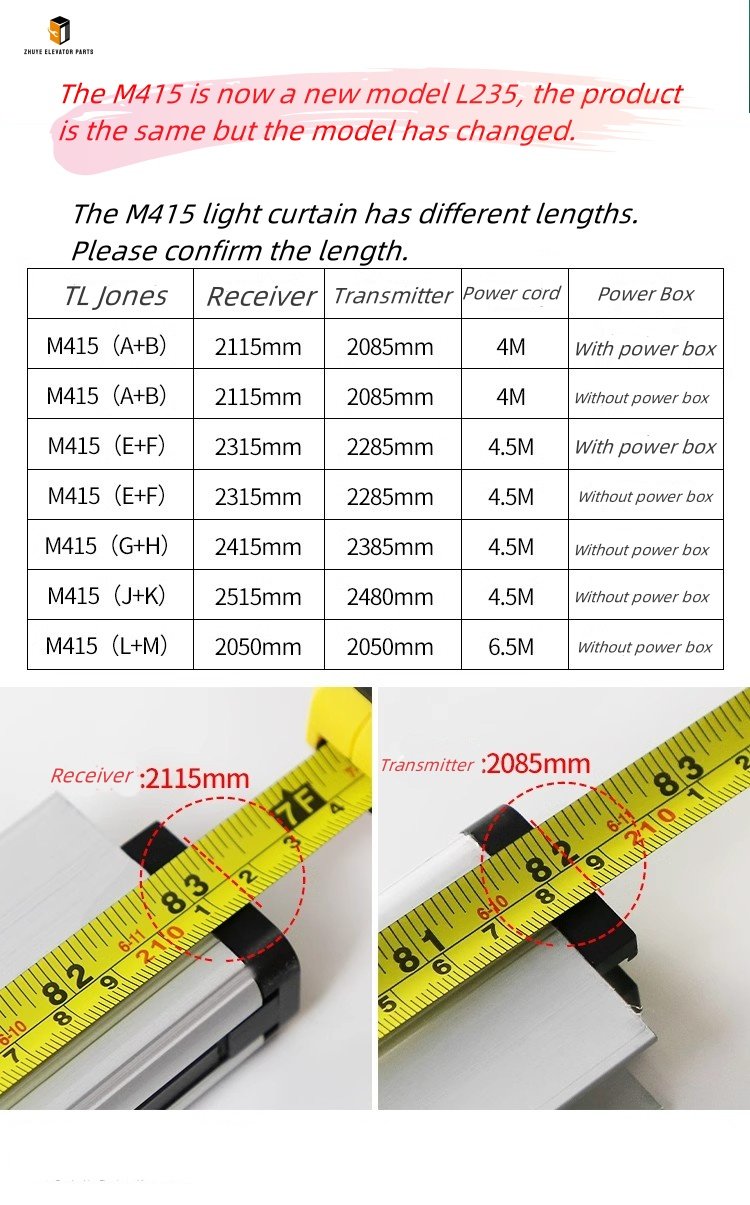

Hitachi Elevator Light Curtain M415: Essential Safety Shield from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Hitachi Elevator Light Curtain M415

1. Professional Installation & Wiring

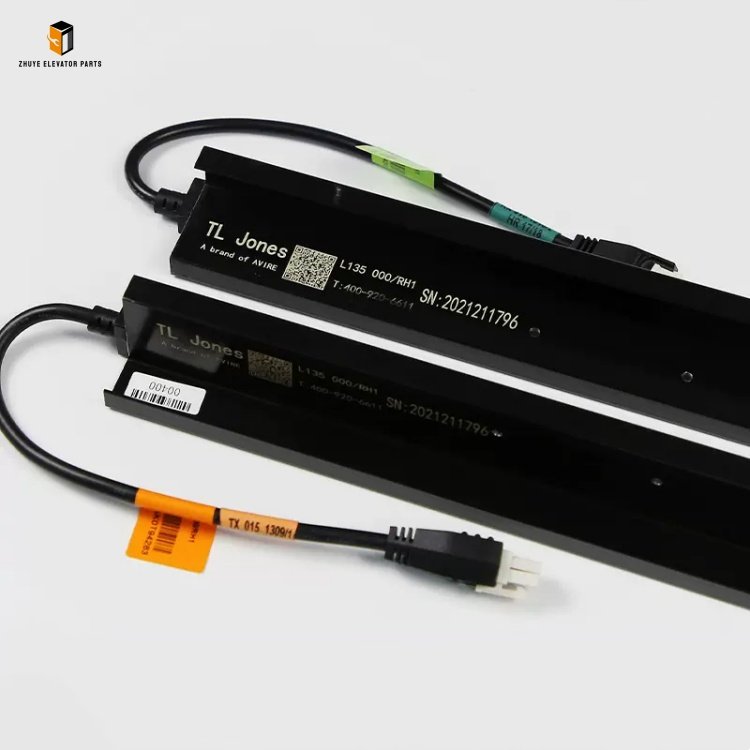

• Safety Preparation: Cut off the elevator’s main power supply and switch the door system to inspection mode. Clean the mounting area (left and right door frames of the car and landing door) to remove dust, oil stains, and debris that may affect light grid alignment. Check the light curtain’s transmitter and receiver (marked with “TX” and “RX”) for intactness.
• Component Installation: Fix the M415 transmitter and receiver to the dedicated mounting brackets on the left and right door frames using genuine screws provided by Nanjing Zhuye Elevatorparts. Ensure the two components are installed horizontally and aligned (alignment error ≤ 2mm) to form a complete light grid. The bottom of the light curtain should be 50mm above the ground, and the top should be flush with the top of the door panel to cover the entire door opening area.

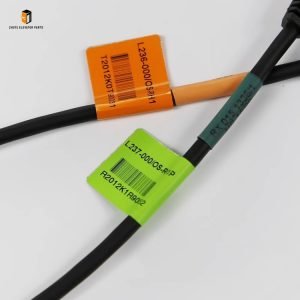

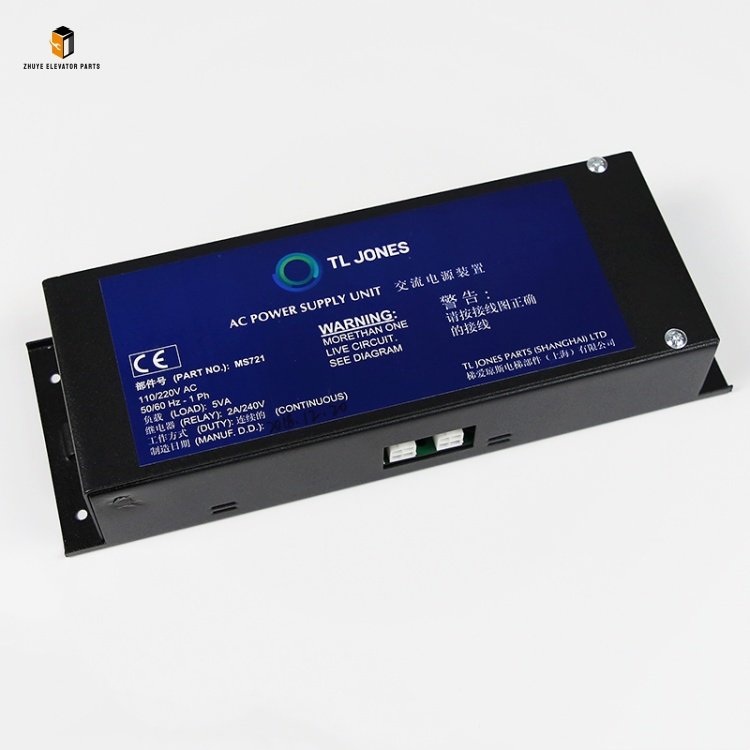

• Wiring Operation: Connect the light curtain’s power terminal (rated voltage: 24VDC, consistent with Hitachi elevator door system power supply) and signal terminal to the elevator door controller according to the wiring diagram. Ensure correct polarity, tight wiring, and reliable insulation—use heat-shrinkable tubes for wiring joints to avoid short circuits. Clearly mark each wire as guided by Nanjing Zhuye’s manual for future maintenance.
• Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Turn on the light curtain—check the indicator lights (green light for normal operation, red light for fault) to confirm normal power supply. Test the detection function: use a thin object (e.g., a pen) to block different positions of the light grid during door closing; the door should stop and reverse immediately each time. Verify the anti-interference performance: irradiate the light curtain with a flashlight (simulating strong sunlight) to ensure no false triggers. If the light curtain fails to detect obstacles or triggers falsely, recheck the alignment and wiring immediately.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During elevator patrols, check the external condition of the M415 light curtain. Ensure the transmitter/receiver lenses are clean (no dust, fingerprints, or scratches affecting light transmission); the aluminum alloy shell is free of deformation, corrosion, or loose fixing screws; the indicator lights are working normally (no fault alarms). Wipe the lenses with a dry, lint-free cloth if dirty.
• Weekly Functional Test: Conduct a comprehensive detection test. Use objects of different sizes (e.g., a hand, a suitcase) to block the light grid at various heights during door closing, ensuring the door reverses reliably each time. Test the light curtain’s fault self-diagnosis function—if the fault light is on, refer to Nanjing Zhuye’s troubleshooting manual to identify and resolve issues (e.g., lens contamination, misalignment, wiring looseness).
• Monthly Anti-Interference Check: Test the light curtain’s performance under different environmental conditions. Check its operation during peak hours (with multiple passengers and luggage) and in strong light environments (e.g., direct sunlight at the doorway) to ensure no missed detections or false triggers.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Disconnect the power supply and remove the light curtain’s transmitter and receiver. Thoroughly clean the lenses with a professional lens cleaner (avoid using corrosive agents) to remove stubborn stains. Inspect the wiring for aging, cracking, or oxidation—replace with genuine cables if necessary. Reinstall the components and recheck the alignment and signal connection.
• Semi-Annual Performance Test: Use professional testing equipment to measure the light curtain’s detection accuracy, response time, and signal strength. Simulate extreme conditions (e.g., low temperature, high humidity) to verify stable operation. For elevators in high-traffic areas (e.g., shopping malls, airports), increase the test frequency to once every 3 months.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team (familiar with Hitachi elevator systems). Calibrate the light curtain’s alignment and sensitivity to meet Hitachi’s original factory standards. Replace aging components (e.g., infrared tubes, connectors) with genuine Hitachi parts if necessary.

Recommended Replacement Cycle for Hitachi Elevator Light Curtain M415

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For Hitachi elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or doorways with strong direct sunlight (long-term exposure), the replacement cycle should be shortened to2–3 years. Harsh conditions accelerate lens aging, circuit board corrosion, and infrared tube attenuation, significantly reducing reliability.
• Low-Frequency Use Scenarios: For Hitachi elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and clean, stable environments, the replacement cycle can be extended to 4–5 years—only if Nanjing Zhuye’s professional inspection confirms the light curtain’s detection accuracy, response time, and anti-interference performance are intact (consistent with Hitachi’s original standards).

3. Immediate Replacement Conditions

• The light curtain fails to detect obstacles (or has obvious blind spots), leading to door closing without reversal when blocked—posing direct clamping risks.
• Frequent false triggers occur (doors reverse for no reason), affecting elevator operation efficiency and causing passenger inconvenience.
• The fault light is permanently on, and the fault cannot be eliminated through debugging (e.g., cleaning, alignment, wiring check).
• The light curtain’s response time exceeds 30ms (tested by professional equipment), or the lens is severely scratched/cracked, unable to form a complete light grid.
