Description

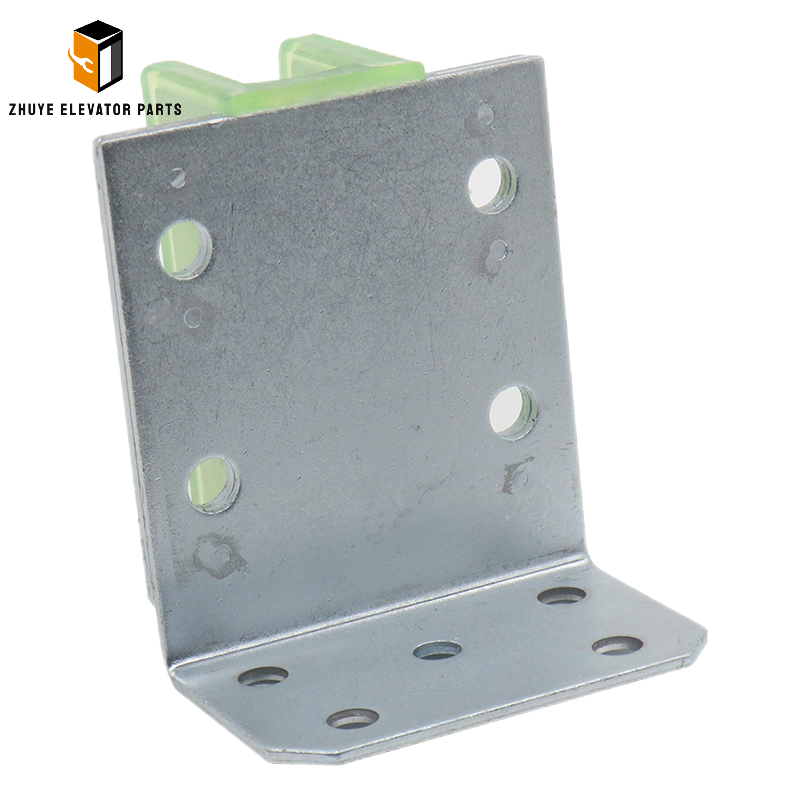

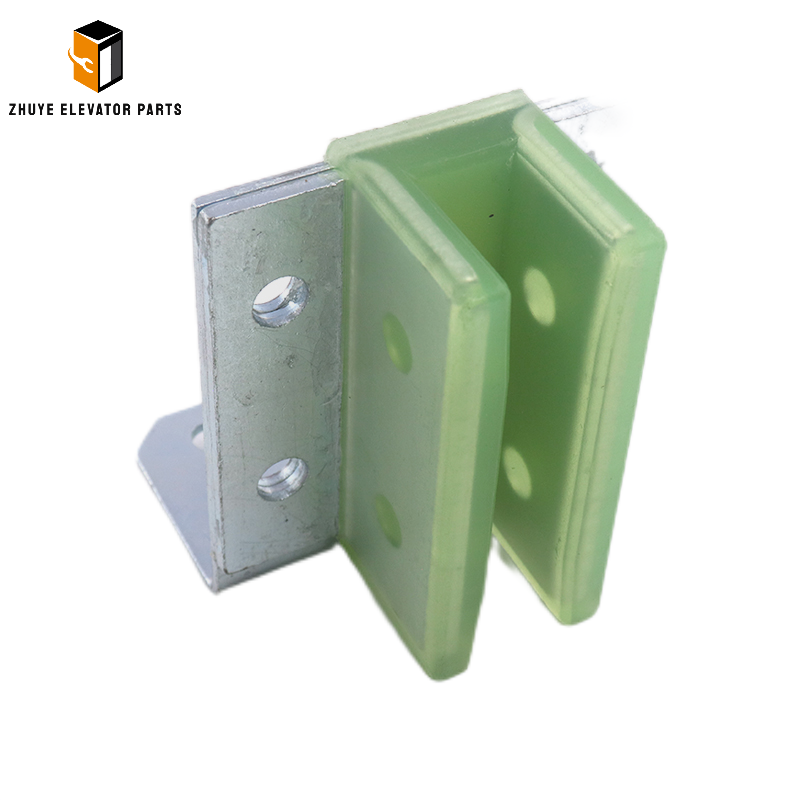

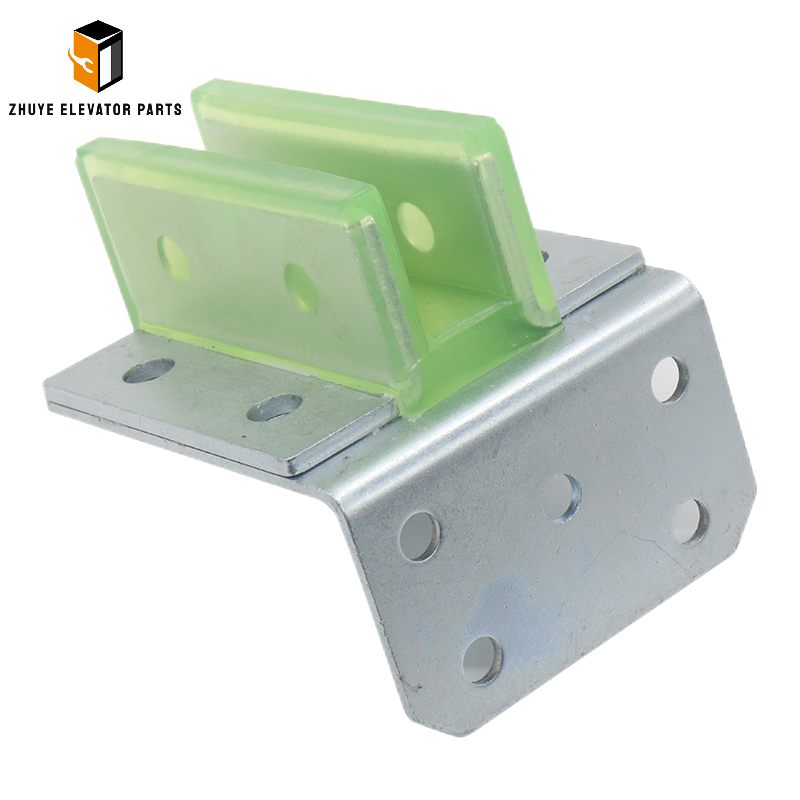

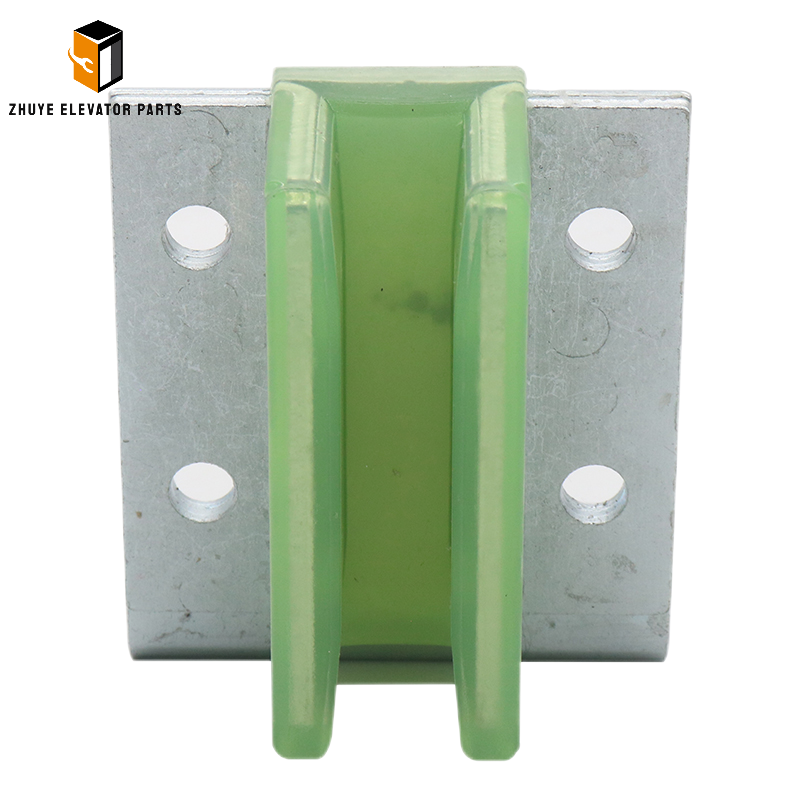

HITACHI Counterweight Guide Shoe 10mm 16mm: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of HITACHI Counterweight Guide Shoe 10mm 16mm

1. Pre-Installation Preparation

2. Installation & Adjustment Steps

• Removal of Old Guide Shoe:
  • Access the guide shoe mounting position (typically on the top and bottom of the counterweight frame). Use a socket wrench to remove the bolts securing the old guide shoe to the frame. Carefully detach the old unit, taking note of the clamping gap between the guiding pad and guide rail. Clean the counterweight frame’s mounting surface and the guide rail with a wire brush and degreaser to remove dust, rust, or grease buildup that could interfere with alignment.
• Installation of New Guide Shoe:
  • Align the new 10mm/16mm counterweight guide shoe with the counterweight frame’s mounting holes and secure it with the provided high-strength bolts. Torque the bolts to Hitachi’s specified range (10–14 Nm) to prevent vibration-induced loosening—over-torquing can deform the bracket, while under-torquing may cause instability. Ensure the guiding pad faces the guide rail and maintains a uniform clamping gap (Hitachi recommends 0.4–0.6mm) for optimal contact and load distribution.
• Precision Adjustment:
  • Use the guide shoe’s adjustable bolts to fine-tune the clamping force and alignment. Manually move the counterweight up and down the hoistway to check for smooth movement—no side-to-side wobble or scraping sounds. Verify that the guiding pad contacts the rail evenly (no edge pressure) and that all guide shoes on the counterweight frame are parallel—misalignment (even 1mm) can cause uneven pad wear and rail damage. Refer to Hitachi’s guide shoe adjustment guidelines for model-specific torque and gap settings.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Stability Test: Run the elevator through empty, half-loaded, and full-loaded cycles to confirm the counterweight moves synchronously with the car—no shaking, noise, or deviation from the guide rail.
    • Friction Test: Measure the friction resistance between the guiding pad and rail (should remain within Hitachi’s specified range of 8–12N) to ensure efficient balance and energy savings.
    • Emergency Stop Test: Activate the elevator’s emergency stop function to verify the guide shoe maintains counterweight position without slipping—critical for safety compliance and preventing elevator imbalance.
  • Document installation details, adjustment settings, and test results in maintenance records to demonstrate compliance with Hitachi’s service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose bolts, worn guiding pads (look for thinning or cracks), or debris on the guide rail. Remove dust and residue from the pad and rail with a soft cloth—avoid harsh cleaners that can degrade the PU/nylon material.
• Monthly Operational Checks: Listen for unusual noises (e.g., scraping, squeaking) during elevator operation that may indicate misalignment or pad wear. Manually inspect the clamping gap and adjust if necessary.
• Quarterly Pad & Rail Inspections: Measure the thickness of the guiding pad (wear beyond 4mm exceeds Hitachi’s tolerance) and replace worn pads with genuine Hitachi parts from Nanjing Zhuye. Inspect the guide rail for scratches or grooves—clean and polish minor damage, or replace the rail if severely worn.
• Semi-Annual Lubrication (If Applicable): For guide shoes with lubrication points, apply Hitachi-approved lubricant to the adjustment bolts and moving parts—avoid lubricating the guiding pad itself, as this can reduce friction and compromise stability.
• Annual Comprehensive Inspection: Remove the guide shoe to inspect the bracket for corrosion or deformation. Verify alignment with the guide rail, re-torque all bolts, and check for signs of premature wear.

Recommended Replacement Cycle

1. Standard Replacement Cycle

• 10mm (Standard Counterweight): Under normal operating conditions (12–18 hours of daily use, regular maintenance, clean hoistway), replace every 5–7 years.
• 16mm (Heavy-Duty Counterweight): Due to higher load stress, replace every 4–6 years.

  This timeframe accounts for gradual wear of the guiding pad, fatigue of the steel bracket, and reduced clamping precision—ensuring the guide shoe maintains stable counterweight movement, minimal rail wear, and compatibility with Hitachi elevator systems. Proactive replacement reduces the risk of unexpected counterweight instability and costly downtime.

2. Signs That Require Immediate Replacement

• Operational Instability: Counterweight shakes, wobbles, or deviates from the guide rail during movement—indicative of worn pads, misalignment, or bracket damage.
• Excessive Pad Wear: Guiding pad thickness reduces below 4mm, or the pad develops cracks, chunks missing, or uneven wear—compromising guiding precision and increasing rail friction.
• Bracket Damage: Steel bracket is bent, corroded, or cracked—compromising structural integrity and safety.
• Rail Damage: The guide shoe causes scratches, grooves, or uneven wear on the guide rail—attributed to misalignment or damaged pads.
• Safety Concerns: Guide shoe slips during emergency stops or fails to maintain counterweight position—violating Hitachi’s safety standards and posing risks of elevator imbalance or car stalling.

3. Maintenance to Extend Service Life

• Protect from Contamination: Keep the hoistway clean and free from dust, debris, or water—contamination accelerates pad wear and bracket corrosion. Install dust covers (if not factory-fitted) to shield the guide shoe and rail.
• Maintain Rail Health: Replace worn or damaged guide rails promptly—damaged rails increase friction and wear on the guiding pad. Use only genuine Hitachi rails from Nanjing Zhuye to ensure compatibility.
• Avoid Overloading: Adhere to the elevator’s weight capacity limits—excessive loads strain the counterweight and guide shoe, shortening service life.
• Use Genuine Parts Only: For replacements (entire guide shoe or guiding pads), rely exclusively on authentic Hitachi 10mm/16mm counterweight guide shoes from Nanjing Zhuye. Counterfeit parts may use inferior materials (e.g., low-grade PU, weak steel) or incorrect dimensions—compromising performance, safety, and Hitachi’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Hitachi Compatibility: All guide shoes are manufactured to Hitachi’s original specifications, ensuring seamless integration with Hitachi counterweight frames and compliance with global safety/mechanical standards.
• Strict Hitachi-Specific Quality Assurance: Each unit undergoes rigorous testing—including bracket strength, pad wear resistance, guiding precision, and corrosion resistance—to guarantee reliable operation in critical Hitachi systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Hitachi elevator systems, providing 24/7 assistance for installation, adjustment, compatibility verification, and troubleshooting (e.g., counterweight instability, pad wear) in Hitachi elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers mechanical components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Hitachi’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Hitachi elevator components.

Conclusion
