Description

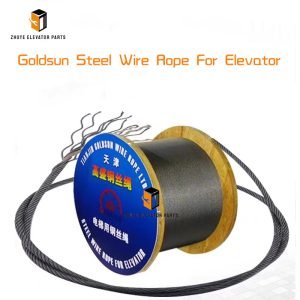

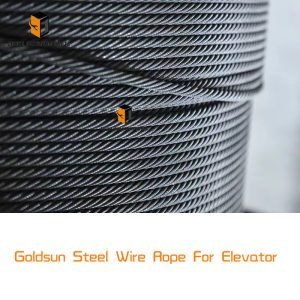

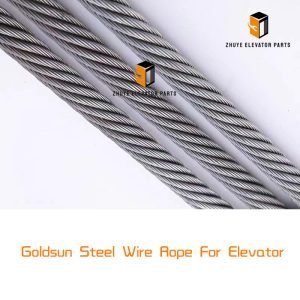

Goldsun Steel Wire Rope For Elevator Brief Introduction
|
Product Name |
Goldsun Steel Wire Rope For Elevator |
| Model Number | 8*19S+NF-10MM |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Goldsun Steel Wire Rope For Elevator – Strength, Safety and Silence in Every Lift | Nanjing Zhuye Elevator Parts
Every metre a modern elevator climbs is born from the grip between steel and iron. Goldsun elevator wire rope is that critical link — high-tensile, pre-stretched and lubricated to deliver > 3 million cycles of silent, safe travel. Whether you need 6 × 19S, 8 × 19S or 8 × 25F construction, Goldsun ropes are manufactured to EN 12385, ISO 4309 and Otis QES standards, ensuring your car stops exactly where it should — every time. When wires break or diameter drops, traction slips and energy is wasted. Nanjing Zhuye Elevator Parts keeps the complete Goldsun rope range in stock — cut to OEM length, sealed and ready for next-day despatch worldwide — helping you restore absolute safety without costly OEM delays.
Product snapshot
-
Construction: 6 × 19S, 8 × 19S, 8 × 25F, right-hand lay, pre-stretched, internally lubricated
-
Diameter range: 6 mm – 32 mm, tensile grade 1 570 MPa (1770 MPa on request)
-
Breaking force: 18 kN (Ø 6 mm) to 450 kN (Ø 32 mm)
-
Pre-stretch < 0.1 % at 20 % MBL, lubrication coefficient 0.12, noise < 42 dB(A) at 4 m/s
-
Compatible with Otis Gen2®, KONE MonoSpace®, Thyssen K200, Mitsubishi LEHY, high-rise gearless
-
CE, ISO 4309, EN 12385, RoHS, REACH and Goldsun QES 2024 approved
Where it works
-
High-rise gearless installations 60 – 300 m travel, 1:1 or 2:1 roping, 630 – 2 000 kg capacity
-
Modernisation packages replacing obsolete round-strand or broken ropes
-
Any machine-room or MRL lift requiring < 42 dB(A) running noise and ±1 mm levelling accuracy
Installation method – 45-minute precision re-rope
-
Place lift on inspection mode; stop at top landing; switch OFF main breaker; lock & tag.
-
Support car with safety props; relieve rope tension; lock brake.
-
Measure travel + 2 m for both ends; cut old rope with hydraulic shear.
-
Hang new Goldsun rope on supplied suspension eyes; torque M16 bolts to 180 Nm.
-
Install Goldsun plastic guide clips every 3 m; ensure clearance > 20 mm from wall/cable.
-
Remove safety props; run car to top; check sag 50 ± 10 mm at mid-point.
-
Run full-speed up/down 10 cycles; verify noise < 42 dB(A) at 1 m.
-
Apply torque-stripe paint; log diameter, length, breaking force and serial number.
Replacement cycle & preventive maintenance
ISO 4309 and manufacturer data specify:
-
Visual inspection every 6 months: check for broken wires, rust, lubrication dryness.
-
Diameter measurement every 12 months: replace when wear > 5 % of nominal diameter.
-
Replace entire rope every 4 years or 3 million cycles, whichever comes first.
-
Immediate replacement if:
– broken wires > 2 per lay length,
– diameter reduction > 5 %,
– lubrication dry or rust blooming,
– noise > 50 dB(A) at full speed.
Pro tip: 70 % of premature failures are traced to missing guide clips — install every 3 m.
Maintenance tips from Nanjing zhuye elevatorparts
-
Always use Goldsun plastic guide clips; bare rope beats against the wall and breaks wires.
-
Never weld or grind the rope; heat destroys tensile strength.
-
Keep a spare length in every high-rise store; at 5 kg/m it costs less than one energy-penalty month.
-
After heavy rain, run 5 cycles and check for water drip in pit.
-
Order the “Rope Kit” (cut length + guide clips + suspension eyes + lube sachet) from Nanjing zhuye elevatorparts to eliminate on-site cutting and ensure matched components.
Why buy from Nanjing zhuye elevatorparts?
We are an authorised distributor, importing Goldsun ropes directly from the mill, cutting to job length on a laser bed and crimping suspension eyes with OEM dies. Every metre is proof-loaded to 20 % MBL and shipped with a 24-month replacement warranty. Our 3 000 m² Nanjing warehouse keeps 10 000 m in stock; orders placed before 14:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at 30 m; we can pre-install suspension eyes and include a loaner tension gauge to keep your lifts running during the swap.
Conclusion
Goldsun steel wire rope is the silent lifeline that keeps every high-rise elevator perfectly balanced. By installing genuine rope, setting correct tension and replacing it before wires break, you ensure every landing is level, every kilowatt is saved, and every passenger steps out with confidence. Stock genuine Goldsun rope from Nanjing zhuye elevatorparts today — because when the rope stops, the lift stops.
