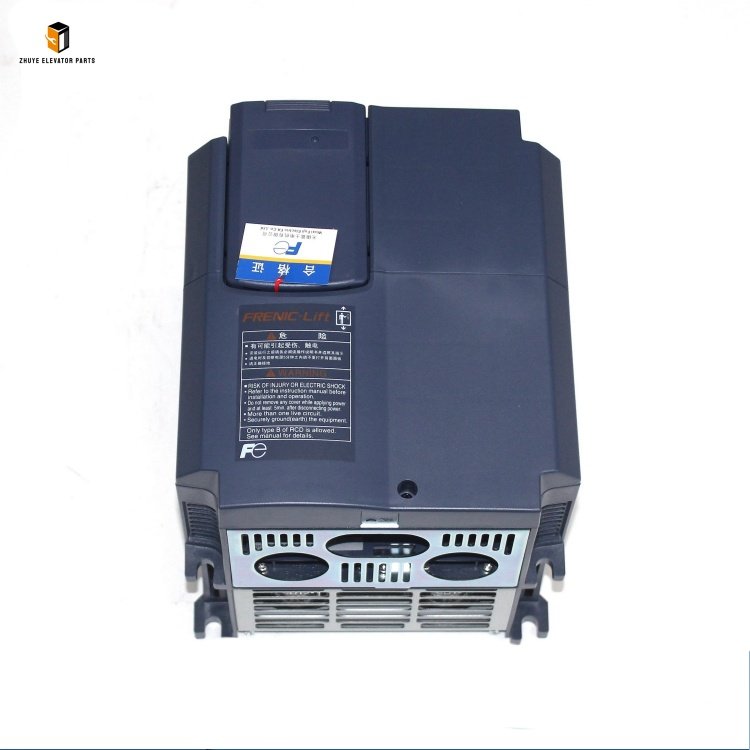

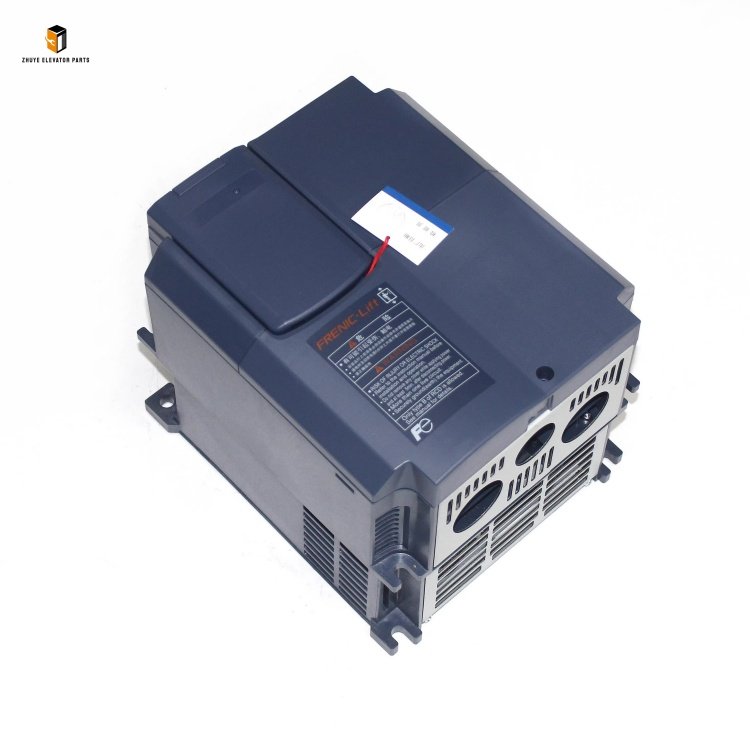

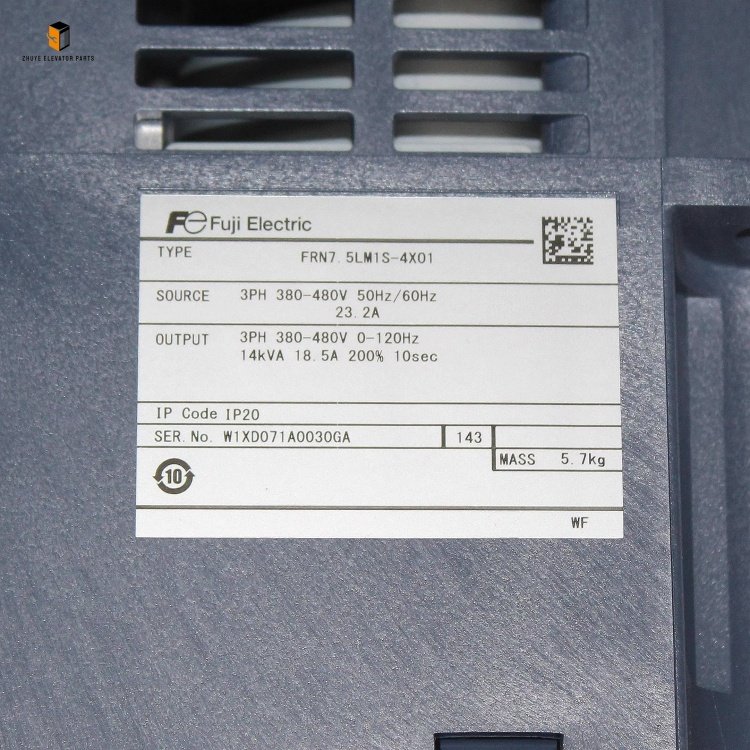

Description

• Mount the inverter in a well-ventilated, dry location away from direct sunlight, high temperatures, and dust. Ensure a minimum of 10cm clearance around the unit for heat dissipation.

• Use copper cables of the specified cross-sectional area (recommended ≥2.5mm² for power wiring) to connect the inverter to the power supply and motor. Tighten terminal screws firmly to prevent loose connections and electrical arcing.

• Strictly follow the wiring diagram provided by Fuji and Nanjing Zhuye Elevatorparts: connect the main circuit terminals (R, S, T for input; U, V, W for output) correctly, and avoid reversing the motor wiring to prevent malfunction.

• Ground the inverter properly (ground resistance ≤4Ω) to ensure electrical safety and reduce electromagnetic interference.

• Power on the inverter and enter the parameter setting mode. Set basic parameters such as motor rated voltage, rated current, rated speed, and acceleration/deceleration time according to the elevator motor’s nameplate and system requirements.

• Perform no-load debugging first: run the motor without the elevator car load to verify that the inverter controls the motor speed smoothly, with no abnormal noise or vibration.

• Conduct load debugging: simulate elevator operation with rated load, test the start-stop performance, speed regulation accuracy, and emergency stop function. Adjust parameters such as PID control gains if necessary to optimize operation stability.

• Save the configured parameters to avoid loss after power-off. Nanjing Zhuye Elevatorparts recommends recording all parameter values for future maintenance reference.

• Visual Inspection: Check the inverter weekly for signs of damage, such as cracked casings, loose terminals, or accumulated dust. Ensure the cooling fan operates normally and the indicator lights display correctly.

• Cleaning: Use a dry, soft brush or compressed air to remove dust from the inverter’s heat sink and ventilation holes monthly. Avoid using water or corrosive cleaning agents, as they may damage internal electronic components.

• Temperature Monitoring: Monitor the inverter’s operating temperature (ideal range: 0–40℃). If the temperature exceeds 45℃, check for poor ventilation or fan failure and resolve promptly.

• Fault Handling: In case of inverter faults (indicated by error codes), refer to the user manual or contact Nanjing Zhuye Elevatorparts’ technical support team for troubleshooting. Do not disassemble the inverter without professional authorization.

• Harsh Operating Environments: For elevators operating in extreme conditions—such as high humidity (e.g., coastal areas), high temperature (e.g., unventilated machine rooms), or unstable power supply—the replacement cycle should be shortened to 6–8 years. These conditions accelerate the aging of capacitors, resistors, and other internal components.

• Low-Frequency Use: For elevators with low usage frequency (e.g., villa elevators or small office buildings with fewer than 500 daily operations), the replacement cycle can be extended to 10–12 years after a professional inspection confirms that key components (such as capacitors and cooling fans) are in good condition.

• Frequent fault alarms that cannot be resolved by parameter adjustment or maintenance.

• Severe damage to the inverter casing or internal components (e.g., burnt circuit boards, leaking capacitors).

• Significant performance degradation, such as unstable speed regulation, prolonged acceleration/deceleration time, or increased energy consumption.

• The inverter is no longer compatible with elevator system upgrades or fails to meet the latest safety standards.
