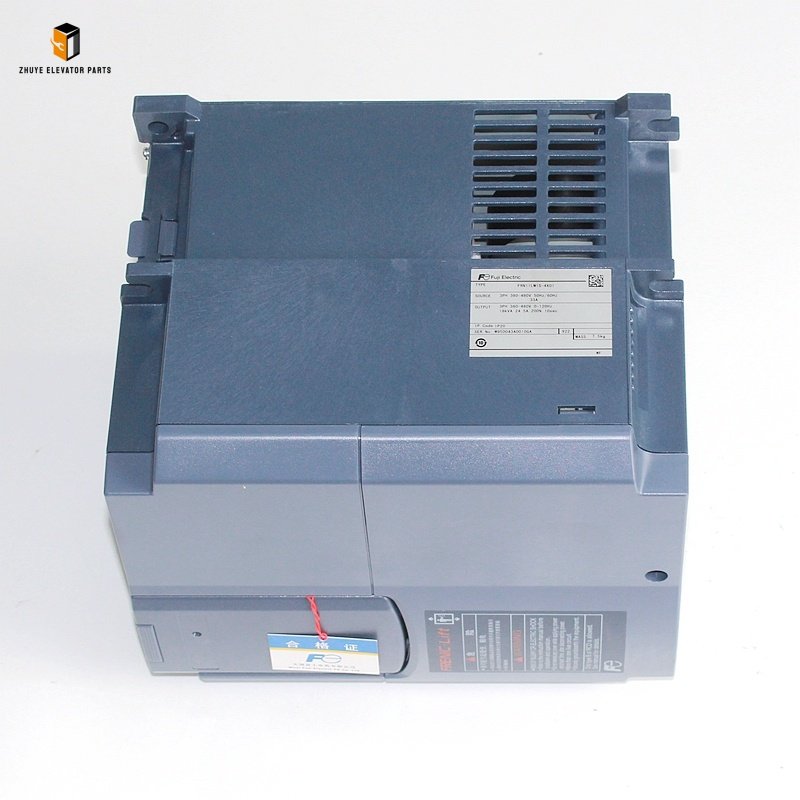

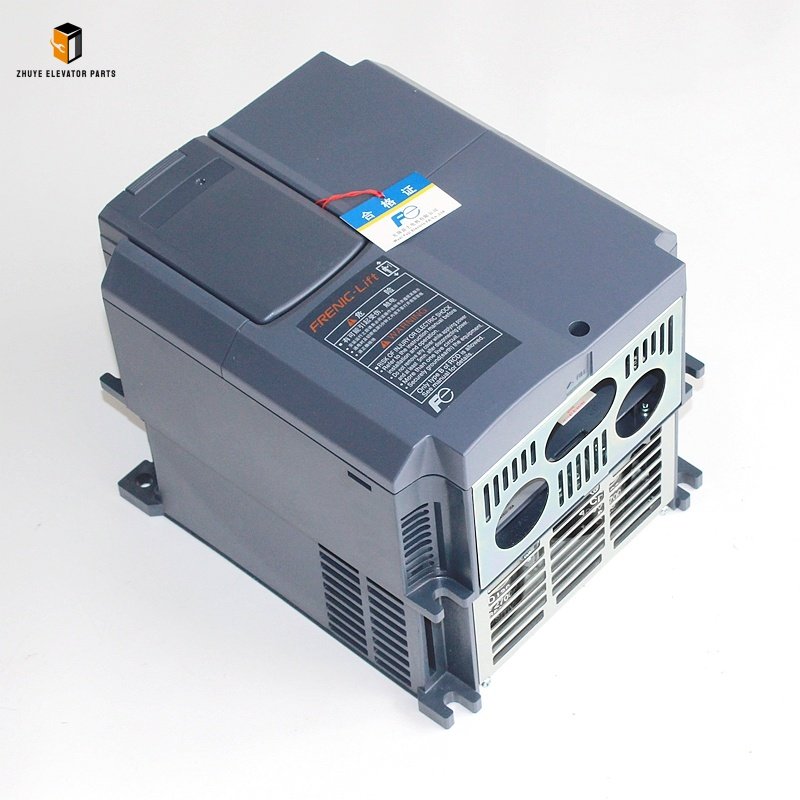

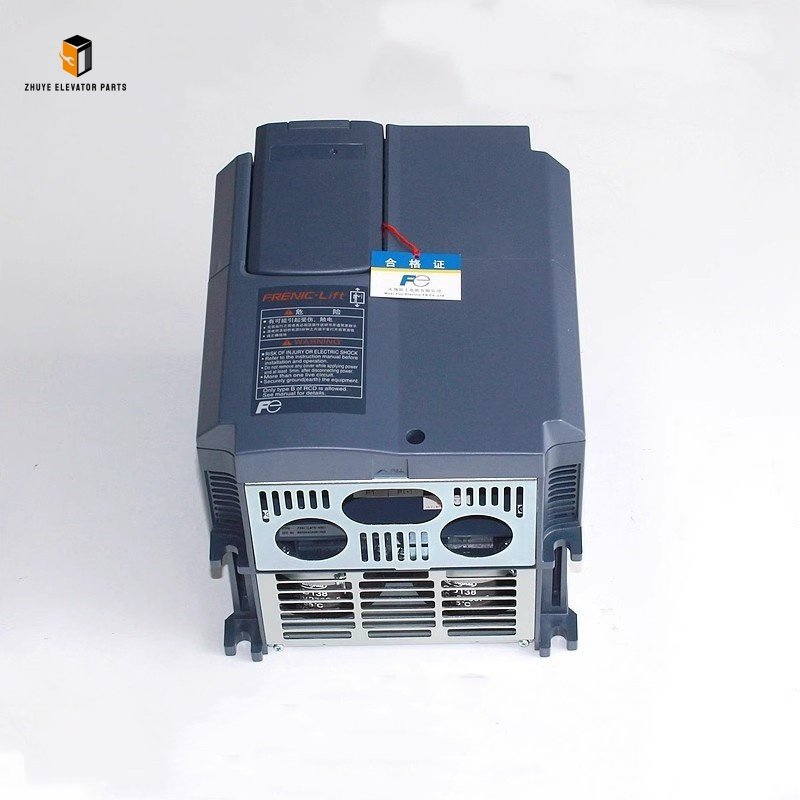

Fuji elevator inverter FRN11LM1S-4XO1 Brief Introduction

Product Name	Fuji elevator inverter

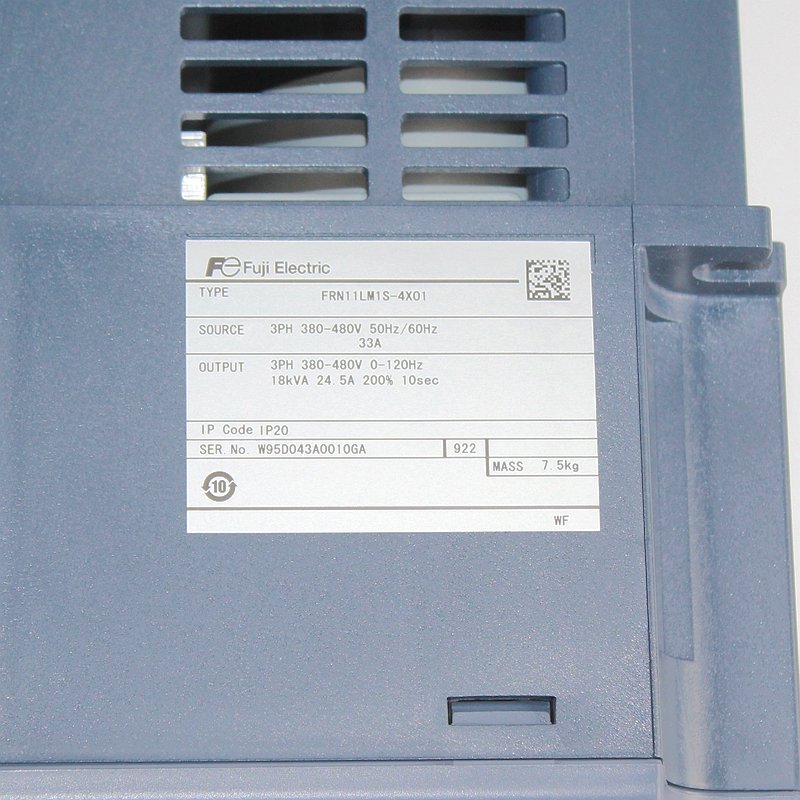

Model Number	FRN11LM1S-4XO1
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Fuji Elevator Inverter FRN11LM1S-4XO1 11KW: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Fuji Elevator Inverter FRN11LM1S-4XO1 is a high-performance variable frequency drive (VFD) exclusively engineered for Fuji elevator traction systems, delivering 11KW of precise power output—ideal for mid-sized elevators in commercial high-rises, residential complexes, office buildings, and public facilities worldwide. As the “traction control heart” of Fuji ACE, NEXIEZ, and MONOSPACE series elevators, this inverter converts AC mains power to variable-frequency AC, regulating the traction motor’s speed, torque, and direction with exceptional accuracy. It integrates Fuji’s proprietary PWM (Pulse-Width Modulation) technology, energy-saving algorithms, and robust protective logic to ensure smooth acceleration/deceleration, minimal power consumption, and synchronized operation with the elevator’s main controller—upholding Fuji’s strict standards for safety, reliability, and operational efficiency.

Compliant with global safety and industrial standards (EN 81, IEC 61800, ISO 9001), the FRN11LM1S-4XO1 features a rugged, interference-resistant design: industrial-grade IGBT modules for stable power conversion, large-capacity DC link capacitors for voltage stabilization, integrated overcurrent/overvoltage/overtemperature/earth fault protection, and a compact, heat-dissipating enclosure. This construction withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-10°C to +40°C), electromagnetic interference (EMI), and mechanical vibration. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, configuration, and replacement timelines of this 11KW inverter is critical to avoiding traction system failures, elevator stalling, or safety hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Fuji components, delivers the FRN11LM1S-4XO1 inverter that meets Fuji’s original manufacturing specifications—guaranteeing seamless compatibility, efficient power control, and long-term durability.

Proper Usage Methods of Fuji FRN11LM1S-4XO1 11KW Inverter

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s main power supply, discharging the DC link capacitor (per Fuji’s safety procedures), and securing the drive cabinet with lockout tags. Inspect the new FRN11LM1S-4XO1 inverter for physical damage—such as dented enclosures, damaged power terminals, loose IGBT modules, or burn marks on internal components—defects that can cause short circuits, power loss, or traction motor damage. Nanjing Zhuye Elevator Parts conducts rigorous Fuji-specific quality control checks, so each unit arrives in optimal condition: intact packaging, functional power modules, pre-loaded Fuji-compatible firmware, and clear wiring/terminal markings.

Verify compatibility with your Fuji elevator model and traction system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the inverter’s power rating (11KW) matches the traction motor’s output requirements, (2) the input voltage range (380–480V AC three-phase) fits the building’s electrical system, and (3) the communication protocol supports integration with the elevator’s main controller. Using an incompatible inverter can disrupt traction control, leading to erratic elevator movement or complete system shutdown. Additionally, prepare the installation area: clean the drive cabinet, ensure adequate ventilation (minimum 20cm clearance around the inverter), and confirm the cooling system (fans, heat sinks) is functional.

2. Installation & Configuration Steps

Inverter Mounting:
- Secure the FRN11LM1S-4XO1 to the drive cabinet’s mounting plate using the provided screws (torque to 2.5–3.5 Nm) to ensure stability during operation. Align the inverter’s cooling vents with the cabinet’s airflow path to maximize heat dissipation—poor ventilation causes overheating and shortened lifespan.
- Disconnect the old inverter (if replacing) by labeling and removing input power cables (L1, L2, L3), output power cables (U, V, W to traction motor), and control/communication cables (to main controller, sensors). Take detailed photos of the wiring configuration to ensure accurate reinstallation.
Wiring & Connection:
- Connect input power cables to the inverter’s AC terminal block, ensuring correct phase alignment and secure grounding (PE) to prevent electrical shock. Use 6mm² copper wire for input/output cables (suitable for 11KW current loads) and tighten terminal screws to Fuji’s specified torque (2.0–2.5 Nm) to avoid loose connections and arcing.
- Connect control cables (gate signals, sensor feedback) to the inverter’s control terminal block, using shielded cables to reduce EMI interference. Double-check wiring against the elevator’s schematic diagram to avoid cross-connections, which can damage the inverter or traction motor.
Post-Installation Configuration:
- Restore power to the drive cabinet (performed by certified Fuji technicians only) and access the configuration menu via Fuji’s diagnostic software (e.g., FR Configurator, Fuji Ladder Editor). Complete three critical steps:
  1. Motor Parameter Setup: Input the traction motor’s rated voltage, current, speed, and torque values to calibrate the inverter’s control logic.
  2. Traction Control Configuration: Set acceleration/deceleration time (typically 1.5–3 seconds), speed reference limits, and regenerative braking parameters (if applicable) to match the elevator’s performance requirements.
  3. System Sync: Initiate communication synchronization with the main controller, verifying that speed commands, position feedback, and fault signals are transmitted accurately.
Functional Testing:
- Conduct comprehensive tests to validate performance:
  - No-Load Test: Run the traction motor without the elevator car to confirm smooth speed regulation and no abnormal noise.
  - Load Test: Operate the elevator through empty, half-loaded, and full-loaded cycles to ensure the inverter maintains stable torque and speed under varying loads.
  - Protection Function Test: Simulate overcurrent, overvoltage, or overtemperature conditions to verify the inverter triggers automatic shutdown and sends fault alerts to the main controller.
- Document installation details, configuration settings, and test results in maintenance records to demonstrate compliance with Fuji’s service requirements.

3. Routine Usage Maintenance

To preserve the FRN11LM1S-4XO1’s performance and extend its lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check for abnormal noise (buzzing/humming), overheating (hot enclosure), or loose cables. Inspect the inverter’s cooling fans and air filters for unobstructed airflow.
Monthly Parameter Monitoring: Use Fuji’s diagnostic software to review inverter operating parameters (output current, voltage, temperature) and record data to identify drift trends.
Quarterly Connection Checks: Tighten input/output/control terminal screws (loose connections cause voltage fluctuations) and inspect cables for fraying, corrosion, or insulation damage. Replace damaged cables with genuine Fuji parts from Nanjing Zhuye.
Semi-Annual Cleaning: Remove dust from the inverter’s enclosure, cooling vents, and heat sinks using compressed air—avoid liquid cleaners or high-pressure air that can damage internal components.
Annual Performance Testing: Conduct a comprehensive test to verify power conversion efficiency, speed regulation accuracy, and protection function responsiveness. Compare results against Fuji’s factory specifications and recalibrate parameters if needed.

Recommended Replacement Cycle

The service life of the Fuji FRN11LM1S-4XO1 11KW Inverter depends on usage intensity (daily operating hours, load frequency), environmental conditions (temperature, humidity), and maintenance quality. Based on Fuji’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, ambient temperature -10°C to +40°C), the inverter should be replaced every 7–9 years. This timeframe accounts for gradual degradation of IGBT modules, DC link capacitors, and internal control components—proactive replacement avoids costly unplanned downtime and ensures consistent elevator performance.

2. Signs That Require Immediate Replacement

Replace the inverter immediately if you encounter any of the following issues:

Traction System Failures: Elevator stalling, erratic speed fluctuations, jerking during acceleration/deceleration, or inability to start—indicative of faulty power conversion or control logic.
Persistent Critical Errors: Repeated inverter-related error codes (e.g., “IGBT Fault,” “Motor Overload,” “Communication Timeout”) that cannot be resolved with troubleshooting or parameter adjustment.
Physical Damage: Dented enclosure, water intrusion, burned terminals, or capacitor bulging/leakage—compromising electrical safety and functionality.
Performance Degradation: Increased power consumption, reduced motor efficiency, delayed speed response, or frequent protective shutdowns—attributed to aging components.
Safety Compromise: Failure to trigger emergency stops or protective shutdowns during fault conditions—violating Fuji’s safety standards and posing severe risks to passengers.

3. Maintenance to Extend Service Life

Environmental Control: Keep the drive cabinet clean, dry, and well-ventilated. Install air conditioners or dehumidifiers if ambient temperature exceeds 40°C or humidity exceeds 85%.
Power Stabilization: Install surge protectors and voltage regulators in the input circuit to shield the inverter from mains voltage spikes and transients.
Load Management: Avoid frequent full-load acceleration/deceleration cycles (reduces stress on IGBT modules) and adhere to the elevator’s weight capacity limits.
Genuine Parts Only: For replacements, rely exclusively on authentic Fuji FRN11LM1S-4XO1 inverters from Nanjing Zhuye. Counterfeit inverters use inferior components, lack safety certifications, and risk traction system failure.

Why Choose Nanjing Zhuye Elevator Parts for Fuji FRN11LM1S-4XO1?

When sourcing the Fuji FRN11LM1S-4XO1 11KW inverter, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units meet Fuji’s original manufacturing specifications, ensuring seamless integration with ACE, NEXIEZ, and MONOSPACE series elevators.
Strict Quality Assurance: Each inverter undergoes rigorous testing (power conversion precision, thermal resilience, protection function validation) to guarantee reliable operation in critical traction systems.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, firmware updates, and troubleshooting—even for complex traction system setups.
Global Efficient Delivery: Fast shipping to worldwide locations minimizes machine room downtime, ensuring uninterrupted elevator service.
Competitive Pricing: Direct sourcing from Fuji’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Fuji Elevator Inverter FRN11LM1S-4XO1 11KW is a foundational power control component that ensures efficient, reliable operation of Fuji elevator traction systems—directly impacting passenger safety and operational efficiency. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can ensure Fuji elevators remain compliant, downtime-free, and safe for passengers. Whether you need a single replacement inverter, technical support for system upgrades, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Fuji components and tailored professional services. Invest in the traction system reliability of your Fuji elevators—choose Nanjing Zhuye Elevator Parts for your FRN11LM1S-4XO1 11KW inverter requirements.
