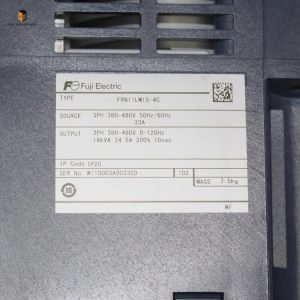

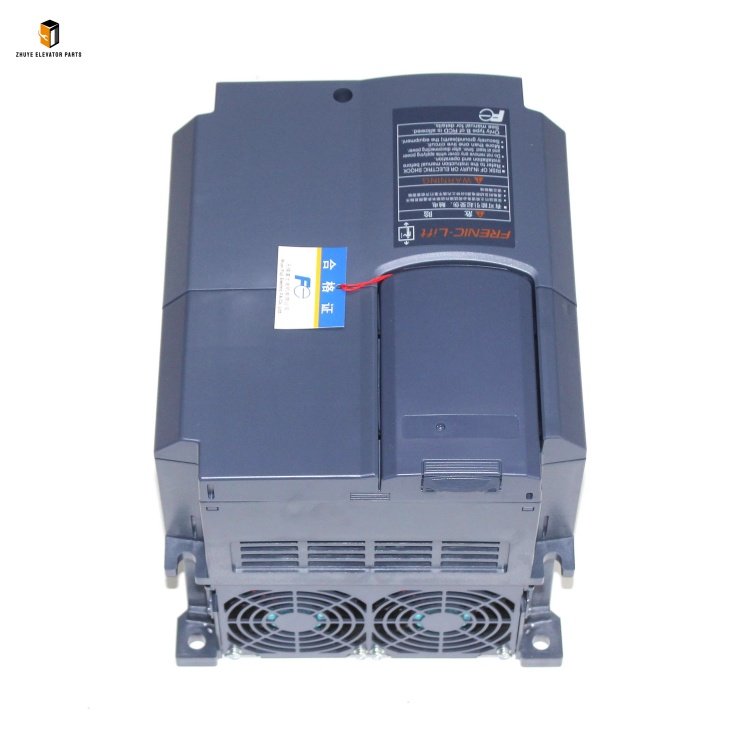

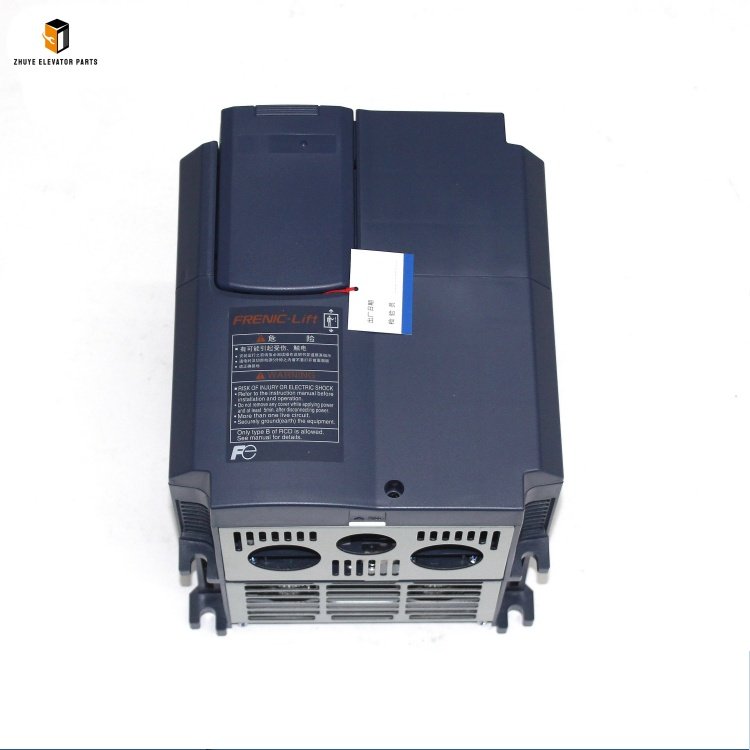

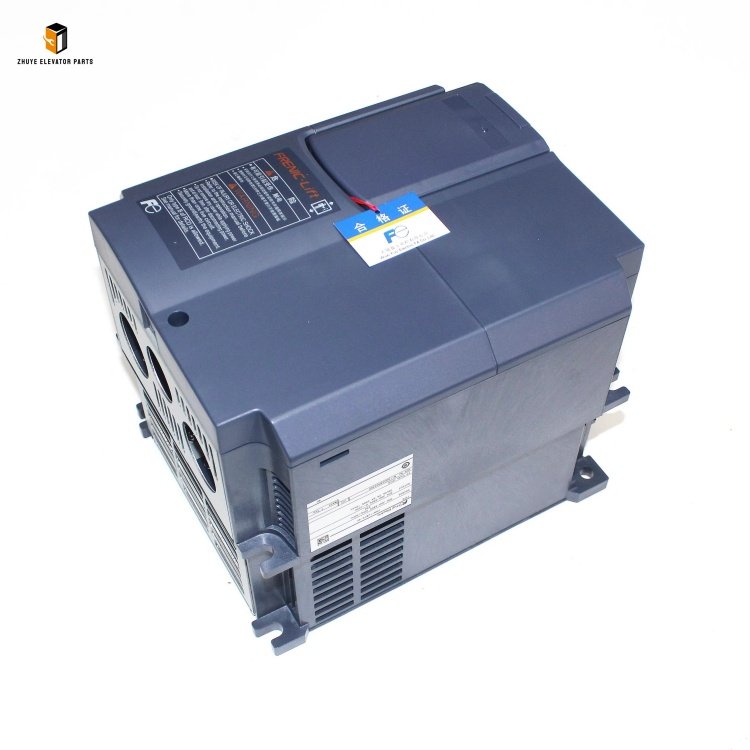

Description

• Mount the inverter in a well-ventilated area with ambient temperatures between 0℃ and 40℃. Avoid direct sunlight, dust, moisture, or corrosive substances, and maintain a minimum 10cm clearance around the unit for heat dissipation.

• Use high-quality copper cables with a cross-sectional area of ≥4mm² for power wiring (input: R, S, T; output: U, V, W) to handle the 11kW load. Tighten terminal screws to the recommended torque (3.5–4.5 N·m) to prevent loose connections and electrical arcing.

• Strictly follow the wiring diagram provided by Fuji and Nanjing Zhuye Elevatorparts. Ensure proper grounding (ground resistance ≤4Ω) to reduce electromagnetic interference and ensure electrical safety.

• Avoid routing control cables parallel to power cables to minimize signal interference, which can cause erratic inverter performance.

• Power on the inverter and access the parameter menu. Input core parameters based on the elevator motor’s nameplate, including rated voltage, rated current, rated speed, acceleration time (1.2–2.5 seconds), and deceleration time (1.2–2.5 seconds).

• Conduct a no-load test first: operate the motor without the elevator car load to verify smooth speed transitions, absence of abnormal noise, and correct response to control signals.

• Proceed to load testing: simulate rated load conditions, test start-stop accuracy, speed stability (tolerance ≤±0.3%), and emergency stop functionality. Adjust torque compensation or PID parameters if needed to optimize performance.

• Save all configured parameters to non-volatile memory and document them in a maintenance log. Nanjing Zhuye Elevatorparts recommends reviewing parameters quarterly to prevent unintended modifications.

• Weekly Inspections: Visually check the inverter for cracked casings, loose terminals, or dust buildup. Verify that the cooling fan operates quietly and indicator lights display normal status (green power light, no error codes).

• Monthly Cleaning: Use compressed air (pressure ≤0.5MPa) or a dry soft brush to remove dust from the heat sink, ventilation grilles, and terminal blocks. Never use water, alcohol, or abrasive cleaners, as they can damage internal electronic components.

• Temperature & Voltage Monitoring: Track operating temperature (optimal range: 25–35℃) and input/output voltage. If the temperature exceeds 45℃, inspect ventilation or replace the cooling fan immediately. Voltage fluctuations beyond ±10% of the rated value require power supply troubleshooting.

• Fault Handling: In case of error codes (e.g., E.OC2 for output overcurrent, E.OH for overheating), refer to the user manual or contact Nanjing Zhuye Elevatorparts’ technical support team. Do not disassemble the inverter or modify parameters without professional authorization.

• Harsh Environments: For elevators in coastal areas (high humidity), unventilated machine rooms (temperature >40℃), or regions with unstable power grids, shorten the replacement cycle to 5–7 years. These conditions accelerate component degradation, particularly capacitors and power modules.

• Low-Frequency Use: For elevators with low usage (e.g., villa elevators, small office buildings with daily operations), extend the cycle to 9–11 years after a professional inspection confirms that critical components (capacitors, cooling fans, control boards) are functional.

• Recurring fault alarms (≥2 times per week) that cannot be resolved by maintenance or parameter adjustment.

• Visible internal damage, such as burnt circuit boards, leaking capacitors, or melted terminals.

• Significant performance decline: unstable speed regulation, increased energy consumption (>12% higher than baseline), or delayed response to control signals.

• Incompatibility with elevator system upgrades (e.g., new safety features, smart control panels) or failure to meet updated industry standards.
