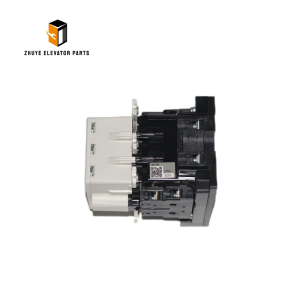

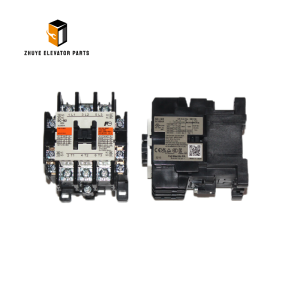

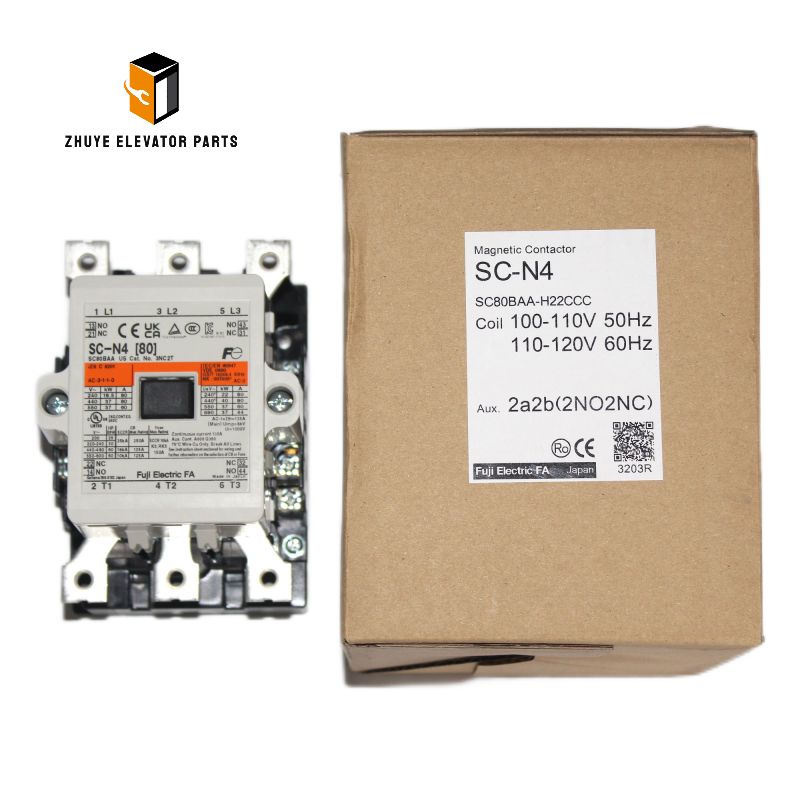

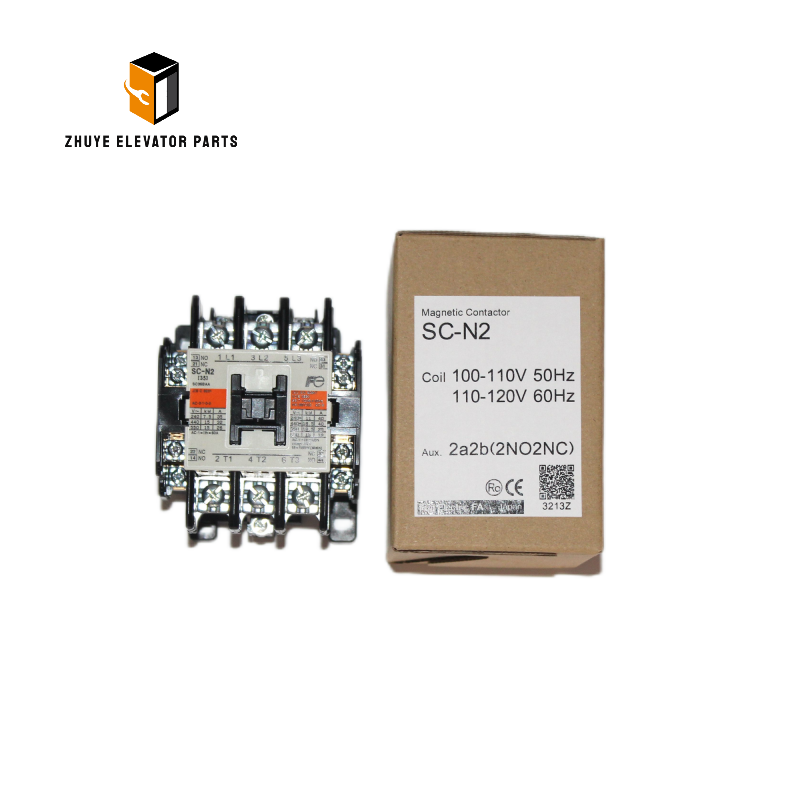

Fuji Elevator Contactor SC-N2/SC-N4: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Fuji SC-N2/SC-N4 Contactors

1. Pre-Installation Preparation

2. Installation & Wiring Setup

• Contactor Installation:
  • Access the control cabinet (located in the machine room or hoistway) and locate the designated mounting position. Disconnect the old contactor (if replacing) by labeling and removing power wires (line and load terminals) and control wires (coil terminals)—take photos of the wiring configuration to ensure accurate reinstallation. Clean the mounting surface with compressed air to remove dust or debris that could hinder heat dissipation.
  • Secure the new SC-N2/SC-N4 contactor to the mounting rail (DIN rail compatible) using integrated clips or provided screws (torque to 1.2–1.8 Nm) for stable positioning. Ensure proper spacing: 3cm for SC-N2 (20A) and 4cm for SC-N4 (40A) from adjacent components to accommodate heat dissipation, especially for higher-load SC-N4 applications.
• Wiring Configuration:
  • Use appropriately sized power wires: 1.5mm² copper wire for SC-N2 (20A) and 4mm² copper wire for SC-N4 (40A). Strip wires (8–10mm) and tighten to Fuji’s specified torque (2.0–2.5 Nm) at line (L) and load (T) terminals to prevent loose connections and arcing. Connect control wires to coil terminals (A1/A2) matching the rated voltage—verify polarity for DC coils to avoid damage.
  • Double-check wiring against the elevator’s schematic diagram and contactor markings. Ensure NO contacts (for circuit activation) and NC contacts (for circuit deactivation) are correctly assigned. Secure all connections with cable ties to prevent vibration-induced damage, and separate power/control wires to minimize electromagnetic interference.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only) after installation:
    • Coil Activation Test: Apply rated voltage to the control circuit and verify the contactor engages with a clear “click”—use a multimeter to confirm continuity on NO contacts and open circuit on NC contacts when activated.
    • Switching Performance Test: Operate the elevator through variant-specific cycles (e.g., door control for SC-N2, brake activation for SC-N4) to ensure reliable switching without hesitation, sticking, or arcing.
    • Overload Test: Simulate maximum load conditions for connected components to confirm thermal protection functions—surface temperature should remain ≤75°C for SC-N2 and ≤80°C for SC-N4.
  • Document installation details, wiring configurations, and test results in maintenance records to demonstrate compliance with Fuji’s service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose wires, damaged terminals, or signs of arcing (blackening on contacts/housing). Remove dust with compressed air—avoid water or chemical cleaners.
• Monthly Functional Checks: Use a multimeter to test coil resistance (matches Fuji’s specs: ~800–900Ω for AC110V, ~200–250Ω for DC48V) and contact continuity. Verify smooth engagement/disengagement.
• Quarterly Contact Inspection: Remove the cover (if applicable) and inspect contact points for wear, pitting, or oxidation. Clean lightly with a Fuji-approved dry cloth—replace if wear exceeds 0.8mm (SC-N2) or 1.0mm (SC-N4).
• Semi-Annual Coil Inspection: Check coil windings for fraying, overheating, or moisture damage. Ensure connections are tight and corrosion-free to prevent voltage drops.
• Annual System Integration Test: Test interaction with other components (e.g., sensors, relays) to ensure synchronized operation—verify correct switching during normal and emergency scenarios.

Recommended Replacement Cycle

1. Standard Replacement Cycle

• SC-N2 (20A): Replace every 5–7 years under normal operating conditions (12–18 hours/day, regular maintenance).
• SC-N4 (40A): Replace every 4–6 years due to higher load stress on contacts and coils.

  This timeframe accounts for gradual wear, coil degradation, and reduced arc-suppression efficiency—ensuring reliable performance for critical circuits.

2. Signs That Require Immediate Replacement

• Switching Failures: Intermittent engagement, sticking, or failure to switch—causing component malfunctions (e.g., doors not opening, brake issues).
• Electrical Arcing: Visible sparks, burning odors, or discoloration—indicates worn contacts or arc-suppression failure.
• Physical Damage: Cracked housing, bent terminals, or coil damage—compromising electrical safety.
• Performance Degradation: Increased contact resistance, overheating, or frequent protective device tripping.
• Safety Compromise: Failure to activate/deactivate safety interlocks during emergencies—violating Fuji’s safety standards.

3. Maintenance to Extend Service Life

• Environmental Control: Keep the control cabinet clean, dry, and ventilated. Install heaters/dehumidifiers if humidity exceeds 85% to prevent corrosion.
• Power Stabilization: Use surge protectors and voltage regulators to shield against spikes/transients.
• Minimize Overload: Adhere to current limits and avoid frequent full-load cycles—reduces contact wear.
• Genuine Parts Only: Rely on authentic Fuji SC-N2/SC-N4 contactors from Nanjing Zhuye. Counterfeits use inferior materials, risking performance and safety.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All units meet Fuji’s OEM specs, ensuring seamless integration with Fuji ACE, NEXIEZ, and MONOSPACE series.
• Strict Quality Assurance: Rigorous testing (switching performance, contact resistance, thermal resilience) guarantees reliability in critical circuits.
• Expert Support: Certified engineers provide 24/7 assistance for variant selection, installation, wiring, and troubleshooting.
• Global Delivery: Robust supply chains ensure prompt shipment, minimizing elevator downtime.
• Competitive Pricing: Direct sourcing eliminates middlemen, offering cost-effective solutions without quality compromises.
