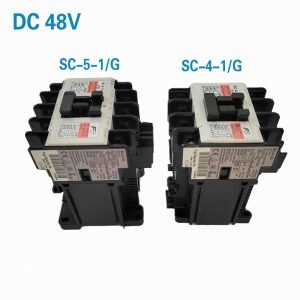

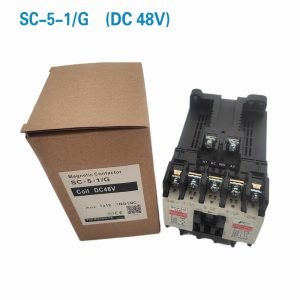

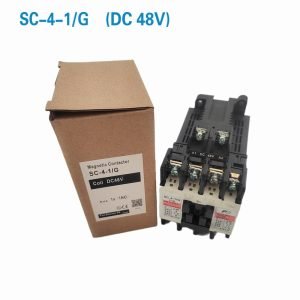

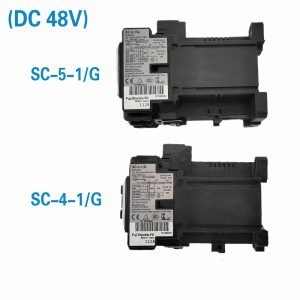

Fuji elevator contactor SC-4-1/G SC-5-1/G DC/48V Brief Introduction

Product Name	Fuji elevator contactor
Model Number	SC-4-1/G SC-5-1/G DC/48V
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

G DC 48V: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Fuji Elevator Contactor SC-4-1/G and SC-5-1/G (DC 48V) are precision-engineered electrical control components exclusively designed for Fuji elevator systems—widely deployed in commercial high-rises, residential complexes, public transit facilities, and office buildings worldwide. As core switching devices in elevator control circuits, these contactors manage power distribution to critical components such as door motors, traction motors, brake systems, and auxiliary equipment. They enable reliable on/off switching of high-current circuits under DC 48V operation, ensuring synchronized operation of elevator mechanisms while upholding Fuji’s strict standards for safety, durability, and operational stability.

Compliant with global electrical and safety standards (IEC 60947, EN 60947-4-1, ISO 9001), the SC-4-1/G and SC-5-1/G contactors feature a robust, arc-resistant design: silver-alloy contact points for low contact resistance and long service life, sealed coil windings for protection against dust and moisture, arc-suppression chambers to minimize electrical arcing, and thermal overload protection. This construction withstands frequent switching cycles, voltage fluctuations, and harsh elevator environments—including temperature ranges of -10°C to +60°C, humidity up to 85% (non-condensing), and vibration. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, wiring, and replacement timelines of these contactors is critical to avoiding control system failures, elevator downtime, or safety hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Fuji components, delivers the SC-4-1/G and SC-5-1/G contactors that meet Fuji’s original manufacturing specifications—guaranteeing consistent switching performance, reliable power distribution, and long-term durability.

Proper Usage Methods of Fuji SC-4-1/G SC-5-1/G DC 48V Contactor

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s main power supply and control circuit power, discharging residual voltage, and securing the control cabinet with a lockout tag. Inspect the new contactor (SC-4-1/G or SC-5-1/G) for physical damage—such as cracked housings, bent terminals, worn contact points, or damaged coil windings—defects that can cause electrical short circuits, failed switching, or component overheating. Nanjing Zhuye Elevator Parts conducts rigorous Fuji-specific quality control checks, so each unit arrives in optimal condition: intact contact points, functional coil windings, pre-tested switching performance, and clear terminal markings for error-free wiring.

Verify compatibility with your Fuji elevator model and control system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure the contactor’s voltage rating (DC 48V), current capacity (SC-4-1/G: 40A, SC-5-1/G: 50A), contact configuration (1NO/1NC), and mounting dimensions match the elevator’s requirements—using an incompatible contactor can damage control circuits or critical elevator components.

2. Installation & Wiring Setup

Contactor Installation:
- Access the control cabinet (located in the machine room or hoistway) and locate the designated mounting position for the contactor. Disconnect the old contactor (if replacing) by labeling and removing power wires (line and load terminals) and control wires (coil terminals)—take photos of the wiring configuration to ensure accurate reinstallation. Clean the mounting surface with compressed air to remove dust or debris that could hinder heat dissipation.
- Secure the new SC-4-1/G or SC-5-1/G contactor to the mounting rail or bracket using the provided clips or screws (torque to 1.5–2.0 Nm) for stable positioning. Ensure proper spacing (minimum 5cm from adjacent components) to allow airflow and prevent overheating.
Wiring Configuration:
- Connect power wires to the line (L) and load (T) terminals—ensure wires are properly stripped (8–10mm) and tightened to Fuji’s specified torque (2.5–3.0 Nm) to prevent loose connections and electrical arcing. Connect control wires to the coil terminals (typically marked A1/A2) using DC 48V power from the elevator’s control circuit—verify polarity to avoid coil damage.
- Double-check wiring against the elevator’s schematic diagram and the contactor’s terminal markings. Ensure no wires are pinched or exposed, and secure all connections with cable ties to prevent vibration-induced damage.
Functional Testing:
- Conduct comprehensive tests (by certified technicians only) after installation:
  - Coil Activation Test: Apply DC 48V power to the control circuit and verify the contactor engages with a clear “click”—confirm contact closure using a multimeter.
  - Switching Performance Test: Operate the elevator through door cycles, motor startup, and brake activation to ensure the contactor switches reliably without hesitation or arcing.
  - Overload Test: Simulate high-load conditions (where applicable) to confirm thermal protection functions properly and the contactor does not overheat.
- Document installation details, wiring configurations, and test results in maintenance records to demonstrate compliance with Fuji’s service requirements.

3. Routine Usage Maintenance

To preserve performance and extend lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check for loose wires, damaged terminals, or signs of arcing (blackening on contact points). Remove dust from the contactor and surrounding area with compressed air—avoid using water or chemical cleaners.
Monthly Functional Checks: Use a multimeter to test coil resistance (should match Fuji’s specifications: typically 150–200Ω for DC 48V) and contact continuity. Verify the contactor engages and disengages smoothly without sticking.
Quarterly Contact Inspection: Remove the contactor cover (if applicable) and inspect contact points for wear, pitting, or oxidation. Clean lightly with a contact cleaner (approved by Fuji) if needed—replace the contactor if wear exceeds 1mm.
Semi-Annual Coil Inspection: Check coil windings for fraying, overheating, or moisture damage. Ensure coil connections are tight and free from corrosion.
Annual System Integration Test: Test the contactor’s interaction with other elevator components (e.g., door sensors, brake systems) to ensure synchronized operation and safety compliance.

Recommended Replacement Cycle

The service life of the Fuji SC-4-1/G and SC-5-1/G DC 48V Contactors depends on usage intensity (daily switching cycles), environmental conditions (temperature, humidity, dust), and maintenance quality. Based on Fuji’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, and stable environment), the contactor should be replaced every 5–7 years. This timeframe accounts for gradual contact wear, coil degradation, and reduced arc-suppression efficiency—ensuring reliable switching performance and safety compliance. Proactive replacement reduces the risk of unexpected contactor failure and elevator downtime.

2. Signs That Require Immediate Replacement

Replace the contactor immediately if you encounter any of the following issues:

Switching Failures: Contactor fails to engage/disengage, sticks in one position, or switches intermittently—causing elevator component malfunctions (e.g., door not opening, motor not starting).
Electrical Arcing: Visible sparks or burning odors during switching—indicates worn contact points or arc-suppression failure.
Physical Damage: Cracked housing, bent terminals, or damaged coil windings—compromising electrical safety and performance.
Performance Degradation: Increased contact resistance (measured via multimeter), coil overheating, or frequent tripping of protective devices.
Safety Compromise: Contactor fails to interrupt power during emergency stops—violating Fuji’s safety standards and posing risks to passengers or maintenance personnel.

3. Maintenance to Extend Service Life

To maximize the contactor’s lifespan and minimize replacement costs:

Environmental Control: Keep the control cabinet clean, dry, and well-ventilated. Avoid extreme temperature fluctuations and humidity—install cabinet heaters or dehumidifiers if needed.
Power Stabilization: Install surge protectors and voltage regulators in the control circuit to shield the contactor from voltage spikes and transients.
Minimize Unnecessary Switching: Avoid frequent elevator testing or idle operation that increases contactor wear.
Use Genuine Parts Only: For replacements, rely exclusively on authentic Fuji SC-4-1/G and SC-5-1/G contactors from Nanjing Zhuye. Counterfeit contactors use inferior materials, inadequate arc suppression, or incorrect current ratings—compromising performance, safety, and Fuji’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the Fuji Elevator Contactor SC-4-1/G SC-5-1/G DC 48V, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:

Authenticity & Fuji Compatibility: All contactors meet Fuji’s original manufacturing specifications, ensuring seamless integration with Fuji elevator systems and compliance with global safety standards.
Strict Quality Assurance: Each unit undergoes rigorous testing—including switching performance, contact resistance, coil functionality, and arc-suppression efficiency—to guarantee reliable operation in critical elevator control circuits.
Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Fuji elevator systems, providing 24/7 assistance for installation, wiring configuration, compatibility verification, and troubleshooting (e.g., contactor sticking, arcing issues).
Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers electrical control components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings.
Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Fuji elevator components.

Conclusion

The Fuji Elevator Contactor SC-4-1/G and SC-5-1/G DC 48V are foundational control components that ensure reliable power distribution and safe operation of Fuji elevators. By following proper installation, wiring, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can ensure elevators remain compliant, downtime-free, and safe for passengers. Whether you need a single replacement contactor, technical support for wiring setup, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Fuji components and tailored professional services. Invest in the control system reliability of your Fuji elevators—choose Nanjing Zhuye Elevator Parts for your SC-4-1/G and SC-5-1/G contactor requirements.
