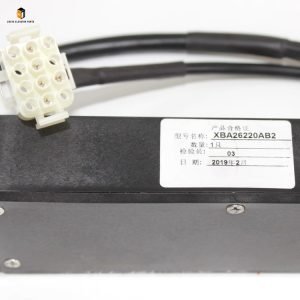

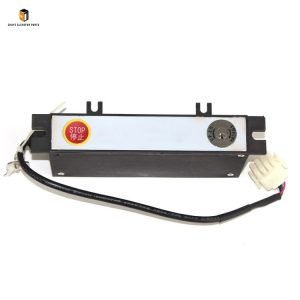

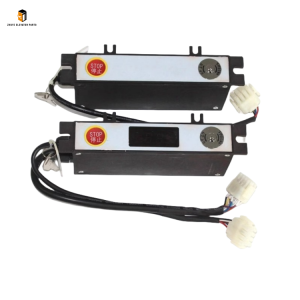

Escalator Stop Key Switch Box Control Panel XAA26220S1: Emergency Control Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Escalator Stop Key Switch Box Control Panel XAA26220S1

1. Professional Installation & Commissioning

• Safety Preparation: Cut off the escalator’s main power supply and hang a “Maintenance in Progress—Do Not Power On” sign at the power switch. Select the installation position according to escalator safety specifications (usually 1.5–1.8m above the ground, near the escalator entrance/exit, and easily accessible). Clean the installation area to remove dust, oil stains, and debris that may affect installation and heat dissipation.
• Panel Installation: Fix the XAA26220S1 control panel to the preset mounting position using high-strength screws provided by Nanjing Zhuye Elevatorparts. Ensure the panel is installed horizontally, with no tilt or loose fit. The installation must be firm to resist external impact (the shell can withstand a 5J impact without damage). Reserve a 5–8cm gap around the panel to facilitate heat dissipation and wiring maintenance.
• Wiring & Calibration: Follow the escalator wiring diagram and Nanjing Zhuye’s technical guidance to connect the control panel’s power terminal, signal terminal, and emergency stop circuit to the escalator main control system. Ensure the wiring is tight, the positive and negative poles are correctly connected, and the wiring is fixed with cable ties to avoid loose contact caused by vibration. After wiring, calibrate the key switch and emergency stop button: insert the dedicated key and rotate it to the “RUN” position, confirm the LED running indicator (green) is on; press the emergency stop button, check if the escalator control system immediately receives the stop signal, and the stop indicator (red) is on. Rotate the key to the “STOP” position to verify the normal stop function.
• Post-Installation Testing: Restore the power supply and conduct comprehensive functional tests. Simulate normal operation and emergency stop scenarios multiple times to verify the control panel’s response sensitivity (emergency stop response time ≤ 0.5s). Check if the status indicators display correctly under different working conditions (running, stopped, fault). If there is delayed response, incorrect indicator display, or failure to trigger the stop signal, recheck the wiring and calibration immediately.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During escalator patrols, check the external state of the XAA26220S1 control panel. Ensure the shell is free of cracks, deformation, or damage; check the key switch for tight fit (no looseness when inserted); confirm the emergency stop button is in the pop-up state (normal position) and the LED indicators are working normally (no dimness or flickering).
• Weekly Functional Check: Use the dedicated key to test the switch function—rotate between “RUN” and “STOP” positions to ensure smooth operation without jamming. Press the emergency stop button (after obtaining relevant approval) to verify that the escalator can stop immediately and the alarm system is activated. After the test, reset the button and confirm the escalator can resume normal operation.
• Monthly Parameter Monitoring: Use a multimeter to detect the control panel’s input voltage (ensure it is within the standard range of DC 24V ± 1V) and switch contact resistance (normal value ≤ 50mΩ). Check the wiring terminals for oxidation or loose connections—clean the terminals with a professional cleaner if necessary and retighten loose screws.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Disconnect the power supply, wipe the panel surface and shell with a dry, lint-free cloth to remove accumulated dust and stains. Apply a small amount of contact lubricant to the key switch’s internal mechanism to ensure smooth rotation. Check the emergency stop button’s spring for fatigue—replace the button if it fails to pop up automatically.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including switch reliability, indicator brightness, and circuit continuity. Use a professional circuit tester to detect the emergency stop circuit’s continuity (no open circuit allowed). For escalators in harsh environments (such as high humidity, high dust, or frequent human contact), increase the test frequency and apply a layer of anti-scratch protective film to the panel surface.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Disassemble the control panel (by professional personnel) to inspect internal components (including resistors, capacitors, and connectors) for aging or damage, and replace them with genuine parts. Calibrate the switch response time and indicator brightness to ensure they meet the original factory standards.

Recommended Replacement Cycle for Escalator Stop Key Switch Box Control Panel XAA26220S1

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For escalators in high-humidity coastal areas (salt spray corrosion), high-dust construction site supporting malls, or escalators in public places with frequent human contact (resulting in frequent switch operation), the replacement cycle should be shortened to 3–5 years. Harsh conditions accelerate the aging of internal circuits, wear of switch contacts, and damage to the shell, significantly reducing the control panel’s reliability.
• Low-Frequency Use Scenarios: For escalators with low usage frequency (e.g., small office buildings, villa lobbies with daily operation time < 8 hours) and clean, stable environments, the replacement cycle can be appropriately extended to 7–8 years—only if Nanjing Zhuye’s professional inspection confirms that the control panel’s switch performance, indicator function, and circuit integrity are all intact.

3. Immediate Replacement Conditions

• The key switch is stuck or fails to trigger the start/stop signal, and the fault cannot be eliminated through maintenance and lubrication.
• The emergency stop button fails to pop up automatically or cannot trigger the emergency stop function, or the response time exceeds 1s.
• The shell is severely cracked or damaged, exposing internal circuits; or the internal circuit is short-circuited/broken (confirmed by professional testing).
• The status indicators are dim, flickering, or displaying incorrectly, and the fault cannot be fixed by replacing the indicator lamp; or the contact resistance persists above 100mΩ, affecting signal transmission.
