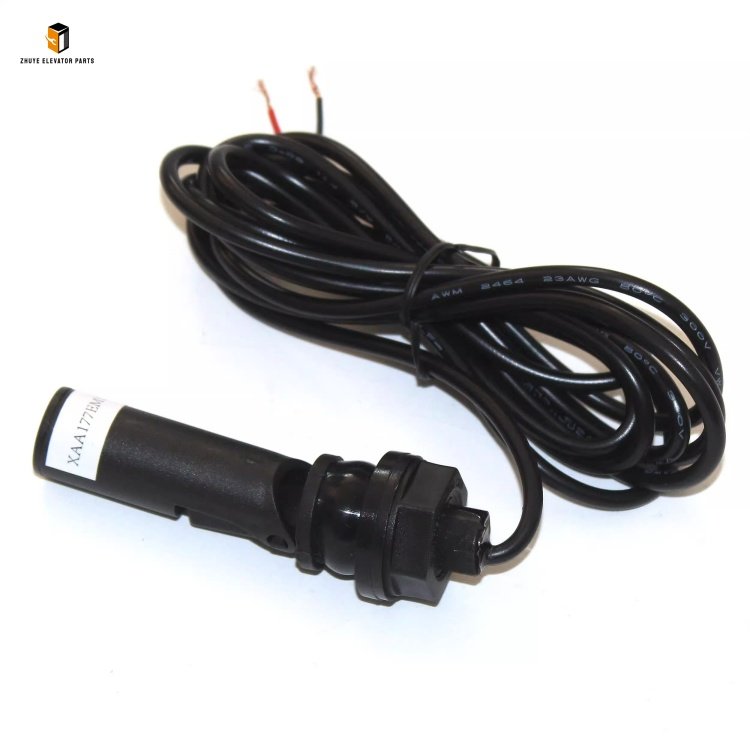

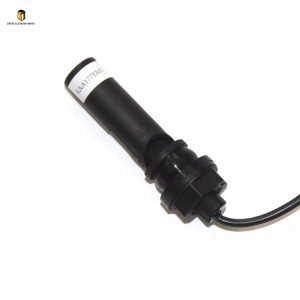

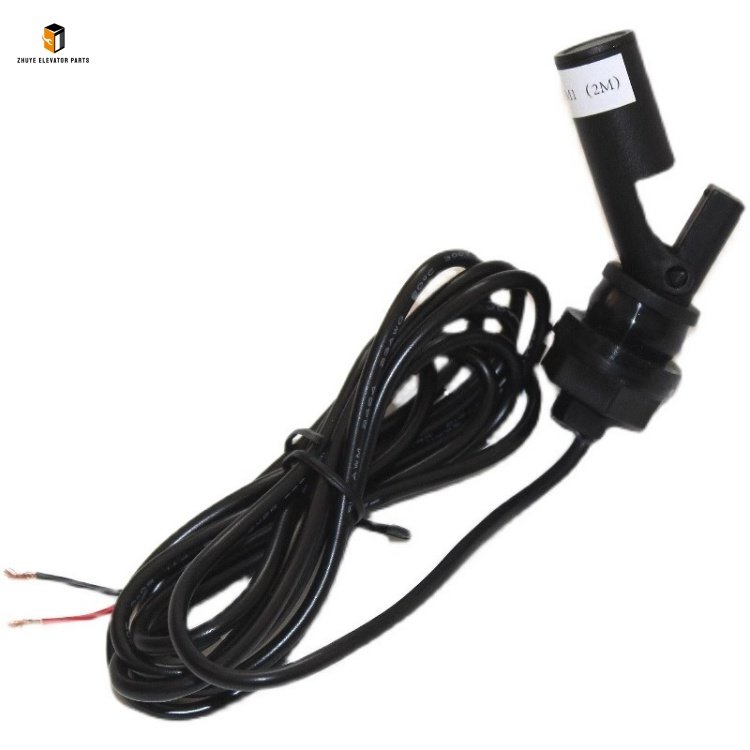

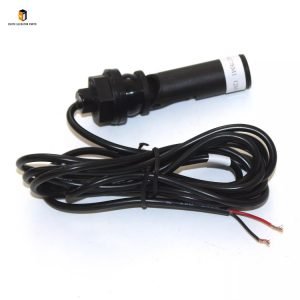

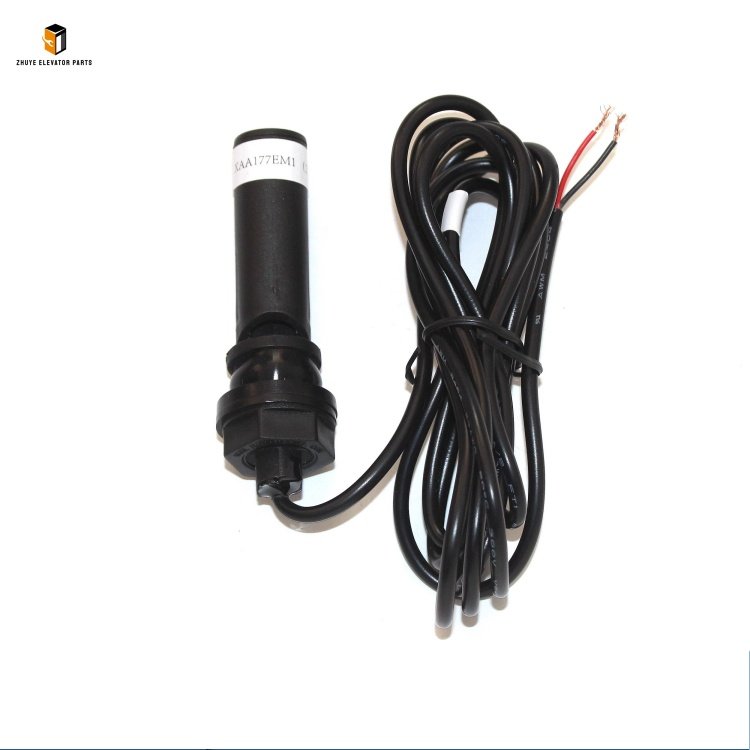

Escalator Water Level Switch MFP-11A-2M (XAA177EM1): Reliable Protection Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Escalator Water Level Switch MFP-11A-2M (XAA177EM1)

1. Professional Installation & Commissioning

• Safety Preparation: Cut off the escalator’s main power supply and hang a “Maintenance in Progress—Do Not Power On” sign at the power switch. Enter the escalator pit or machine room (ensure safe access), and clean the installation area to remove sludge, oil stains, and debris that may affect the floating ball’s movement.
• Switch Installation: Fix the MFP-11A-2M (XAA177EM1) water level switch to the preset mounting bracket using high-strength screws provided by Nanjing Zhuye Elevatorparts. Ensure the switch is installed vertically, and the floating ball can move up and down freely without obstruction. The installation height must be set according to the escalator’s safety specifications—usually, the switch’s trigger level is 20–30mm above the pit bottom (adjust according to the on-site environment). Tighten the screws with a torque of 8–12 N·m to prevent loosening due to vibration.
• Electrical Wiring & Calibration: Follow the escalator wiring diagram and Nanjing Zhuye’s technical guidance to connect the switch’s power terminal and signal terminal to the escalator control system. Ensure the wiring is tight, the positive and negative poles are correctly connected, and the wiring is protected with a waterproof sleeve to avoid short circuits caused by water immersion. After wiring, calibrate the trigger level: pour an appropriate amount of water into the test area to simulate waterlogging, and confirm that the switch triggers the alarm or shutdown signal when the water level reaches the preset threshold. Drain the water and check if the switch resets normally.
• Post-Installation Testing: Restore the power supply and conduct comprehensive safety tests. Simulate water level exceeding the threshold multiple times to verify the switch’s response sensitivity and stability. Check if the escalator control system correctly receives the switch signal and executes the corresponding protection measures (e.g., shutting down the escalator, activating the alarm). If the switch has delayed response or failure to trigger, recheck the installation height and wiring immediately.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During escalator maintenance, check the external state of the MFP-11A-2M (XAA177EM1) through the pit inspection window or by entering the machine room. Ensure the ABS shell is free of cracks, deformation, or corrosion; check if the floating ball moves flexibly (manually toggle the floating ball to confirm no jamming); confirm the wiring terminals are tight and the waterproof sleeve is intact.
• Weekly Functional Check: Operate the escalator in maintenance mode and use the manual test function to check the switch’s signal transmission. Confirm that the control system displays the switch’s normal status (no waterlogging) and that the alarm system is activated when the switch is triggered. If the control system displays an abnormal water level alarm without actual waterlogging, inspect the switch for false triggering.
• Monthly Parameter Monitoring: Use a multimeter to detect the switch’s on-off status (normal state: open; triggered state: closed) and ensure the contact resistance is ≤ 50mΩ. Check the installation height of the switch—if there is displacement due to vibration, adjust it to the standard position immediately. Clean the floating ball’s surface to remove oil stains or sludge that may affect its movement.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Disconnect the power supply, remove the switch, and clean its surface and floating ball with a professional waterproof cleaner (provided by Nanjing Zhuye Elevatorparts) to remove accumulated sludge, oil stains, and corrosion. Check the internal spring of the floating ball for fatigue or deformation—replace the floating ball if necessary. Reinstall the switch and retighten the screws according to the specified torque.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including sensitivity, waterproof performance, and contact reliability. Use a professional water level tester to simulate different water levels and detect the switch’s trigger accuracy (error ≤ 2mm). Immerse the switch’s shell (excluding the wiring part) in water for 30 minutes to verify the waterproof performance (no water intrusion allowed). For escalators in humid or dusty environments (e.g., subway stations, coastal shopping malls), increase the test frequency.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Replace aging or worn switches with genuine MFP-11A-2M (XAA177EM1) parts. Inspect the escalator control system’s signal receiving module to ensure it matches the switch’s output signal. Conduct a full-range waterlogging protection system test to ensure all components operate in sync.

Recommended Replacement Cycle for Escalator Water Level Switch MFP-11A-2M (XAA177EM1)

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For escalators in high-humidity coastal areas (salt spray corrosion), areas prone to waterlogging (e.g., underground shopping malls), or escalators with oil leakage in the pit (oil pollution), the replacement cycle should be shortened to 3–4 years. Harsh conditions accelerate the corrosion of the shell, wear of the floating ball, and aging of the internal contact switch, significantly reducing the switch’s reliability.
• Low-Frequency Use Scenarios: For escalators with low usage frequency (e.g., small office buildings, villa lobbies with daily operation time < 8 hours) and dry, well-ventilated machine rooms/pits, the replacement cycle can be appropriately extended to 6–7 years—only if Nanjing Zhuye’s professional inspection confirms that the switch’s sensitivity, waterproof performance, and contact reliability are all intact.

3. Immediate Replacement Conditions

• The switch fails to trigger the alarm or shutdown signal when the water level exceeds the threshold, or triggers false alarms frequently (more than 3 times a week).
• The floating ball is stuck, deformed, or severely corroded, and cannot move freely to monitor water level changes.
• The switch shell is cracked or damaged, leading to water intrusion into the internal circuit (confirmed by multimeter testing of short circuits).
• After maintenance and calibration, the switch’s trigger accuracy error exceeds 5mm, or the contact resistance persists above 100mΩ, affecting signal transmission.
