Description

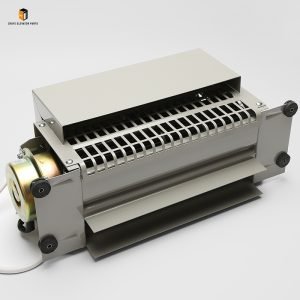

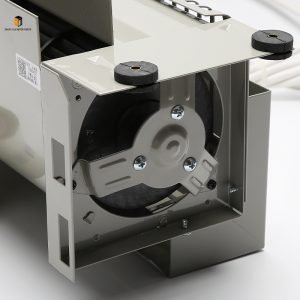

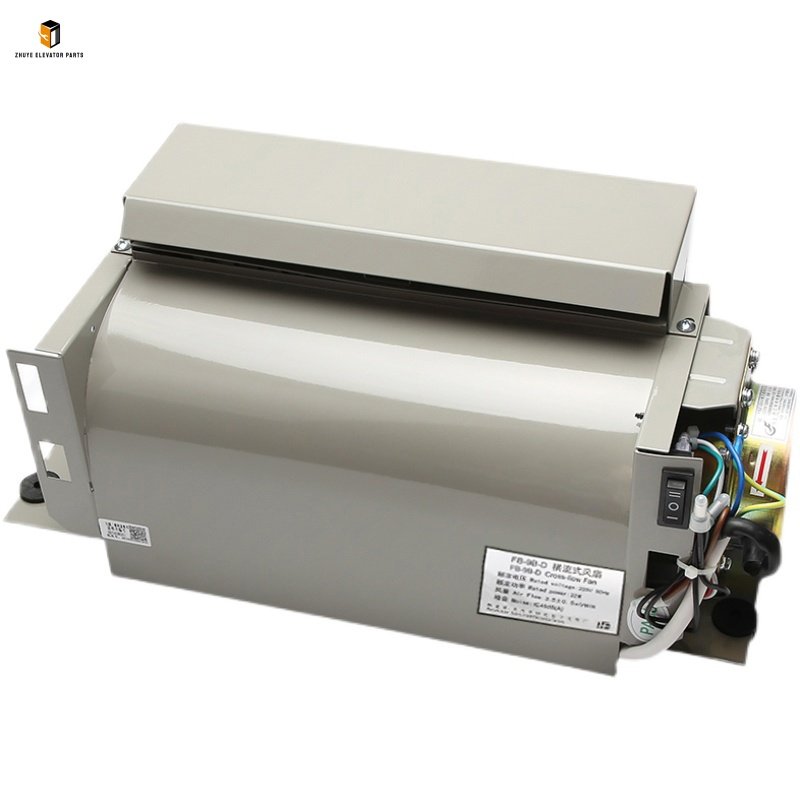

Elevator ventilation fan General elevator fan FB-9B-D Brief Introduction
|
Product Name |
Elevator ventilation fan General elevator fan |
| Model Number | FB-9B-D |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Nanjing Zhuye Elevator Parts: Elevator Ventilation Fan FB-9B-D – Fresh Air for Safe, Comfortable Rides
Elevator passenger comfort and air quality are non-negotiable for a positive vertical transportation experience, and the Elevator Ventilation Fan FB-9B-D plays a pivotal role in maintaining a healthy cabin environment. This specialized fan circulates fresh air, removes stale odors, and regulates temperature inside elevator cars – ensuring passengers breathe clean air even during peak usage hours. Nanjing Zhuye Elevator Parts, a globally trusted supplier of premium elevator components, proudly offers the FB-9B-D General Elevator Fan, engineered to meet the durability, efficiency, and safety standards required for commercial, residential, and industrial elevator systems. This article provides a comprehensive guide to the product’s features, proper usage methods, replacement cycles, and why Nanjing Zhuye Elevator Parts is the preferred choice for elevator professionals worldwide.
Product Overview: Elevator Ventilation Fan FB-9B-D by Nanjing Zhuye Elevator Parts
The Elevator Ventilation Fan FB-9B-D is a compact, high-efficiency axial flow fan designed specifically for elevator cabin ventilation, compatible with most mainstream elevator models (including passenger elevators, freight elevators, and medical elevators). The model “FB-9B-D” denotes its core specifications: a 90mm fan blade diameter, low-noise brushless motor, and direct-drive design – making it a space-saving, energy-efficient solution for elevator cabins with limited installation space.
At Nanjing Zhuye Elevator Parts, quality and performance are at the forefront of our manufacturing process. The FB-9B-D fan features a rugged ABS plastic housing (flame-retardant and impact-resistant), high-airflow fan blades optimized for quiet operation (<35dB), and a long-life brushless DC motor that consumes only 15-20W of power. Each fan undergoes rigorous quality control, including airflow rate testing (≥30m³/h), noise level validation, and endurance trials (continuous operation for 5,000+ hours), complying with international standards such as ISO 9001 and CE. This commitment to excellence ensures the fan delivers consistent ventilation performance, reduces passenger discomfort from stuffiness, and operates reliably in the confined, vibration-prone environment of elevator cabins.
How to Use the Elevator Ventilation Fan FB-9B-D
Proper installation and operation are essential to maximizing the fan’s efficiency and lifespan. Follow these professional guidelines for safe and effective use:
Installation Steps
- Safety Preparation: Before installation, shut off the elevator’s main power supply and lock the control panel using LOTO (Lockout/Tagout) procedures. Use a stable ladder or platform to access the elevator cabin ceiling (where ventilation fans are typically mounted). Wear insulating gloves and safety glasses to avoid electrical hazards.
- Remove the Old Fan: Locate the existing ventilation fan in the cabin ceiling (secured by screws or clips). Disconnect the power wires (typically 220V AC or 110V AC) – note the wire colors and connections to ensure correct reconnection. Loosen the fixing screws or release the clips to remove the old fan from its mounting bracket.
- Prepare the Mounting Area: Clean the mounting bracket and surrounding area with a soft cloth to remove dust, debris, or accumulated dirt. Inspect the bracket for damage (e.g., cracks, rust) and replace if necessary to ensure a secure fit for the new fan.
- Install the New Fan: Align the Nanjing Zhuye Elevator Parts FB-9B-D fan with the mounting bracket, ensuring the air intake (marked with “IN”) faces the exterior of the cabin and the airflow direction (marked with “OUT”) points into the cabin. Secure the fan with the original screws (torque: 1.2-1.8 N·m) to prevent vibration during elevator operation. Reconnect the power wires according to the original configuration – use wire nuts or terminal blocks to ensure tight, insulated connections.
- Test Operation: Restore power to the elevator. Turn on the ventilation system and verify the fan operates smoothly: check for consistent airflow, minimal noise, and no abnormal vibration. Run the elevator through multiple floor cycles to confirm the fan remains stable during movement. Ensure the fan automatically activates when the elevator is in use and deactivates during standby (if connected to the elevator’s control system).
Usage Precautions
- Voltage Compatibility: Confirm the elevator’s power supply matches the fan’s requirements (220V AC ±10% or 110V AC ±10%) before installation – using the wrong voltage can burn out the motor.
- Airflow Unobstructed: Ensure the fan’s intake and outlet are not blocked by ceiling panels, wires, or debris. Blockages reduce ventilation efficiency and can overheat the motor.
- Regular Cleaning: Clean the fan blades and housing every 3-6 months with a soft brush or compressed air to remove dust buildup. Avoid using water or harsh chemicals, as these can damage the motor or electrical components.
- Avoid Forceful Disassembly: Do not take apart the fan’s motor or housing, as this will void the warranty and may cause electrical hazards.
Replacement Cycle of Elevator Ventilation Fan FB-9B-D
The replacement cycle depends on usage intensity, operating environment, and maintenance practices. Follow these guidelines to ensure timely replacement:
General Timeline
- High-Traffic Areas: Shopping malls, airports, or office buildings (elevator operates 12+ hours daily, frequent fan activation) – replace every 3-4 years. Continuous operation and dust accumulation accelerate motor wear.
- Medium-Traffic Areas: Residential buildings, hotels, or small offices (8-10 hours daily usage) – replace every 4-6 years.
- Low-Traffic Areas: Villas, industrial facilities, or low-occupancy buildings (4-6 hours daily usage) – replace every 6-8 years, with annual inspections.
Signs of Replacement Need
Replace the fan immediately if:
- Reduced Airflow: The cabin feels stuffy, and airflow from the fan is noticeably weaker than usual – indicating worn motor components or clogged blades.
- Abnormal Noise/Vibration: The fan produces rattling, squeaking, or grinding sounds, or vibrates excessively during operation – signs of loose parts or motor bearing wear.
- Motor Failure: The fan fails to start, or stops working intermittently – caused by burnt windings or electrical component damage.
- Physical Damage: Cracked housing, broken fan blades, or corroded wires – which can lead to complete fan failure or electrical hazards.
Importance of Timely Replacement
A faulty FB-9B-D fan compromises passenger comfort and air quality, leading to complaints about stuffiness or odors. In extreme cases, poor ventilation can cause dizziness or discomfort for passengers during long rides. Timely replacement ensures a healthy cabin environment, reduces maintenance costs by preventing motor burnout, and maintains the elevator’s overall operational quality.
Why Choose Nanjing Zhuye Elevator Parts’ FB-9B-D Fan?
Nanjing Zhuye Elevator Parts stands out as a reliable partner for elevator professionals, and the Elevator Ventilation Fan FB-9B-D reflects our commitment to quality and customer satisfaction:
- Universal Compatibility: Designed to fit most elevator models, making it a versatile replacement for old or damaged fans without modifying the mounting bracket.
- Efficient & Quiet Operation: High-airflow blades and brushless motor deliver effective ventilation with minimal noise, enhancing passenger comfort.
- Rigorous Quality Assurance: 100% pre-delivery testing, including airflow and noise validation, to meet global safety and performance standards.
- Expert Technical Support: Our team provides professional guidance on installation, wiring, and troubleshooting via phone or email, ensuring a smooth user experience.
- Fast Delivery: We maintain a large inventory of FB-9B-D fans to fulfill orders within 24-48 hours, minimizing downtime for elevator maintenance.
Whether you’re an elevator maintenance firm, building manager, or elevator manufacturer, the Elevator Ventilation Fan FB-9B-D from Nanjing Zhuye Elevator Parts delivers the reliability, efficiency, and comfort you need. Invest in a product that prioritizes passenger well-being and elevator performance – choose Nanjing Zhuye Elevator Parts for your elevator ventilation component needs.
