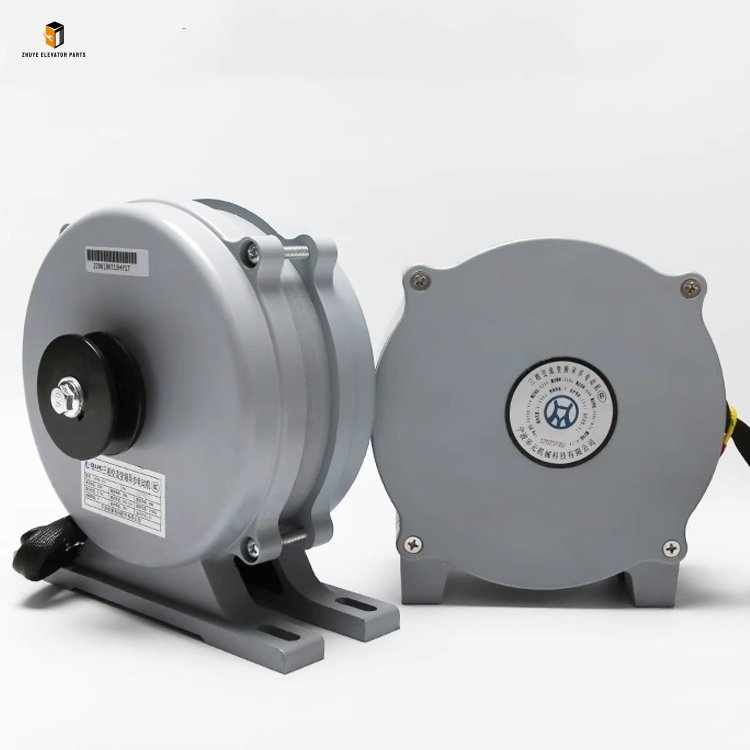

Elevator Three-Phase AC Variable Frequency Asynchronous Motor YBP80-6Y4: High-Efficiency Drive Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Three-Phase AC Variable Frequency Asynchronous Motor YBP80-6Y4

1. Professional Installation & Wiring

• Safety Preparation: Cut off the elevator’s main power supply and the dedicated power supply for the traction system. Lock the power switch and place a “Maintenance in Progress” warning sign to prevent accidental power-on. Clean the motor mounting position on the traction machine base to remove dust, oil stains, and debris that may affect installation accuracy or heat dissipation.

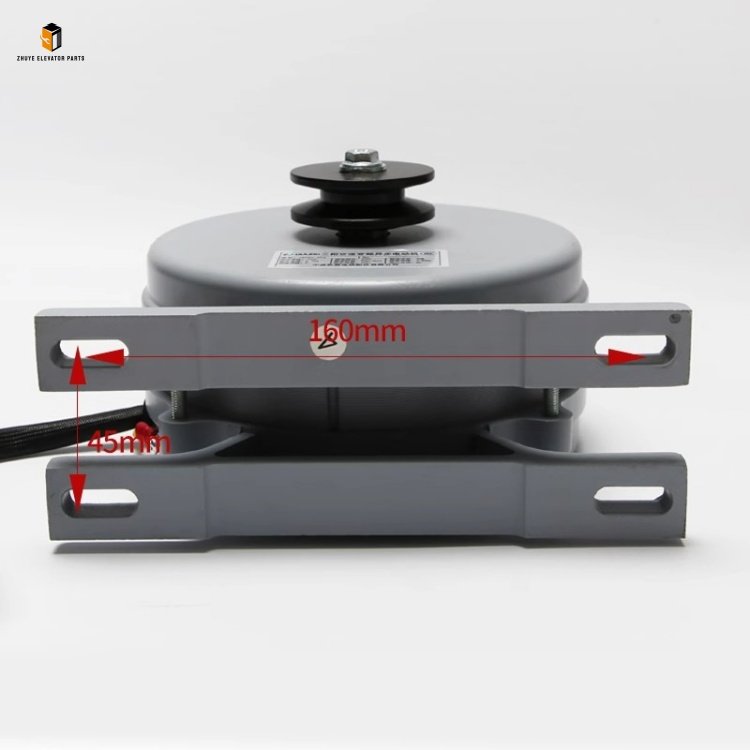

• Motor Installation: Fix the YBP80-6Y4 motor to the traction machine base using high-strength bolts provided by Nanjing Zhuye Elevatorparts. Ensure the motor is installed horizontally (horizontal deviation ≤ 1mm) and that its output shaft is coaxial with the traction machine’s reducer input shaft (coaxiality deviation ≤ 0.1mm) to avoid abnormal wear and vibration. Connect the motor output shaft to the reducer via a flexible coupling, ensuring a tight fit without slipping or looseness.

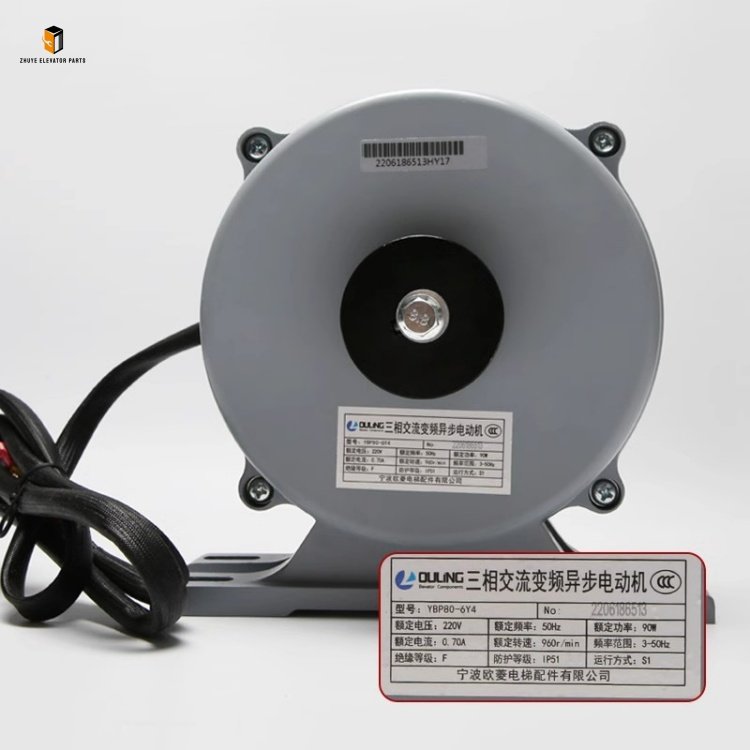

• Wiring Operation: In accordance with the elevator traction system wiring diagram and the YBP80-6Y4 user manual, connect the motor’s three-phase power cables (L1, L2, L3) to the frequency converter’s output interface, and connect the ground wire to the dedicated grounding terminal. Confirm the correct phase sequence to ensure the motor rotates in the preset direction; use shielded cables for power transmission to enhance anti-interference performance. Verify that the motor’s rated voltage (380V AC), frequency (50Hz/60Hz), and power match the frequency converter’s output parameters. Tighten all terminals to ensure reliable contact and good insulation.
• Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Set the frequency converter parameters (base frequency, acceleration/deceleration time, maximum speed, etc.) according to the YBP80-6Y4’s technical specifications and the elevator’s operation requirements. Test the motor’s rotation direction—adjust the phase sequence of the power cables if the direction is reversed. Operate the elevator up and down slowly to check the motor’s speed regulation performance, ensuring smooth acceleration and deceleration without jitter. Conduct a 2-hour continuous operation test to check the motor’s surface temperature (normal temperature ≤ 95℃) and frequency converter’s current stability.

2. Daily Operation & Routine Maintenance

• Daily Visual Inspection: During machine room patrols, check the motor’s external condition. Ensure the cast aluminum housing is free of deformation, cracks, or corrosion; the power cables and ground wire are intact without aging, wear, or loose connections; the mounting bolts and coupling are tight. Observe the motor’s operation status—abnormal phenomena such as excessive noise, vibration, or peculiar smells may indicate motor faults.
• Weekly Performance Check: Use a clamp meter to measure the motor’s three-phase input current, ensuring the three phases are balanced (current difference ≤ 10%). Check the frequency converter’s operation parameters and fault records to identify potential motor issues in advance. Measure the motor’s surface temperature after peak operation hours to confirm no abnormal overheating.
• Monthly Cleaning & Maintenance: Clean the motor housing and heat dissipation fins with a soft, dry cloth or air blower to remove dust and debris, ensuring effective heat dissipation. Inspect the terminal block for oxidation or loose connections, cleaning or tightening as needed. Verify the functionality of the built-in protection mechanisms by checking the frequency converter’s protection alarm function.

Recommended Replacement Cycle for Elevator Three-Phase AC Variable Frequency Asynchronous Motor YBP80-6Y4

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), machine rooms with poor ventilation (high temperature), or high-traffic areas (e.g., shopping malls, airports) with daily start-stop cycles ≥ 2000, the replacement cycle should be shortened to 4–5 years. Harsh conditions and frequent use accelerate winding aging, bearing wear, and insulation degradation, significantly reducing the motor’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable machine room environments (constant temperature and humidity), the replacement cycle can be extended to 8–10 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the motor’s speed regulation performance, torque output, and energy efficiency meet the original factory standards.

3. Immediate Replacement Conditions

• Insufficient torque causes the elevator to struggle during startup, fail to carry rated load, or experience obvious leveling deviation—fault persists after frequency converter parameter adjustment.
• The motor generates excessive noise, severe vibration, or rapid overheating (surface temperature > 120℃ within 30 minutes of operation), indicating internal bearing damage or winding failure.
• The motor’s energy efficiency drops significantly (power consumption increases by more than 20% compared to the initial stage), or the frequency converter frequently reports overcurrent, overheating, or phase-failure alarms related to the motor.
• Professional testing confirms that the motor’s insulation resistance is lower than 2MΩ, or the winding is burnt out, making it impossible to operate normally.
