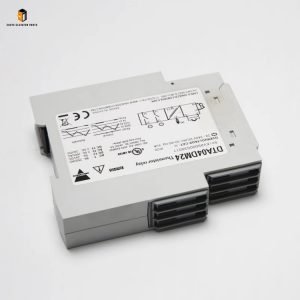

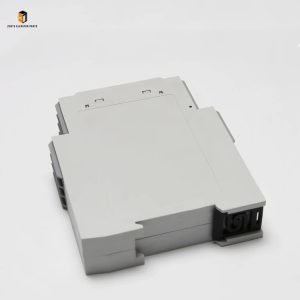

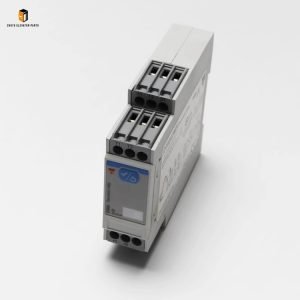

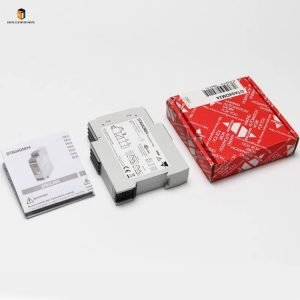

Elevator temperature protection relay DTA04DM24 Brief Introduction
|
Product Name |
Elevator temperature protection relay |
| Model Number | DTA04DM24 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Temperature Protection Relay DTA04DM24: Reliable Thermal Guardian from Nanjing Zhuye Elevatorparts
In the intricate operation system of elevators, overheating of key components such as traction motors and control cabinets poses a severe threat to safety and service life. The elevator temperature protection relay acts as a “thermal guardian,” monitoring temperature changes in real time and triggering protective actions to prevent equipment damage or safety accidents. The Elevator Temperature Protection Relay DTA04DM24, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered to meet the rigorous thermal protection demands of modern elevators. Compliant with international standards such as IEC/EN 60947 and UL 60947-4-1, this 24V DC relay features high-precision temperature sensing (±0.1℃ accuracy) and a wide detection range of -25℃ to 80℃, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic brands like Mitsubishi Elevator. It is an essential component for both new elevator installations and old system safety upgrades.
Nanjing Zhuye Elevatorparts adheres to a stringent quality control system, and the DTA04DM24 temperature protection relay is a testament to this commitment. Each unit undergoes comprehensive testing, including temperature sensing accuracy calibration, insulation performance assessment, long-term durability trials, and high-temperature operation tests. The relay features a flame-retardant V0-grade PC shell that meets EN 50274 protection standards, ensuring safe operation even in high-temperature environments. Equipped with advanced temperature compensation technology, it maintains stable performance regardless of ambient temperature fluctuations, avoiding false triggers or protection delays. Its rapid response capability (acting within 0.5 seconds when exceeding the set temperature) effectively prevents irreversible damage to elevator components, while the IP20 protection rating ensures reliability in dusty machine room environments.
Usage Guide for Elevator Temperature Protection Relay DTA04DM24
Proper installation, parameter setting, and operation are crucial to maximizing the protective performance of the DTA04DM24 temperature protection relay. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid safety hazards or equipment damage. Before installation, verify that the relay’s rated voltage (24V DC), temperature range, and interface match the elevator system’s specifications. Refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for clarification on parameter setting based on specific elevator models.
1. Pre-Installation Preparation
cutting off cutting off, and a thermometer(typically near the traction motor or)LC1D25FDC can affect temperature sensing accuracy. Inspect the DTA04DM24 relaydamaged sensrobedefectivs. Confirm the control circuit voltage matches the relay’s rated 24V DC Confirm the coil voltage matches the control circuit requirements to avoid burnout.Begin by cutting off the elevator’s main power supply and control system power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and each elevator entrance to prevent accidental activation. Prepare essential tools: a torque wrench, screwdriver, multimeter, wire stripper, anti-static gloves, and a brush. Clean the installation area in the electrical control cabinet to remove dust, debris, and oil stains—contaminants can cause short circuits or poor contact. Inspect the relay boards for external damage, cracked substrates, loose components, or damaged interfaces; do not use defective products. Verify the control system’s voltage (usually 24V DC/110V AC) matches the boards’ rated voltage.
2. Installation & Wiring
2. Installation & Wiring
Install the DTA04DM24 relay on a flat surface near the component to be monitored (e.g., traction motor junction box or control cabinet interior), ensuring the sensing probe is in close contact with the heat source without direct contact with high-voltage parts. Mount it vertically with the cover facing upward, and maintain a gap of at least 50mm from other heat-generating components to avoid interference. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the 24V DC power supply to the coil terminals (A1/A2), the sensing probe to the dedicated input terminal, and the relay’s normally closed contacts to the elevator’s emergency stop control circuit. Use copper core wires of appropriate cross-section (recommended 1.5mm²) to ensure stable signal transmission. The recommended tightening torque for terminal screws is 1.5-2.5 Nm, and the wire stripping length should be 8-10mm. After wiring, use a multimeter to check circuit continuity and insulation resistance.
3. Debugging & Daily Operation
Before power-on, set the protection temperature according to the elevator manufacturer’s specifications—typically 40℃-60℃ for control cabinets and 80℃-100℃ for traction motors. Use the relay’s adjustment knob for precise calibration, and verify the set value with a professional thermometer. Energize the system to conduct a no-load test: use a heat source to gradually increase the temperature near the sensing probe, and confirm the relay triggers the emergency stop signal when exceeding the set temperature. Test the reset function (manual or automatic) to ensure it resumes normal operation after the temperature drops to a safe range. Simulate actual operating conditions by running the elevator for 1-2 hours, monitoring the relay’s temperature monitoring accuracy and response stability. Record all parameter settings for future maintenance reference.
Replacement Cycle of Elevator Temperature Protection Relay DTA04DM24
The replacement cycle of the DTA04DM24 temperature protection relay depends on operating environment, temperature fluctuation frequency, and maintenance conditions. Under normal parameters—elevator runs 12-24 hours daily, machine room temperature maintained at 5℃-40℃, and no frequent overheating events—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 3-5 years. This timeline is based on long-term field data, accounting for sensing probe aging, component performance degradation, and reduced temperature accuracy over time.
For elevators in high-temperature environments (e.g., unconditioned machine rooms in tropical regions) or high-traffic areas (shopping malls, airports) with frequent temperature fluctuations, the replacement cycle should be shortened to 1.5-3 years. Harsh conditions accelerate probe aging and insulation damage, increasing the risk of protection failure. For low-usage elevators (villa elevators, small office buildings with daily operation <8 hours) in stable, temperature-controlled environments, the cycle can be extended to 5-7 years. However, annual professional calibration by Nanjing Zhuye’s technicians is mandatory to confirm temperature sensing accuracy (error ≤±1℃) and protection response performance meet safety standards.
For elevators in high-traffic areas (e.g., shopping malls, airports) where the contactor switches ≥2000 times/day, or in harsh environments (high humidity, heavy dust, frequent temperature fluctuations, or unstable voltage), the replacement cycle should be shortened to 1.5-3 years. High-frequency switching accelerates contact ablation and coil aging, while harsh conditions increase the risk of insulation damage and mechanical jamming. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation <8 hours) in stable environments, the cycle can be extended to 5-7 years, but annual professional testing by Nanjing Zhuye’s technicians is mandatory to confirm contact resistance, insulation performance, and mechanical functionality meet safety standards.
Immediately replace the DTA04DM24 temperature protection relay if any of the following issues occur, regardless of service life: significant temperature sensing deviation (error >±2℃) that cannot be calibrated; failure to trigger protection actions when exceeding the set temperature or frequent false triggers; obvious physical damage (cracked shell, damaged probe, loose terminals); abnormal heating or sparks during operation; or the relay fails annual calibration. Timely replacement is critical to avoiding elevator component damage or safety accidents caused by overheating.
The Elevator Temperature Protection Relay DTA04DM24 from Nanjing Zhuye Elevatorparts integrates high-precision sensing, rapid response, and reliable durability, providing a critical thermal protection solution for elevators. Its strict quality control and wide compatibility make it a trusted choice for elevator maintenance professionals worldwide. By following the recommended usage guidelines and replacement cycles, you can effectively prevent overheating-related failures and extend elevator service life. Nanjing Zhuye Elevatorparts provides 100% authentic DTA04DM24 relays, along with professional support including parameter setting guidance, on-site debugging, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for comprehensive elevator safety component solutions.
