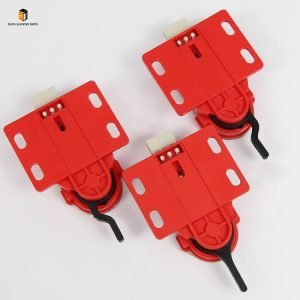

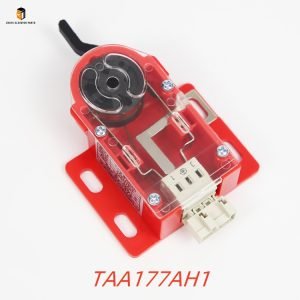

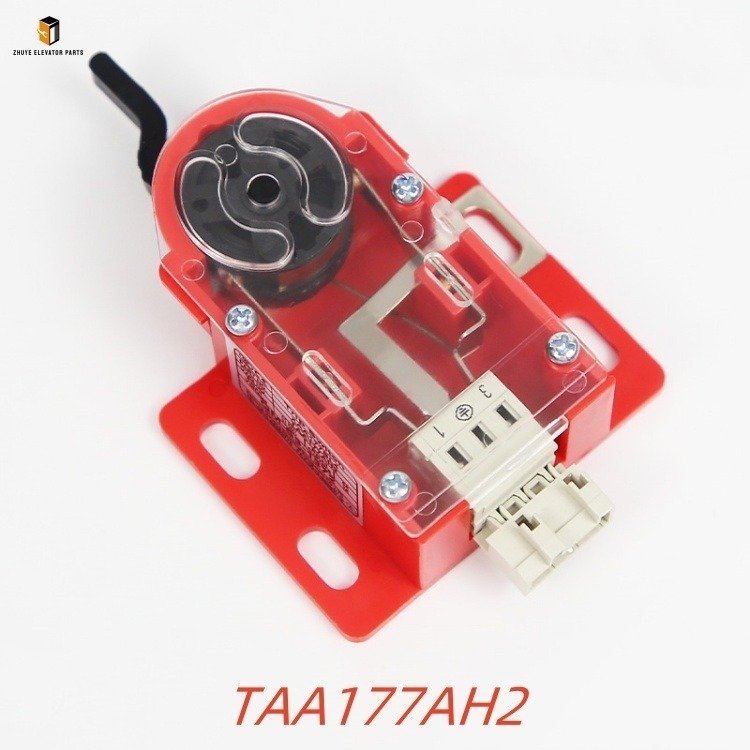

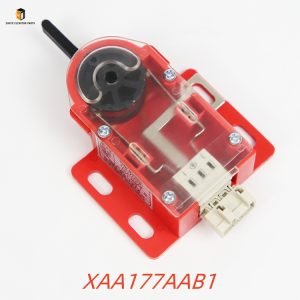

Elevator speed limiter switch QM-S3-1372 Brief Introduction
|
Product Name |
Elevator speed limiter switch |
| Model Number | DQM-S3-1372
XAA177AAB1 TAA177AH1 TAA177AH2 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Speed Limiter Switch QM-S3-1372, XAA177AAB1, TAA177AH1, TAA177AH2 – Nanjing Zhuye Elevatorparts
The elevator car top emergency power supply is a critical safety component that ensures the elevator’s emergency systems (such as lighting, communication, and door opening) operate normally when the main power supply fails. The Elevator Car Top Emergency Power Supply DJW12-4.5/7.0 provided byNanjing Zhuye Elevatorparts is a high-reliability power supply device tailored for mainstream elevator systems. It supports two capacity specifications (4.5Ah and 7.0Ah) to meet the needs of different elevator models, widely compatible with brands such as Schindler, OTIS, and KONE. Crafted with high-performance lithium-ion batteries, intelligent charging management modules, and flame-retardant casings, this emergency power supply meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator leveling system is a key component that ensures the elevator car aligns accurately with the floor, providing safe and comfortable access for passengers. The elevator leveling sensor serves as the “eye” of this system, detecting the car’s position in real time. The Elevator Leveling Sensor TNC-121 provided by Nanjing Zhuye Elevatorparts is a high-precision position-sensing component tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This sensor adopts advanced photoelectric sensing technology, featuring high detection accuracy, fast response speed, and strong anti-interference ability, ensuring the elevator stops stably and accurately at each floor. Crafted with high-quality optical components, sealed metal shells, and precision electronic circuits, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator lock is a core safety component that ensures the elevator car door and landing door remain locked during operation, preventing accidental opening and ensuring passenger safety. The Elevator Lock CV50 180 JK406-001 provided by Nanjing Zhuye Elevatorparts is a high-reliability safety lock tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This elevator lock integrates precise mechanical structure and stable electrical control, achieving reliable locking when the elevator is running and smooth unlocking when it reaches the floor. Crafted with high-strength alloy steel, flame-retardant plastic, and precision electronic components, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator’s electrical control system is prone to arc generation during switch-on and switch-off of contacts, which may cause damage to electrical components or even fire hazards. The elevator arc extinguisher serves as a “safety barrier” to suppress and eliminate arcs. The Elevator Arc Extinguisher HD1.211 provided by Nanjing Zhuye Elevatorparts is a high-performance arc suppression component tailored for elevator electrical systems. It is widely compatible with mainstream elevator brands such as Schindler, OTIS, and KONE, suitable for arc suppression of elevator contactors, relays, and other electrical contacts. Crafted with high-quality arc-extinguishing materials, flame-retardant shells, and precision structural design, this arc extinguisher meets international electrical safety standards (IEC 60947, GB/T 14048) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator door operator is the “power core” of elevator door opening and closing, and the door operator belt serves as a critical transmission component that connects the motor and door pulley system. The Elevator Door Operator Belt L075 provided by Nanjing Zhuye Elevatorparts is a high-performance transmission belt tailored for mainstream elevator door operator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, playing a vital role in ensuring smooth, quiet, and stable operation of elevator doors. Crafted with high-strength polyurethane (PU) material and embedded with high-tensile polyester cords, this belt features excellent wear resistance, tensile strength, and flexibility, meeting international elevator safety standards (EN 81-20, GB 7588) and becoming a trusted choice for global elevator maintenance teams and manufacturers.
The elevator speed limiter switch is a core safety component in the elevator’s safety protection system, acting as the “first line of defense” to prevent elevator overspeed accidents. When the elevator runs beyond the safe speed range, the switch triggers an electrical signal to cut off the elevator’s operating power supply and activate the mechanical braking system. The Elevator Speed Limiter Switches QM-S3-1372, XAA177AAB1, TAA177AH1, and TAA177AH2 launched by Nanjing Zhuye Elevatorparts are high-reliability safety devices tailored for mainstream elevator systems, with excellent compatibility with renowned brands such as Schindler, OTIS, and KONE. These switches (including normally closed and normally open types) integrate precise triggering, stable contact, and strong environmental adaptability, providing critical safety guarantees for elevator operation. Crafted with high-quality copper alloy contacts, corrosion-resistant shell materials, and precision mechanical structures, they meet international elevator safety standards (EN 81-20, GB 7588-2003) and have become a trusted choice for global elevator maintenance teams and manufacturers.
Nanjing Zhuye Elevatorparts adheres to the “quality first, safety-oriented” principle, implementing strict quality control throughout the production process of QM-S3-1372, XAA177AAB1, TAA177AH1, and TAA177AH2 speed limiter switches. Each unit undergoes rigorous testing, including contact resistance detection, triggering accuracy verification, mechanical durability assessment, and environmental adaptability testing. The switches’ copper alloy contacts have a contact resistance of less than 50mΩ, ensuring stable electrical signal transmission; the precision-adjusted triggering mechanism can act accurately when the speed limiter’s rotational speed exceeds the threshold (usually 115% of the rated speed). The shell adopts IP54 waterproof and dustproof design, effectively resisting moisture, dust, and corrosion in elevator machine rooms and hoistways. The mechanical structure has passed 100,000 times of repeated action tests without failure, ensuring long-term reliable operation in high-frequency use scenarios.
Usage Guide for Elevator Speed Limiter Switch QM-S3-1372, XAA177AAB1, TAA177AH1, TAA177AH2
Correct installation, adjustment, and daily inspection of QM-S3-1372, XAA177AAB1, TAA177AH1, and TAA177AH2 speed limiter switches are crucial to ensuring the elevator’s overspeed protection function. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform installation, maintenance, and debugging, as improper operation may lead to failure of the safety protection system and serious safety accidents.
1. Pre-Installation Preparation
First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).
First, confirm that the speed limiter switch model (QM-S3-1372/XAA177AAB1/TAA177AH1/TAA177AH2) matches the elevator speed limiter model (check parameters such as triggering mode, installation dimensions, and electrical specifications). Consult Nanjing Zhuye Elevatorparts’ technical team immediately if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and control cabinet power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator entrance and machine room. Relax the speed limiter rope to ensure the speed limiter is in a static state (for low-rise elevators, use pliers to lift and fix the non-car side safety rope; for high-rise elevators, adjust the car position to relax the rope). Finally, prepare professional tools including a screwdriver, wrench, multimeter, and feeler gauge, and clean the speed limiter installation area to remove dust, debris, and oil stains.
DebuggDebugg2. Core Operation Guidelines
Locate the original speed limiter switch position on the speed limiter bracket, take photos to record its installation angle and wiring connections for future reference. Disconnect the wiring of the old switch and remove the old switch. Take the new switch (QM-S3-1372/XAA177AAB1/TAA177AH1/TAA177AH2) from Nanjing Zhuye Elevatorparts, install it on the bracket, and fix it firmly with screws. Ensure the switch’s trigger lever is aligned with the speed limiter’s action block (the gap between them should be 1-2mm, adjusted with a feeler gauge). Connect the wires to the corresponding terminals strictly following the recorded photos and Nanjing Zhuye’s wiring manual—note that the speed limiter switch is usually connected in series in the elevator safety circuit, so correct polarity and firm connection are critical. After installation, use a multimeter to test the switch’s on-off state (normally closed contacts should be on, normally open contacts off under static conditions). Use a portable speed limiter calibrator to test the triggering accuracy: the switch should act reliably when the speed limiter’s rotational speed reaches the set threshold.
3. Daily Use & Maintenance
According to national elevator safety regulations, the speed limiter switch should be inspected at least once a month and undergo professional calibration every two years. For daily maintenance: Check the switch’s shell for cracks, corrosion, or loose fixing screws; confirm the trigger lever is flexible without jamming; use a multimeter to test the contact on-off state. Clean the switch surface and trigger mechanism with a dry cloth regularly to remove dust and debris—avoid using oil or grease (it may cause jamming). Pay special attention to preventing rodents from entering the machine room or hoistway, as rodent intrusion may damage the switch or its wiring. If the elevator reports an overspeed fault alarm, first check the speed limiter switch’s working status; refer to Nanjing Zhuye’s technical manual for troubleshooting, or contact the after-sales team for professional support.
Replacement Cycle of Elevator Speed Limiter Switch QM-S3-1372, XAA177AAB1, TAA177AH1, TAA177AH2
The replacement cycle of QM-S3-1372, XAA177AAB1, TAA177AH1, and TAA177AH2 speed limiter switches is closely related to operating environment and usage frequency. Under normal conditions (elevator daily operation 12-24 hours, machine room temperature 0℃-40℃, dry and clean environment), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 3-5 years. This cycle is determined based on long-term field operation data and component aging tests, fully considering the wear of mechanical structures, oxidation of electrical contacts, and attenuation of triggering accuracy.
For elevators in harsh environments (machine room with high humidity, heavy dust, high temperature exceeding 40℃, or frequent vibration) or high-traffic areas (e.g., large shopping malls, airports with daily operation over 20 hours), the replacement cycle should be shortened to 2-3 years. Harsh environments accelerate component corrosion and aging, while high-frequency use increases the wear of the trigger mechanism. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time <8 hours) in stable environments, the cycle can be extended to 5-6 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the switch’s triggering accuracy and contact performance meet safety standards.
Replace the speed limiter switch immediately if any of the following issues occur, regardless of its service life: The switch fails to trigger or triggers incorrectly during calibration; the contacts are severely oxidized, burned, or have poor contact (leading to frequent safety circuit faults); the shell is severely cracked, deformed, or corroded, losing protective performance; the trigger lever is stuck or broken, unable to move flexibly; the switch’s wiring terminals are loose or damaged, posing electrical safety hazards.
The Elevator Speed Limiter Switches QM-S3-1372, XAA177AAB1, TAA177AH1, and TAA177AH2 from Nanjing Zhuye Elevatorparts integrate high safety, reliability, and strong compatibility, providing a critical safety guarantee for elevator overspeed protection. By following the correct usage, maintenance, and replacement guidelines, you can effectively ensure the normal operation of the elevator’s safety protection system, reduce safety risks, and comply with relevant national and international safety regulations. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic speed limiter switches, as well as professional services including model matching, on-site calibration guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the safe operation of your elevator.
