Description

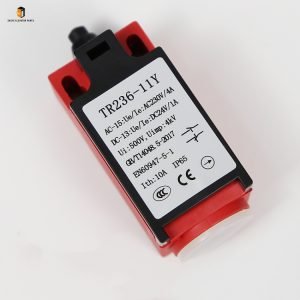

Elevator Safety Limit Switch TR236-11Y ZR236-11Y Brief Introduction

Product Name	Elevator Safety Limit Switch
Model Number	TR236-11Y ZR236-11Y
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Safety Limit Switch (TR236-11Y/ZR236-11Y): Safety Protection Core from Nanjing Zhuye Elevatorparts

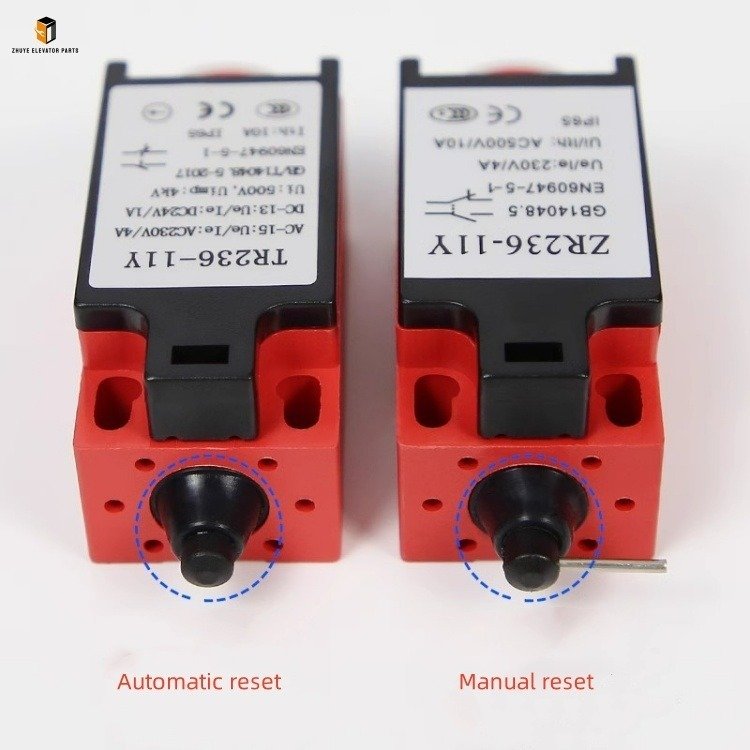

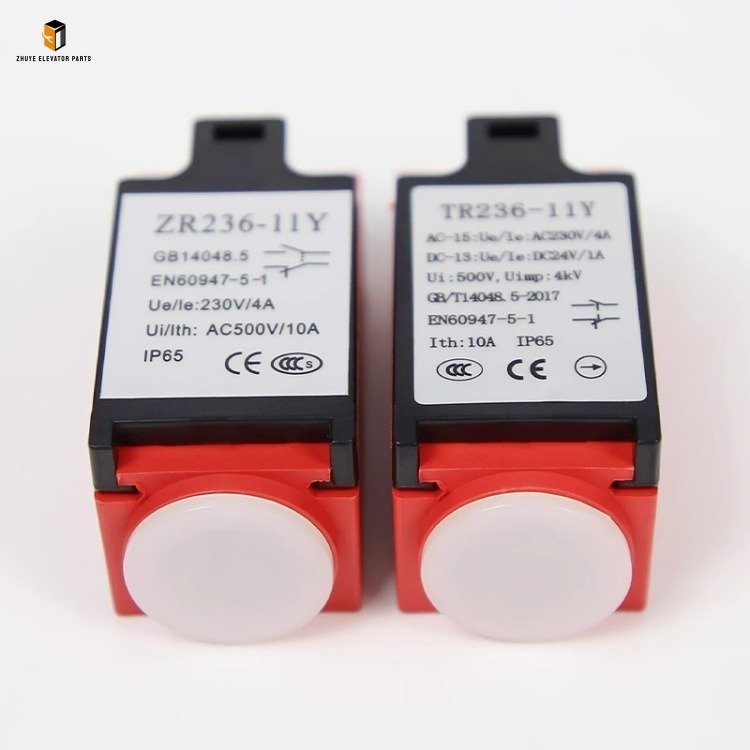

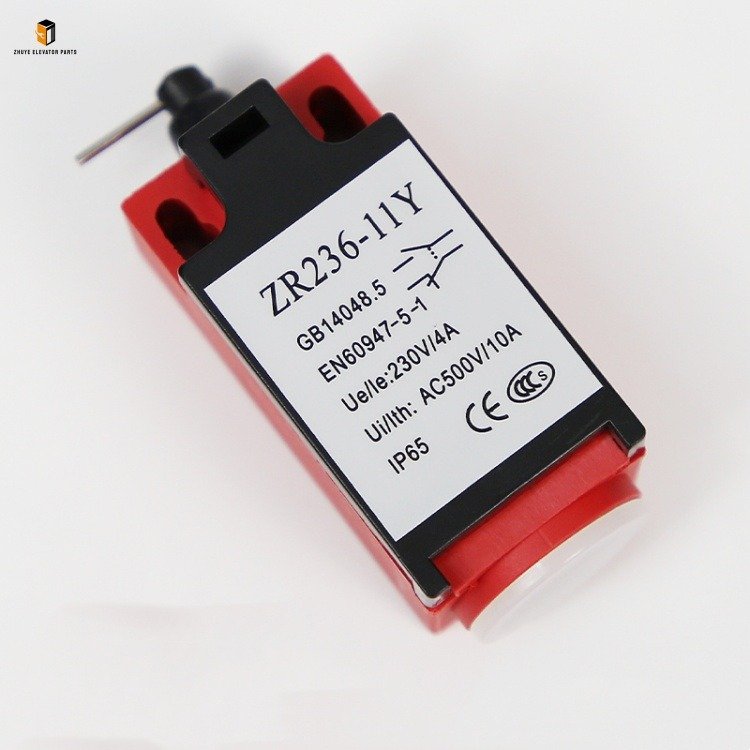

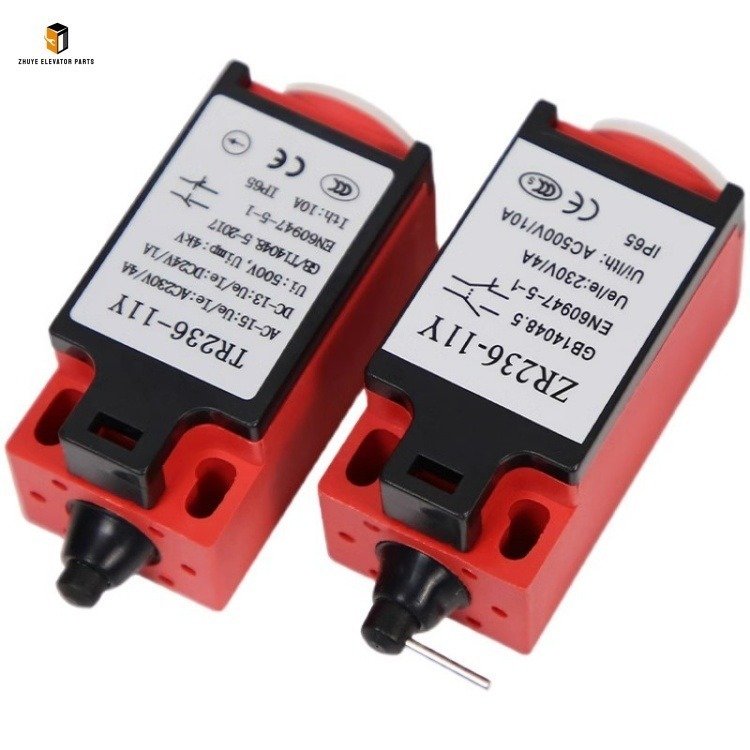

Elevator Safety Limit Switch Series, including models TR236-11Y and ZR236-11Y, is a critical safety protection component for elevator operation systems. Specifically designed to monitor the extreme positions of elevator car movement (top and bottom limits), these switches trigger an emergency stop signal when the elevator exceeds the safe travel range—preventing serious accidents such as car collision with the top beam or bottom pit. TR236-11Y is a mechanical limit switch with high durability, while ZR236-11Y features a waterproof structure for harsh environments, covering the safety protection needs of mainstream residential, commercial, and industrial elevators. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator electrical components, the Elevator Safety Limit Switch (TR236-11Y/ZR236-11Y) fully complies with international elevator safety standards (EN 81-20, GB 7588) and electrical switch specifications. Manufactured with premium electrical components and precision assembly technology, they feature high sensitivity, stable contact performance, and strong anti-interference ability, winning trust from global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Precise Trigger, Reliable Protection” and implements strict quality control for the TR236-11Y/ZR236-11Y limit switch series. Each unit undergoes multi-stage pre-delivery inspections, including sensitivity testing, contact resistance verification, environmental adaptability detection, and durability evaluation. The switch series adopts advanced materials and technologies: the shell is made of flame-retardant ABS or aluminum alloy, with TR236-11Y reaching IP44 protection rating and ZR236-11Y upgrading to IP65 waterproof and dustproof rating; the internal contact uses silver alloy to ensure low contact resistance (≤ 50mΩ) and long service life (≥ 1 million times of on-off); the trigger mechanism is equipped with a precision spring, ensuring consistent trigger force (2–5N) and accurate position monitoring; the wiring terminals use copper alloy with anti-loosening screws, avoiding poor contact due to elevator vibration. Both models are compatible with mainstream elevator control systems, supporting AC/DC dual power supply (110V/220V), and can be directly replaced with original switches of most brands.

Step-by-Step Usage Guide for Elevator Safety Limit Switch (TR236-11Y/ZR236-11Y)

To maximize the safety performance, service life, and trigger accuracy of the Elevator Safety Limit Switch (TR236-11Y/ZR236-11Y), strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and debugging. Note: Installation and debugging must be performed by certified elevator technicians to avoid misoperation leading to safety hazards.

1. Professional Selection & Pre-Installation Preparation

Prior to selection, confirm the elevator’s installation environment and technical requirements: Choose TR236-11Y for standard machine room/shaft environments; ZR236-11Y for high-humidity, dusty, or outdoor shaft environments (e.g., construction site elevators). Consult Nanjing Zhuye Elevatorparts’ technical team if unsure about compatibility. Preparation steps: Cut off the elevator’s main power supply and secondary power supply (for limit switch), and lock the switches; place a “Maintenance in Progress” warning sign at the elevator entrance and machine room; use the elevator inspection mode to move the car to a middle floor, away from the top and bottom limit positions; locate the original limit switch (installed at the top and bottom of the guide rail); take photos to record the wiring positions and terminal labels; clean the installation position to remove dust, oil stains, and debris; prepare professional tools such as a screwdriver, wire stripper, multimeter, and level ruler.

2. Correct Installation & Trigger Calibration

Switch Installation: Take the corresponding model (TR236-11Y/ZR236-11Y) from Nanjing Zhuye Elevatorparts, fix the switch base to the preset position on the guide rail bracket with screws, and ensure the switch is vertical and stable (use a level ruler for calibration). For ZR236-11Y, check that the waterproof gasket is intact and the wiring interface is sealed to prevent water intrusion.
Wiring Connection: According to the recorded wiring positions and Nanjing Zhuye’s wiring manual, connect the power line, signal line, and emergency stop line to the corresponding terminals of the switch. Ensure correct polarity, firm wiring, and no short circuits between wires. Use cable ties to organize the wire harness, avoiding contact with moving parts (e.g., guide rail, car pulley) and high-voltage cables.
Trigger Position Calibration: Move the elevator car slowly to the top limit position using inspection mode, adjust the switch’s trigger lever to contact the car’s limit baffle—ensure the switch is triggered when the car reaches the safe top limit (the control cabinet’s limit indicator light turns on). Repeat the operation for the bottom limit position. After calibration, test the emergency stop function: Move the car to trigger the limit switch, confirm the elevator stops immediately and cannot continue moving in the over-limit direction.
Controller Installation: Take the corresponding model (EMBP-220/EMK-BZ210D/EMK-BZ210E) from Nanjing Zhuye Elevatorparts, fix it to the mounting rail in the control cabinet, and ensure firm installation (avoid loose contact due to vibration). For EMK-BZ210D/EMK-BZ210E, connect the communication cable to the elevator main controller according to the wiring diagram.
Wiring Connection: According to the recorded wiring positions and Nanjing Zhuye’s wiring manual, connect the power input, brake output, and signal lines to the corresponding terminals of the controller. Ensure correct polarity, firm wiring, and no short circuits between wires. Use cable ties to organize the wire harness, avoiding contact with high-temperature components in the cabinet.
Braking Debugging: Restore the secondary power supply first, check the controller’s power indicator (should be on normally). Then restore the main power supply, switch the elevator to inspection mode, and adjust the controller’s output parameters (voltage/current, response time) according to Nanjing Zhuye’s debugging guide: For EMBP-220, confirm the AC output voltage matches the brake’s rated voltage; for EMK-BZ210D/EMK-BZ210E, test the fault diagnosis function and speed-linked braking response. Operate the elevator to run up and down slowly, confirming the brake opens/closes smoothly with no abnormal noise.

3. Daily Usage & Routine Maintenance

Operation Monitoring: During daily elevator operation, monitor the limit switch’s working status through the control cabinet’s indicator lights: Ensure the normal indicator light is on and the fault/trigger indicator light is off during normal operation. If the limit switch is triggered accidentally, stop using the elevator immediately and arrange maintenance.
Daily Inspection: Maintenance personnel should check the TR236-11Y/ZR236-11Y switches during daily shaft patrols: Observe the switch shell for damage, corrosion, or loose installation; check the trigger lever for deformation or jamming (ensure it can reset automatically); inspect the wiring terminals for looseness, oxidation, or water intrusion; clean the switch surface and trigger lever with a dry cloth to remove dust (for ZR236-11Y, check the waterproof seal regularly).
Regular Maintenance: Every 3 months, recheck the switch’s trigger position and adjust if there is any deviation. Every 6 months, use a multimeter to test the switch’s contact resistance and insulation performance (refer to Nanjing Zhuye’s standard parameter range). For elevators in high-humidity, high-dust, or corrosive environments, shorten the maintenance interval to 1 month and apply anti-rust treatment to the switch’s metal parts (avoid applying lubricant to the contact points).

Recommended Replacement Cycle for Elevator Safety Limit Switch (TR236-11Y/ZR236-11Y)

As a core safety component enduring long-term mechanical wear, environmental erosion (humidity, dust, temperature changes), electrical aging, and frequent trigger operations, the Elevator Safety Limit Switch (TR236-11Y/ZR236-11Y) has a specified service life. Timely replacement is crucial to avoiding faults such as delayed trigger, failure to trigger, or false trigger—issues that may lead to elevator over-limit operation, resulting in serious accidents such as car collision and endangering passenger safety.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, operating environment temperature -30℃ to 80℃, humidity 10%–95%, average monthly trigger times ≤ 5), the recommended replacement cycle for both TR236-11Y and ZR236-11Y is 3–4 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, component aging tests, and global user feedback on elevator safety switches. The cycle fully considers the wear of the trigger mechanism and the aging of internal electrical components.

2. Adjustments for Special Scenarios

High-Frequency Trigger & Harsh Environments: For elevators in high-traffic areas (e.g., large shopping malls, airports) with average monthly trigger times ≥ 10, or in harsh environments (e.g., coastal areas with high salt spray, construction sites with strong dust/water), the replacement cycle is shortened to 1.5–2.5 years. High-frequency trigger accelerates the wear of the contact and trigger mechanism, while harsh environments cause rapid corrosion and waterproof failure (especially for TR236-11Y).
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable environments (constant temperature and humidity, little dust), the replacement cycle can be extended to 4–5 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the switch’s trigger sensitivity, contact performance, and insulation resistance meet factory standards.

3. Immediate Replacement Conditions

Replace the corresponding limit switch model (TR236-11Y/ZR236-11Y) immediately if any of the following issues occur, regardless of its service life:

The switch fails to trigger when the elevator reaches the limit position, or triggers accidentally during normal operation—affecting the elevator’s safe operation.
The switch shell is severely damaged or corroded, the internal circuit is exposed, or the waterproof seal of ZR236-11Y fails—posing short-circuit or electric shock risks.
The trigger lever is deformed, stuck, or cannot reset automatically—leading to abnormal switch status.
Professional testing confirms that the switch’s contact resistance exceeds 100mΩ or the insulation resistance is lower than 1MΩ, failing to meet basic electrical performance requirements.

Safety Limit Switch (TR236-11Y/ZR236-11Yscenario-tailored safety protection solution for modern elevatorsafety prote caused by switch failureTR236-11Y/ZR236-11Y limit switchemodeldebuggingafe operationIn conclusion, the Elevator Brake Controller Series (EMBP-220/EMK-BZ210D/EMK-BZ210E) from Nanjing Zhuye Elevatorparts is a high-quality, scenario-tailored safety control solution for modern elevator brake systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the reliable operation of the elevator brake system, eliminate potential safety hazards caused by controller failure, and safeguard passenger and equipment safety. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic EMBP-220/EMK-BZ210D/EMK-BZ210E controllers, plus professional support—including model matching, on-site debugging guidance, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the safe braking control of your elevator system.
