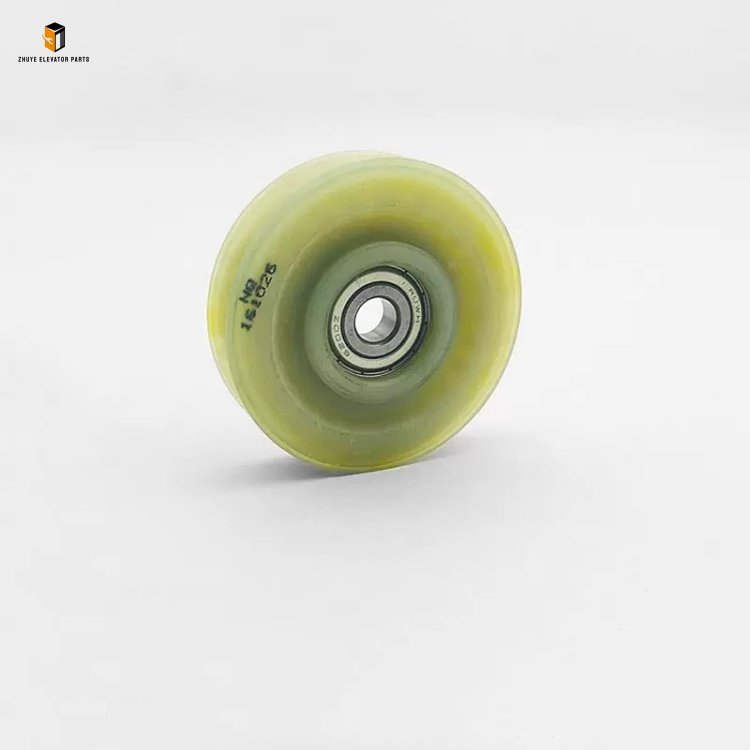

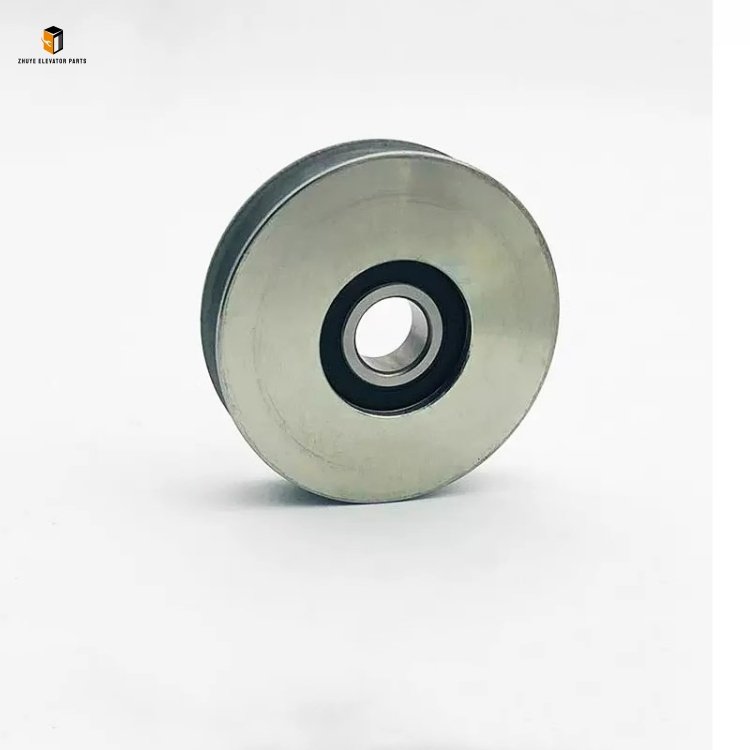

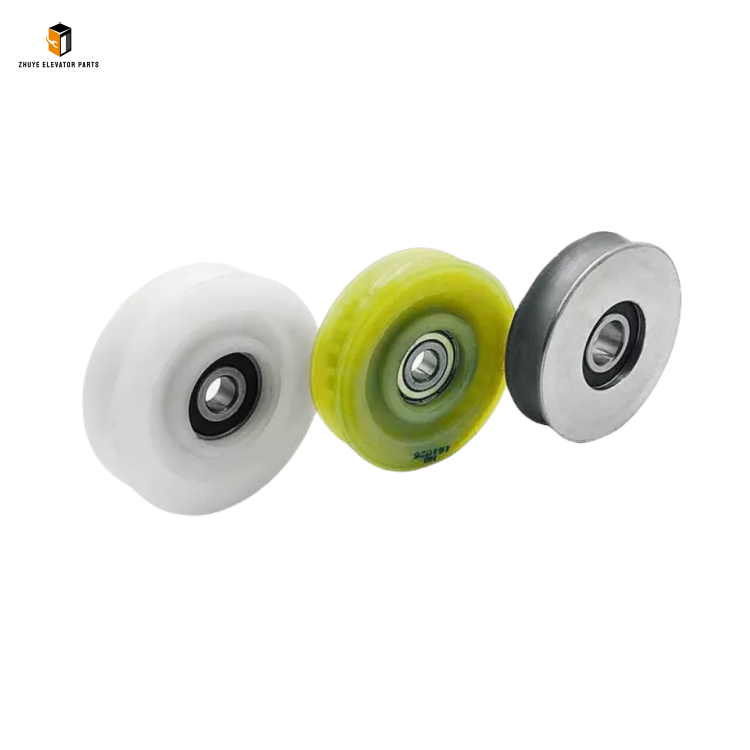

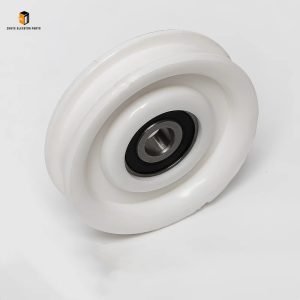

Elevator S8 Door Hanger Roller 70*17*6200: Reliable Door Operation Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator S8 Door Hanger Roller 70*17*6200

1. Professional Installation & Commissioning

• Safety Preparation: Cut off the elevator’s main power supply and the power supply of the door system, and hang a “Maintenance in Progress—Do Not Power On” sign at the power switch. Lock the elevator door in the open state using a safety bracket to prevent accidental door closure. Remove the old door hanger roller by disassembling the fixing pins or bolts on the door hanger.
• Roller Installation: Clean the door hanger’s roller mounting shaft to remove dust, oil stains, and rust. Align the S8 Door Hanger Roller 70*17*6200 with the mounting shaft and gently push it into place. Ensure the roller rotates flexibly without jamming or axial displacement. Fix the roller firmly using the original fixing pins or high-strength bolts provided by Nanjing Zhuye Elevatorparts, and strictly follow the specified tightening torque (typically 12–15 N·m) to prevent loosening during door operation.
• Gap & Level Adjustment: After installing the roller, adjust the gap between the roller and the door rail according to the S8 door system’s technical requirements. The standard gap is 0.2–0.4mm to ensure the door body moves smoothly without deviation. Use a feeler gauge to detect the gap and adjust the door hanger’s height to keep the door body level. Ensure the door body does not rub against the door frame during opening and closing.
• Post-Installation Testing: Remove the safety bracket and restore the power supply. Operate the elevator door to open and close repeatedly (at least 15 cycles) to check if the door body moves smoothly without abnormal vibration, noise, or jamming. Test the door opening and closing speed to ensure it is within the standard range (0.3–0.5m/s for passenger elevators). If there is abnormal noise, deviation, or slow movement, recheck the installation position and gap of the roller immediately.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During elevator maintenance, check the external state of the 70*17*6200 door hanger roller through the door inspection window. Ensure the PU outer layer is free of cracks, peeling, or excessive wear; check if the roller rotates flexibly without jamming; confirm that the fixing pins/bolts are tight and the roller has no loose or falling off.
• Weekly Functional Check: Operate the elevator door to open and close at different speeds (normal speed, inspection speed) and listen for abnormal noise (such as squeaking or clicking). If the door body shakes, deviates, or has a delayed response, it may be caused by excessive wear of the roller or loose installation, and the roller needs to be inspected and maintained immediately.
• Monthly Parameter Monitoring: Use a feeler gauge to detect the gap between the roller and the door rail. If the gap exceeds 1mm, adjust the door hanger or replace the roller in a timely manner. Check the wear depth of the PU outer layer—if the wear depth exceeds 1.5mm (exceeding the safe wear limit), take replacement measures immediately.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Clean the surface of the roller and the door rail with a dry, lint-free cloth to remove accumulated dust and debris. Apply a small amount of professional lubricant (recommended by Nanjing Zhuye Elevatorparts) to the roller’s rotating shaft to ensure smooth rotation. Recheck the tightness of the fixing pins/bolts and retighten if necessary.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including the roller’s rotation smoothness and load-bearing capacity. Use a professional rotation tester to detect the roller’s rotational resistance (normal value ≤ 3N). For elevators in harsh environments (such as high humidity, high dust, or frequent door operation), increase the frequency of performance tests.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Disassemble the door hanger to inspect the roller’s internal bearing and PU outer layer, check for hidden damage or fatigue, and replace aging or worn rollers with genuine parts. At the same time, inspect the door rail for wear or deformation that may affect the roller’s performance.

Recommended Replacement Cycle for Elevator S8 Door Hanger Roller 70*17*6200

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For elevators in high-humidity coastal areas, high-dust construction sites, elevators with frequent door operation (more than 2,000 times per day), or environments with oil pollution, the replacement cycle should be shortened to 1.5–2 years. Harsh conditions accelerate the wear of the PU outer layer, corrosion of the bearing, and fatigue of the roller base, significantly reducing the roller’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily door opening/closing times < 300 times) and clean, dry environments, the replacement cycle can be appropriately extended to 3–4 years—only if Nanjing Zhuye’s professional inspection confirms that the roller’s wear degree, rotation performance, and load-bearing capacity are all intact.

3. Immediate Replacement Conditions

• The PU outer layer is severely worn (wear depth > 1.5mm), peeled off, or cracked, leading to direct contact between the bearing steel base and the door rail.
• The roller rotates with obvious jamming, abnormal noise, or axial displacement, causing the door body to shake or deviate during operation.
• The roller’s fixing pins/bolts are damaged or loose and cannot be tightened, posing potential safety hazards.
• After professional testing, the roller’s load-bearing capacity is reduced by more than 25%, or the rotational resistance exceeds 10N, which affects the normal opening and closing of the elevator door.
