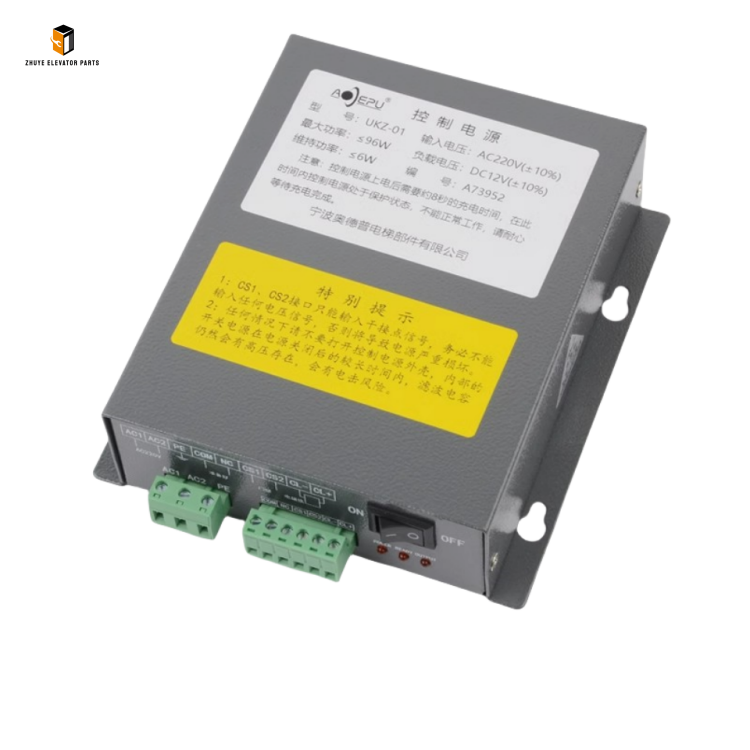

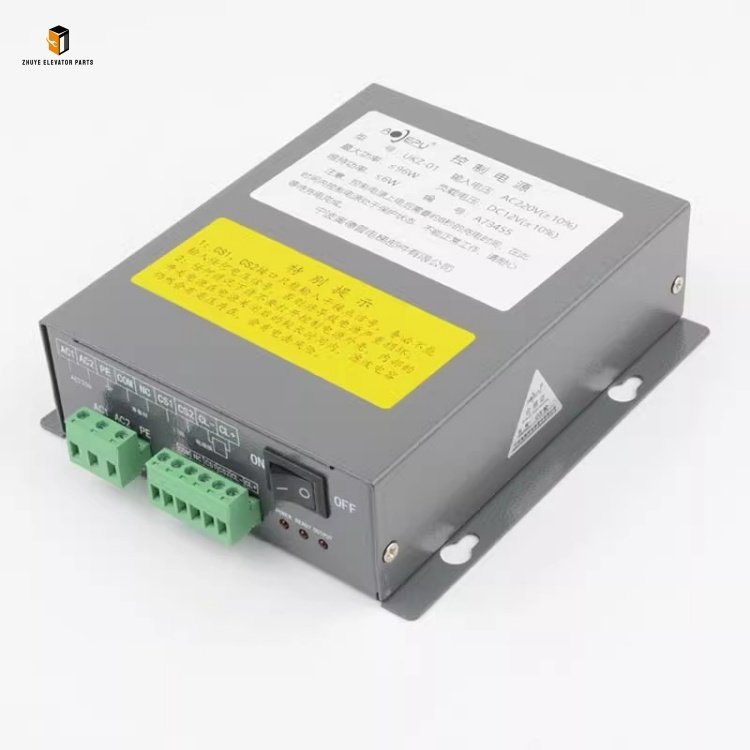

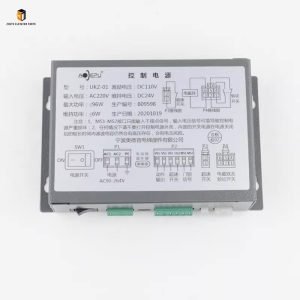

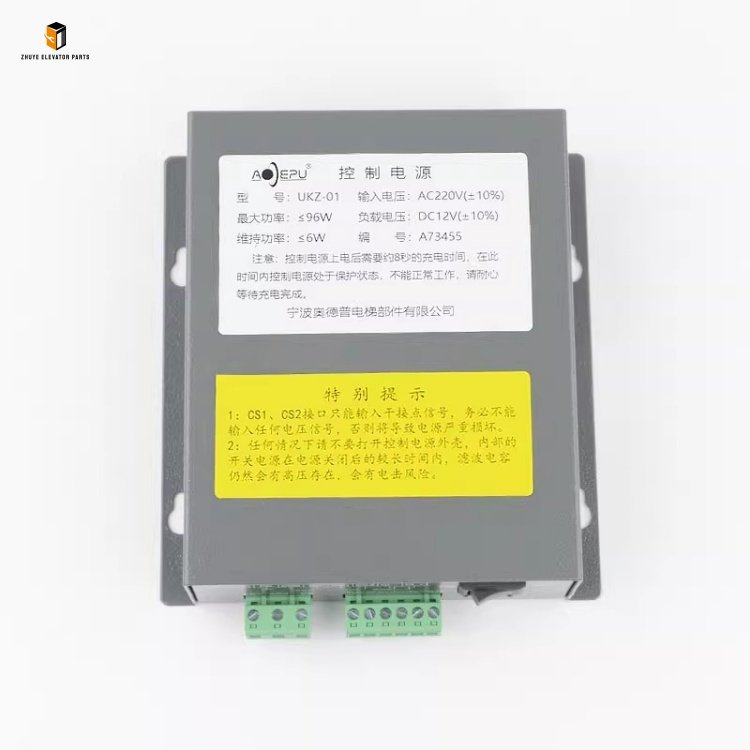

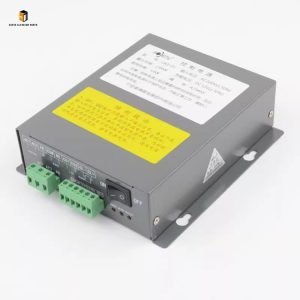

Elevator Rope Clamp Control Power Supply UKZ-01 Brief Introduction

Product Name	Elevator Rope Clamp Control Power Supply
Model Number	UKZ-01
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Rope Clamp Control Power Supply UKZ-01: Power Core from Nanjing Zhuye Elevatorparts

Elevator Rope Clamp Control Power Supply UKZ-01 is a critical power supply component for elevator safety systems, specifically engineered to provide stable and reliable DC power for elevator rope clamp devices. As the “power guarantee of rope clamp safety,” it ensures the rope clamp engages rapidly to clamp the elevator traction rope in emergency situations (e.g., overspeed, power failure), preventing the elevator from falling and maximizing passenger safety. Exclusively supplied by Nanjing Zhuye Elevatorparts (a professional and trusted distributor of high-quality elevator components), the Elevator Rope Clamp Control Power Supply UKZ-01 fully complies with international elevator safety standards (EN 81-20, GB 7588) and is compatible with mainstream elevator rope clamp models from various brands. Featuring stable output performance, strong overload capacity, and excellent emergency power supply switching ability, this power supply provides essential safety guarantees for elevators in residential buildings, commercial complexes, office towers, hospitals, and other scenarios worldwide.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “safety first, quality-oriented” and implements strict quality control over the UKZ-01 rope clamp control power supply. Each power supply undergoes multi-stage pre-delivery inspections, including output voltage stability testing, overload capacity verification, emergency switching performance detection, and durability trials. The product adopts advanced switching power supply technology, a flame-retardant metal shell, and a built-in backup battery module: the switching power supply technology ensures high conversion efficiency (≥ 92%) and stable output voltage (rated output: 24VDC ± 1%); the flame-retardant metal shell (UL94 V0 rating) has strong impact resistance and heat dissipation performance, adapting to the harsh environment in the elevator machine room; the built-in backup battery module can switch to emergency power supply within 0.1ms when the main power fails, ensuring the rope clamp works normally. Its standardized wiring interfaces and mounting dimensions are tailored to match the dedicated positions of most compatible rope clamp control systems, eliminating the need for complex modifications and ensuring quick installation.

Step-by-Step Usage Guide for Elevator Rope Clamp Control Power Supply UKZ-01

To ensure the reliable operation of the elevator rope clamp system and extend the service life of the UKZ-01 power supply, follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, debugging, and maintenance:

1. Professional Installation & Wiring

Installation must be performed by certified elevator technicians familiar with elevator safety systems. Prior to installation, confirm the compatibility of the UKZ-01 power supply with the target elevator’s rope clamp model and power requirements using the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts. The steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and the rope clamp system’s dedicated power supply. Clean the mounting area (usually in the elevator machine room or control cabinet) to remove dust, oil stains, and debris that may affect insulation and heat dissipation. Check the input power voltage to ensure it matches the UKZ-01’s rated input voltage (AC 220V/380V, optional).
Power Supply Installation: Fix the UKZ-01 power supply to the dedicated mounting bracket using high-strength screws provided by Nanjing Zhuye Elevatorparts. Ensure the power supply is installed vertically (tilt angle ≤ 3°) and there is a 20–30mm heat dissipation gap between adjacent components. Confirm that the power supply’s ventilation holes and heat dissipation fins are not blocked to ensure normal heat dissipation.
Wiring Operation: According to the rope clamp control system wiring diagram, connect the AC input wire to the UKZ-01’s input terminal, the DC output wire to the rope clamp’s power terminal, and the signal wire to the elevator main control system. Ensure the wiring is tight (use a torque wrench to confirm the tightening torque) and the positive/negative poles are correctly connected (reverse connection will damage the power supply or rope clamp). Connect the backup battery module to the dedicated terminal and ensure the connection is reliable.
Post-Installation Testing: Restore the power supply and conduct comprehensive functional tests. Use a multimeter to detect the input voltage and output voltage to ensure they are within the rated range. Simulate a main power failure to verify that the backup battery module switches smoothly and the rope clamp can engage normally. Test the overload protection function by adjusting the load to 120% of the rated load to ensure the power supply triggers protection reliably. If there is unstable output voltage, abnormal emergency switching, or failure of protection functions, recheck the installation and wiring immediately.

2. Daily Operation & Routine Inspection

Regular inspections are crucial to early detection of power supply faults and ensuring the safety of the elevator rope clamp system. Maintenance personnel should incorporate the following checks into their daily patrols:

Daily Visual Inspection: During machine room patrols, check the external state of the UKZ-01 power supply. Ensure the metal shell is free of cracks, deformation, or corrosion; the wiring terminals are tight with no looseness, oxidation, or burning marks; the indicator lights (power, backup battery, fault) work normally (green for normal operation, red for fault).
Weekly Functional Check: Use a multimeter to detect the output voltage stability and the backup battery’s voltage (ensure it meets the rated voltage requirement). Simulate a main power failure once a week to verify the emergency switching performance of the power supply and the normal operation of the rope clamp. Check the fault code record on the power supply (if equipped) to identify potential hidden faults.
Monthly Parameter Monitoring: Turn off the power supply and clean the power supply’s shell, ventilation holes, and heat dissipation fins with a dry, lint-free cloth to remove dust and debris. Inspect the backup battery for bulging, leakage, or other abnormalities (replace the battery if any). Check the tightness of the mounting screws and wiring terminals to prevent loosening due to vibration.

3. Regular Maintenance Schedule

Systematic maintenance can effectively extend the service life of the UKZ-01 rope clamp control power supply. Follow Nanjing Zhuye Elevatorparts’ recommended maintenance plan:

Quarterly Maintenance: Disconnect the power supply and remove the backup battery module. Thoroughly clean the power supply’s shell, terminals, and internal vents with a professional electrical cleaner. Inspect the input/output wires for aging or cracking (replace if necessary) and recheck the tightness of all connections. Reinstall the backup battery module and charge it fully before testing its performance.
Semi-Annual Performance Test: Conduct a comprehensive performance test, including output voltage regulation accuracy, overload capacity, emergency switching time, and backup battery capacity. Use a professional power supply tester to simulate different working conditions (e.g., voltage fluctuation, high temperature) to verify the power supply’s stable operation. For elevators in high-traffic areas (e.g., shopping malls, airports), increase the test frequency to once every 3 months.
Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Replace the backup battery module (recommended replacement cycle for the battery is 1–2 years) and aging components (such as capacitors, resistors) with genuine parts. Recalibrate the output voltage and protection function parameters to meet the original factory standards and the elevator’s actual operating requirements.

Recommended Replacement Cycle for Elevator Rope Clamp Control Power Supply UKZ-01

As a core power supply component bearing long-term electrical load, frequent emergency switching, and environmental erosion, the UKZ-01 rope clamp control power supply has a specified service life. Timely replacement is critical to avoiding failures such as unstable output, backup battery failure, or no output, which may lead to the rope clamp’s failure to engage in emergencies, posing serious safety hazards to passengers and elevator equipment.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, annual emergency switching times ≤ 50, environment temperature -10–60℃, humidity 10%–95%), the recommended replacement cycle for the Elevator Rope Clamp Control Power Supply UKZ-01 is 3–4 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field data, component aging tests, and actual operation feedback from global users.

2. Adjustments for Special Scenarios

Harsh Environments: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or machine rooms with high temperature (long-term temperature > 45℃), the replacement cycle should be shortened to 2–3 years. Harsh conditions accelerate the aging of internal circuits, corrosion of terminals, and degradation of backup battery performance, significantly reducing the power supply’s reliability.
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable machine room environments, the replacement cycle can be extended to 4–5 years—only if Nanjing Zhuye’s professional inspection confirms that the power supply’s output stability, backup battery performance, and component integrity are all intact.

3. Immediate Replacement Conditions

Replace the UKZ-01 power supply immediately if any of the following issues occur, regardless of service life:

The output voltage fluctuates excessively (exceeding ±5% of the rated voltage) and cannot be calibrated, leading to unstable operation of the rope clamp.
The backup battery module fails to switch or has insufficient capacity, and cannot provide stable power supply for the rope clamp in case of main power failure.
The power supply has frequent fault alarms, or the protection functions (overload, overvoltage) fail to trigger when faults occur, posing safety hazards to the rope clamp system.
The power supply has no output (confirmed by multimeter testing), and the fault cannot be eliminated by checking the input power and wiring, resulting in the rope clamp being unable to work normally.

In conclusion, the Elevator Rope Clamp Control Power Supply UKZ-01 supplied by Nanjing Zhuye Elevatorparts is a high-quality, high-reliability power supply component tailored for elevator rope clamp systems. By following the correct usage methods, maintenance schedules, and replacement cycles, elevator maintenance teams can effectively ensure the stable and safe operation of the elevator rope clamp system, maximize passenger safety, and minimize failure risks. Choosing Nanjing Zhuye Elevatorparts means you get not only authentic UKZ-01 power supplies but also professional technical support, including model matching guidance, installation advice, and prompt after-sales service.
