Description
Elevator Relay Board SF-RY-C
|
Product Name |
Elevator Relay Board |
| Model Number | SF-RY-C
SF-RY-T SF-RY-C1 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|

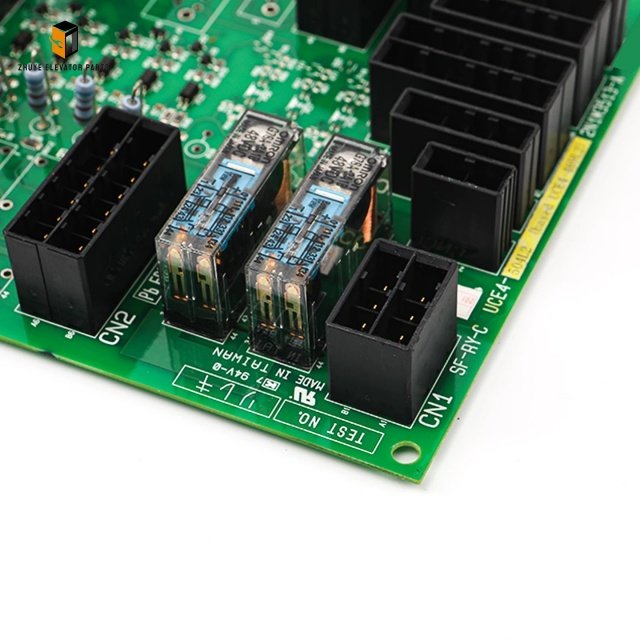

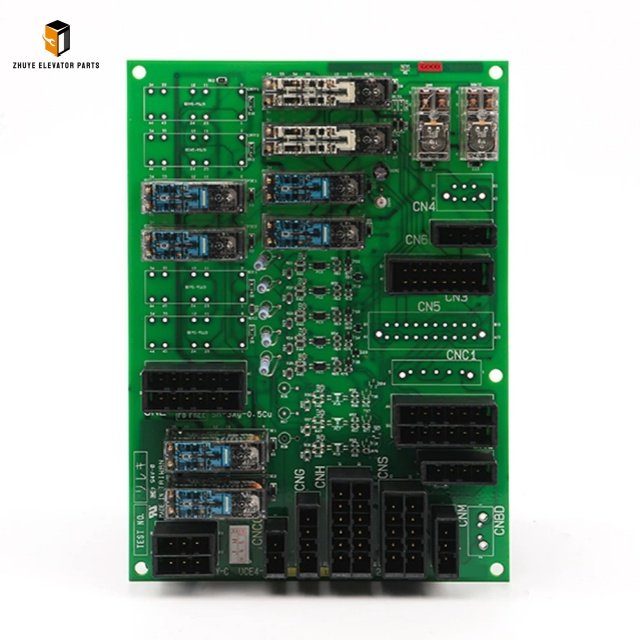

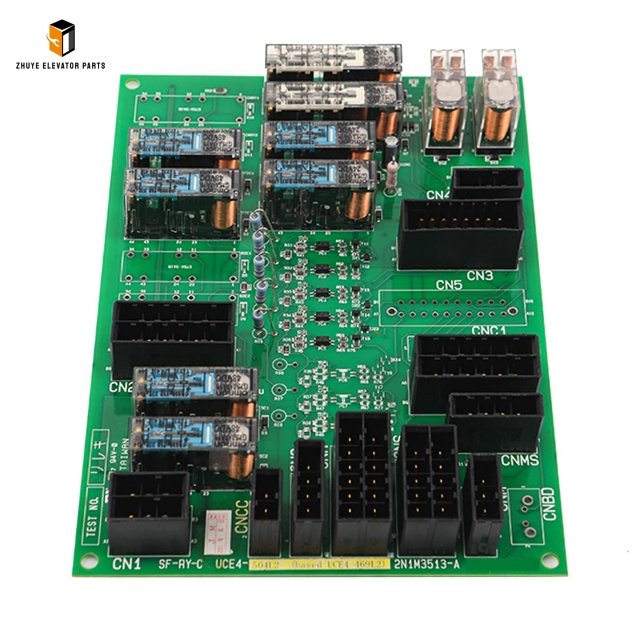

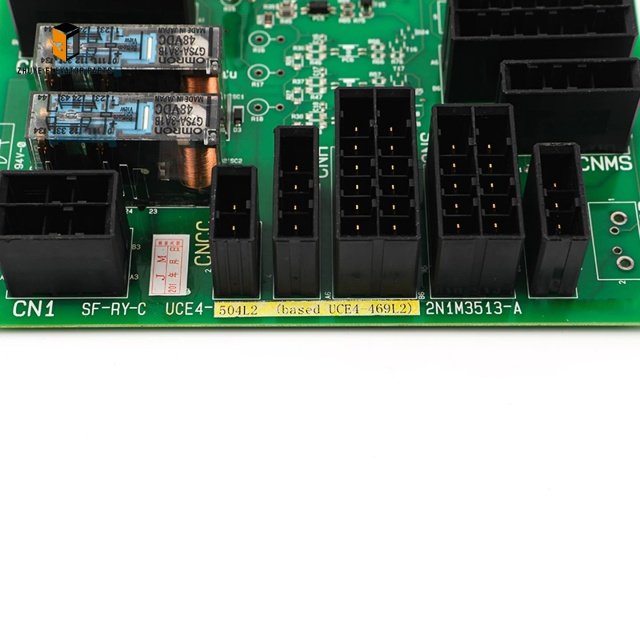

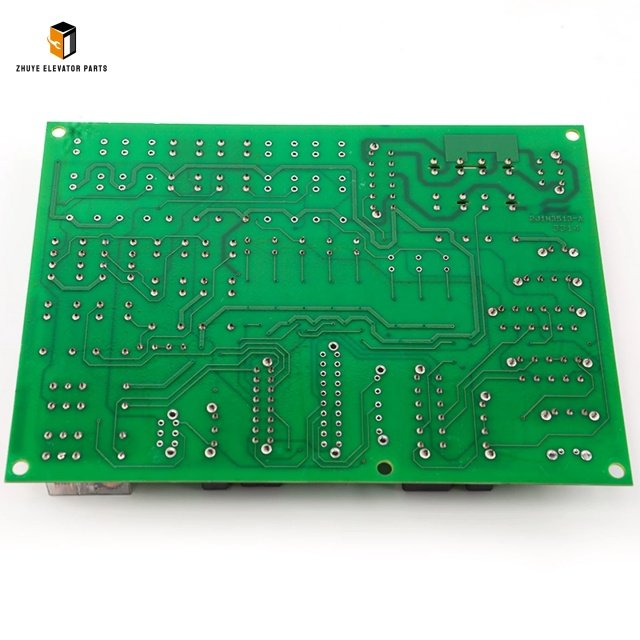

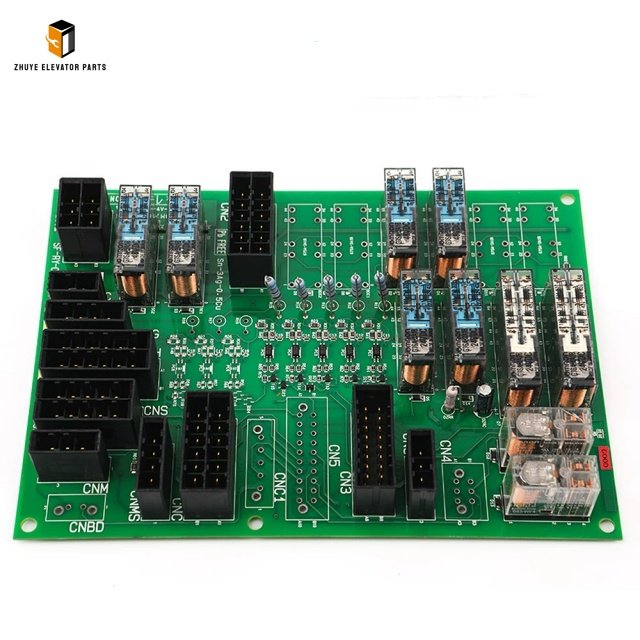

Elevator Relay Board SF-RY-C | Compatible with Toshiba Elevators
The Elevator Relay Board SF-RY-C is a high-current switching control core accessory, professionally developed and strictly tested for direct replacement and seamless compatibility with Toshiba elevators. Installed inside the main control cabinet or car top junction box, this industrial relay board undertakes key circuit switching tasks for door lock loops, safety chains, fan power control, and auxiliary contact signal output. It acts as a reliable current switching hub to isolate weak control signals from strong power loads, effectively protecting the main elevator motherboard from surge current impact. If the original relay board ages or suffers contact burnout, Toshiba elevators will face frequent safety loop disconnection, failure to close doors normally, random stop faults, and unresponsive auxiliary equipment linkage. Manufactured fully in line with Toshiba original current load standards and relay logic parameters, the SF-RY-C is a must-have spare part for daily maintenance, emergency repairs, and modernization projects.
The Elevator Relay Board SF-RY-C adopts high-strength flame-retardant PCB and high-capacity silver alloy relay cores, featuring strong conductivity, low contact resistance, and excellent anti-arc performance. It can continuously resist high-temperature heat radiation, mechanical vibration, cabinet dust, and daily frequent switching fatigue in complex machine room environments. All hole positions, fixing dimensions, pin definitions, and load current values fully match Toshiba original requirements, enabling true plug-and-play installation without rewriting programs, adjusting logic parameters, or modifying on-site wiring routes. Built with independent anti-surge resistors and isolation protection circuits, the board effectively avoids relay burnout caused by instantaneous current spikes, ensuring long-term stable switching performance for all Toshiba elevator safety and auxiliary circuits.
Standard Installation and Professional Operation Steps
All disassembly, wiring, and installation operations of the SF-RY-C relay board must be completed by certified Toshiba elevator technicians. Before starting any work, fully cut off the elevator main power and auxiliary control power, lock the isolation switch with a safety lock, and post a clear “Maintenance In Progress” warning sign. Live-line replacement is strictly prohibited to prevent electric shock, wrong signal triggering, and accidental elevator running accidents.
Open the matching control cabinet or car top electrical box, carefully check the model and load parameters of the old relay board, and confirm full consistency with the SF-RY-C in installation size and circuit logic. Use insulated professional tools to remove each wiring terminal one by one, mark every wire number and corresponding function clearly to prevent misconnection, then remove the fixed mounting screws and take out the aging faulty relay board completely.
Thoroughly clean the mounting bracket and surrounding area to remove metal dust, oil stains, and debris that may cause poor contact or short circuits. Align the positioning holes of the brand-new SF-RY-C Elevator Relay Board, fix it tightly with anti-loose screws to avoid loosening caused by elevator vibration. Reconnect all power lines and signal lines strictly according to the pre-marked labels, double-check terminal firmness and wiring correctness. After full inspection, restore the main power supply, conduct safety loop continuity tests, door linkage tests, and full running tests to confirm stable relay switching and zero abnormal fault codes.
Scientific Replacement Cycle and Timely Replacement Judgment Standards
The overall service life of the SF-RY-C relay board depends on switching frequency and machine room environmental quality. In standard residential buildings and office buildings with dry, ventilated machine rooms and moderate elevator usage, the safe and economical replacement cycle is 6 to 8 years.
For high-flow public buildings such as shopping malls, hospitals, and railway stations, or humid, dusty, high-temperature machine rooms, the relay board bears frequent high-current switching impact. It is necessary to shorten the replacement cycle to 4 to 5 years to prevent sudden relay contact adhesion and unexpected elevator downtime.
Immediate replacement of the SF-RY-C relay board is required once obvious faults appear, including intermittent safety loop disconnection, abnormal buzzing noise from the board, burned yellow terminals, poor relay contact switching, frequent system fault alarms, and local circuit heating. Timely replacement effectively eliminates electrical safety hazards and maintains continuous, stable, and safe operation of all Toshiba elevator equipment.
Advantages of Purchasing LCO-510 from Our Factory
We supply premium original-matching Elevator Relay Board SF-RY-C, fully compatible with all mainstream Toshiba elevator models. Each product undergoes strict high-current aging tests, switching durability tests, and on-site elevator matching inspections before delivery. We maintain sufficient in-stock inventory, support fast global logistics delivery, and provide complete remote installation guidance. Our reliable quality reduces on-site maintenance difficulty, shortens elevator downtime, and helps global elevator contractors improve operational efficiency and service quality.
