Elevator relay board 14803282 13500246 SD-A7 Brief Introduction
|
Product Name |

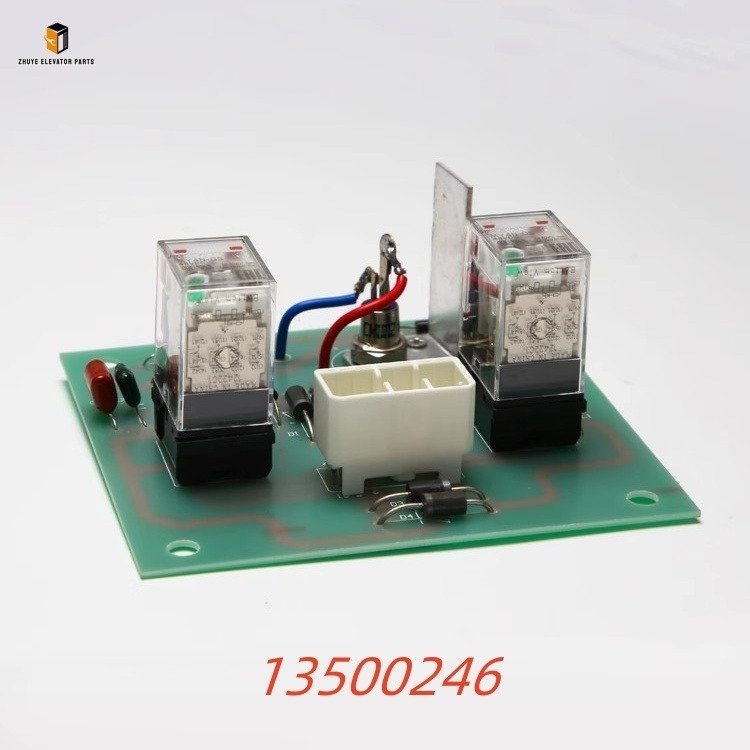

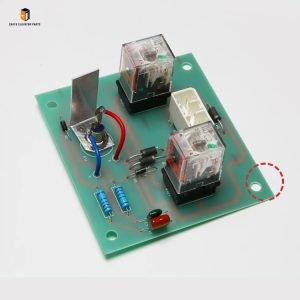

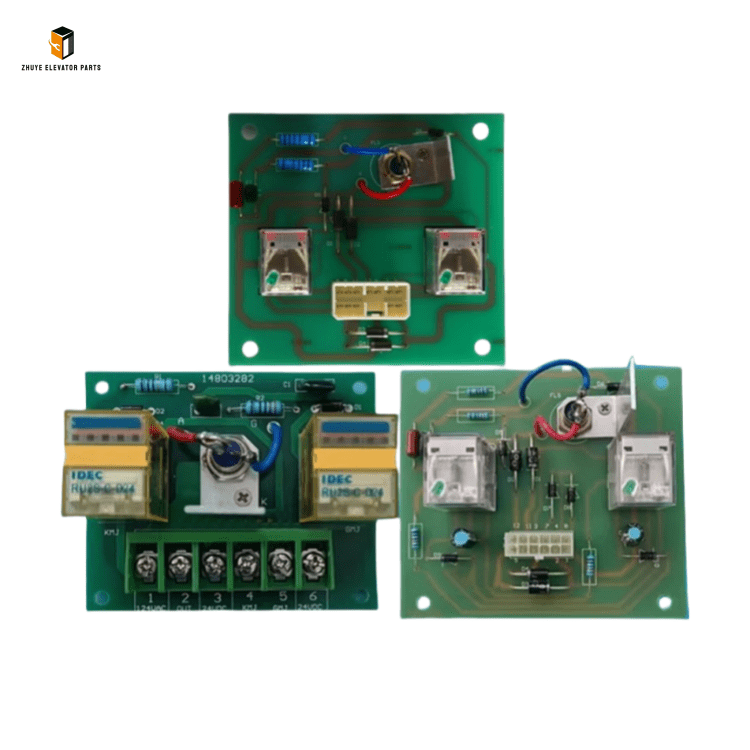

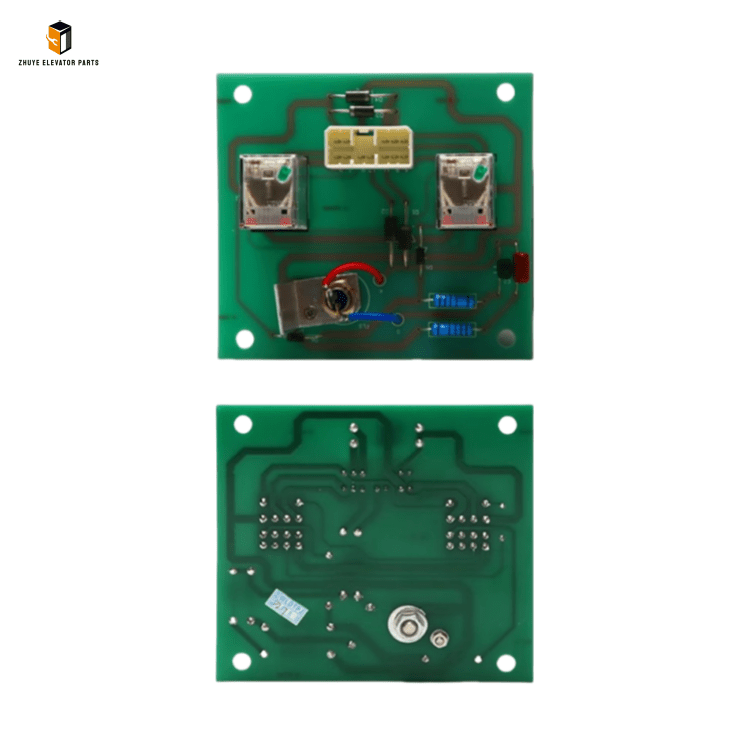

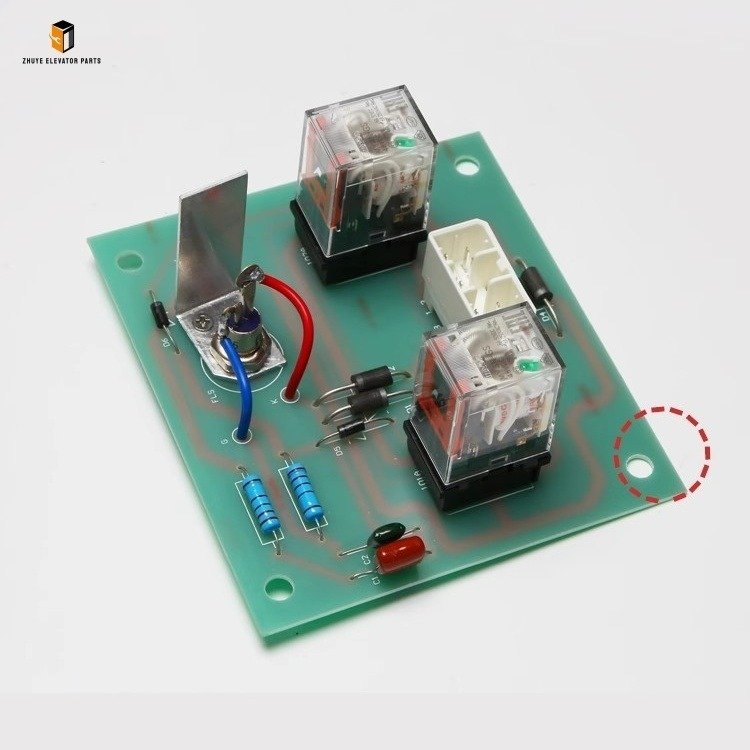

Elevator relay board |

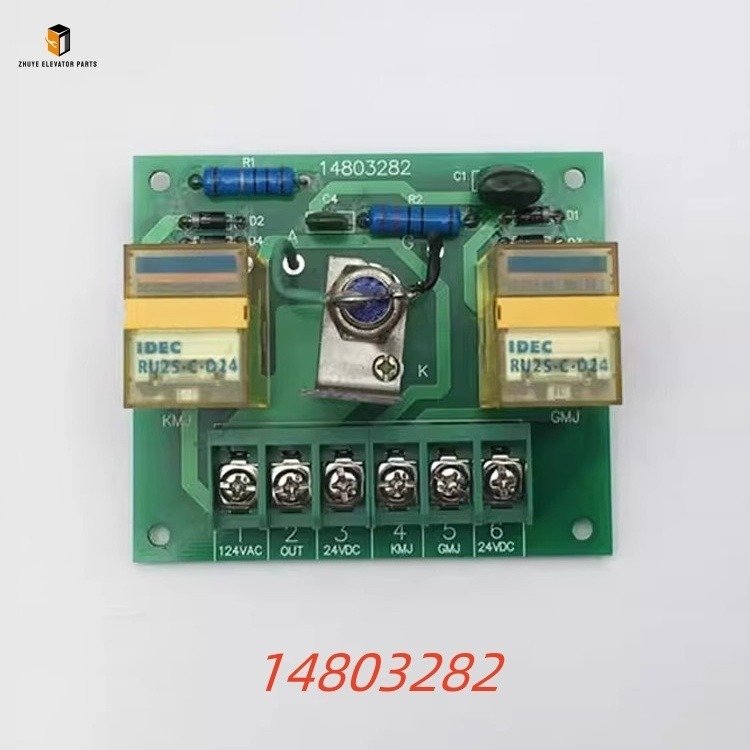

| Model Number | 14803282

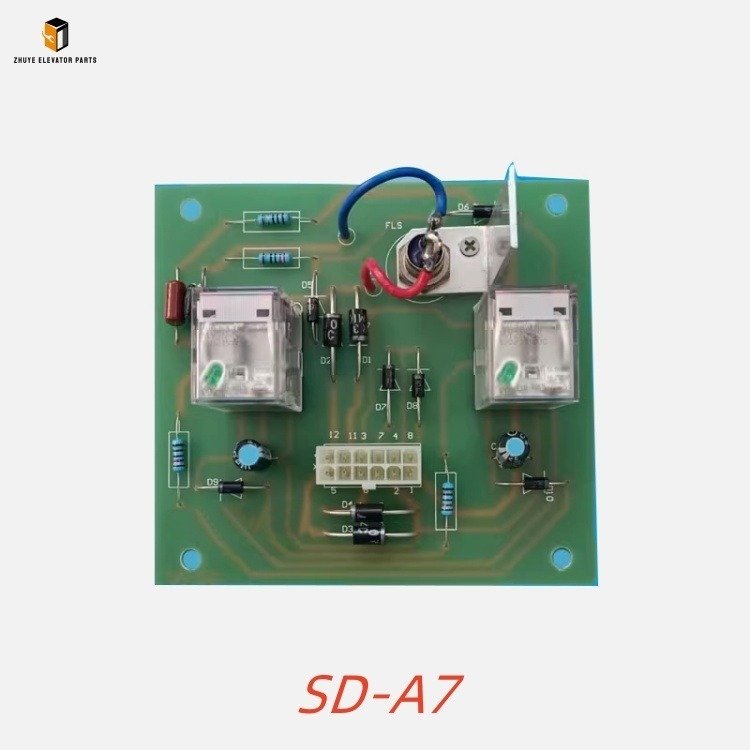

13500246 SD-A7 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Relay Boards 14803282, 13500246 & SD-A7: Reliable Control Solutions from Nanjing Zhuye Elevatorparts
In the intricate control system of elevators, relay boards serve as the “neural network,” managing signal transmission between core components such as traction systems, door operators, and safety interlocks. Their reliability is directly linked to elevator operation stability and passenger safety. The Elevator Relay Boards 14803282, 13500246, and SD-A7, exclusively supplied by Nanjing Zhuye Elevatorparts, are engineered to meet the rigorous demands of modern elevators. Compliant with international standards including IEC/EN 60947 and UL 60947-4-1, these relay boards cover a wide range of applications—from standard residential elevators to high-traffic commercial ones. They are fully compatible with mainstream elevator brands like Schindler, OTIS, KONE, and domestic brands such as Mitsubishi, making them ideal for both new installations and old system upgrades. Each model is tailored to specific control needs, delivering consistent performance trusted by elevator maintenance professionals globally.
Nanjing Zhuye Elevatorparts adheres to a stringent quality control system, and the 14803282, 13500246, and SD-A7 elevator relay boards are testaments to this commitment. Each unit undergoes comprehensive pre-delivery testing, including circuit continuity checks, insulation resistance measurements, high-temperature durability trials, and anti-interference performance assessments. All three models feature FR-4 flame-retardant substrates that resist high temperatures up to 130℃, with anti-corrosion and dust-proof designs ensuring reliable performance in harsh machine room environments. The 14803282 excels in high-precision signal transmission for complex control systems; the 13500246 is optimized for energy efficiency and stable operation in long-running scenarios; and the SD-A7 boasts enhanced compatibility for retrofitting older elevator models. Equipped with high-quality capacitors and relays, all boards minimize signal delay and ensure long-term operational stability.
Usage Guide for Elevator Relay Boards 14803282, 13500246 & SD-A7
Proper installation, wiring, and operation are crucial to maximizing the performance and lifespan of the 14803282, 13500246, and SD-A7 relay boards. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid safety hazards or equipment damage. Before installation, verify that the relay board model matches the elevator system’s specifications—confirm voltage rating, interface type, and control function compatibility. Refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for model-specific guidance on wiring and parameter settings.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and control system power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and elevator entrances to prevent accidental activation. Prepare essential tools: a torque wrench, screwdriver, multimeter, wire stripper, anti-static gloves, and a brush. Clean the installation area in the electrical control cabinet to remove dust, debris, and oil stains—contaminants are a leading cause of short circuits and poor contact. Inspect the relay board (14803282/13500246/SD-A7) for any external damage, cracked substrates, loose components, or damaged interfaces; do not use defective products. Confirm the elevator control system’s voltage matches the board’s rated voltage to avoid burnout.
2. Installation & Wiring
Mount the relay board (14803282/13500246/SD-A7) on the dedicated mounting bracket inside the control cabinet, ensuring secure fixation with no looseness. Reserve 5-10cm of ventilation space around the board to facilitate heat dissipation and avoid installing near heat sources or high-voltage components. Follow the model-specific wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect power wires to the power input terminals, signal wires to the corresponding input/output interfaces, and safety interlock wires to dedicated terminals (critical for SD-A7 models used in safety control). Use copper core wires of appropriate cross-section (recommended 1.5mm² for signal wires) and ensure the wire stripping length is 8-10mm to avoid short circuits. The recommended tightening torque for terminal screws is 1.5-2.5 Nm. After wiring, use a multimeter to check circuit continuity and insulation resistance between terminals to confirm no wiring errors.
3. Debugging & Daily Operation
After installation, conduct comprehensive debugging tailored to the board model. Restore power and activate the elevator control system: for 14803282, verify high-precision signal transmission (e.g., floor indication, speed control); for 13500246, check energy consumption and stable operation under long-load conditions; for SD-A7, test safety interlock response accuracy. Simulate various operating scenarios (start, stop, door opening/closing) to ensure the board transmits signals correctly. During daily operation, incorporate the relay board into the elevator’s regular maintenance plan: clean the board surface and interfaces monthly with a dry brush; check wiring tightness quarterly; and perform model-specific function tests semi-annually (e.g., safety signal calibration for SD-A7). Monitor the board’s operating temperature—abnormal heating (exceeding 60℃) indicates a potential issue requiring immediate attention.
Replacement Cycle of Elevator Relay Boards 14803282, 13500246 & SD-A7
The replacement cycle of the 14803282, 13500246, and SD-A7 relay boards depends on model, operating frequency, working environment, and maintenance conditions. Under normal parameters—elevator runs 12-24 hours daily, machine room is dry, ventilated, and maintained at -10℃ to 50℃—Nanjing Zhuye Elevatorparts recommends a standard replacement cycle of 4-6 years for all three models. This timeline is based on long-term field data, accounting for component aging, circuit degradation, and reduced signal accuracy over time, with slight variations: 14803282 (high-precision models) may require replacement at the 4-year mark, while 13500246 (energy-efficient models) can extend to 6 years under stable conditions.
For elevators in high-traffic areas (e.g., shopping malls, airports) or harsh environments (high humidity, heavy dust, frequent temperature fluctuations), the replacement cycle for all three models should be shortened to 2-4 years. High-frequency operation accelerates component wear, while harsh conditions increase corrosion and short-circuit risks—SD-A7 models used in safety-critical systems should be replaced at the 2-year mark to ensure reliability. For low-usage elevators (e.g., villa elevators, small offices with daily operation <8 hours) in stable environments, the cycle can be extended to 6-8 years. However, annual professional inspections by Nanjing Zhuye’s technicians are mandatory to confirm signal accuracy, interface integrity, and safety function performance meet standards.
Immediately replace the relay board (14803282/13500246/SD-A7) if any of the following issues occur, regardless of service life: frequent signal transmission failures or errors that cannot be resolved; SD-A7 models fail to trigger safety interlock responses or respond slowly; obvious physical damage (cracked substrates, burned components, damaged interfaces); abnormal heating, sparks, or odors during operation; or the board fails annual safety inspections. Timely replacement is critical, especially for SD-A7 models, as they play a key role in elevator safety systems. Always use genuine replacement boards from Nanjing Zhuye Elevatorparts to ensure compatibility and performance.
The Elevator Relay Boards 14803282, 13500246, and SD-A7 from Nanjing Zhuye Elevatorparts cover diverse elevator control needs, integrating stable performance, durability, and wide compatibility. Their strict quality control and model-specific optimizations make them ideal for various elevator types and scenarios. By following the recommended usage guidelines and replacement cycles, you can significantly improve elevator system reliability and enhance passenger safety. Nanjing Zhuye Elevatorparts provides 100% authentic relay boards, along with professional services including model matching, on-site debugging guidance, and timely after-sales support. Choose Nanjing Zhuye Elevatorparts for comprehensive and trustworthy elevator component solutions.
