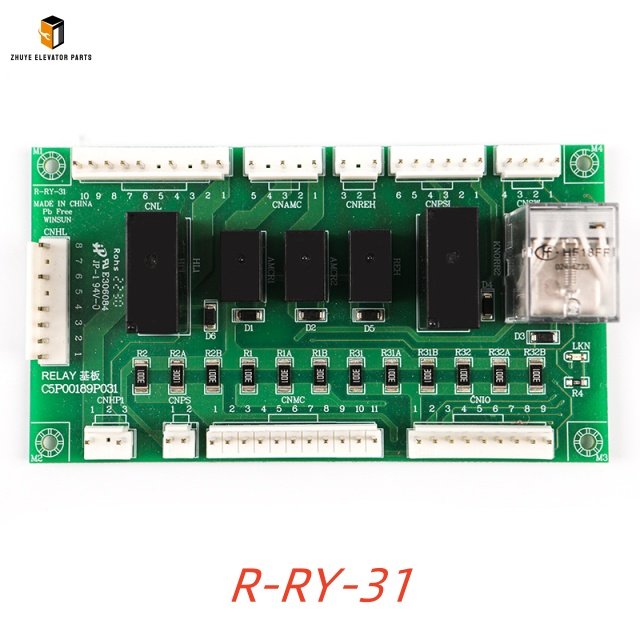

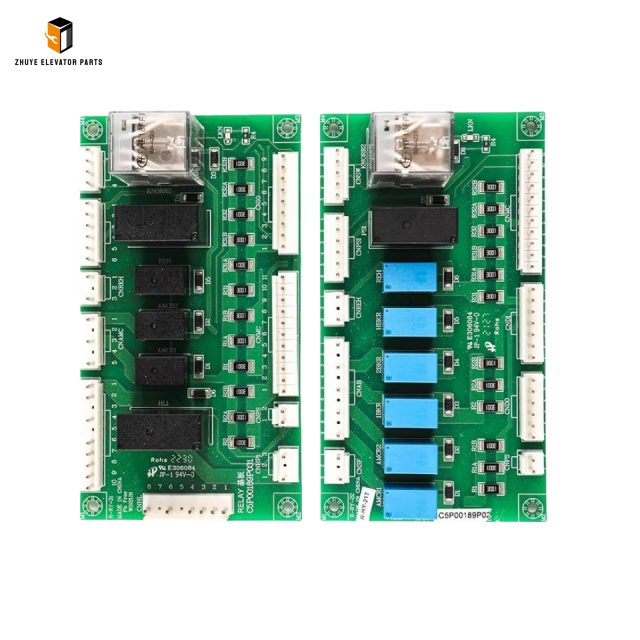

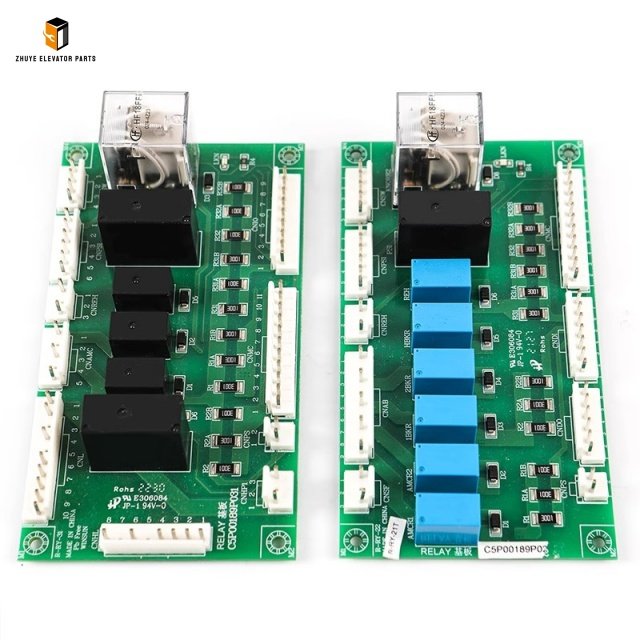

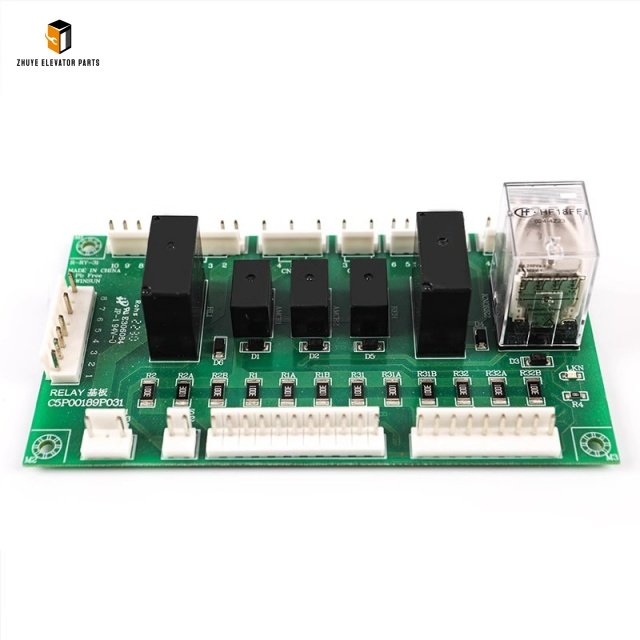

Introduction to Elevator Relay Board R-RY-31 by NANJING ZHUYE ELEVATOR PARTS

In the complex ecosystem of modern elevator control systems, the relay board serves as the critical interface between low-power control signals and high-power electrical components. NANJING ZHUYE ELEVATOR PARTS, a globally recognized manufacturer of premium elevator components, proudly presents the R-RY-31 Relay Board—a masterpiece of electrical engineering designed to optimize signal transmission, enhance system reliability, and ensure passenger safety.

Product Overview
The R-RY-31 Relay Board represents the pinnacle of relay technology in elevator applications. This sophisticated component functions as the central nervous system of elevator control, precisely managing the switching operations between control circuits and power circuits. By converting low-voltage control signals into high-power commands, the R-RY-31 enables seamless operation of critical elevator functions including door mechanisms, safety brakes, and motor controls.

Key Technical Specifications
– Model: R-RY-31
– Relay Configuration: 31-channel high-current relay array
– Contact Rating: 10A @ 250VAC per channel
– Coil Voltage: 24VDC (±10% tolerance)
– Contact Material: Silver-nickel alloy with gold plating
– Operating Temperature: -25°C to +70°C
– Insulation Resistance: >100MΩ @ 500VDC
– Dielectric Strength: 2000VAC for 1 minute
– Mechanical Life: 10 million operations
– Electrical Life: 100,000 operations at rated load

Advanced Engineering Features

1. Intelligent Signal Processing
The R-RY-31 incorporates advanced microcontroller-based logic that enables:
– Real-time diagnostic monitoring of each relay channel
– Predictive maintenance alerts based on usage patterns
– Automatic fault detection and isolation
– Redundant channel switching for critical safety functions

2. Enhanced Safety Architecture
Safety remains paramount in elevator design. The R-RY-31 features:
– Dual-coil redundancy for critical safety relays
– Arc suppression technology to prevent contact welding
– Overcurrent protection with automatic reset
– Isolated power supplies for control and load circuits
– Compliance with EN 81-20/50 and UL 508 safety standards

3. Superior Build Quality
Manufactured under ISO 9001:2015 certified processes, the R-RY-31 boasts:
– Military-grade PCB materials with high thermal conductivity
– Conformal coating for protection against humidity and contaminants
– Vibration-resistant mounting system
– Gold-plated contacts for superior conductivity and corrosion resistance

Performance Benefits

Reliability Enhancement
– 99.99% uptime guarantee through intelligent monitoring
– Predictive maintenance reduces unexpected failures by 85%
– Extended service life through advanced contact protection

Energy Efficiency
– <0.5W standby power consumption per channel
– 95% power conversion efficiency
– Reduced heat generation through optimized coil design

Installation Flexibility
– Compact 180mm x 120mm footprint
– Plug-and-play compatibility with major elevator controllers
– Tool-less mounting system for rapid installation
– Color-coded terminals for error-free wiring

Applications
The R-RY-31 is engineered for versatility across multiple elevator configurations:
– High-rise passenger elevators (speeds up to 6m/s)
– Hospital elevators requiring specialized control
– Freight elevators with heavy-duty switching requirements
– Machine-room-less (MRL) elevator systems
– Modernization projects for legacy elevator controls

Quality Assurance
Every R-RY-31 unit undergoes rigorous testing at NANJING ZHUYE ELEVATOR PARTS‘ state-of-the-art facility:
– 100% electrical testing under full load conditions
– Thermal cycling from -40°C to +85°C
– Vibration testing to IEC 60068-2-6 standards
– Burn-in testing for 168 hours continuous operation
– Final QA inspection with traceable serial numbers

Company Profile
NANJING ZHUYE ELEVATOR PARTS has established itself as a trusted partner in the global elevator industry since 1998. Our commitment to innovation is reflected in our:
– 200+ patents in elevator component technology
– 15,000m² manufacturing facility with automated production lines
– ISO 14001 environmental management certification
– Global distribution network spanning 45 countries
– 24/7 technical support with response times under 2 hours

Service Excellence
Our comprehensive service package includes:
– Customized engineering support for complex installations
– On-site training for maintenance personnel
– Extended warranty programs up to 5 years
– Rapid replacement service with global parts availability
– Remote diagnostics via IoT connectivity

Environmental Commitment
As part of our sustainability initiative, the R-RY-31:
– Uses lead-free solder and RoHS-compliant components
– Features recyclable packaging materials
– Incorporates energy-efficient coil design
– Supports predictive maintenance to reduce waste

Conclusion
The R-RY-31 Relay Board represents NANJING ZHUYE ELEVATOR PARTS’ unwavering commitment to excellence in elevator component manufacturing. By combining cutting-edge technology with rigorous quality control, we deliver a product that enhances elevator safety, reliability, and performance. Trust in the R-RY-31 to provide the critical switching infrastructure your elevator system demands, backed by the expertise and support of NANJING ZHUYE ELEVATOR PARTS.
