Step-by-Step Usage Guide for Elevator Pit Inspection Box VKS8M011001

1. Professional Installation & Wiring

• Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Clean the mounting position in the elevator pit (usually on the pit wall, 1.2–1.5m above the pit floor) to remove dust, debris, and oil stains. Ensure the mounting surface is flat and firm to avoid box deformation or loosening.

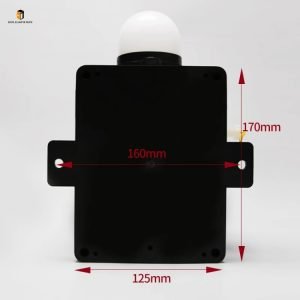

• Box Installation: Fix the VKS8M011001 inspection box to the preset position using high-strength expansion bolts provided by Nanjing Zhuye Elevatorparts. Ensure the box door can be opened and closed smoothly without obstruction, and the operation buttons are within easy reach of maintenance personnel. Check that the box’s waterproof seals are intact to ensure the IP54 protection rating is maintained.

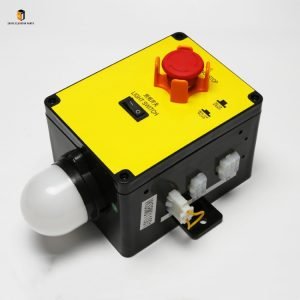

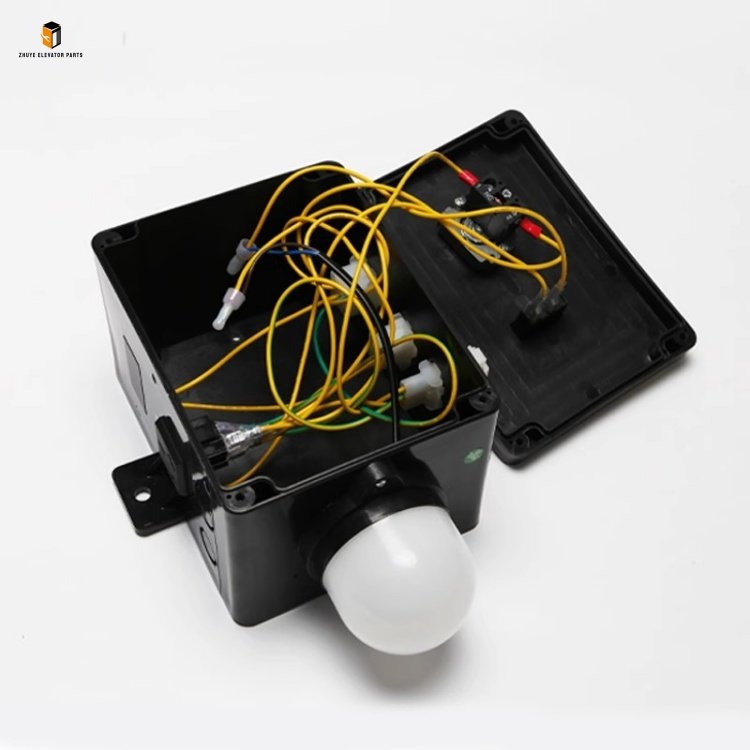

• Wiring Operation: In accordance with the elevator control system wiring diagram and the VKS8M011001 user manual, connect the box’s power cables (DC 24V/AC 220V, subject to model specifications), control signal cables (emergency stop, inspection mode), and lighting cables to the corresponding terminals. Use waterproof cable glands to fix the incoming and outgoing cables, preventing water or dust from entering the box through cable holes. Ensure correct wiring polarity, tight terminal connections, and reliable insulation—label each cable clearly for future maintenance. Connect the box’s grounding terminal to the elevator’s main ground wire to enhance electrical safety.

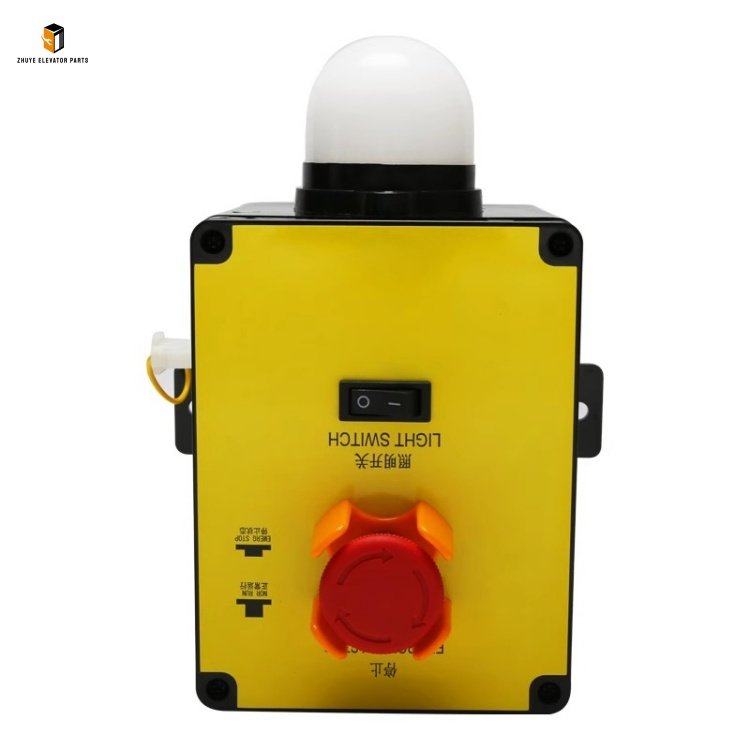

• Post-Installation Debugging: Restore the elevator’s main power supply (keep the inspection box in the off state initially). Switch on the inspection box power and check if the indicator lights (power light, inspection mode light) illuminate normally. Test the emergency stop button—press it to confirm that the elevator traction machine stops immediately and the brake engages. Switch to inspection mode and use the inspection up/down buttons to operate the elevator slowly, verifying that the control signal is transmitted stably. Test the pit lighting control function to ensure the lighting turns on/off smoothly with the button.

2. Daily Operation & Routine Maintenance

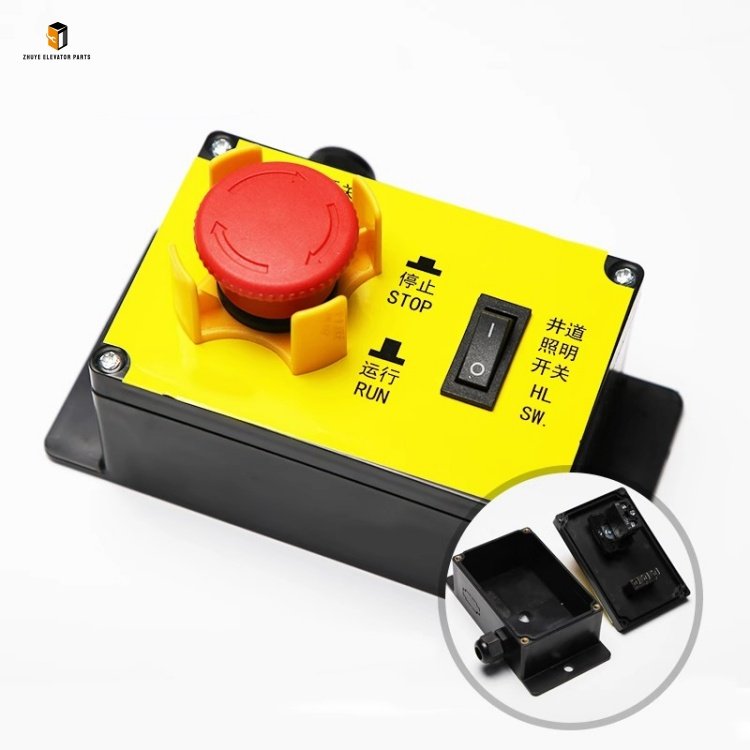

• Daily Visual Inspection: During pit inspections, check the external condition of the VKS8M011001. Ensure the metal enclosure is free of deformation, corrosion, or damage; the box door closes tightly, and the waterproof seal is intact; the operation buttons are not stuck or damaged, and the indicator lights are clear. Check for water accumulation or dust inside the box (open the door only after cutting off power) and clean it immediately if found.
• Weekly Function Test: Cut off the elevator’s main power supply before testing. Open the inspection box door and test each function button: press the emergency stop button to confirm it bounces back automatically after release; switch the inspection mode to verify the indicator light changes correctly; operate the pit lighting button to ensure the lighting works normally. Use a multimeter to detect the terminal voltage, ensuring it is within the rated range.
• Monthly Cleaning & Maintenance: Cut off the power supply and open the inspection box door. Clean the box interior, buttons, and terminals with a soft, dry cloth to remove dust and moisture. Inspect the wiring terminals for oxidation or loose connections, cleaning or tightening them as needed. Check the waterproof cable glands for aging or damage and replace them if necessary. Verify that the box’s grounding connection is firm and reliable.

Recommended Replacement Cycle for Elevator Pit Inspection Box VKS8M011001

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments & High-Frequency Use Scenarios: For elevators in high-humidity coastal areas, pit environments prone to water accumulation, or elevators with frequent maintenance (monthly pit inspection times ≥ 5, e.g., shopping malls, airports), the replacement cycle should be shortened to 3–4 years. Harsh conditions and frequent use accelerate the aging of the box’s waterproof seals, buttons, and internal electrical components, significantly reducing the inspection box’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and dry, clean pit environments (monthly pit inspection times ≤ 1), the replacement cycle can be extended to 6–7 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the inspection box’s button sensitivity, signal transmission stability, and waterproof performance meet the original factory standards.

3. Immediate Replacement Conditions

• The emergency stop button fails to work (cannot trigger elevator stop) or is stuck in the pressed state, seriously endangering maintenance personnel’s safety.
• The inspection mode switch or up/down buttons fail, leading to inability to switch inspection mode or operate the elevator during pit maintenance.
• The box’s waterproof performance is compromised (water seeps into the box, causing short-circuit or rust of internal components), and the fault persists after replacing the waterproof seal.
• The box’s enclosure is severely corroded or damaged, unable to protect internal components, or the indicator lights are blurred and unrecognizable, affecting normal operation and status judgment.
