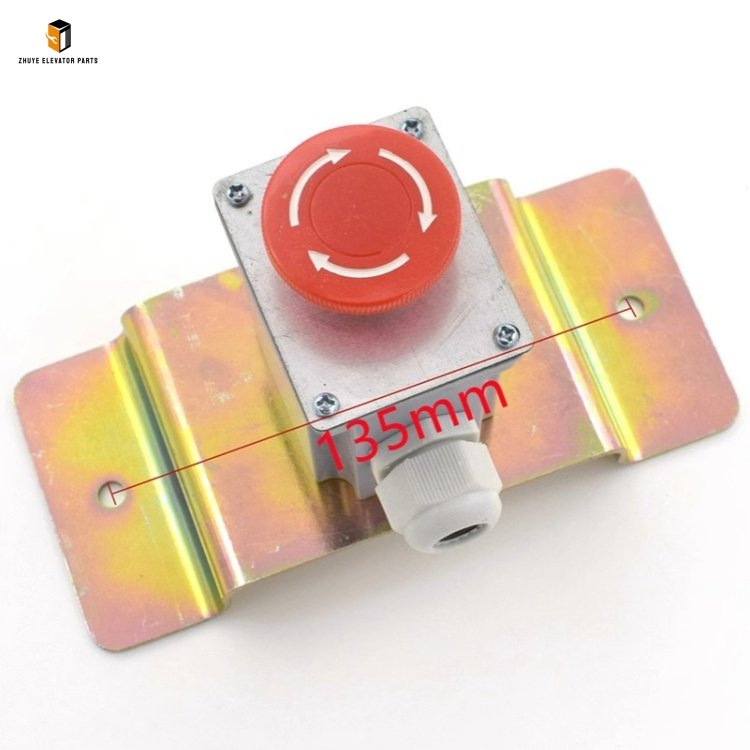

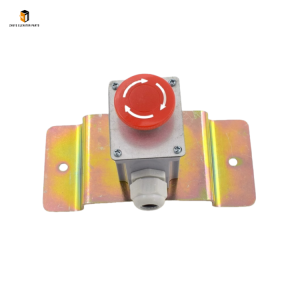

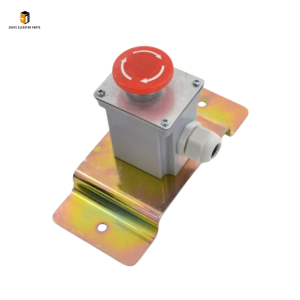

Elevator Pit Emergency Stop Switch YP205C505G01: Critical Safety Guardian for Pit Operations

Proper Usage Methods of Elevator Pit Emergency Stop Switch YP205C505G01

1. Installation & Commissioning

• First, cut off the elevator’s main power supply and hang a “Maintenance in Progress, No Power On” sign to ensure the work area is safe. Select the installation position in the elevator pit (typically 1.5–1.8m above the pit floor, in a visible and easily accessible location without affecting the movement of elevator components) and clean the mounting surface to remove dust, oil stains, and debris.
• Fix the YP205C505G01 firmly to the mounting surface using matching stainless steel screws provided by Nanjing Zhuye Elevatorparts. Ensure the switch is installed vertically, with the operation button facing outward for easy triggering. The tightening torque must comply with the elevator manufacturer’s technical requirements (typically 3–5 N·m) to avoid loose installation due to elevator vibration.
• Wiring connection: Strictly follow the wiring diagram provided by Nanjing Zhuye Elevatorparts (tailored for YP205C505G01) and the elevator’s main control system guidelines. Connect the switch’s power wires and signal wires to the corresponding terminals of the elevator’s emergency control loop. Ensure all connections are tight, with intact insulation to prevent short circuits or poor contact. Note that the emergency stop switch must be connected in series with the elevator’s main power loop to ensure it can cut off the power immediately when triggered. Nanjing Zhuye’s technical team provides remote wiring guidance for complex systems.
• Post-installation commissioning: Restore the elevator power supply and conduct comprehensive functional tests. Press the emergency stop button—verify that the elevator’s main power is cut off immediately, and the control panel displays an “Emergency Stop Triggered” fault code. Reset the button (twist or pull according to the switch’s design) and confirm that the fault code is cleared and the elevator can resume normal operation. Simulate vibration and humidity environments to test the switch’s stability and ensure no false triggers occur.

2. Standard Operation & Daily Inspection

• Operation norms: The YP205C505G01 is only used in true emergencies. During pit maintenance, personnel must first confirm the switch’s normal state before starting work. In case of emergency, press the red button firmly to trigger the emergency stop; after the danger is eliminated, reset the switch only after confirming the pit environment is safe and no hidden dangers exist. It is strictly prohibited to use the emergency stop switch as a normal power-off switch or to deliberately trigger it without reason.
• Daily visual inspection: During each pit patrol, check the external state of the YP205C505G01. Ensure the metal shell is free of cracks, corrosion, or deformation; the button is intact, with clear markings and no jamming; the wiring terminals are tight, with no loose wires or oxidation. If any abnormalities are found, stop using the elevator immediately and contact Nanjing Zhuye Elevatorparts for maintenance guidance.
• Weekly function test: Press the emergency stop button to test its triggering performance—confirm that the elevator power is cut off instantly. Reset the button and check if the elevator can resume normal operation. Use a multimeter to detect the switch’s contact resistance (normal value ≤ 0.1Ω) and insulation resistance (normal value ≥ 100MΩ) to ensure electrical performance is up to standard.

3. Regular Maintenance

• Every 3 months, conduct a comprehensive cleaning and inspection: Use a dry, lint-free cloth to wipe the switch shell and button, removing dust and oil stains. Check the waterproof seal ring for aging or damage—replace it with genuine accessories provided by Nanjing Zhuye Elevatorparts if necessary. Retighten loose wiring terminals and apply anti-oxidation grease to the contacts to enhance conductivity and corrosion resistance.
• Every 6 months, perform a full performance test: Test the switch’s trigger force (standard range: 5–10N) and reset performance to ensure it can be triggered and reset smoothly. Immerse the switch (excluding wiring terminals) in a simulated humid environment to verify its IP65 waterproof performance. Check the insulation performance between the switch and the ground to avoid electric shock risks.
• Annually, arrange professional maintenance with Nanjing Zhuye Elevatorparts’ certified technical team. Disassemble the switch to inspect internal components (including contacts, springs, and waterproof components), remove internal dust and debris with specialized tools, and replace aging or worn parts with genuine replacements. This ensures the switch maintains factory-level safety performance and reliability.

Recommended Replacement Cycle of Elevator Pit Emergency Stop Switch YP205C505G01

1. Standard Replacement Cycle

2. Scenario-Based Cycle Adjustment

• Harsh Operating Environments: For elevators in high-humidity coastal regions, high-dust construction sites, pits with oil leakage problems, or areas with strong chemical corrosion, the replacement cycle should be shortened to3–4 years. Harsh conditions accelerate the corrosion of metal shells, aging of insulation materials, and damage to waterproof seals, significantly reducing the switch’s reliability and safety performance.
• Low-Frequency Use Scenarios: For elevators with low maintenance frequency and dry, clean pit environments (e.g., villa elevators, small office buildings with less than 2,000 monthly rides), the replacement cycle can be appropriately extended to 6–7 years—provided a professional inspection by Nanjing Zhuye Elevatorparts confirms that the switch’s trigger sensitivity, insulation performance, and waterproof effect are all intact.

3. Immediate Replacement Conditions

• The switch fails to trigger (pressing the button does not cut off the elevator power) or cannot reset normally, and the fault cannot be resolved after maintenance.
• The switch shell is severely corroded, cracked, or deformed, and the internal components are exposed; the waterproof seal is damaged, leading to water or dust intrusion into the internal circuit.
• The contact resistance exceeds 0.5Ω or the insulation resistance is lower than 10MΩ, indicating serious contact wear or insulation failure, which may cause short circuits or poor contact.
• The switch fails the annual safety performance test, and key indicators (trigger sensitivity, waterproof grade, insulation resistance) cannot be restored to the standard range even after maintenance.
