Description

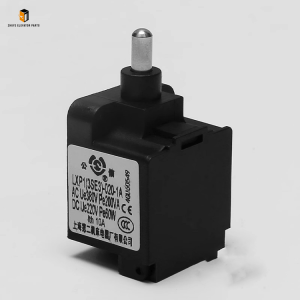

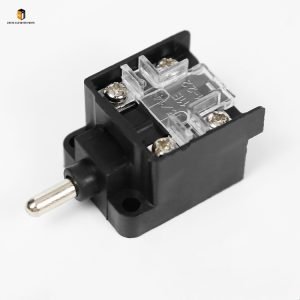

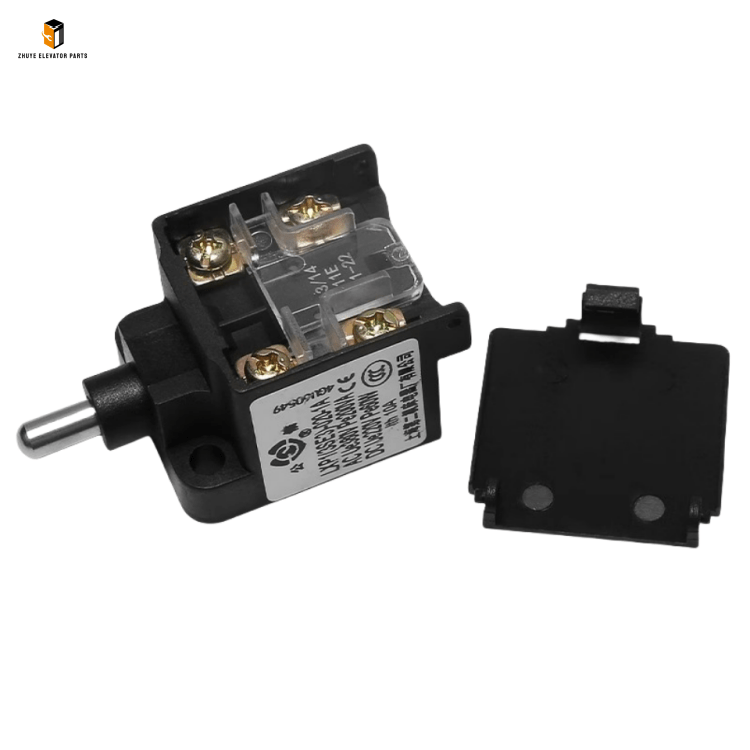

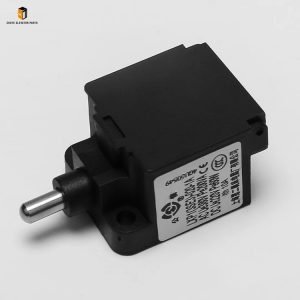

Elevator pit buffer switch LXP1(3SE30)-020-1A Brief Introduction
|
Product Name |
Elevator pit buffer switch |
| Model Number | LXP1(3SE30)-020-1A |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Pit Buffer Switch LXP1(3SE30)-020-1A: Premium Safety Solution from Nanjing Zhuye Elevatorparts
In the complex ecosystem of elevator systems, the pit buffer switch serves as a critical “last-line safety guardian,” monitoring the status of the buffer in the elevator pit to prevent serious accidents caused by buffer failure. As specified in elevator safety regulations, this safety component must act reliably before the car or counterweight contacts the buffer, ensuring the elevator stops in time. The Elevator Pit Buffer Switch LXP1(3SE30)-020-1A, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered to meet the rigorous demands of modern elevator applications. Designed with precision and durability in mind, this buffer switch complies with international standards such as IEC/EN 60947, making it compatible with mainstream elevator brands including Schindler, OTIS, and KONE. Whether for new elevator installations or maintenance upgrades, it delivers consistent and reliable performance that elevator professionals trust, serving as a core component in the elevator’s safety protection system.
Nanjing Zhuye Elevatorparts has always adhered to a strict quality control system, and the LXP1(3SE30)-020-1A elevator pit buffer switch is a testament to this commitment. Each unit undergoes comprehensive testing, including contact reliability measurement, mechanical durability trials, environmental resistance testing, and electrical performance assessment. The switch features high-precision mechanical triggers and silver alloy contacts that minimize ablation and oxidation, ensuring sensitive and stable signal transmission. With an IP54 protection rating, its robust shell can resist dust and water splashes, adapting to the harsh environment of the elevator pit which is prone to humidity and debris. Its operating temperature range of -5℃ to 40℃ and strong vibration resistance (Max 20m/s²) ensure reliable operation in various working conditions. Equipped with a reliable reset mechanism, it can quickly return to its original state after being triggered, avoiding false alarms or safety hazards.
Usage Guide for Elevator Pit Buffer Switch LXP1(3SE30)-020-1A
Proper installation, adjustment, and calibration are essential to maximize the performance and safety of the LXP1(3SE30)-020-1A elevator pit buffer switch. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures—improper operations may lead to switch failure, and even result in severe accidents due to buffer function invalidation, which may also violate relevant regulations and incur heavy penalties. Before starting, verify that the switch matches the elevator’s buffer type, rated load, and pit dimensions—refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for clarification.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and control system power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and elevator entrances to prevent accidental activation. Fix the elevator car at a safe position using safety supports to avoid unintended movement. Prepare essential tools: a screwdriver, wrench, level ruler, multimeter, and anti-static gloves. Clean the installation position in the elevator pit to remove water, dust, debris, and oil stains—contaminants are a leading cause of buffer switch malfunctions. Inspect the LXP1(3SE30)-020-1A switch for any external damage, loose components, or stuck triggers; do not use the product if any defects are found. Ensure the pit is dry and free from accumulated water before installation.
2. Installation, Adjustment & Wiring
Install the LXP1(3SE30)-020-1A buffer switch at the preset position in the elevator pit, ensuring the installation surface is flat and firm. The pressure interface should be vertically downward (allowing an inclination of 15°) as recommended. Adjust the trigger mechanism to ensure it is activated before the car or counterweight fully contacts the buffer—there should be no excessive gap or tight contact. The trigger stroke must comply with the elevator manufacturer’s specifications and safety standards to ensure timely cutoff of the running signal. For machine-room-less elevators, the switch should be installed in an accessible location outside the hoistway with necessary safety protection. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the signal wires to the corresponding terminals of the elevator main controller, ensuring correct polarity and tight connections. Keep the signal line away from strong electrical wires to reduce electromagnetic interference. After wiring, use a multimeter to check the continuity and on-off status of the contacts to confirm no open circuits or short circuits exist.
3. Debugging & Daily Operation
After completing installation and wiring, conduct a comprehensive debugging test: Operate the elevator to slowly approach the pit buffer position, and check if the LXP1(3SE30)-020-1A switch is triggered accurately. When triggered, the elevator should immediately stop running downward and give an alarm signal. Test the reset function by moving the elevator away from the trigger position; the switch should reset automatically and restore normal operation. During daily operation, incorporate the switch into the elevator’s regular inspection plan. Regularly check the switch’s fixed screws for looseness, the trigger mechanism for deformation, and the signal line for wear or aging. Pay special attention to the pit environment—remove accumulated water and debris in a timely manner to prevent switch damage. If the elevator shows abnormal phenomena such as difficulty in stopping near the pit or frequent buffer-related alarms, immediately stop using the elevator and inspect the switch.
Replacement Cycle of Elevator Pit Buffer Switch LXP1(3SE30)-020-1A
The replacement cycle of the LXP1(3SE30)-020-1A elevator pit buffer switch depends on operating frequency, pit environment, and trigger times. Under normal operating parameters—elevator runs 12-24 hours daily, trigger times ≤200 times/year, and the pit is dry, clean, and free from severe vibration—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 2-3 years. This timeline aligns with the elevator’s regular inspection cycles and is based on long-term field data, accounting for contact wear, mechanical component fatigue, and performance degradation caused by the harsh pit environment.
For elevators in high-traffic areas (e.g., shopping malls, airports) with frequent heavy-load operation, or in harsh pit environments (persistent humidity, frequent water accumulation, heavy dust, or severe vibration), the replacement cycle should be shortened to 1-2 years. Harsh environments accelerate switch corrosion and component damage, while frequent triggering increases contact wear. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation <8 hours) in stable pit environments, the cycle can be extended to 3-4 years, but annual professional testing by Nanjing Zhuye’s technicians is mandatory. For elevators over 15 years old, which require annual regular inspections, the switch should be thoroughly tested each year, and replacement is recommended if any performance degradation is detected.
Immediately replace the LXP1(3SE30)-020-1A buffer switch if any of the following issues occur, regardless of service life: Inaccurate triggering (e.g., failure to trigger when reaching the preset position or false triggering), which may lead to buffer over-compression accidents; Contacts are severely ablated or stuck, resulting in unstable signal transmission; Mechanical components (trigger lever, reset spring) are deformed, damaged, or stuck, causing inflexible operation; The switch fails annual safety testing or elevator regular inspection; Corrosion or water damage to the switch shell affecting insulation performance; Frequent elevator malfunctions (e.g., abnormal stopping, failure to run downward) caused by the switch that cannot be resolved through maintenance. Never short-circuit the switch to continue using the elevator, as this violates safety regulations and may lead to severe accidents and legal liabilities.
The Elevator Pit Buffer Switch LXP1(3SE30)-020-1A from Nanjing Zhuye Elevatorparts combines high reliability, precise triggering, and strong environmental adaptability to deliver a premium safety solution for elevator systems. By following the recommended usage guidelines and replacement cycles, you can effectively reduce safety risks and ensure the stable operation of the elevator. Nanjing Zhuye Elevatorparts provides 100% authentic LXP1(3SE30)-020-1A buffer switches, along with professional support including model matching, on-site installation guidance, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for peace of mind in elevator safety component solutions.
As a vital safety component in elevators, the LXP1(3SE30)-020-1A pit buffer switch plays an irreplaceable role in preventing serious accidents. Nanjing Zhuye Elevatorparts has always prioritized product quality and safety, ensuring each LXP1(3SE30)-020-1A switch meets the highest industry standards. With our professional support and high-quality products, you can enhance the safety performance of your elevators and protect the lives and property of passengers.
