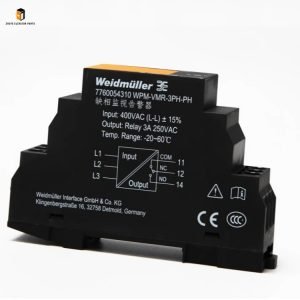

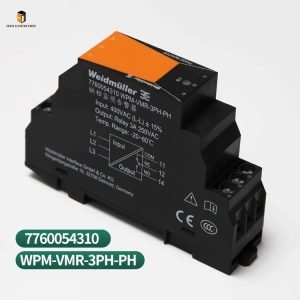

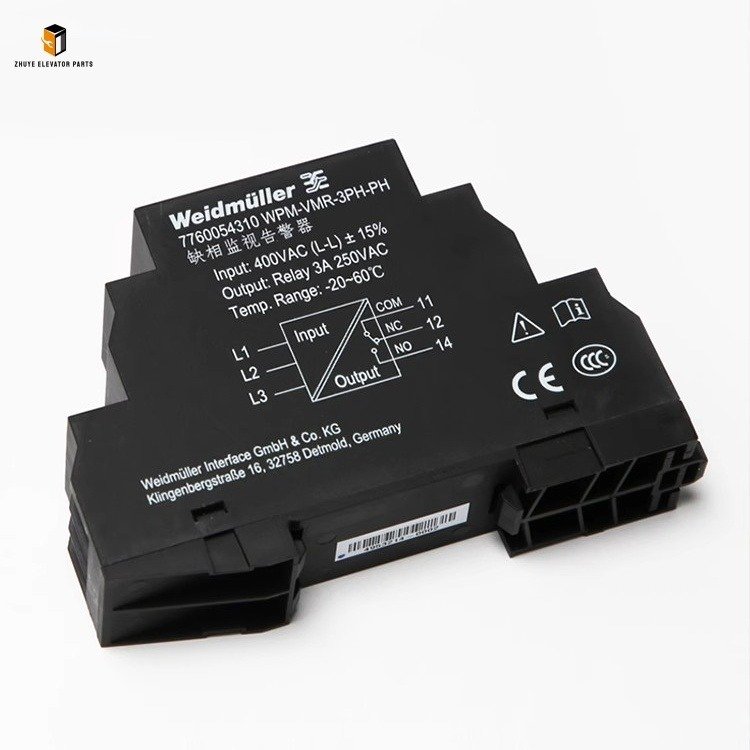

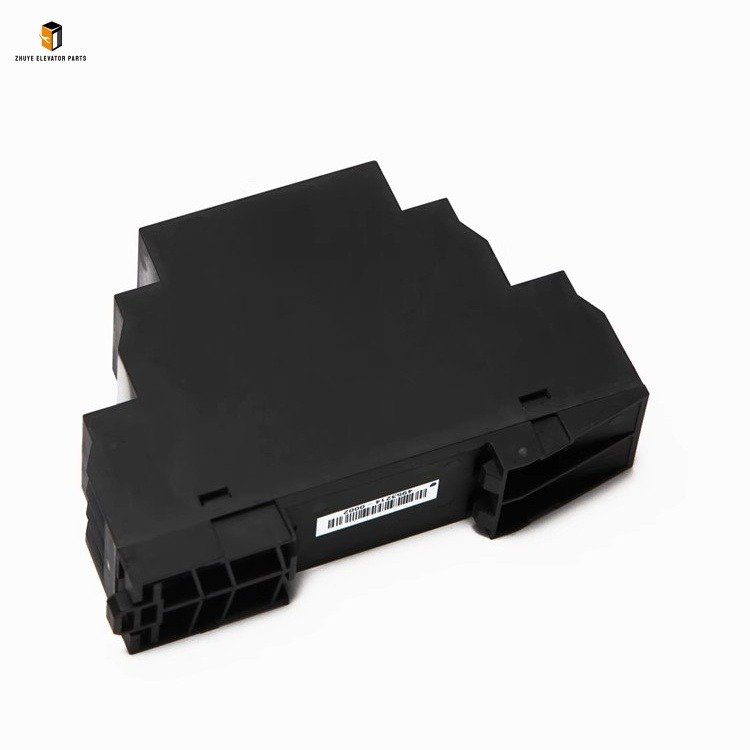

Elevator Phase Sequence Relay WPM-VMR-3PH-PH: Critical Safety Component from Nanjing Zhuye Elevatorparts
In the power supply system of elevators, phase sequence, voltage imbalance, or phase loss can cause severe damage to core components like traction motors, leading to elevator malfunctions or even safety accidents. The phase sequence relay acts as a “power guardian,” monitoring the three-phase power supply in real time to ensure stable and safe operation. The Elevator Phase Sequence Relay WPM-VMR-3PH-PH, exclusively supplied by Nanjing Zhuye Elevatorparts, is engineered to meet the rigorous safety demands of modern elevators. Compliant with international standards such as IEC/EN 60947 and UL 60947-4-1, this relay features high-precision phase sequence detection and wide voltage compatibility (380V-480V AC), making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic brands like Mitsubishi. It is an essential safety component for both new elevator installations and old system safety upgrades.
Nanjing Zhuye Elevatorparts adheres to a stringent quality control system, and the WPM-VMR-3PH-PH phase sequence relay is a testament to this commitment. Each unit undergoes comprehensive testing, including phase sequence detection accuracy calibration, voltage fluctuation resistance tests, high-temperature durability trials, and insulation performance assessments. The relay is equipped with advanced microprocessor technology, enabling rapid response (≤0.1 seconds) to phase sequence errors, phase loss, or voltage imbalance, triggering protective actions to cut off the power supply immediately. Its flame-retardant V0-grade PC shell meets EN 50274 protection standards, ensuring safe operation even in high-temperature machine room environments. With an operating temperature range of -25℃ to 70℃ and strong anti-electromagnetic interference capability, it maintains stable performance in the complex electrical environment of elevator systems.
Usage Guide for Elevator Phase Sequence Relay WPM-VMR-3PH-PH
Proper installation, wiring, and parameter setting are crucial to maximizing the protective performance of the WPM-VMR-3PH-PH phase sequence relay. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid safety hazards or equipment damage. Before installation, verify that the relay’s rated voltage, phase sequence detection range, and interface match the elevator system’s specifications. Refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for clarification on parameter setting based on specific elevator models.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and control system power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and elevator entrances to prevent accidental activation. Prepare essential tools: a torque wrench, insulated screwdriver, multimeter, wire stripper, anti-static gloves, and a phase sequence tester. Clean the installation area (typically near the traction motor control cabinet) to remove dust, debris, and oil stains—contaminants can affect the relay’s internal circuits. Inspect the WPM-VMR-3PH-PH relay for any external damage, loose terminals, or damaged connectors; do not use defective products. Confirm the elevator’s three-phase power supply voltage matches the relay’s rated voltage range.
2. Installation & Wiring

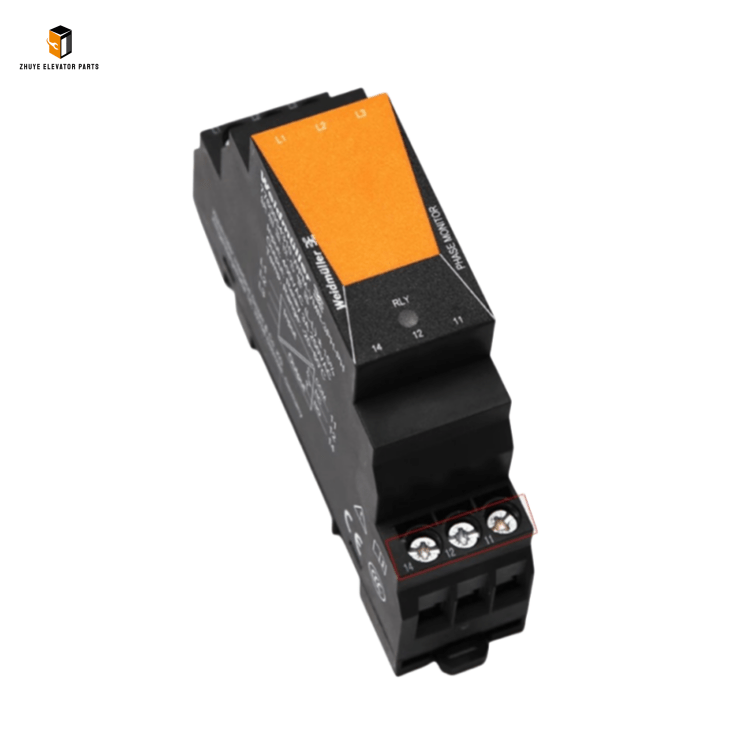

Install the WPM-VMR-3PH-PH relay on a flat surface inside the electrical control cabinet, ensuring stable fixation with no looseness. Avoid installing it near heat sources or high-voltage busbars to prevent interference, and maintain a minimum ventilation gap of 30mm. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the three-phase power supply wires to the relay’s input terminals (L1, L2, L3) in sequence, and the relay’s output terminals to the elevator’s main control circuit. The recommended tightening torque for terminal screws is 1.5-2.5 Nm, and the wire stripping length should be 8-10mm to avoid short circuits from exposed wire cores. After wiring, use a multimeter to check circuit continuity and a phase sequence tester to confirm the correct connection of the three-phase wires—incorrect phase sequence will cause the relay to trigger an alarm immediately.
3. Debugging & Daily Operation
After completing installation and wiring, conduct a comprehensive debugging test. Restore the elevator’s power supply and use a phase sequence tester to simulate phase sequence reversal, phase loss, and voltage imbalance scenarios to confirm the relay triggers protective alarms and cuts off the control circuit promptly. Adjust the relay’s voltage imbalance threshold according to the elevator manufacturer’s specifications—typically set to ±10% of the rated voltage. During daily operation, incorporate the relay into the elevator’s regular maintenance plan (recommended monthly inspection). Check the relay’s indicator lights to confirm normal operation; clean the surface and terminals regularly to remove dust. Avoid overloading the relay beyond its rated current, and immediately investigate any frequent alarm triggers to eliminate potential power supply hazards.
Replacement Cycle of Elevator Phase Sequence Relay WPM-VMR-3PH-PH
The replacement cycle of the WPM-VMR-3PH-PH phase sequence relay depends on operating environment, power supply stability, and maintenance conditions. Under normal parameters—elevator runs 12-24 hours daily, machine room temperature maintained at 0℃-40℃, and power supply stable with no frequent voltage fluctuations—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 3-5 years. This timeline is based on long-term field data, accounting for the aging of internal electronic components, reduced detection accuracy, and weakened anti-interference capability over time.
For elevators in harsh environments (e.g., unconditioned machine rooms, areas with unstable power supply) or high-traffic areas (shopping malls, airports) with long daily operation hours, the replacement cycle should be shortened to 1.5-3 years. Harsh conditions accelerate the aging of the relay’s internal circuits and sensors, increasing the risk of protection failure. For low-usage elevators (villa elevators, small office buildings with daily operation <8 hours) in stable, temperature-controlled environments, the cycle can be extended to 5-7 years. However, annual professional calibration by Nanjing Zhuye’s technicians is mandatory to confirm phase sequence detection accuracy and voltage monitoring performance meet safety standards.
Immediately replace the WPM-VMR-3PH-PH phase sequence relay if any of the following issues occur, regardless of service life: failure to trigger an alarm when phase sequence reversal, phase loss, or voltage imbalance occurs; frequent false alarms that cannot be resolved by parameter adjustment; obvious physical damage (cracked shell, damaged terminals, or leaking components); abnormal heating or sparks during operation; or the relay fails annual calibration. Timely replacement is critical to avoiding damage to elevator traction motors and ensuring the safe operation of the entire elevator system.
The Elevator Phase Sequence Relay WPM-VMR-3PH-PH from Nanjing Zhuye Elevatorparts integrates high-precision detection, rapid response, and reliable durability, providing a critical power supply protection solution for elevators. Its strict quality control and wide compatibility make it a trusted choice for elevator maintenance professionals worldwide. By following the recommended usage guidelines and replacement cycles, you can effectively prevent power supply-related failures and extend the service life of elevator core components. Nanjing Zhuye Elevatorparts provides 100% authentic WPM-VMR-3PH-PH relays, along with professional support including parameter setting guidance, on-site debugging, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for comprehensive elevator safety component solutions.
