Description

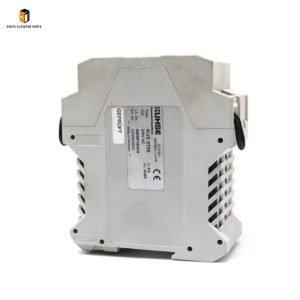

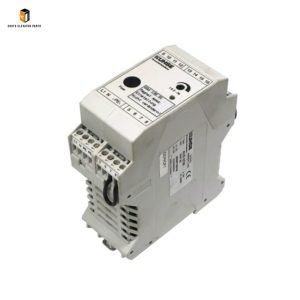

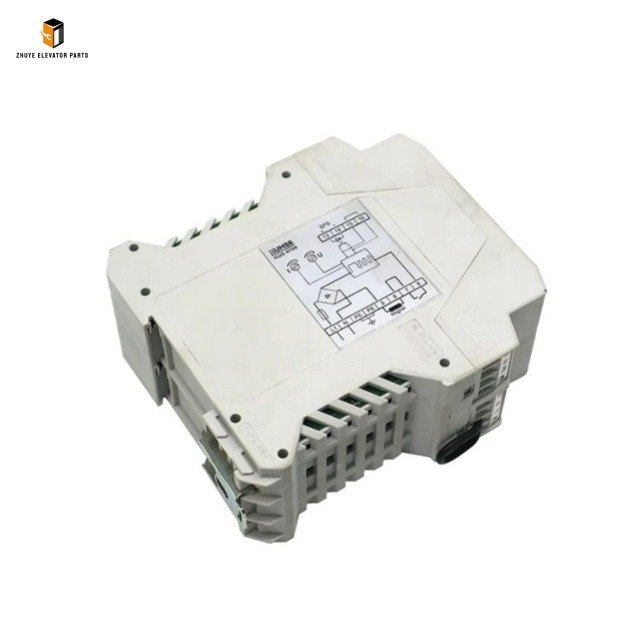

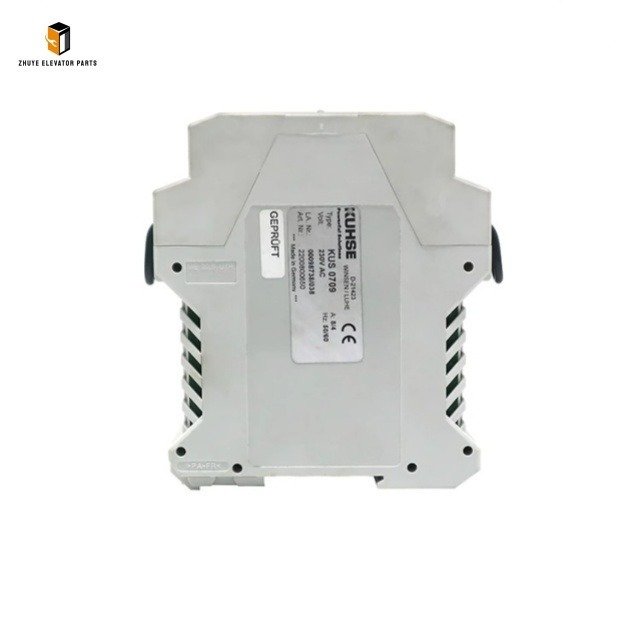

Elevator Phase Sequence Relay KUS0709 Brief Introduction
|
Product Name |
Elevator Phase Sequence Relay |
| Model Number | KUS0709 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Phase Sequence Relay KUS0709: Usage Guide & Replacement Cycle
The elevator phase sequence relay is a critical safety component in the elevator electrical system, responsible for monitoring the phase sequence and presence of three-phase power supply to prevent equipment damage or safety accidents caused by phase reversal or phase loss. The Elevator Phase Sequence Relay KUS0709, a premium offering from Nanjing Zhuye Elevator Parts, is engineered with advanced digital detection technology, featuring high sensitivity, stable performance, and broad compatibility with mainstream elevator traction systems. Compliant with international standards including GB/T 14048.5-2017 and IEC 60947-5-1, this relay supports AC380V input voltage and provides reliable phase sequence, phase loss, and over/under voltage protection. Nanjing Zhuye Elevator Parts, a trusted manufacturer and supplier of elevator components, subjects each KUS0709 relay to rigorous quality testing, ensuring it can accurately respond to power supply abnormalities within 0.1 seconds to protect the elevator traction system. This article details the correct installation, usage methods, and scientific replacement cycle to help maintenance professionals optimize elevator electrical system safety.
Prior to installation, strict adherence to elevator electrical safety protocols is mandatory: Cut off the elevator’s main power supply, activate the emergency stop switch, and place a prominent “No Operation” warning sign. The KUS0709 phase sequence relay should be mounted inside the elevator control cabinet, preferably near the power input terminal for convenient wiring and heat dissipation. Ensure the installation environment is dry, well-ventilated, and away from heat sources (e.g., resistors, contactors) and strong electromagnetic interference. Verify compatibility using technical specifications from Nanjing Zhuye Elevator Parts, confirming the relay’s input voltage (AC380V) matches the elevator’s power system. Inspect the new relay for transportation damage (e.g., cracked casing, loose terminals) and ensure all accessories (mounting clips, wiring labels) are complete before proceeding.
Installation requires precise electrical wiring in line with industry standards and the diagram provided by Nanjing Zhuye Elevator Parts. First, secure the relay to the control cabinet’s mounting rail using dedicated clips, ensuring it is stable and easy to operate. For wiring: Connect the three-phase power supply (L1, L2, L3) to the relay’s input terminals (marked as U, V, W) in sequence—do not reverse the phase order during connection. Connect the relay’s normally closed auxiliary contact to the elevator’s main control circuit; this ensures the elevator control system is disconnected immediately when a phase sequence or phase loss fault occurs. Connect the protective grounding wire to the relay’s grounding terminal to enhance anti-interference performance. All wiring connections must be tight and reliable, with wire cross-sectional area not less than 1.5mm² for power cables. After wiring, double-check the phase order and terminal connections to avoid wiring errors that may cause relay malfunctions.
Correct usage and post-installation debugging are critical to ensure reliable operation. The KUS0709 relay operates automatically once powered on: It continuously monitors the three-phase power supply’s phase sequence and integrity. When the phase sequence is correct and all phases are present, the relay’s indicator light turns green, and the normally closed contact remains closed to allow the elevator control system to operate normally. If phase reversal, phase loss, or voltage abnormality occurs, the relay acts immediately—turning on the red fault indicator and opening the normally closed contact to cut off the control circuit. Post-installation debugging includes: 1) Restoring power and verifying the green indicator lights up normally; 2) Intentionally reversing two phases to test the fault response (red indicator should light up, and the control circuit should be disconnected); 3) Simulating phase loss by disconnecting one phase to confirm the relay’s protective function. During daily use, regularly check the relay’s indicator status—any persistent red light indicates a power supply fault that requires immediate inspection.
The replacement cycle of the KUS0709 phase sequence relay is determined by power supply stability, operating environment, and internal component aging. Based on industry practices and technical recommendations from Nanjing Zhuye Elevator Parts, the general replacement cycle is 4-5 years under normal operating conditions (residential or office buildings with stable power supply and 8-12 hours of daily operation). For elevators in areas with frequent power fluctuations or unstable grid quality (e.g., industrial zones, remote areas), the cycle should be shortened to 3-4 years. In harsh environments with high humidity (above 70%), large temperature fluctuations, or heavy dust, the replacement cycle should be further reduced to 2.5-3 years. The relay’s internal electronic components and contacts are prone to aging over time, so proactive replacement is recommended even if no obvious faults occur.
Immediate replacement is necessary if any of the following abnormalities occur: 1) Failure to detect phase reversal or phase loss, leading to abnormal operation of the elevator traction system; 2) False alarms (frequent disconnection of the control circuit without power supply faults); 3) Unresponsive indicator lights (neither green nor red lights up when powered on); 4) Visible damage to the relay casing, loose terminals, or signs of burnout on internal components; 5) Insufficient response speed (failure to act within 0.5 seconds when power supply abnormalities occur). Always use genuine KUS0709 phase sequence relays from Nanjing Zhuye Elevator Parts to ensure perfect compatibility with elevator control systems and avoid safety risks from inferior counterfeit products that lack reliable protective functions.
Scientific maintenance significantly extends the relay’s service life. Follow a structured schedule: Every 3 months, open the control cabinet to clean the relay’s surface and terminals with a dry brush to remove dust buildup—dust accumulation can cause poor contact or short circuits. Every 6 months, check wiring connections for tightness and oxidation, re-tightening loose screws and applying anti-oxidation agent to terminals if necessary. Conduct a functional test every 6 months: Simulate phase reversal and phase loss to verify the relay’s response sensitivity and reliability. Ensure the control cabinet’s ventilation system operates normally to maintain a stable operating temperature for the relay. Avoid frequent power on/off cycles, as this can accelerate the aging of internal electronic components. Maintain detailed maintenance records, including inspection dates and test results, to facilitate proactive replacement.
The Elevator Phase Sequence Relay KUS0709 is an indispensable safety component that safeguards the stable operation of the elevator traction system. Its reliable performance directly prevents equipment damage and safety accidents caused by power supply abnormalities. By following correct installation and usage guidelines, adhering to the scientific replacement cycle, and choosing genuine Nanjing Zhuye Elevator Parts products, maintenance professionals can effectively reduce electrical system failures and enhance overall elevator safety. For more technical details—including wiring diagrams, troubleshooting guides, and compatibility lists—or to purchase genuine KUS0709 phase sequence relays and access professional technical support, contact the expert team at Nanjing Zhuye Elevator Parts.
