Description

1. Safety Preparation: Before installation, shut off the elevator’s main power supply and implement LOTO (Lockout/Tagout) procedures. Access the machine room using a stable platform, wearing insulating gloves, safety glasses, and anti-static wristbands to protect sensitive electronic components.

2. Remove the Old Encoder: Locate the existing encoder on the elevator traction motor shaft (typically mounted at the non-drive end). Disconnect the wiring harness—take detailed photos of terminal connections (note labels like A, B, Z, VCC, GND) to ensure correct reconnection. Loosen the fixing bolts (M3 or M4) and carefully slide the old encoder off the motor shaft, avoiding damage to the shaft or wiring.

3. Prepare the Mounting Area: Clean the motor shaft with a lint-free cloth to remove dust, oil, or rust. Inspect the shaft for scratches or deformation (polish minor imperfections with fine sandpaper if necessary) to ensure a tight fit. Verify the wiring harness is in good condition (no fraying or insulation damage) and check terminal pins for corrosion.

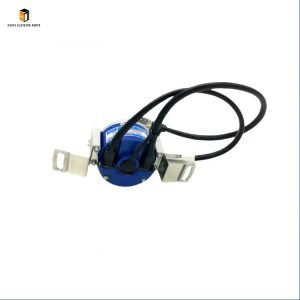

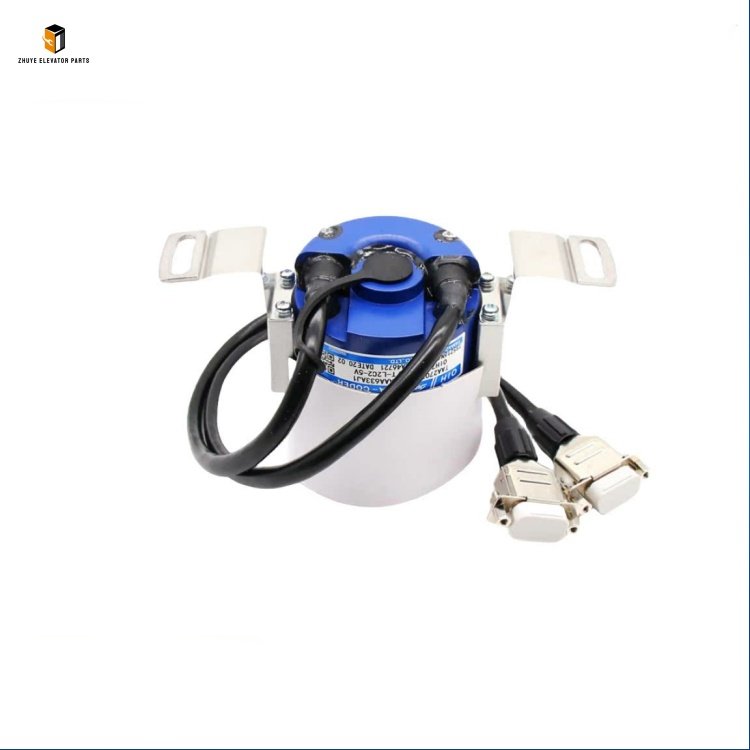

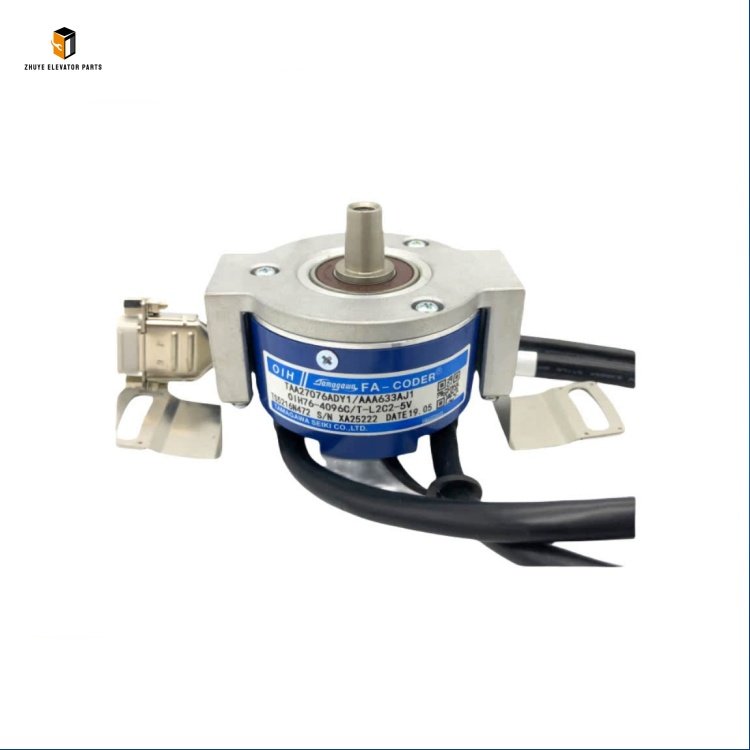

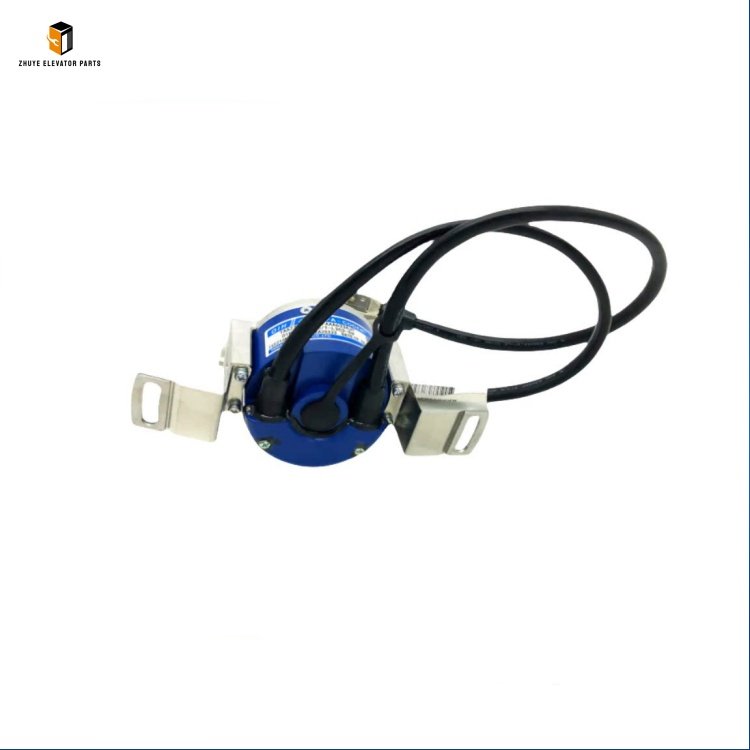

4. Install the New Encoder: Align the Nanjing Zhuye Elevator Parts TS5216N472 encoder with the motor shaft, ensuring the hollow shaft fits snugly (no excessive play). Push the encoder until it contacts the motor flange, then secure it with the original bolts (torque: 1.2-1.5 N·m) to prevent vibration-induced loosening. Reconnect the wiring harness according to the photos, matching each wire to the correct terminal—use crimp connectors for tight, insulated connections to avoid signal interference.

5. Test and Calibrate: Restore power to the elevator control system. Access the main controller’s service software to verify encoder signal reception—confirm the pulse count updates smoothly as the motor rotates. Calibrate the encoder with the elevator’s leveling system: run the elevator in inspection mode, adjust the encoder’s zero-point (Z-phase) if necessary, and ensure floor leveling accuracy is within ±1mm. Conduct 20+ full elevator cycles to validate consistent performance, with no speed fluctuations or positioning errors.

• Voltage Compatibility: Ensure the control system’s power supply matches the encoder’s requirements (12-24V DC ±10%)—using the wrong voltage can damage the internal circuit or sensor.

• Anti-Static Handling: Store the encoder in an anti-static bag when not in use. Avoid touching the optical sensing components or exposed circuit board, as static electricity can cause permanent damage.

• Mechanical Protection: Do not strike or drop the encoder, as this can misalign the internal code wheel or damage the bearing. Ensure the motor shaft is free of burrs to prevent premature encoder wear.

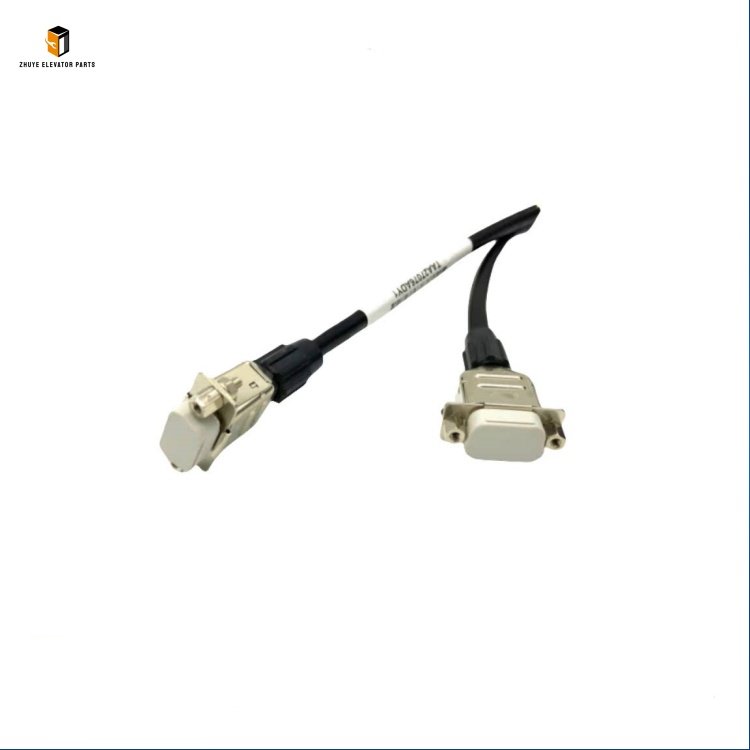

• Wiring Integrity: Route the signal cable away from high-voltage motor wires to minimize electromagnetic interference. Do not pull, twist, or bend the cable excessively, as this can disrupt signal transmission.

• High-Traffic Areas: Shopping malls, airports, or high-rise buildings (elevators operating 12+ hours daily, 1,000+ cycles per day) – replace every 5-7 years. Continuous rotation and exposure to machine room heat accelerate component aging.

• Medium-Traffic Areas: Residential buildings, hotels, or offices (8-10 hours daily, 500-1,000 cycles per day) – replace every 7-9 years.

• Low-Traffic Areas: Villas, industrial facilities, or low-occupancy buildings (4-6 hours daily, <500 cycles per day) – replace every 9-11 years, with annual signal accuracy checks.

• Positioning Errors: Elevator exhibits inconsistent floor leveling (error >5mm), overshoots floors, or hesitates during acceleration/deceleration – indicating pulse signal distortion.

• Signal Failures: Main controller displays “encoder communication error” or “no pulse detected” codes that persist after wiring checks.

• Mechanical Issues: Encoder rotates roughly, emits abnormal noise, or has excessive shaft play (more than 0.3mm) – signs of bearing damage.

• Visual Damage: Cracked housing, oil leakage, or corrosion on terminals – common in poorly ventilated machine rooms.

• Performance Degradation: Gradual increase in leveling errors or speed fluctuations, even after calibration – indicating wear of the optical sensing components.

• Universal Compatibility: Engineered to fit most mainstream elevator brands and motor types, eliminating the need for custom modifications.

• Industrial-Grade Precision: 1024 PPR resolution and ±0.1% pulse accuracy match or exceed original equipment performance, ensuring reliable positioning.

• Rigorous Quality Assurance: 100% pre-delivery testing, including signal accuracy, mechanical endurance, and environmental resistance trials.

• Expert Technical Support: Our team of certified engineers provides professional guidance on installation, calibration, and troubleshooting via phone or email.

• Fast Emergency Delivery: We maintain a large inventory of TS5216N472 encoders to fulfill urgent replacement orders within 24-48 hours, minimizing elevator downtime.
