Elevator optical level separation magnetic plate bracket 5400 5600 Brief Introduction
|
Product Name |

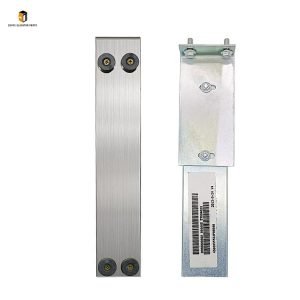

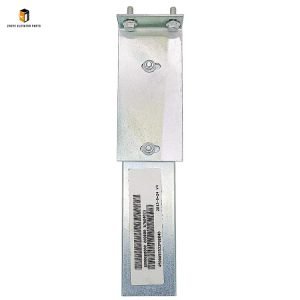

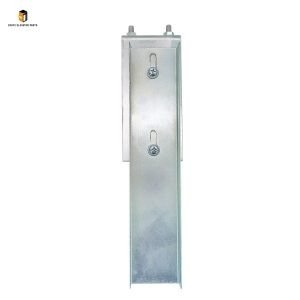

Elevator optical level separation magnetic plate bracket |
| Model Number | 5400
5600 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Optical Level Separation Magnetic Plate Bracket 5400/5600: Core Positioning Component from Nanjing Zhuye Elevatorparts
The elevator optical level separation magnetic plate bracket is a critical positioning component for elevator leveling systems, responsible for stably fixing the optical level separation magnetic plate. Its installation accuracy and structural stability directly determine the elevator’s leveling precision and operational safety—ensuring the elevator car aligns perfectly with the floor sill. The Elevator Optical Level Separation Magnetic Plate Bracket 5400/5600, exclusively supplied by Nanjing Zhuye Elevatorparts, is tailored for 5400 and 5600 series elevator leveling systems. Compliant with international standards such as IEC/EN 60947 and GB 7588, this bracket features a high-strength steel structure with precise dimension control, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic well-known brands. It is widely used in residential buildings, commercial complexes, airports, and industrial parks, providing reliable positioning support for elevator leveling systems.
Nanjing Zhuye Elevatorparts adheres to stringent quality control standards, and the Elevator Optical Level Separation Magnetic Plate Bracket 5400/5600 is a testament to this commitment. Each bracket undergoes rigorous pre-delivery testing, including load-bearing capacity testing, corrosion resistance testing, dimensional accuracy verification, and high-low temperature (-25℃ to 85℃) resistance tests. The bracket is made of high-quality carbon steel with a galvanized anti-corrosion coating, effectively resisting rust and wear caused by long-term exposure to the hoistway environment. It adopts a reinforced structural design to withstand the vibration and impact during elevator operation, ensuring no deformation or loosening for long-term use. The pre-drilled holes on the bracket are precisely positioned with an error of less than ±0.5mm, facilitating quick and accurate installation and reducing maintenance time.
Usage Guide for Elevator Optical Level Separation Magnetic Plate Bracket 5400/5600
Proper installation, calibration, and daily maintenance are vital to maximizing the service life and positioning accuracy of the 5400/5600 magnetic plate bracket. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these operations to avoid leveling deviations or safety hazards. Before installation, verify that the bracket model (5400/5600) matches the elevator’s magnetic plate and leveling system. For detailed installation steps and calibration standards, refer to the product manual provided by Nanjing Zhuye Elevatorparts or contact our technical support team for professional guidance. Note: Ensure the elevator is in maintenance mode and the main power is cut off during operation.
2. Installation & Calibration
Align the 5400/5600 bracket with the preset installation position and fix it with high-strength bolts. Use a spirit level to adjust the bracket to be perfectly horizontal/vertical—ensure the horizontal deviation is less than 1mm/m and vertical deviation is within ±0.5mm. Tighten the bolts according to the torque specifications provided by Nanjing Zhuye Elevatorparts (usually 30-40 N·m) to avoid loosening. Attach the optical level separation magnetic plate to the bracket, ensuring it fits tightly without gaps, and fix it with locking screws. Conduct leveling calibration: Operate the elevator to run to each floor, use a tape measure to check the gap between the car sill and the floor sill (standard gap ≤3mm). If deviation exists, fine-tune the bracket’s position until the leveling precision meets requirements. Finally, check the bracket’s stability by gently shaking it—no obvious displacement or vibration should occur.
MaintenancMaintenancMaintenancMaintenancMaintenancMaintenanc3. Daily Maintenance & Use
Replacement Cycle of Elevator Optical Level Separation Magnetic Plate Bracket 5400/5600
The replacement cycle of the 5400/5600 optical level separation magnetic plate bracket depends on usage frequency, operating environment, and maintenance quality. Under normal conditions—12-24 hours of daily operation, dry and clean hoistway environment, and regular maintenance—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 8-10 years. This cycle is formulated based on extensive field test data and GB/T31821—2015 standards, fully considering key factors such as structural fatigue, coating wear, and dimensional deviation caused by long-term vibration.
For elevators in high-traffic areas (e.g., airports, subway stations with daily operation over 20 hours) or harsh environments (high humidity, heavy dust, frequent vibration), the replacement cycle should be shortened to 5-7 years. High-frequency operation accelerates structural fatigue, and harsh environments easily cause rapid coating corrosion and bracket deformation. For low-usage elevators (e.g., villas, small offices with daily operation <8 hours), proper maintenance can extend the cycle to 10-12 years. However, Nanjing Zhuye Elevatorparts’ technicians should conduct semi-annual comprehensive inspections on brackets over 8 years old, including dimensional accuracy testing and load-bearing capacity verification.
Regardless of service life, replace the 5400/5600 bracket immediately if: The bracket is severely deformed or cracked, affecting magnetic plate fixation; leveling deviation exceeds 5mm and cannot be corrected by adjustment; the bracket’s coating is completely peeled off, leading to severe rust; bolts are loose and cannot be tightened, posing safety risks; the bracket causes abnormal noise during elevator operation; it fails to pass annual safety inspections. Use genuine 5400/5600 brackets from Nanjing Zhuye Elevatorparts to ensure compatibility and positioning accuracy.
The Elevator Optical Level Separation Magnetic Plate Bracket 5400/5600 from Nanjing Zhuye Elevatorparts combines high precision, strong stability, and long durability, making it an ideal choice for elevator maintenance and renovation. Backed by strict quality control, advanced structural design, and comprehensive after-sales service, it has gained trust from maintenance firms and property managers worldwide. Adhering to proper usage and maintenance guidelines ensures the elevator’s long-term stable leveling performance. Nanjing Zhuye Elevatorparts provides 100% genuine 5400/5600 brackets, plus professional support including model matching, on-site installation guidance, and precision calibration. Choose Nanjing Zhuye Elevatorparts for reliable core components and tailored solutions for elevator positioning system needs.
