Description

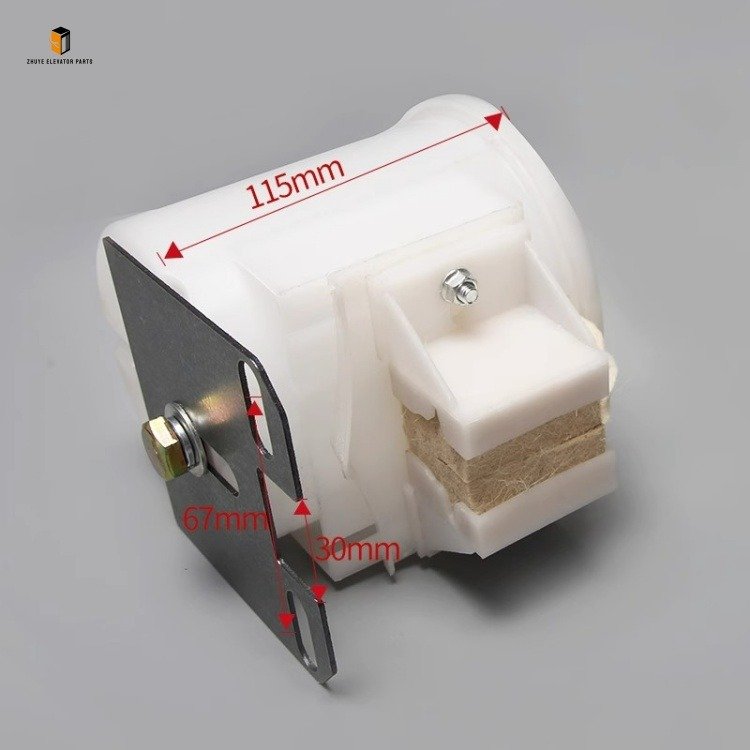

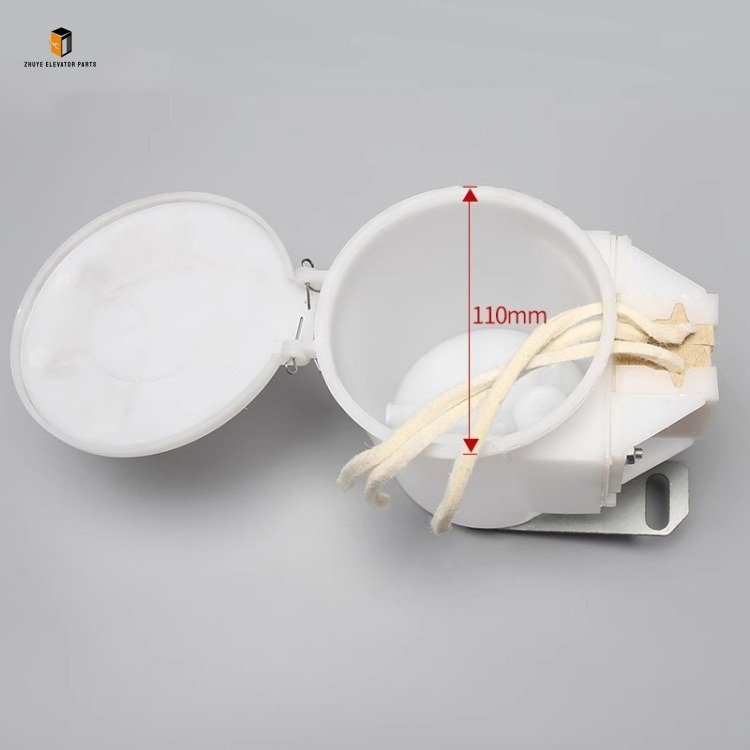

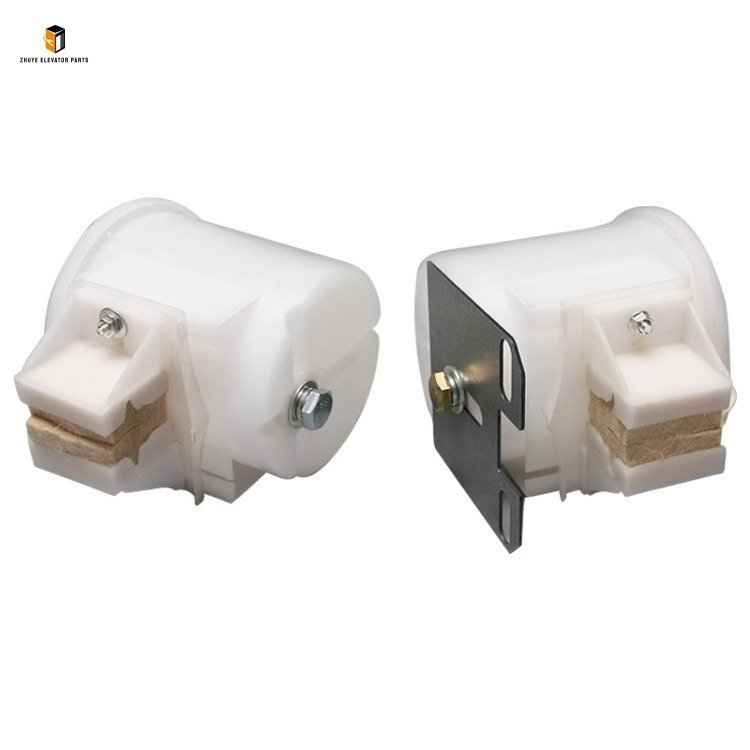

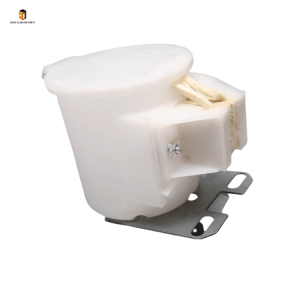

Elevator oil cup Elevator round oil cup Brief Introduction
|
Product Name |
Elevator oil cup Elevator round oil cup |
| Model Number | Elevator round oil cup |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Oil Cup & Round Oil Cup: Premium Lubrication Solutions from Nanjing Zhuye Elevatorparts
Elevator Oil Cup and Elevator Round Oil Cup are fundamental lubrication components for elevator mechanical systems, dedicated to delivering continuous and stable lubrication to critical moving parts such as elevator guide rails, sliding shoes, door operators, and traction mechanisms. Consistent lubrication is pivotal to reducing mechanical friction and wear, lowering operational noise, preventing rust and corrosion, and ultimately extending the service life of elevator core components. The round oil cup, with its compact circular design, is specifically optimized for narrow installation spaces in elevator shafts, while the standard elevator oil cup boasts versatile compatibility with various lubrication points across different elevator models. Both products are widely compatible with mainstream elevator brands, making them essential replacement parts for residential buildings, commercial complexes, office towers, airports, and industrial elevators. Exclusively supplied by Nanjing Zhuye Elevatorparts, a leading provider of high-quality elevator components, these Elevator Oil Cup & Round Oil Cup fully comply with international elevator safety standards (EN 81-20, GB 7588) and mechanical lubrication component specifications. Manufactured with premium materials and precision craftsmanship, they feature exceptional sealing performance, stable oil supply, and strong adaptability to harsh shaft environments, earning widespread recognition from global elevator maintenance teams.
Nanjing Zhuye Elevatorparts upholds the core philosophy of “Stable Lubrication, Durable Protection” and implements rigorous quality control throughout the production and inspection processes of elevator oil cups and round oil cups. Each unit undergoes multi-stage pre-delivery inspections, including sealing performance tests, oil flow rate verification, corrosion resistance assessments, and structural strength evaluations. The products adopt advanced materials and technologies: the cup bodies (both standard and round types) are made of high-transparency PC (polycarbonate) or corrosion-resistant aluminum alloy, enabling maintenance personnel to monitor oil levels in real time; the round oil cup features a seamless integrated structure, enhancing sealing performance and effectively preventing oil leakage; the precision oil feeder with adjustable flow rate ensures uniform oil supply (adjustable range: 5–20 drops per hour); the inner lining is crafted from oil-resistant PP material, compatible with various types of special elevator lubricating oils. The standardized mounting brackets and clip-on design facilitate quick and easy installation and replacement without the need for additional modifications to elevator components, significantly improving maintenance efficiency.
Step-by-Step Usage Guide for Elevator Oil Cup & Round Oil Cup
To maximize the lubrication effect, service life, and operational stability of Elevator Oil Cup and Round Oil Cup, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:
1. Professional Selection & Installation
Installation should be performed by certified elevator technicians or professional maintenance personnel. Prior to installation, refer to the compatibility manual provided by Nanjing Zhuye Elevatorparts to select the appropriate type: choose the round oil cup for narrow installation spaces (e.g., between door operator components), and the standard oil cup for general lubrication points (e.g., guide rails, sliding shoes). Confirm that the oil cup matches the size of the elevator’s lubrication points and mounting dimensions. The installation steps are as follows:
-
Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Secure the elevator car at a convenient maintenance position using mechanical supports. Clean the mounting area near the lubrication point to remove dust, oil stains, and debris, ensuring a smooth and stable mounting base.
-
Oil Cup Installation: For the round oil cup, fix its dedicated circular mounting bracket to the designated position using stainless steel screws provided by Nanjing Zhuye Elevatorparts, ensuring the cup body is installed vertically (tilt angle ≤ 5°) to guarantee stable oil flow. For the standard oil cup, install the mounting bracket and snap the cup body into place. Adjust the position of the oil feeder tube to align it accurately with the elevator’s lubrication point (distance between the tube mouth and the lubrication point: 2–5mm).
-
Oil Filling & Flow Adjustment: Fill the oil cup (both standard and round types) with special elevator lubricating oil (recommended by Nanjing Zhuye Elevatorparts, viscosity grade 32–46). Do not overfill (oil level should not exceed 80% of the cup’s capacity) to avoid oil leakage. Rotate the flow adjustment knob on the oil feeder to set the appropriate oil flow rate according to the lubrication requirements of the component (general guide rails: 8–12 drops per hour; door operators: 5–8 drops per hour).
2. Daily Operation & Routine Maintenance
Regular inspection and maintenance are essential to ensure the stable lubrication performance of elevator oil cups and round oil cups and to prevent faults such as oil shortage or leakage. Maintenance personnel should integrate the following checks into their daily patrol routines:
-
Daily Oil Level Inspection: During elevator patrols, check the oil level of the oil cup through the transparent cup body (for PC material) or by removing the lid (for aluminum alloy material). If the oil level is lower than 20% of the cup’s capacity, refill it with the specified lubricating oil in a timely manner. Record the oil consumption to monitor the oil supply status.
-
Weekly Sealing & Flow Check: Inspect the sealing performance of the oil cup’s lid, oil feeder connection, and (for round oil cups) the integrated seam. If oil leakage is detected, tighten the lid, replace the sealing ring (provided by Nanjing Zhuye Elevatorparts), or check the integrated structure for cracks. Recheck the oil flow rate to ensure it remains within the set range; adjust the knob if there is any deviation.
-
Monthly Cleaning & Inspection: Cut off the power supply and remove the oil cup (both standard and round types). Clean the cup body, inner lining, and oil feeder tube with a soft cloth to remove oil residues and impurities. Check for cracks, deformation, or aging of the cup body and sealing components; replace damaged parts immediately. For round oil cups, pay special attention to the integrity of the circular structure to avoid compromising sealing performance. Reinstall the oil cup, refill it with oil, and recheck the oil flow rate.
Recommended Replacement Cycle for Elevator Oil Cup & Round Oil Cup
As key lubrication components that are continuously in contact with lubricating oil, exposed to environmental erosion (humidity, dust, temperature changes), and subjected to mechanical vibration, elevator oil cups and round oil cups have a specified service life. Timely replacement is crucial to avoiding faults such as poor sealing, blocked oil feeders, or unstable oil supply—issues that may lead to insufficient lubrication of elevator components, increased friction and wear, and even serious mechanical failures that affect elevator operational safety.
1. Standard Replacement Cycle
Under normal operating conditions (elevator daily operation time: 12–24 hours, ambient temperature: -10–60℃, humidity: 10%–95%), the recommended replacement cycle for both elevator oil cups and round oil cups is 1.5–2 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, material aging tests, and global user feedback on elevator lubrication systems.
2. Adjustments for Special Scenarios
-
Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (exposed to salt spray corrosion), high-dust industrial sites, or ultra-high-traffic locations (e.g., large airports, central shopping malls) with daily operation time ≥ 20 hours, the replacement cycle is shortened to 1 year. Harsh environmental conditions accelerate the aging of sealing components, blockage of oil feeders, and corrosion of cup bodies (especially for aluminum alloy models).
-
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable operating environments (constant temperature and humidity), the replacement cycle can be extended to 2–3 years—only after professional inspection by Nanjing Zhuye Elevatorparts technicians confirms that the oil cup’s sealing performance, oil flow stability, and structural integrity meet factory standards.
3. Immediate Replacement Conditions
Replace the elevator oil cup or round oil cup immediately if any of the following issues occur, regardless of its service life:
-
The cup body is cracked, deformed, or severely yellowed and brittle (for PC material), resulting in oil leakage or inability to hold oil normally.
-
The oil feeder is blocked and cannot be cleared after cleaning, leading to interrupted oil supply to the lubrication point.
-
The sealing ring is severely aged, swollen, or damaged, causing persistent oil leakage that cannot be resolved by tightening or adjustment.
-
The flow adjustment knob fails, and the oil flow rate cannot be controlled within the required range, affecting normal lubrication; for round oil cups, the integrated structure is damaged, leading to irreversible sealing failure.
In conclusion, the Elevator Oil Cup and Round Oil Cup supplied by Nanjing Zhuye Elevatorparts are high-quality, highly compatible lubrication components tailored for modern elevator systems. By following the correct usage methods, maintenance schedules, and replacement cycles outlined above, elevator maintenance teams can effectively ensure stable lubrication of key elevator components, reduce mechanical failures, extend elevator service life, and enhance passenger ride comfort. Choosing Nanjing Zhuye Elevatorparts means you not only get 100% authentic elevator oil cups and round oil cups but also access to professional technical support—including model matching guidance, lubricating oil selection advice, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for reliable lubrication protection of your elevator system.
