Description

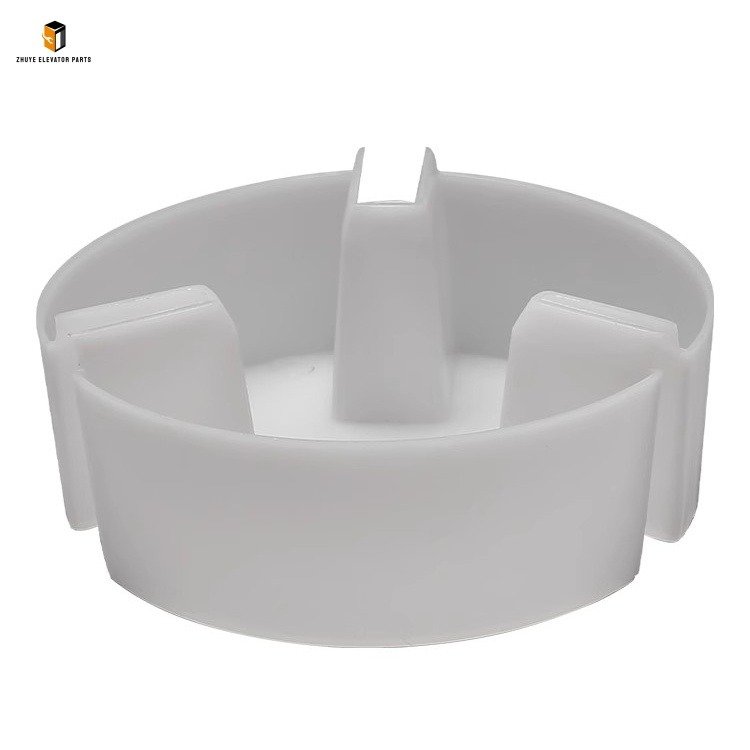

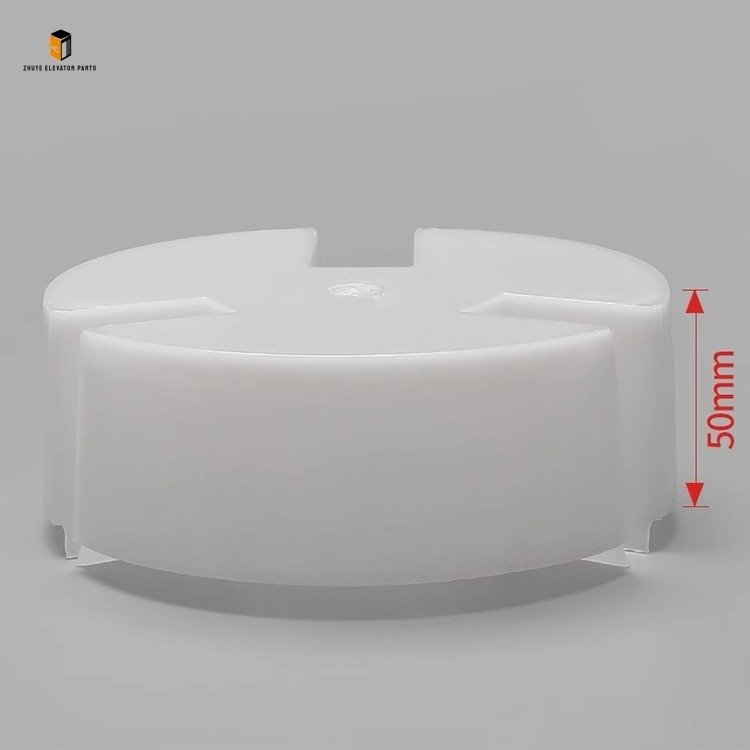

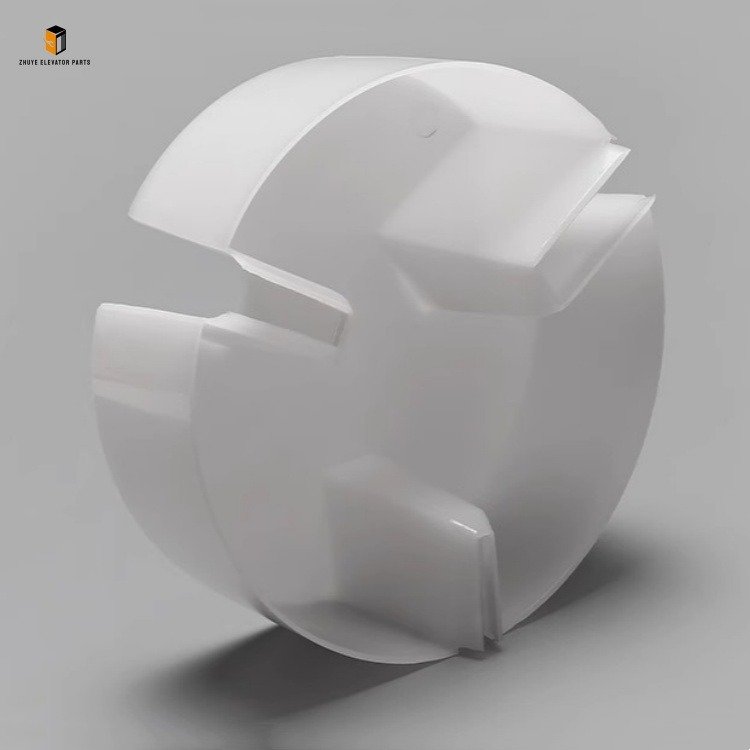

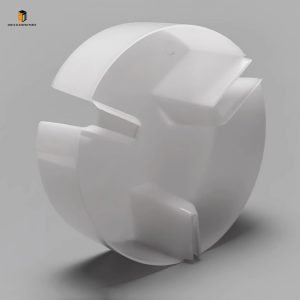

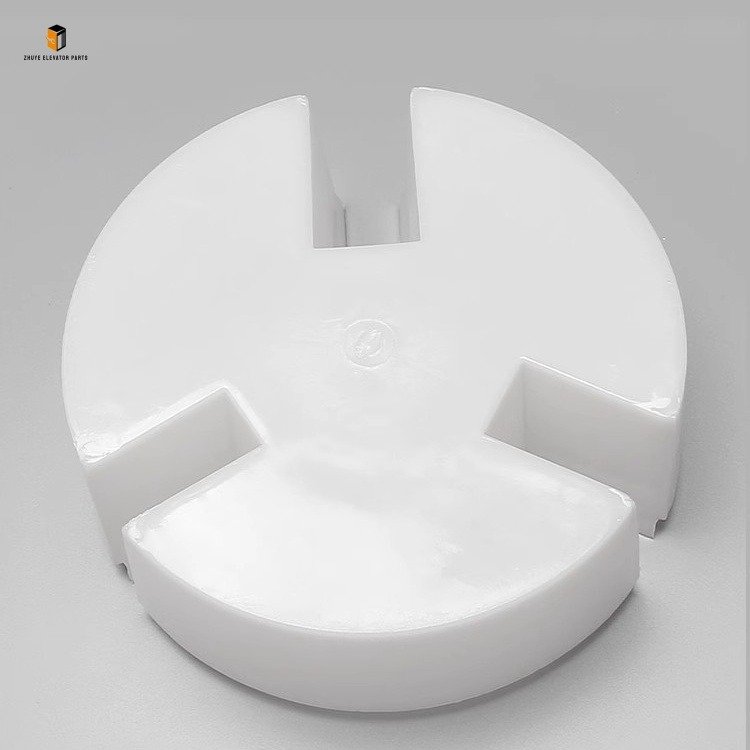

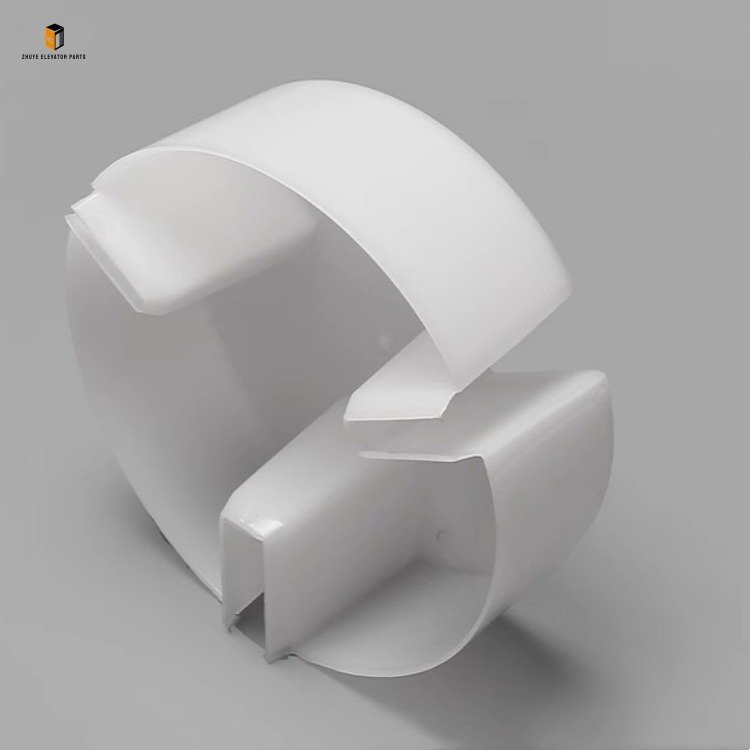

Elevator oil cup Elevator round oil cup Brief Introduction
|
Product Name |
Elevator oil cup Elevator round oil cup |
| Model Number | Elevator round oil cup |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Oil Cup & Round Oil Cup: Reliable Lubrication Solutions from Nanjing Zhuye Elevatorparts
Elevator Oil Cup and Elevator Round Oil Cup are essential lubrication components for elevator mechanical systems, responsible for continuously supplying lubricating oil to key moving parts such as elevator guide rails, sliding shoes, door machine mechanisms, and traction systems. Stable and uniform lubrication reduces mechanical friction and wear, lowers operational noise, prevents component rust, and significantly extends the service life of elevator core parts. The round oil cup, with its compact and classic circular design, is particularly suitable for narrow installation spaces in elevator shafts, while the standard elevator oil cup offers versatile compatibility with different lubrication points. Both are widely compatible with mainstream elevator brands and models, making them indispensable replacement parts in residential buildings, commercial complexes, office towers, airports, and industrial elevators. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional and trusted provider of high-quality elevator components, these Elevator Oil Cup & Round Oil Cup fully comply with international elevator safety standards (EN 81-20, GB 7588) and mechanical lubrication component specifications. Crafted with premium materials and precision manufacturing, they feature excellent sealing performance, stable oil supply, and strong environmental adaptability, winning recognition from global elevator maintenance teams.
Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Stable Lubrication, Durable Protection” and implements strict quality control throughout the production and inspection process of elevator oil cups and round oil cups. Each unit undergoes multi-stage pre-delivery inspections, including sealing performance testing, oil flow rate verification, corrosion resistance detection, and structural strength testing. The oil cups adopt advanced materials and technology: the cup body (both standard and round models) is made of high-transparency PC (polycarbonate) or corrosion-resistant aluminum alloy, allowing maintenance personnel to visually monitor oil levels in real time; the round oil cup is designed with a seamless integrated structure to enhance sealing and prevent oil leakage; the precision oil feeder with adjustable flow rate ensures a uniform oil supply (adjustable range: 5–20 drops per hour); the inner liner is made of oil-resistant PP material, compatible with various types of elevator special lubricating oil. The standardized mounting brackets and clip-on design enable quick installation and replacement without additional modification to elevator components, improving maintenance efficiency.
Step-by-Step Usage Guide for Elevator Oil Cup & Round Oil Cup
To maximize the lubrication effect, service life, and operational stability of Elevator Oil Cup and Round Oil Cup, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and use:
1. Professional Selection & Installation
Installation can be conducted by certified elevator technicians or professional maintenance personnel. Prior to installation, refer to the compatibility manual provided by Nanjing Zhuye Elevatorparts to select the appropriate type: choose the round oil cup for narrow installation spaces (e.g., between door machine components), and the standard oil cup for general lubrication points (e.g., guide rails, sliding shoes). Confirm the oil cup matches the elevator’s lubrication point size and mounting dimensions. The installation steps are as follows:
-
Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Fix the elevator car at a convenient maintenance position using mechanical supports. Clean the mounting area near the lubrication point to remove dust, oil stains, and debris, ensuring a smooth and stable mounting base.
-
Oil Cup Installation: For the round oil cup, fix its dedicated circular mounting bracket to the designated position using stainless steel screws provided by Nanjing Zhuye Elevatorparts, ensuring the cup body is vertically installed (tilt angle ≤ 5°) to guarantee stable oil flow. For the standard oil cup, install the mounting bracket and snap the cup body into place. Adjust the position of the oil feeder tube to align it accurately with the elevator’s lubrication point (distance between tube mouth and lubrication point: 2–5mm).
-
Oil Filling & Flow Adjustment: Fill the oil cup (standard or round) with special elevator lubricating oil (recommended by Nanjing Zhuye Elevatorparts, viscosity grade 32–46). Do not overfill (oil level should not exceed 80% of the cup’s capacity) to avoid oil leakage. Rotate the flow adjustment knob on the oil feeder to set the appropriate oil flow rate according to the lubrication requirements of the component (general guide rail: 8–12 drops per hour; door machine mechanism: 5–8 drops per hour).
2. Daily Operation & Routine Maintenance
Regular inspection and maintenance are essential to ensure the stable lubrication performance of elevator oil cups and round oil cups and prevent faults such as oil shortage or oil leakage. Maintenance personnel should integrate the following checks into their daily patrol routines:
-
Daily Oil Level Inspection: During elevator patrols, check the oil level of the oil cup through the transparent cup body (for PC material) or by removing the lid (for aluminum alloy material). If the oil level is lower than 20% of the cup’s capacity, refill it with the specified lubricating oil in a timely manner. Record the oil consumption to monitor the oil supply status.
-
Weekly Sealing & Flow Check: Inspect the sealing performance of the oil cup’s lid, oil feeder connection, and (for round oil cups) the integrated seam. If oil leakage is found, tighten the lid, replace the sealing ring (provided by Nanjing Zhuye Elevatorparts), or check the integrated structure for cracks. Recheck the oil flow rate to ensure it remains within the set range; adjust the knob if there is any deviation.
-
Monthly Cleaning & Inspection: Cut off the power supply and remove the oil cup (standard or round). Clean the cup body, inner liner, and oil feeder tube with a soft cloth to remove oil residues and impurities. Check for cracks, deformation, or aging of the cup body and sealing components; replace damaged parts immediately. For round oil cups, pay special attention to the integrity of the circular structure to avoid affecting sealing. Reinstall the oil cup, refill it with oil, and recheck the oil flow rate.
Recommended Replacement Cycle for Elevator Oil Cup & Round Oil Cup
As key lubrication components enduring long-term contact with lubricating oil, environmental erosion (humidity, dust, temperature changes), and mechanical vibration, elevator oil cups and round oil cups have a specified service life. Timely replacement is critical to avoiding faults such as poor sealing, blocked oil feeder, or unstable oil supply—issues that may lead to insufficient lubrication of elevator components, increased friction and wear, and even serious mechanical failures affecting elevator operation safety.
1. Standard Replacement Cycle
Under normal operating conditions (elevator daily operation time 12–24 hours, ambient temperature -10–60℃, humidity 10%–95%), the recommended replacement cycle for both elevator oil cups and round oil cups is 1.5–2 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, material aging tests, and global user feedback on elevator lubrication systems.
2. Adjustments for Special Scenarios
-
Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust industrial sites, or ultra-high-traffic locations (e.g., large airports, central shopping malls) with daily operation time ≥ 20 hours, the replacement cycle is shortened to1 year. Harsh conditions accelerate the aging of the oil cup’s sealing components, the blockage of the oil feeder, and the corrosion of the cup body (especially for aluminum alloy models).
-
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable environments (constant temperature and humidity), the replacement cycle can be extended to 2–3 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the oil cup’s sealing performance, oil flow stability, and structural integrity meet the original factory standards.
3. Immediate Replacement Conditions
Replace the elevator oil cup or round oil cup immediately if any of the following issues occur, regardless of its service life:
-
The cup body is cracked, deformed, or severely yellowed and brittle (for PC material), leading to oil leakage or inability to hold oil normally.
-
The oil feeder is blocked and cannot be cleared after cleaning, resulting in interrupted oil supply to the lubrication point.
-
The sealing ring is severely aged, swollen, or damaged, causing persistent oil leakage that cannot be resolved by tightening or adjusting.
-
The flow adjustment knob fails, and the oil flow rate cannot be controlled within the required range, affecting normal lubrication; for round oil cups, the integrated structure is damaged, leading to irreversible sealing failures.
In conclusion, the Elevator Oil Cup and Round Oil Cup supplied by Nanjing Zhuye Elevatorparts are high-quality, reliably compatible lubrication components tailored for modern elevator systems. By adhering to the correct usage methods, maintenance schedules, and replacement cycles outlined above, elevator maintenance teams can effectively ensure the stable lubrication of key elevator components, reduce mechanical failures, extend the service life of the elevator, and enhance passenger ride comfort. Choosing Nanjing Zhuye Elevatorparts means you not only get 100% authentic elevator oil cups and round oil cups but also access to professional technical support—including model matching guidance, lubricating oil selection advice, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the reliable lubrication protection of your elevator system.
