Description
Elevator Multimedia Display CPI Brief Introduction
- Model Description
SFTC-CCB-TX(TSX)-SPJ：X represents the size of the LCD screen: 8, 10.4, 12.1, 15
Resolution: 800*600 for 8, 10.4 inches, 1024*768 for 12.1, 15 inches
- Interface Description
| Interface | Remark | |
| 485 communication terminal | Terminal type: VH3.96, 4PIN interface
Pin 2 is 485+ (A), pin 3 is 485- (B), pin 1 is 24V, pin 4 is GND |
|
| CAN communication terminal | Terminal type: CH3.96, 4PIN interface
Pin 3 is CAN+, Pin 4 is CAN-, Pin 1 is 24V, Pin 2 is COM |
|
| USB interface 1 | mouse, U disk can be connected, and operations such as changing videos and pictures can be realized through this interface | |
| USB interface 2 | wired mouse can be used to adjust the system time (right-click to exit the floor interface, find “Settings”, and find the “Date and Time” option in “Settings” to adjust the time) | |
| Volume adjustment button | Adjust the system volume: turn it up clockwise, otherwise turn it down | |
| Horizontal and vertical switch | Horizontal and vertical screen switching (the middle and lower sides are shorted for horizontal display, the middle and upper sides are shorted for vertical display, the picture shows horizontal display) |

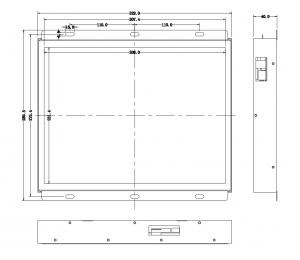

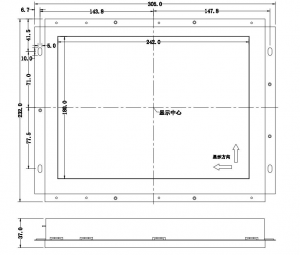

4. Dimension of Elevator Multimedia Display CPI
FAQ
Q1:How long is your warranty period for parts?
A: 1 year for PCB, 2 years for the original roller, and 1 year for the inverter.6 months for other parts. But all our warranty terms are only for defects in products, not suitable for man-made damage. Please contact me to get more detailed information about other products.
Q2:Can I pay by Paypal and western union or cash or credit or TT to our bank?
A: The above payment ways are OK.The details you can discuss with us.
Q3: What is the delivery time of the parts?
A: Generally, for standard parts with stock, we can deliver after your payment. For parts without stock, we could deliver in 3-15 days.
Q4: Do you have inspection procedures for products like 10.4,12.1,15 inch Elevator Multimedia Display CPI custom design supported?
A: Yes, all our products are 100% quality and inspected before delivery.
Q5: What are your advantages?
A: We have over 10 years of experience with professional teams who are from Kone, Schindler, Otis, Wittur, etc., sure can provide technical support for customers. Cooperated with brand elevator factories for the long term, can ensure to offer 100% original parts.
Products are directly from the factory and can give you a competitive price with optimized sales channels.
