Description

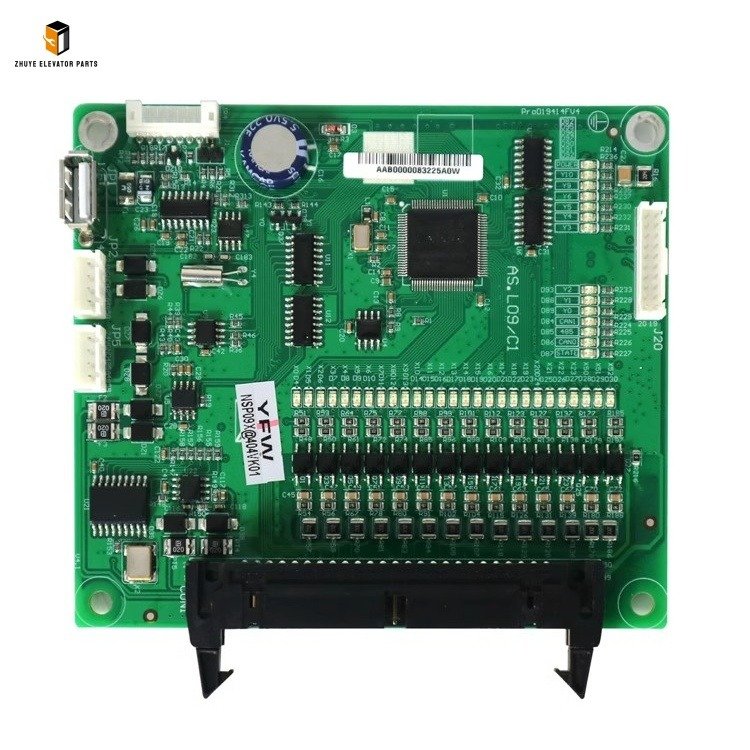

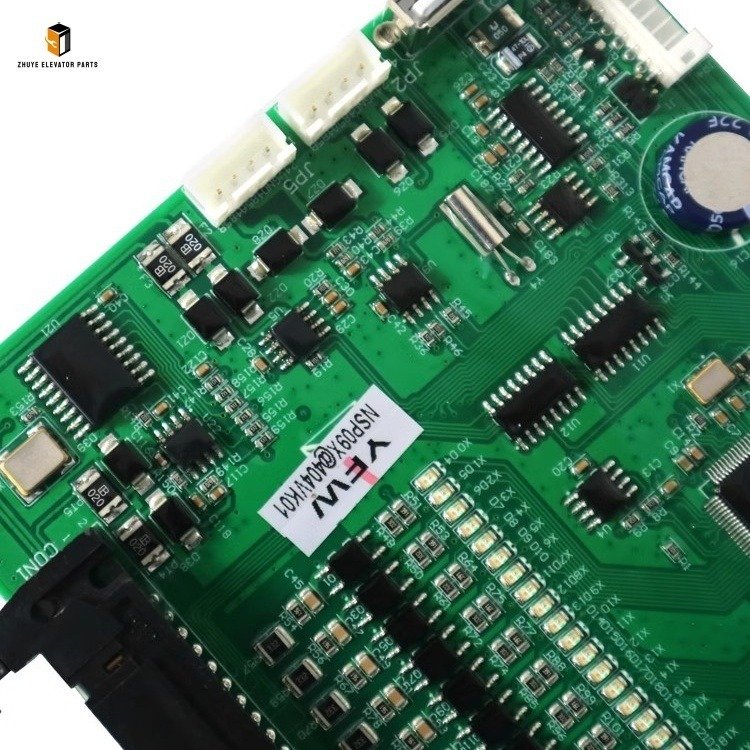

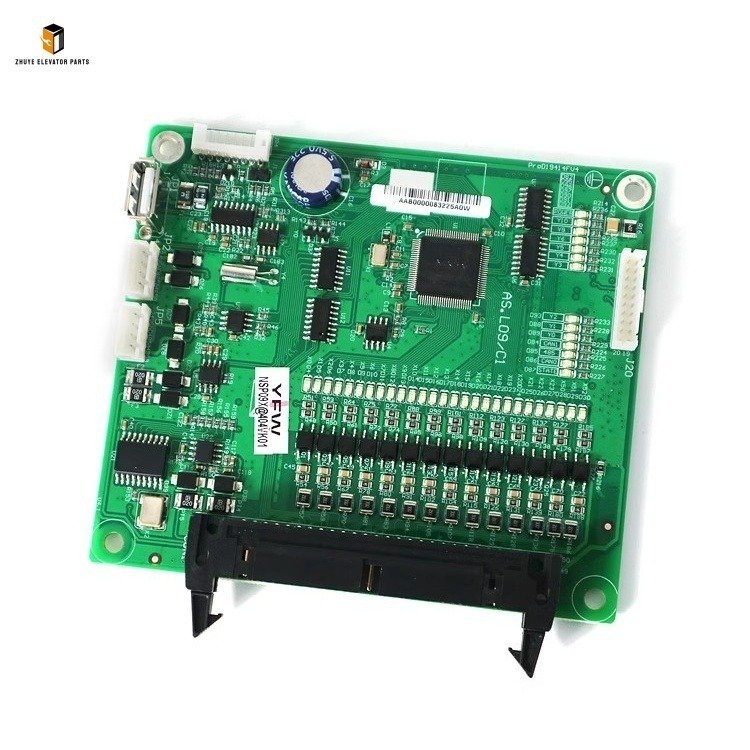

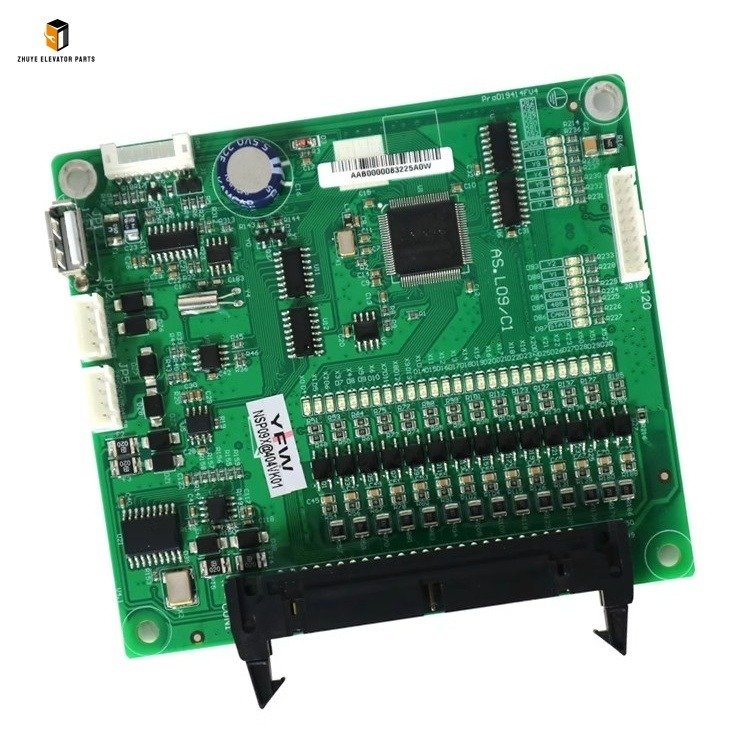

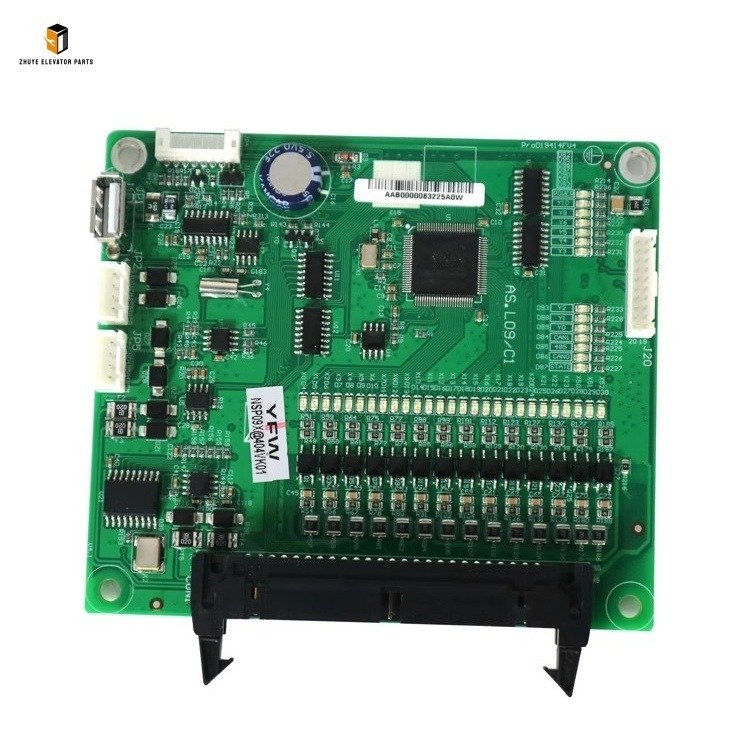

Elevator motherboard AS.L09/C1 Brief Introduction
|
Product Name |
Elevator motherboard |
| Model Number | AS.L09/C1 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Motherboard AS.L09/C1: Core Control Component from Nanjing Zhuye Elevatorparts
The elevator motherboard is the “central nervous system” of the entire elevator system, responsible for integrating signals from all components, controlling operation logic, and coordinating the work of traction, door, and safety systems. Its stability directly determines the elevator’s safety, efficiency, and ride comfort. The Elevator Motherboard AS.L09/C1, exclusively supplied by Nanjing Zhuye Elevatorparts, is precision-engineered for modern passenger and freight elevators. Compliant with international standards such as IEC/EN 61131-2 and GB/T 19582, this motherboard integrates high-performance main control chips, multi-channel communication interfaces, and comprehensive safety protection circuits, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic well-known brands. It is widely used in residential buildings, commercial complexes, office buildings, and industrial sites, providing reliable core control support for elevators.
Nanjing Zhuye Elevatorparts has always adhered to strict quality control standards, and the Elevator Motherboard AS.L09/C1 is a concentrated embodiment of this philosophy. Each motherboard undergoes multiple rigorous tests before leaving the factory, including signal processing accuracy testing, communication stability detection, high-temperature (up to 60℃) and low-temperature (down to -20℃) resistance tests, anti-electromagnetic interference tests, and long-term load operation tests. The motherboard adopts a 4-layer high-quality PCB substrate with excellent insulation performance and heat dissipation effect, ensuring stable operation even in complex machine room environments. It is equipped with industrial-grade core components with strong anti-overload capacity and a service life of over 10,000 hours of continuous operation. The surface is coated with a moisture-proof and anti-corrosion layer to resist dust, moisture, and oil erosion. In addition, the built-in intelligent fault diagnosis module can quickly identify component abnormalities and feed back fault codes to the maintenance terminal, facilitating efficient troubleshooting.
Usage Guide for Elevator Motherboard AS.L09/C1
Correct installation, wirwirwirparameter configurationcalibrationparameter configurationparameter configurationparameter configurationparameter configurationparameter configuration, and dmaintenancmaintenancmaintenancmaintenancmaintenancmaintenancmaintenancmaintenancmaintenancmaintenancebugging are crucial to extending the service life of the 591884 car pAS.L09/C1 motherboard and ensuring elevator safetyVKS AK-70A elevator button and ensuring its stable operationGLS 651/S leveling sensor and ensuring elevator positioning accuracyElevator Car Top Board ID 560546 and ensuring elevator safety9412082 inverter board and ensuring elevator safety91887 motherboard and ensuring elevator safety94304 motherboard and ensuring elevator safety903500G01 door operator controller and ensuring elevator door safety and ensuring elevator safety:59410511 inverter board and ensuring the elevator’s safe operation94252 communication board and ensuring communication stability. Nanjing Zhuye Elevatorparts strongly recommends that only professional and certified elevator maintenance technicians perform installation and replacement communicto avoid control systemcontrol systemdrive systemcontrol systemcontrol systemdoor systemcontrol systemdrive systemleveling deviations or serious serious safety hazards. Before use, confirm that the motherboard’s model, communication protocol,detection rang type type type type type typevoltage parameter, and interface sizecar car communicatip, and interface type of the inverterp, and interface type of the invertermothermothersensor, and interface type of the controllerare fully consistent with the elevator door operator motor and sensortractionboxsystem and car top equipmenttraction motor and main controllersystem and car top equipment. For detailed installation steps,,,, wircalibrationconfigurationconfigurationconfigurationconfigurationconfiguration standards, and communication protocol specificationconfiguration standards, and communication protocol specificationconfiguration standards, and communication protocol specificationconfiguration standards, and communication protocol specifications, refer to the product manual provided by Nanjing Zhuye Elevatorparts or contact our technical support team for one-on-one one-on-one one-on-one professional guidance.
1. Pre-Installation Preparation
First, cut off the elevator’s main power supply and control cabinet power, lock the power switch, and place a “Maintenance in Progress” warning sign at the machine room and elevator entrance to prevent accidental startup. Prepare professional tools such as screwdrivers, torque wrenches, multimeters, oscilloscopes, anti-static gloves, and dust-free cloths. Clean the installation position in the control cabinet to remove dust, debris, and oil stains that may cause poor contact or short circuits. Carefully inspect the AS.L09/C1 motherboard for external damage, such as PCB cracks, interface damage, or loose components. Use a multimeter to test circuit continuity and insulation resistance to ensure no open circuits, short circuits, or leakage. Additionally, check that motherboard jumpers are set correctly according to the elevator system requirements.
2. Installation & Wiring
Align the AS.L09/C1 motherboard with the dedicated mounting bracket in the control cabinet and fix it with screws. Note that the tightening torque should be appropriate (recommended 1.0-1.5 Nm) to avoid damaging the PCB or internal components. According to the wiring diagram provided by Nanjing Zhuye Elevatorparts, connect the motherboard to the traction inverter, door operator controller, car top board, car control panel, and safety circuit. Power wires, communication wires (e.g., RS485), and signal wires must be correctly connected to corresponding terminals, with wire stripping length controlled at 6-8mm to prevent short circuits from exposed wires. Use shielded wires for communication lines to reduce electromagnetic interference, and separate power and signal wires during wiring. After wiring, organize wires neatly with cable ties, recheck for wrong or loose connections, and install the motherboard dust cover.
3. Debugging & Daily Use
After installation, restore power and conduct systematic debugging. First, connect a maintenance laptop to the motherboard via the communication interface and input standard parameters provided by Nanjing Zhuye Elevatorparts, including rated speed, load capacity, floor height, and door opening/closing logic. Test basic elevator functions in inspection mode: verify normal floor-to-floor operation, coordinated door system work, and effective triggering of safety devices (e.g., overspeed protection, emergency stop). Use an oscilloscope to confirm the stability of output and communication signals. Pay close attention to operating status and fault codes during debugging; stop immediately for troubleshooting if errors occur. For daily maintenance, regularly clean the motherboard surface and heat dissipation vents with a dust-free cloth, check connector tightness, and back up parameters. Avoid knocking or collision, and prevent conductive objects from touching the motherboard to avoid short circuits.
Replacement Cycle of Elevator Motherboard AS.L09/C1
The replacement cycle of the AS.L09/C1 elevator motherboard is affected by usage frequency, working environment, and maintenance quality. Under normal conditions—12-24 hours of daily operation, dry and well-ventilated machine room, no strong electromagnetic interference, and regular maintenance—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 8-10 years. This cycle is based on extensive field test data, considering core chip aging, communication performance attenuation, connector wear, and circuit stability degradation, which are the main factors affecting service life.
For elevators in high-traffic areas (shopping malls, airports, subways) with daily operation exceeding 20 hours or harsh environments (high temperature, humidity, dust, strong electromagnetic interference near industrial equipment), shorten the replacement cycle to 6-8 years. High-load operation accelerates component aging, while harsh environments cause circuit corrosion and performance degradation. For low-frequency use elevators (villa elevators, small office buildings with <8 hours daily operation), the cycle can be extended to 10-12 years with proper maintenance. However, arrange semi-annual inspections by Nanjing Zhuye Elevatorparts’ professional technicians to test signal accuracy, communication stability, and component status.
Regardless of service life, replace the AS.L09/C1 motherboard immediately if: frequent system crashes cause elevator shutdowns; communication failures occur with multiple peripherals (inverter, door operator); obvious damage exists (burned chips, cracked PCB, corroded circuits); frequent faults persist after maintenance; elevator performance degrades significantly (unstable operation, incorrect floor stopping); incompatibility with upgraded systems; or failure to pass annual safety inspections. Timely replacement is critical to avoid serious accidents such as elevator out-of-control or passenger entrapment.
The Elevator Motherboard AS.L09/C1 from Nanjing Zhuye Elevatorparts combines stable control performance, strong compatibility, and intelligent fault diagnosis, making it an ideal choice for elevator maintenance and renovation. With strict quality assurance and comprehensive after-sales service, it has gained trust from numerous maintenance enterprises and property management companies. Following correct usage methods and replacement cycles effectively reduces control system failure rates and improves operational safety. Nanjing Zhuye Elevatorparts provides 100% genuine AS.L09/C1 motherboards and professional support, including parameter configuration, fault diagnosis, and on-site assistance. Choose Nanjing Zhuye Elevatorparts for reliable core components and intimate service.
