Description

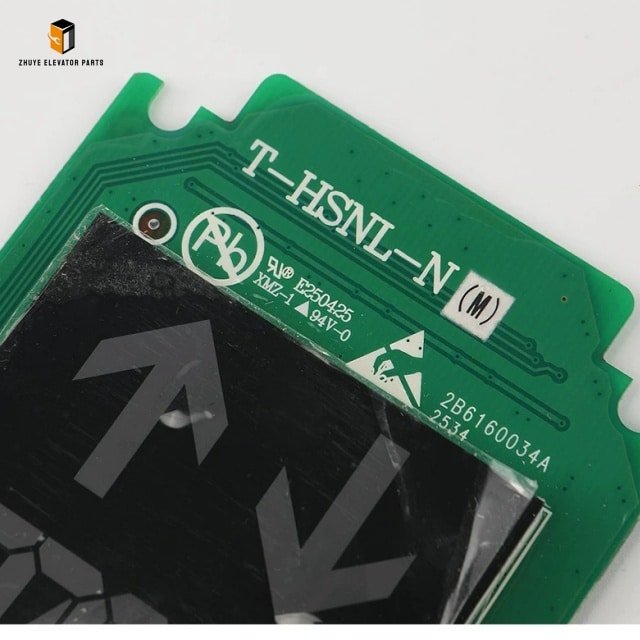

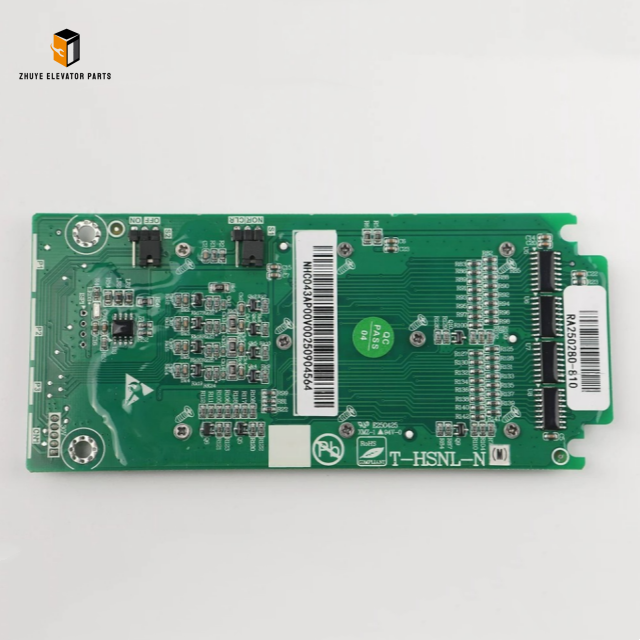

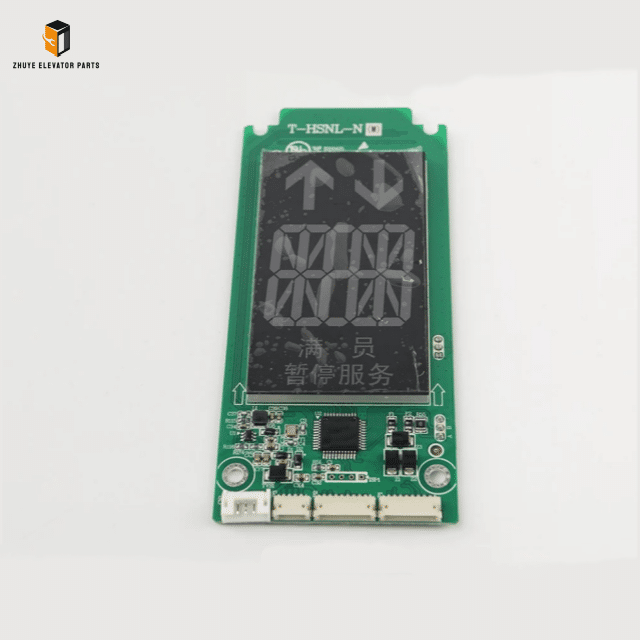

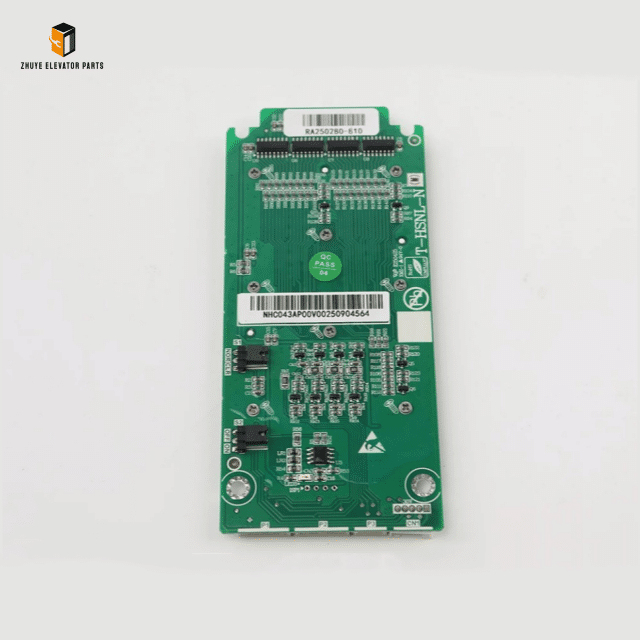

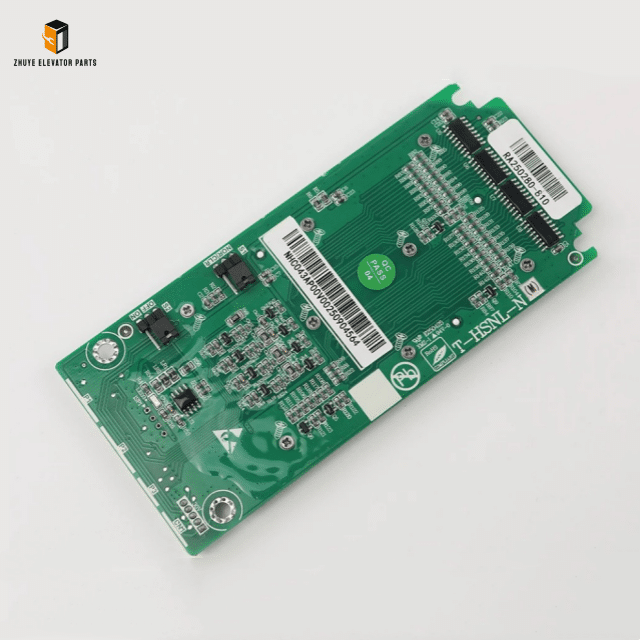

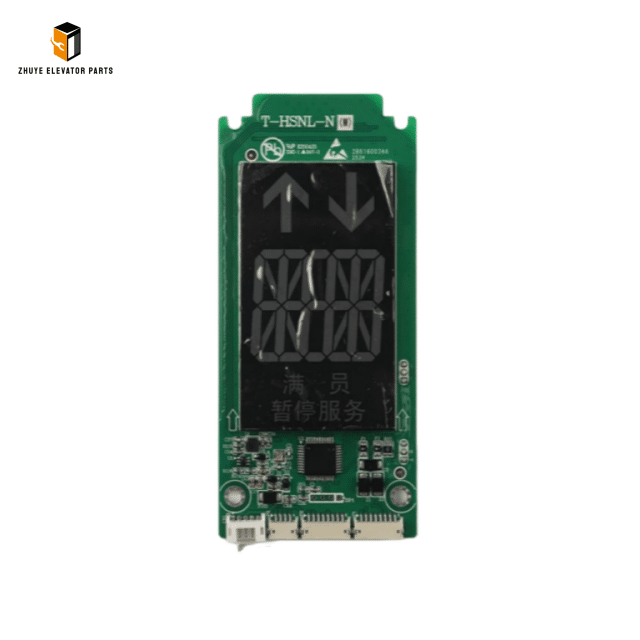

Elevator Lop Display Board T-HSNL-N
|
Product Name |
Elevator Lop Display Board |
| Model Number | T-HSNL-N |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator LOP Display Board T-HSNL-N | Compatible with Toshiba Elevators
The Elevator LOP Display Board T-HSNL-N is a dedicated landing signal display circuit board professionally engineered for full compatibility with Toshiba elevators. Installed inside the floor landing operating panel, this industrial LED display module acts as a critical external human-machine interaction terminal, delivering real-time floor readings, traveling direction arrows, and operational status updates for waiting passengers. As a core signal receiving component tailored for Toshiba hall call control systems, the T-HSNL-N stably synchronizes low-voltage data signals from the main controller to ensure consistent, high-brightness visual feedback throughout daily operation. Common equipment faults, including flickering digits, dim display brightness, blank screens, and delayed signal response, are mostly caused by long-term mechanical vibration, lobby dust accumulation, and gradual circuit aging. Manufactured in strict compliance with Toshiba original electrical protocols and mounting dimensions, this LOP display board serves as a reliable standard spare part for routine maintenance, elevator modernization projects, and bulk inventory stocking for global elevator service providers.
Constructed with high-grade flame-retardant PCB and anti-oxidation LED lamp beads, the Elevator LOP Display Board T-HSNL-N boasts superior dustproof, moisture-proof, and anti-electromagnetic interference capabilities. Optimized for public lobby environments with heavy pedestrian traffic, frequent temperature fluctuations, and long-duration continuous operation, it maintains stable display performance without screen jitter or signal distortion. All mounting hole positions, terminal definitions, rated working voltage, and communication protocols fully match Toshiba factory specifications, enabling true plug-and-play installation. No additional programming, parameter calibration, or wiring modification is required, greatly simplifying on-site installation. Built-in surge protection components effectively resist current fluctuations and external electromagnetic interference from peripheral electrical equipment, making it perfectly suitable for all mainstream Toshiba residential and commercial elevators with long-lasting operational stability.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the T-HSNL-N LOP display board must be performed by certified Toshiba elevator technicians. Before initiating maintenance, completely cut off the independent landing power supply, securely lock the safety isolation switch, and place a clear “Maintenance In Progress” warning sign on the landing door. Live-line operation and hot swapping are strictly prohibited to prevent interface burnout, chip damage, and unexpected elevator downtime.
Gently pry open the landing decorative panel using insulated professional tools. Confirm that the original display board model fully matches T-HSNL-N to guarantee complete compatibility. Slowly extract the display assembly, disconnect power lines and signal connectors one by one, and clearly mark all wiring positions to avoid misconnection. Remove the fixing screws and safely detach the defective original circuit board.
Thoroughly clean the internal panel mounting slot to remove dust and tiny conductive particles that may cause poor contact or signal instability. Secure the brand-new T-HSNL-N display board with anti-loose screws to prevent positional displacement caused by long-term elevator vibration. Reconnect all cables following the marked wiring sequence and double-check all terminals for firm connection. Restore the decorative panel, reactivate the power supply, and conduct multiple elevator test runs to verify clear floor display, sensitive direction indication, and stable fault-free signal linkage.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of the T-HSNL-N display board varies depending on ambient conditions and elevator usage frequency. For dry residential buildings and low-frequency office elevators, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic venues such as shopping malls and medical centers, or humid coastal buildings with corrosive air environments, the board endures continuous lighting load and moisture erosion. It is recommended to shorten the replacement cycle to 4 to 5 years to prevent sudden display failure and passenger experience issues.
Immediate replacement is required once abnormal symptoms appear, including uneven brightness, flickering screens, incomplete digit segments, slow signal refresh, oxidized connectors, and abnormal board overheating. Timely replacement of the T-HSNL-N board eliminates hidden electrical risks and maintains stable landing display performance for all Toshiba elevators.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Elevator LOP Display Board T-HSNL-N, 100% compatible with all Toshiba elevator models. Every product undergoes 72-hour continuous aging testing and strict signal compatibility inspection before shipment. We maintain sufficient in-stock inventory, support fast global cross-border logistics, and provide professional remote installation guidance. Our high-precision aftermarket spare parts reduce maintenance difficulty, minimize elevator downtime, and help global elevator contractors improve overall service efficiency and operational safety.
