Description

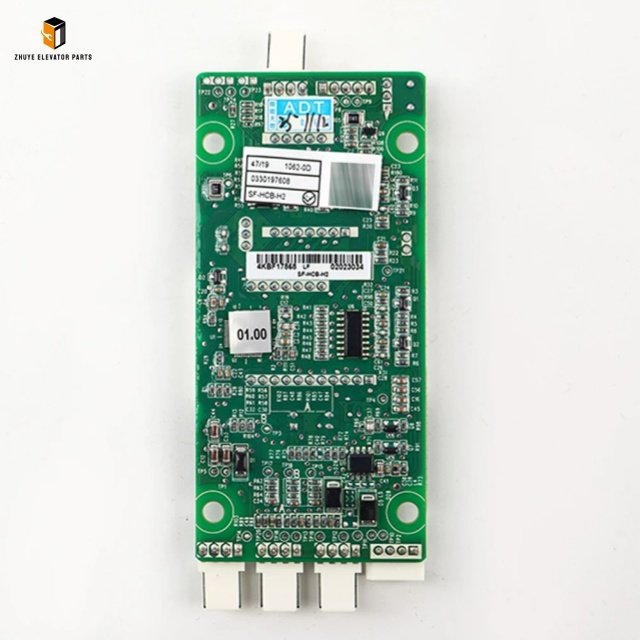

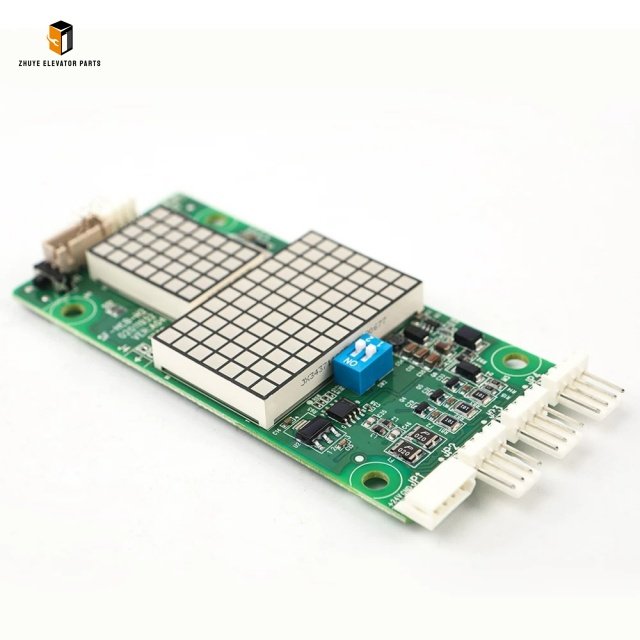

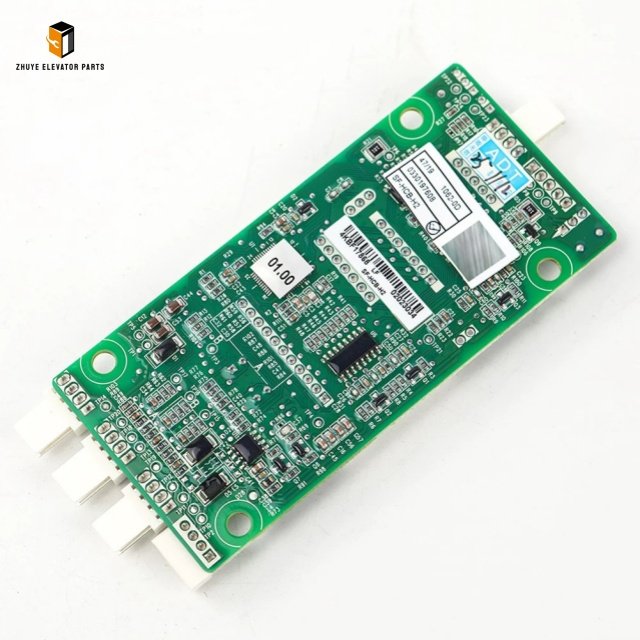

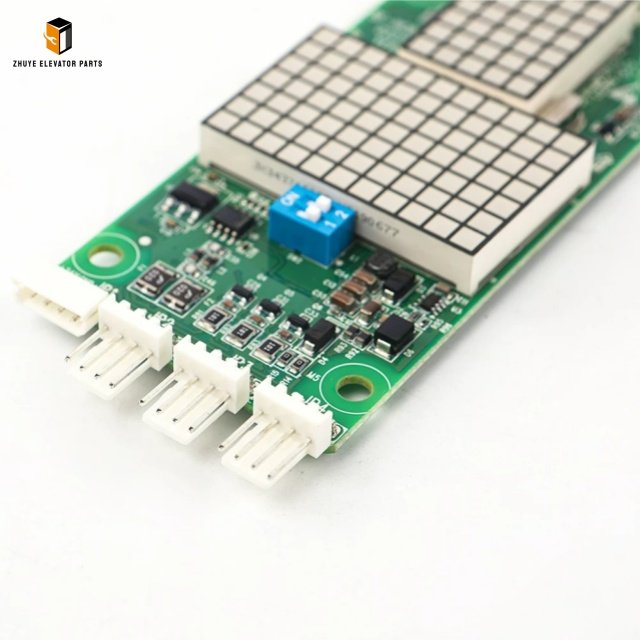

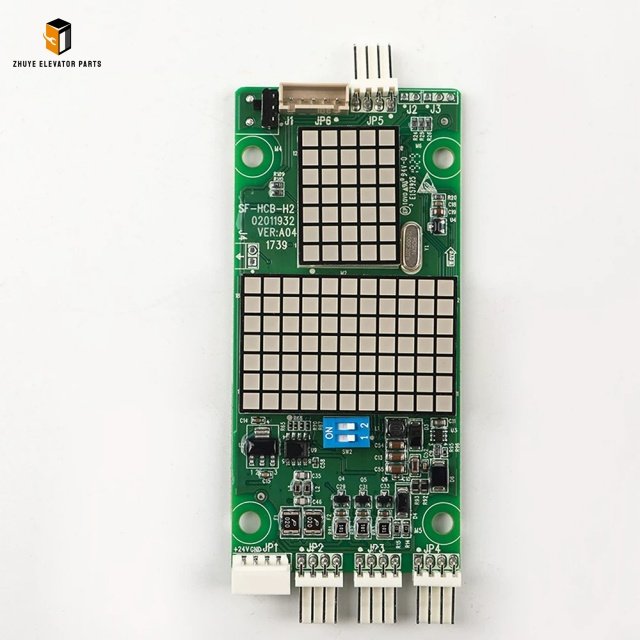

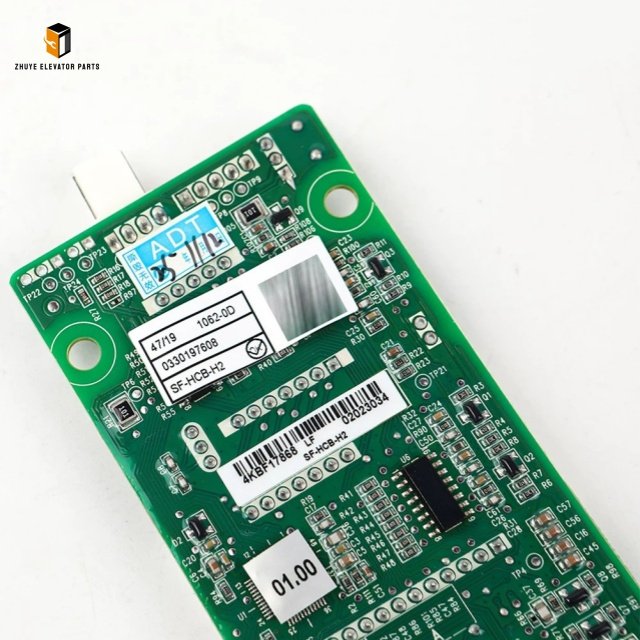

Elevator Lop Display Board SF-HCB-H2
|
Product Name |
Elevator Lop Display Board |
| Model Number | SF-HCB-H2 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator LOP Display Board SF-HCB-H2 | Compatible with ThyssenKrupp Elevators
The Elevator LOP Display Board SF-HCB-H2 is a high-precision landing display circuit board specially designed and fully compatible with ThyssenKrupp elevators. Installed in the landing operating panel on each building floor, this industrial-grade LED display module serves as the core external human-machine interaction unit. It accurately displays real-time elevator floor position, traveling direction indicators, and operational status for waiting passengers. As a key signal receiving component matching ThyssenKrupp hall call control systems, the SF-HCB-H2 stably receives low-voltage synchronous signals from the main controller to deliver consistent, high-brightness visual output. Common faults including flickering numbers, dim screen brightness, blank display failure and delayed signal synchronization are mainly caused by long-term mechanical vibration, lobby dust accumulation and natural circuit aging. Manufactured in strict accordance with ThyssenKrupp original electrical parameters and mounting specifications, this LOP display board is a standard essential spare part for daily elevator maintenance, building elevator renovation and bulk inventory stocking for global elevator service companies.
Adopting flame-retardant insulating PCB and anti-aging high-brightness LED beads, the Elevator LOP Display Board SF-HCB-H2 features excellent dustproof, moisture-proof and strong anti-electromagnetic interference performance. Adapted to complex public lobby environments with heavy pedestrian flow, frequent temperature changes and long-hour continuous operation, the board maintains stable display effects without jitter or distortion. All mounting hole positions, terminal definitions, working voltage parameters and signal transmission protocols fully comply with ThyssenKrupp factory standards, supporting true plug-and-play installation without secondary programming, parameter calibration or wiring modification. Built-in surge protection chips effectively resist current fluctuation and electromagnetic interference from surrounding electrical equipment. Suitable for all mainstream ThyssenKrupp residential and commercial elevators, it delivers uniform brightness and long-term operational stability.
Standard Installation & Professional Operation Guidelines
All disassembly and installation operations for the SF-HCB-H2 LOP display board must be completed by certified professional technicians familiar with ThyssenKrupp elevator systems. Before maintenance, completely cut off the landing independent power supply, lock the safety isolation switch, and place a prominent “Maintenance In Progress” warning sign on the landing door. Live-line disassembly and hot swapping are strictly prohibited to prevent interface burnout, signal chip damage and unexpected elevator downtime.
Gently pry open the landing decorative panel with insulated professional tools. Verify the model of the original display board to confirm full matching with SF-HCB-H2. Slowly take out the internal display assembly, disconnect power cords and signal connectors one by one, and clearly mark each wiring position to avoid misconnection. Remove the fixing screws and safely detach the faulty original circuit board.
Thoroughly clean the internal panel mounting slot to remove dust and conductive particles that may cause poor signal contact. Fix the brand-new SF-HCB-H2 display board firmly with anti-loose screws to prevent displacement caused by elevator operation vibration. Reconnect all cables strictly according to the marked wiring sequence and double-check all terminals for firm connection. Restore the decorative panel, reactivate the power supply, and conduct multiple elevator round-trip tests to confirm clear floor display, sensitive direction indication and stable signal linkage with no faults.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of the SF-HCB-H2 display board varies according to ambient humidity and elevator operating frequency. For dry residential communities and low-frequency office building elevators, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic scenarios such as shopping malls, hospitals and public transport buildings, or humid coastal environments with severe air corrosion, the board bears long-term high-load lighting operation and environmental erosion. It is recommended to shorten the replacement cycle to 4 to 5 years to avoid sudden display failure affecting passenger experience.
Immediate replacement is required once abnormal symptoms appear, including uneven screen brightness, flickering display, incomplete digit segments, slow signal refresh, oxidized connectors and abnormal board overheating. Timely replacement of SF-HCB-H2 eliminates hidden safety hazards and ensures stable landing display performance for all ThyssenKrupp elevators.
Reliable Supply Advantages from Our Factory
We provide brand-new factory-tested Elevator LOP Display Board SF-HCB-H2, 100% compatible with all ThyssenKrupp elevator models. Every product passes strict 72-hour continuous aging testing and professional signal compatibility inspection before delivery. We maintain sufficient in-stock inventory, support fast global cross-border logistics, and offer reliable remote installation guidance. Our high-precision matching spare parts effectively reduce on-site maintenance difficulty, shorten elevator downtime, and help global elevator contractors optimize service efficiency and operational safety standards.
