Description

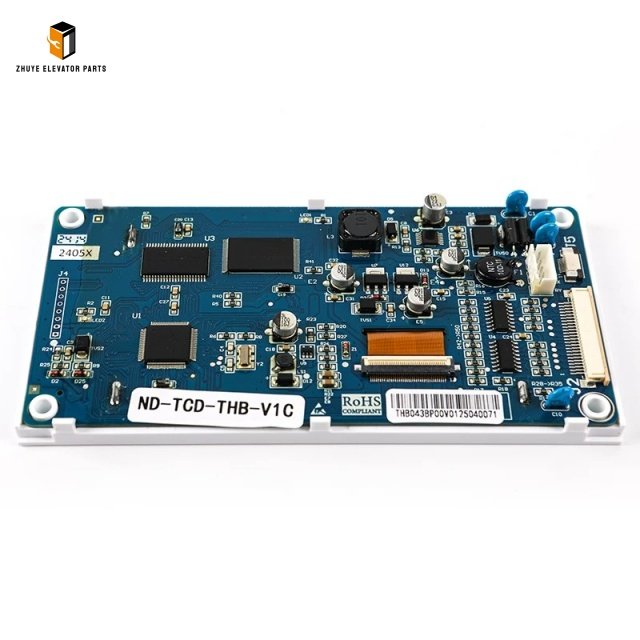

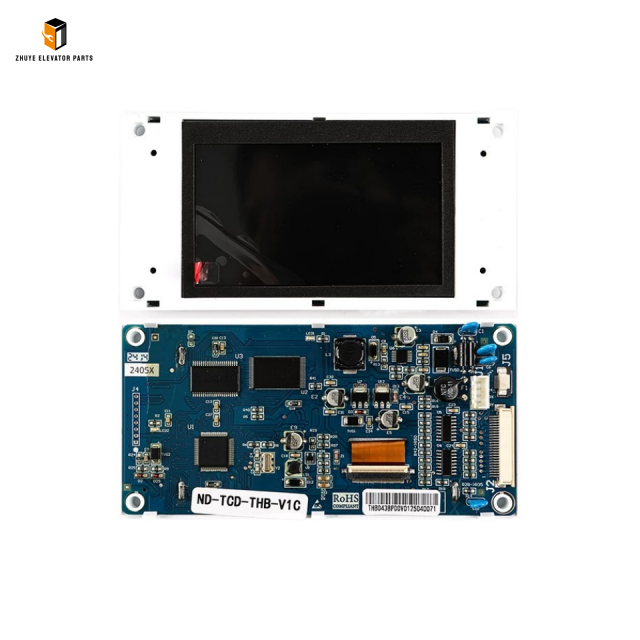

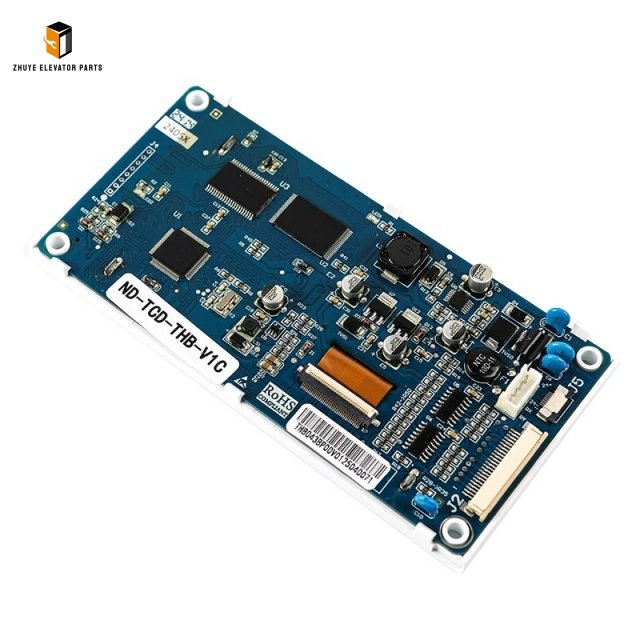

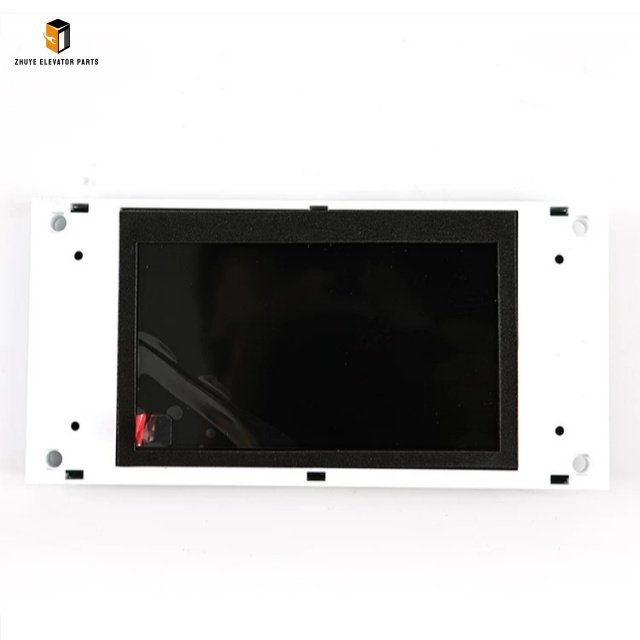

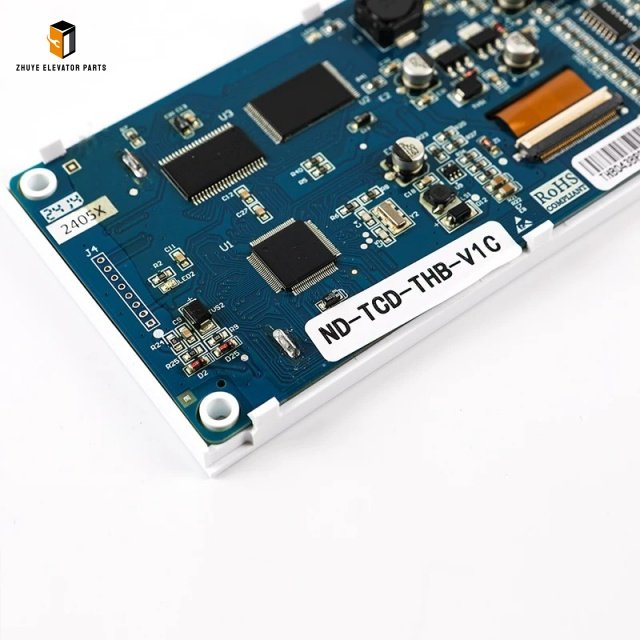

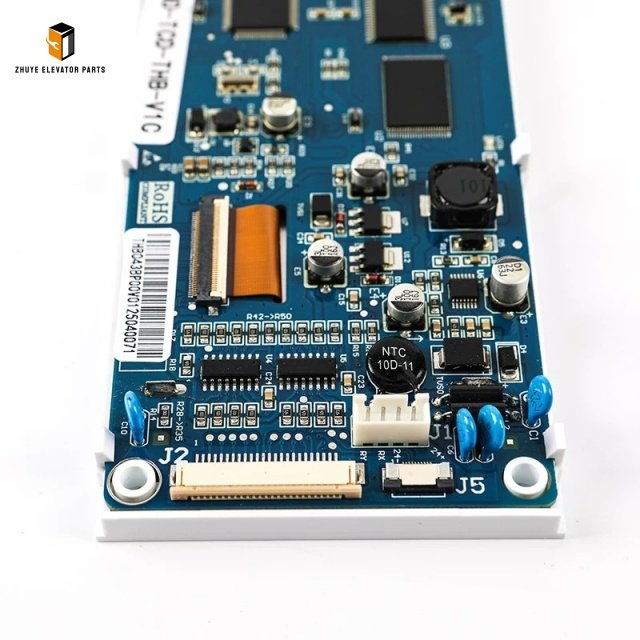

Elevator Lop Display Board ND-TCD-THB-V1C
|
Product Name |
Elevator Lop Display Board |
| Model Number | ND-TCD-THB-V1C |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator LOP Display Board ND-TCD-THB-V1C | Compatible with Toshiba Elevators
The Elevator LOP Display Board ND-TCD-THB-V1C is an upgraded landing signal display circuit board professionally engineered for full compatibility with Toshiba elevators. Installed inside each floor landing operating panel, this industrial LED display module serves as an external human-machine interaction terminal, displaying real-time floor numbers, traveling direction arrows and operational status for waiting passengers. As a core signal receiving component for Toshiba hall call systems, the ND-TCD-THB-V1C steadily receives low-voltage data signals from the main controller to deliver clear and consistent visual feedback. Common failures such as flickering digits, dim illumination, blank screens and delayed signal synchronization frequently occur due to long-term circuit aging and environmental erosion. Manufactured in compliance with Toshiba original electrical parameters and mounting standards, this LOP display board is an essential spare part for daily maintenance, elevator renovation and bulk inventory stocking for global elevator service providers.
Adopting high-strength flame-retardant PCB and anti-aging LED lamp beads, the Elevator LOP Display Board ND-TCD-THB-V1C features excellent dustproof, moisture-proof and anti-electromagnetic interference performance. Optimized for public lobby environments with frequent pedestrian flow and temperature fluctuation, it maintains stable signal output in harsh indoor conditions. All mounting holes, terminal definitions, working voltage and communication protocols strictly match Toshiba factory specifications, enabling true plug-and-play installation without extra programming or parameter calibration. Integrated surge protection chips effectively resist current fluctuation and electromagnetic interference from surrounding electrical equipment. Suitable for all mainstream Toshiba residential and commercial elevators, this board delivers uniform brightness and long-lasting display performance.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the ND-TCD-THB-V1C LOP display board must be performed by certified Toshiba elevator technicians. Before maintenance work, completely cut off the landing independent power supply, securely lock the isolation switch, and place a clear “Maintenance In Progress” warning sign on the landing door. Live-line operation and hot swapping are strictly forbidden to prevent connector burnout and accidental elevator downtime.
Carefully pry open the landing panel decorative cover using insulated professional tools. Confirm that the old display board model matches ND-TCD-THB-V1C to ensure complete compatibility. Gently extract the display assembly, disconnect signal cables and power connectors one by one, and clearly mark every wiring position to avoid misconnection. Remove the fixing screws and safely detach the defective original circuit board.
Thoroughly clean the internal panel slot to eliminate dust and conductive particles that may trigger poor contact. Secure the brand-new ND-TCD-THB-V1C display board in place with anti-loose screws to prevent vibration displacement. Reconnect all cables following the recorded marks and double-check every terminal for firm connection. Restore the decorative panel, reactivate the power supply, and conduct repeated elevator test runs to verify clear digits, sensitive direction prompts and fault-free signal linkage.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of ND-TCD-THB-V1C depends on lobby humidity and elevator usage intensity. For dry residential buildings and low-frequency office elevators, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic locations such as shopping malls and medical centers, or humid coastal buildings, the display board sustains continuous lighting load and moisture corrosion. It is recommended to shorten the replacement cycle to 4 to 5 years to avoid sudden display blackouts.
Immediate replacement is required once abnormal symptoms occur, including uneven brightness, flickering screens, incomplete digit segments, slow signal refresh, oxidized terminals and abnormal board overheating. Timely replacement of ND-TCD-THB-V1C eliminates hidden electrical risks and maintains stable landing display performance for all Toshiba elevators.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Elevator LOP Display Board ND-TCD-THB-V1C, 100% compatible with the full range of Toshiba elevator models. Each product undergoes 72-hour aging testing and signal compatibility inspection before shipment. We maintain adequate in-stock goods, support fast global logistics, and provide professional remote installation guidance. Our high-precision replacement parts reduce maintenance difficulty, minimize elevator downtime, and help global elevator contractors improve overall service quality.
