Description

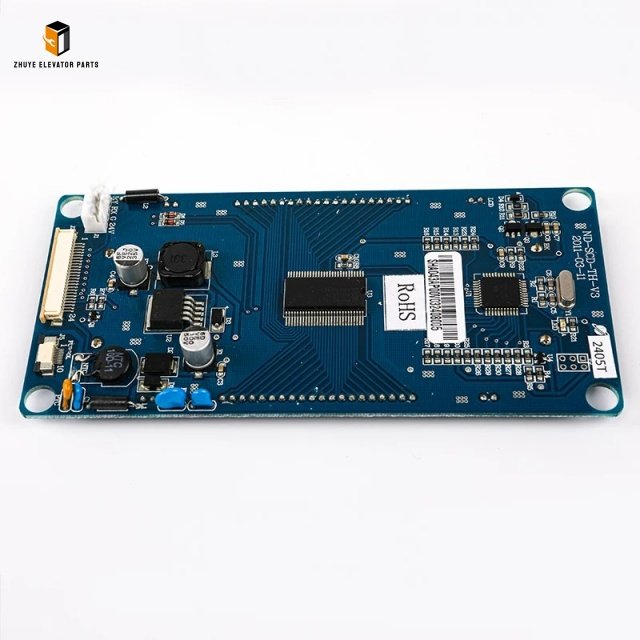

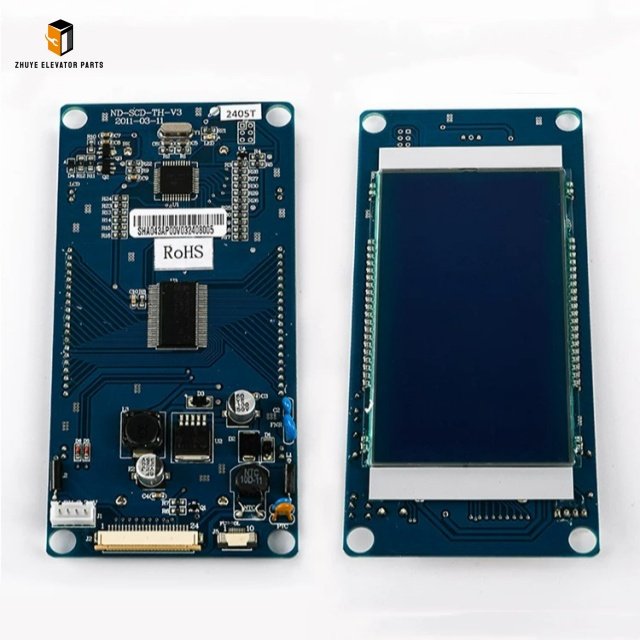

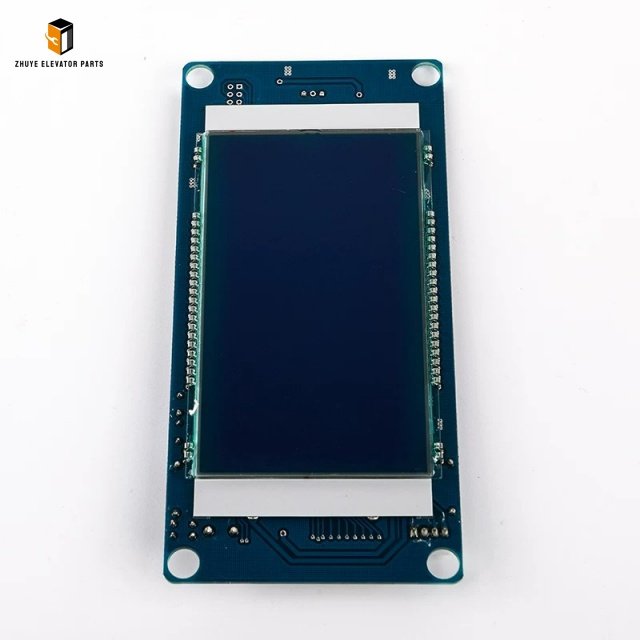

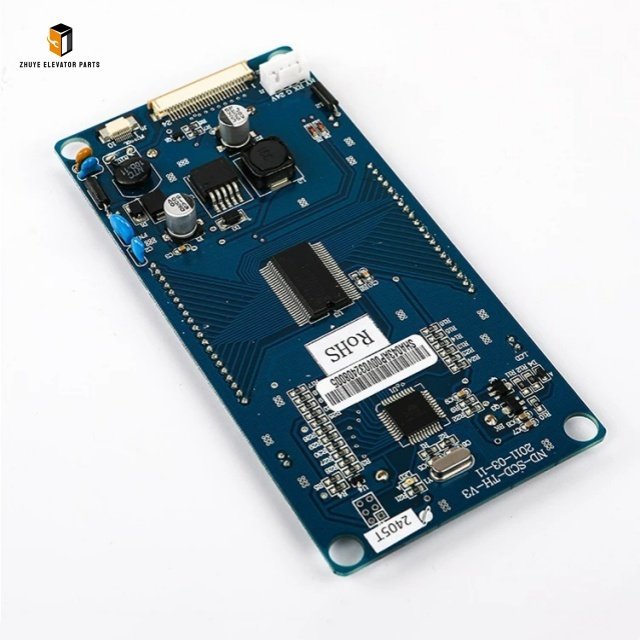

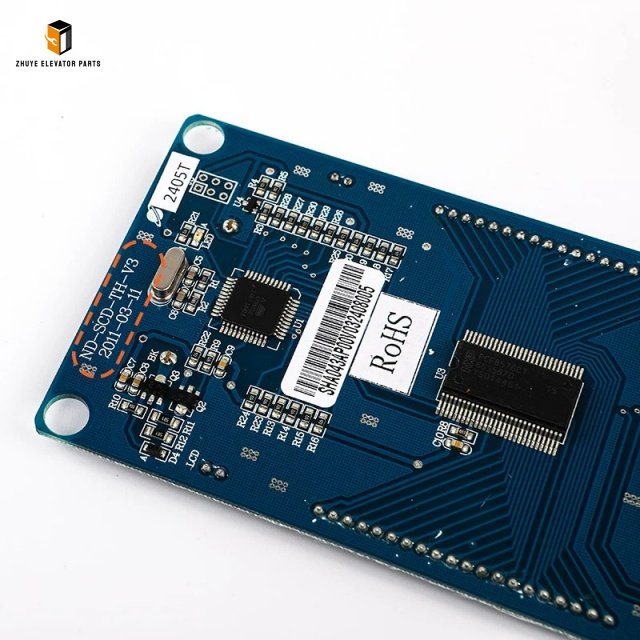

Elevator Lop Display Board ND-SCD-TH-V3
|
Product Name |
Elevator Lop Display Board |
| Model Number | ND-SCD-TH-V3 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator LOP Display Board ND-SCD-TH-V3 | Compatible with Toshiba Elevators
The Elevator LOP Display Board ND-SCD-TH-V3 is a premium landing display circuit board specially optimized for full compatibility with Toshiba elevators. Installed inside the landing operating panel on each floor, this industrial LED display module acts as an external human-machine interaction interface, clearly showing real-time floor numbers, running direction arrows and elevator operational status for waiting passengers. As a key signal receiver for Toshiba hall call systems, the ND-SCD-TH-V3 stably receives low-voltage data signals from the main controller to deliver consistent and high-brightness visual feedback. Common defects including flickering digits, dim screen illumination, blank displays and intermittent signal lag are mainly caused by long-term vibration, dust accumulation and circuit aging. Manufactured strictly in accordance with Toshiba original electrical specifications and mounting dimensions, this LOP display board serves as a reliable replacement part for routine maintenance, elevator modernization and spare part inventory for global elevator service companies.
Featuring industrial flame-retardant PCB and durable anti-oxidation LED beads, the Elevator LOP Display Board ND-SCD-TH-V3 delivers excellent dustproof, moisture-proof and anti-electromagnetic interference capabilities. Designed to adapt to public lobbies with heavy pedestrian traffic, fluctuating temperatures and airborne dust, it maintains stable display performance in complex building environments. All mounting hole positions, terminal definitions, rated voltage and communication protocols fully comply with Toshiba factory standards, enabling hassle-free plug-and-play installation without complicated programming or parameter modification. Built-in surge protection components effectively resist instantaneous current fluctuations and external signal interference. Suitable for all mainstream Toshiba residential and commercial elevators, this upgraded board provides uniform brightness and prolonged service durability.
Standard Installation & Professional Operation Guidelines
All disassembly and installation work for the ND-SCD-TH-V3 LOP display board must be conducted by certified Toshiba elevator technicians. Before maintenance, cut off the independent landing power supply, lock the isolation switch securely, and attach a visible “Maintenance In Progress” warning sign. Live-line operation and hot swapping are strictly prohibited to prevent terminal burnout and unexpected elevator malfunctions.
Gently pry open the landing decorative panel with insulated professional tools. Verify the old board model to confirm full compatibility with ND-SCD-TH-V3. Slowly take out the display assembly, disconnect power and signal connectors one by one, and mark each wire position to avoid misconnection. Remove the fixing screws and safely detach the defective original circuit board.
Clean the internal panel slot to remove dust and tiny conductive particles that may lead to poor contact. Place the new ND-SCD-TH-V3 display board in position and fasten anti-loose screws to prevent vibration displacement. Reconnect all cables following the marked wiring sequence and double-check terminal firmness. Restore the decorative panel, re-energize the power supply, and perform repeated elevator test runs to confirm clear digits, responsive direction indication and stable signal linkage.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of ND-SCD-TH-V3 varies based on lobby environment and elevator usage frequency. For dry residential buildings and low-traffic office buildings, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic venues such as shopping malls and hospitals, or humid coastal buildings, the display board endures continuous lighting load and moisture erosion. It is advisable to shorten the replacement cycle to 4 to 5 years to prevent sudden display failure.
Immediate replacement is required once abnormal symptoms appear, including uneven brightness, flickering screens, incomplete digit segments, slow signal response, oxidized connectors and abnormal board overheating. Timely replacement eliminates hidden electrical risks and ensures stable landing display performance for all Toshiba elevators.
Reliable Supply Advantages from Our Factory
We provide brand-new factory-tested Elevator LOP Display Board ND-SCD-TH-V3, 100% compatible with all Toshiba elevator models. Every unit undergoes 72-hour continuous aging testing and signal compatibility inspection before delivery. We keep sufficient in-stock inventory, support fast global logistics, and offer professional remote installation guidance. Our high-precision aftermarket parts reduce maintenance difficulty, shorten elevator downtime, and help global elevator contractors optimize overall service efficiency.
