Description

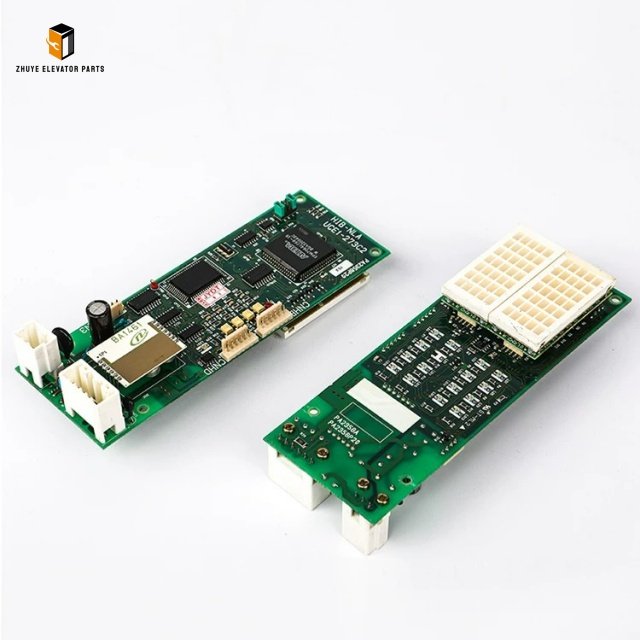

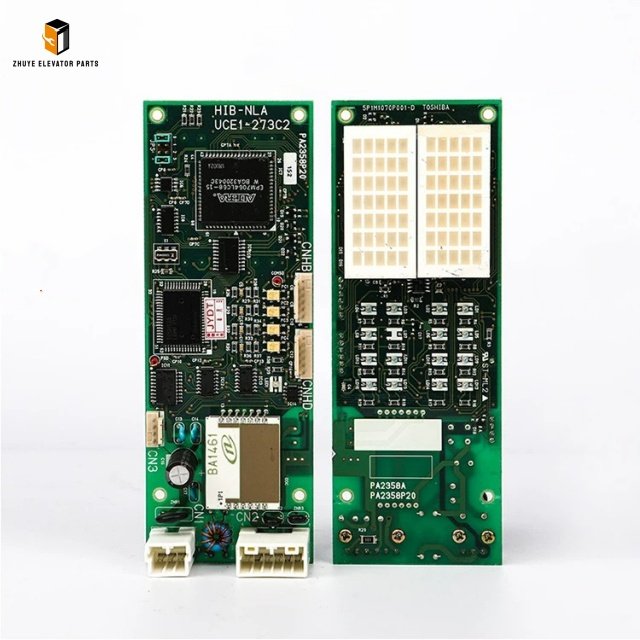

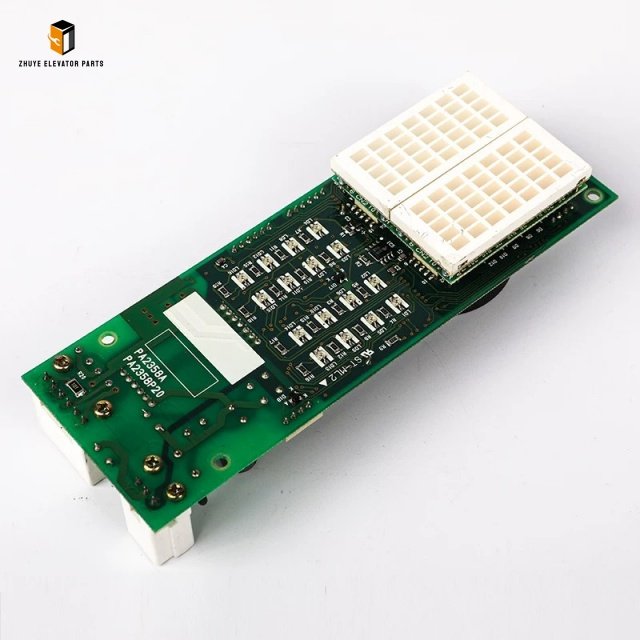

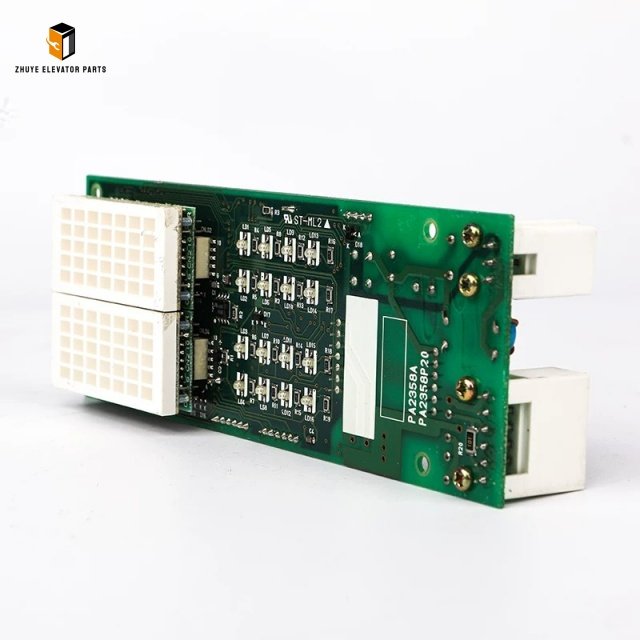

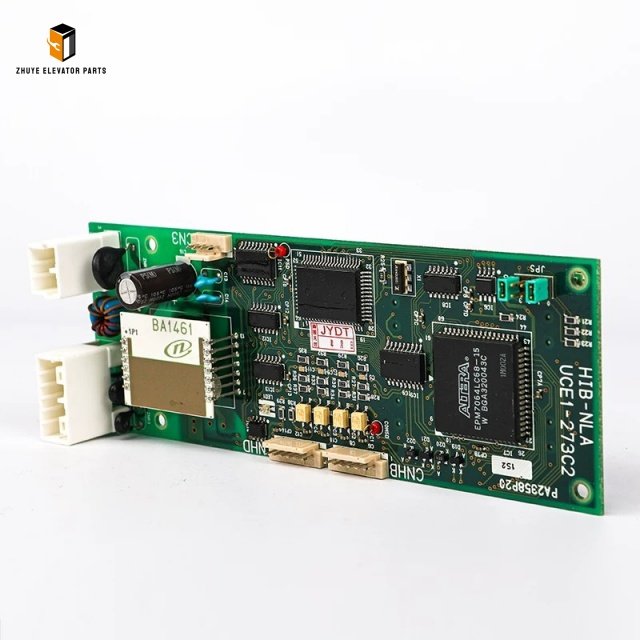

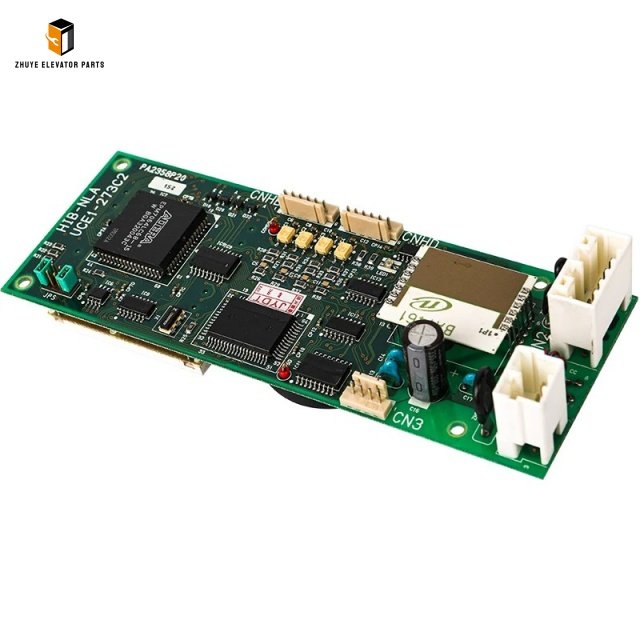

Elevator Lop Display Board HIB-NLA UCE1-273C2
|
Product Name |
Elevator Lop Display Board |
| Model Number | HIB-NLA
UCE1-273C2 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Car Top Communication Board GCECCBSG12 | Compatible with KONE Elevators
The Elevator SR Module Electromagnetic Relay OA5622.54 is a core electromagnetic switching safety component engineered as a direct OEM replacement, fully compatible with Thyssenkrupp elevators. This high-precision SR relay module is installed inside the main control cabinet and car top junction box, responsible for switching safety loop circuits, controlling brake power output, and stabilizing auxiliary signal linkage for normal elevator operation. It isolates weak control signals from strong power loads, preventing main board burnout and ensuring safe power-on and power-off logic for Thyssenkrupp elevator systems. Aging or degraded relay modules often lead to sudden elevator stops, safety loop break faults, unresponsive brake release, and intermittent operational failures. Manufactured to strict Thyssenkrupp original electrical standards, the OA5622.54 electromagnetic relay is a must-use spare part for professional elevator maintenance teams, property engineering departments, and global elevator service contractors.
Built with flame-retardant industrial base material and high-purity silver alloy contact points, the Elevator SR Module Electromagnetic Relay OA5622.54 features strong arc suppression, low contact resistance, and excellent anti-aging performance. It stably withstands harsh machine room conditions including high temperature, vibration, dust accumulation, and frequent electrical switching impact. All installation dimensions, plug terminals, coil voltage parameters, and signal logic perfectly match Thyssenkrupp elevator standard requirements, enabling true plug-and-play installation without circuit modification, program adjustment, or on-site parameter debugging. Integrated with surge voltage protection and electromagnetic anti-interference design, this relay module effectively avoids burnout caused by instantaneous voltage spikes, supporting long-term stable switching for all safety-related circuits in Thyssenkrupp passenger elevators and commercial elevators.
Standard Installation and Professional Operation Steps
All disassembly, installation, and wiring work of the Elevator SR Module Electromagnetic Relay OA5622.54 must be performed by certified professional elevator technicians. Before any operation, completely cut off the Thyssenkrupp elevator main power supply and auxiliary control power, lock the isolation switch with a safety device, and post a clear “Maintenance in Progress, No Power Allowed” warning sign. Live-line operation is strictly forbidden to prevent electric shock, accidental signal misoperation, and sudden elevator sliding safety risks.
Open the elevator control cabinet or car top electrical box, check the label and coil parameters of the original faulty relay module, and confirm that all specifications fully match the OA5622.54 for Thyssenkrupp equipment. Use insulated professional tools to detach each wiring terminal one by one, mark wire numbers and functional positions clearly to avoid misconnection errors, then remove the fixing screws and take out the old invalid electromagnetic relay module safely and completely.
Clean the internal mounting area thoroughly to wipe away metal dust, oil stains, and conductive debris that may cause poor contact or short-circuit hazards. Install the brand-new OA5622.54 SR Module Electromagnetic Relay in place, tighten fixing screws firmly to prevent vibration loosening during elevator running. Reconnect all signal lines and power lines strictly according to previous marks, double-check terminal tightness and wiring accuracy. After full safety inspection, restore the main power supply, conduct safety loop continuity tests, brake linkage tests, and full-cycle elevator operation tests to ensure the relay switches sensitively and runs without fault codes.
Scientific Replacement Cycle and Timely Replacement Judgment Standards
The service lifespan of the OA5622.54 electromagnetic relay module varies according to machine room environment and daily switching frequency. In standard residential buildings and office buildings with dry, ventilated machine rooms and moderate elevator traffic, the recommended standard safe replacement cycle is 6 to 8 years.
For high-traffic scenarios such as shopping malls, hospitals, and transit stations, or humid, dusty, high-temperature machine room environments, the relay bears continuous high-frequency switching load. It is recommended to shorten the replacement cycle to 4 to 5 years to prevent contact adhesion, relay failure, and unexpected Thyssenkrupp elevator downtime.
Immediate replacement of OA5622.54 is required once typical faults occur, including weak electromagnetic suction, intermittent safety loop interruption, abnormal buzzing noise, oxidized and blackened contact terminals, frequent system fault alarms, and local overheating. Timely replacement eliminates hidden electrical dangers and guarantees long-term safe and stable operation of all Thyssenkrupp elevator systems.
Why Choose Our OA5622.54 Electromagnetic Relay Module
We supply high-quality Elevator SR Module Electromagnetic Relay OA5622.54, fully compatible with all Thyssenkrupp elevator series. Every relay undergoes strict coil aging testing, contact switching durability testing, and on-site system compatibility inspection before delivery. We have sufficient spot inventory, support fast global sea and air shipping, and provide professional remote installation technical support. Our stable quality effectively reduces elevator maintenance costs, shortens on-site repair time, and helps global elevator engineering companies improve service efficiency.
