Elevator limit switch DS-131 Brief Introduction

Product Name	Elevator limit switch
Model Number	DS-131
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Limit Switch DS-131: Safety Limit Core from Nanjing Zhuye Elevatorparts

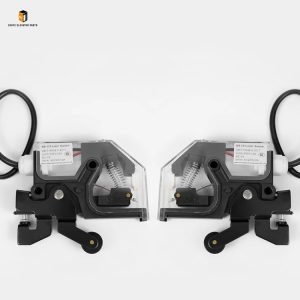

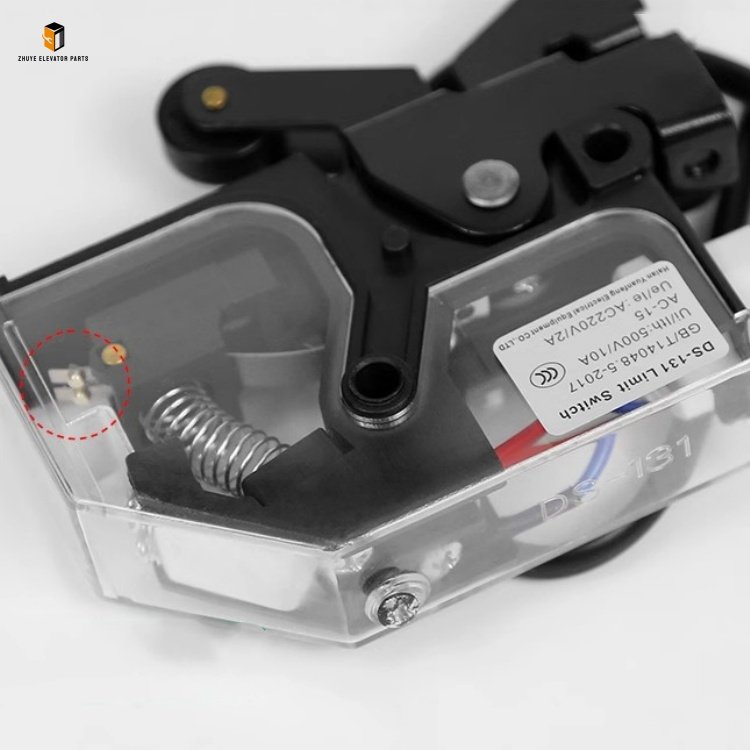

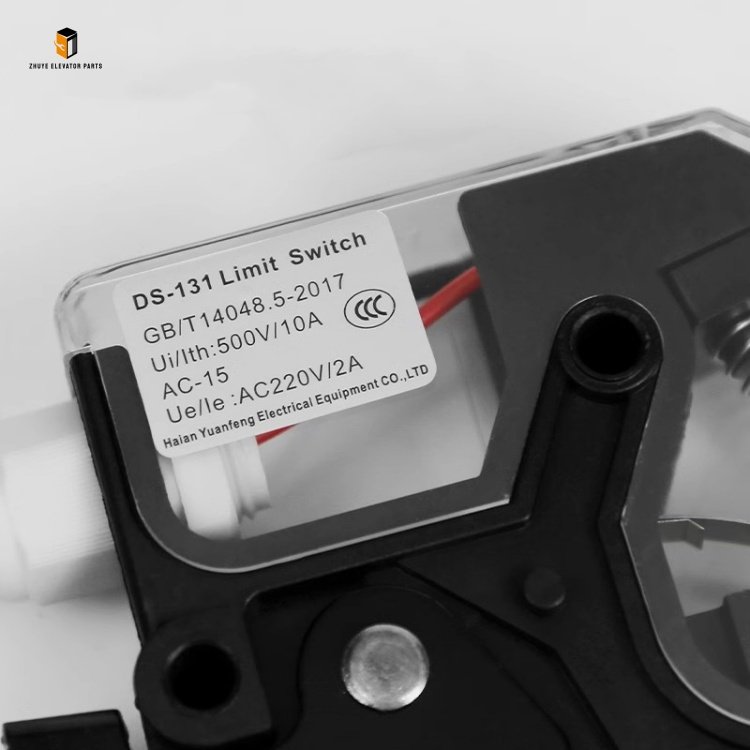

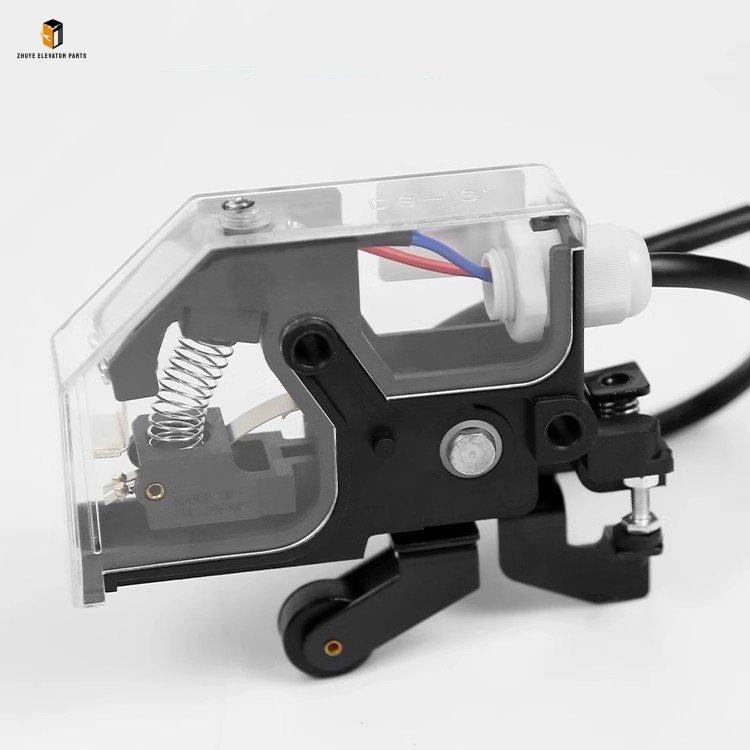

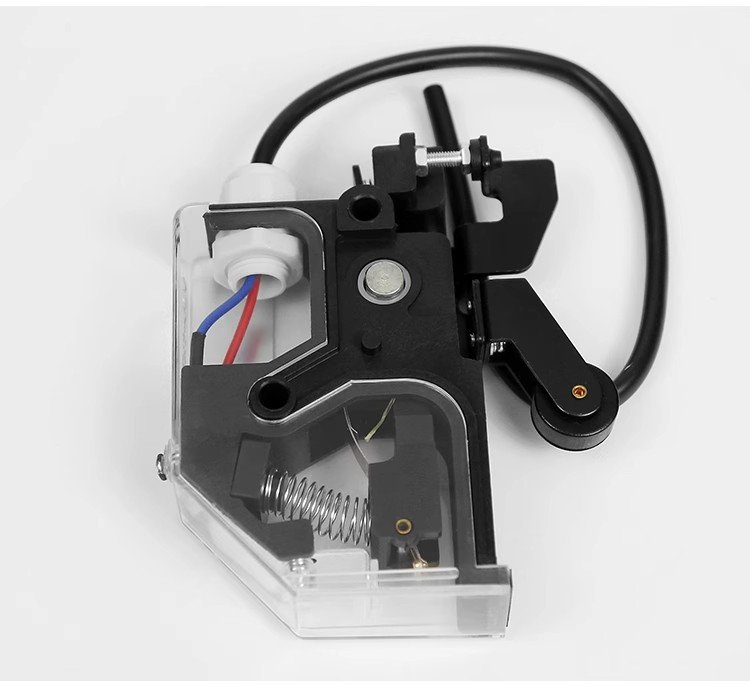

Elevator Limit Switch DS-131 is a critical safety protection component engineered for elevator traction systems, designed to monitor the extreme upper and lower travel positions of the elevator car. As the “last safety barrier” for elevator operation, this switch triggers an emergency stop signal to the main controller when the elevator car exceeds the normal travel range due to control system failures or other abnormalities, forcing the elevator to stop immediately. This effectively prevents serious safety accidents such as the elevator crashing into the top or bottom of the shaft. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional and trusted provider of high-quality elevator safety components, the Elevator Limit Switch DS-131 fully complies with international elevator safety standards (EN 81-20, GB 7588) and electrical switch technical regulations (IEC 60947). With high mechanical strength, reliable contact performance, and broad compatibility with mainstream elevator traction systems, the DS-131 is widely utilized in residential, commercial, high-speed, and industrial elevators worldwide.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Reliable Limit, Absolute Safety” and implements rigorous quality control throughout the production and inspection process of the Elevator Limit Switch DS-131. Each unit undergoes a multi-stage pre-delivery inspection protocol, including mechanical strength testing, contact reliability verification, environmental adaptability trials, and long-term wear resistance detection. The DS-131 adopts advanced structural design and premium materials: high-strength zinc alloy housing with anti-corrosion treatment resists impact, dust, and humidity erosion in the shaft; the precision mechanical transmission mechanism ensures sensitive and accurate triggering, with a triggering stroke error ≤ 0.5mm; the silver alloy contact points have excellent electrical conductivity and wear resistance, ensuring stable signal transmission even after thousands of operations; the IP54 protection rating enables stable operation in harsh shaft environments with high humidity, dust, and vibration. With standardized mounting dimensions and wiring interfaces, the DS-131 allows for quick and seamless installation, eliminating the need for complex modifications to existing elevator systems.

Step-by-Step Usage Guide for Elevator Limit Switch DS-131

To maximize the performance and service life of the Elevator Limit Switch DS-131, and to ensure the effective operation of the elevator’s extreme position protection system, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, debugging, and maintenance:

1. Professional Installation & Wiring

Installation must be conducted by certified elevator technicians proficient in elevator traction systems. Prior to installation, use the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts to confirm that the DS-131 is compatible with the target elevator’s shaft structure, car travel range, and control system. The installation steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Operate the elevator car to a safe position (middle floor) using manual traction equipment and fix it with mechanical supports. Clean the mounting positions of the upper and lower limit switches in the shaft (usually on the guide rail or shaft frame) to remove dust, oil stains, and debris.
Switch Installation: Fix the DS-131 limit switches to the pre-determined upper and lower limit positions using high-strength bolts provided by Nanjing Zhuye Elevatorparts. Ensure the switch’s trigger lever is aligned with the collision block on the elevator car—when the car reaches the extreme position, the collision block can accurately press the trigger lever to activate the switch. Adjust the switch’s installation angle and height to ensure the triggering stroke is within the standard range (3–5mm).
Wiring Operation: In accordance with the elevator control system wiring diagram, connect the DS-131’s signal cables to the corresponding emergency stop interface of the main controller. Ensure correct wiring polarity, tight terminal connections, and reliable insulation—use cable glands to fix the cable entry point of the switch to prevent water and dust from entering. Use cable ties to neatly fix the cables along the shaft, avoiding contact with elevator moving parts (e.g., guide rails, steel ropes) to prevent cable damage.
Post-Installation Debugging: Restore the power supply and switch the elevator to inspection mode. Manually operate the car to move slowly towards the upper and lower extreme positions, observing whether the DS-131 can be triggered accurately. When the switch is triggered, confirm the controller immediately sends an emergency stop signal and the elevator stops stably. Test the switch’s reset function—after moving the car away from the extreme position, ensure the switch resets automatically and the elevator resumes normal operation. Repeat the test 3–5 times to verify the switch’s reliability.

2. Daily Operation & Routine Inspection

Regular inspections and maintenance are essential to early fault detection and ensuring the long-term stable operation of the DS-131 limit switch. Maintenance personnel should integrate the following checks into their daily patrol routines:

Daily Visual Inspection: During shaft patrols, check the external condition of the DS-131. Ensure the zinc alloy housing is free of deformation, cracks, or corrosion; the trigger lever is flexible without jamming; the signal cables are intact without aging, wear, or loose connections; the mounting bolts and collision block are tight without looseness.
Weekly Function Test: Switch the elevator to inspection mode and manually operate the car to approach the upper and lower limit positions (without triggering the emergency stop) to check the sensitivity of the DS-131’s trigger lever. Use a multimeter to detect the switch’s contact on-off status, ensuring the signal is clear and free of contact failure. Record the test data for trend analysis.
Monthly Cleaning & Calibration: Clean the DS-131’s housing, trigger lever, and collision block with a soft, dry cloth to remove dust, oil stains, and oxide. Recheck the switch’s installation position and triggering stroke, adjusting if there is any deviation due to long-term vibration. Lubricate the switch’s internal mechanical parts with a small amount of special lubricating oil (recommended by Nanjing Zhuye Elevatorparts) to ensure flexible operation.

Recommended Replacement Cycle for Elevator Limit Switch DS-131

As a core safety component bearing frequent mechanical triggering, long-term exposure to harsh shaft environments (humidity, dust, vibration, temperature fluctuation), and electrical contact wear, the Elevator Limit Switch DS-131 has a specified service life. Timely replacement is critical to avoiding faults such as contact jamming, triggering delay, or signal loss—issues that may lead to the failure of the elevator’s extreme position protection function, resulting in serious safety accidents.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, monthly triggering frequency ≤ 10 times, environment temperature -10–60℃, humidity 10%–95%), the recommended replacement cycle for the Elevator Limit Switch DS-131 is 4–5 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, switch component aging tests, and global user feedback on elevator safety systems.

2. Adjustments for Special Scenarios

Harsh Environments & Frequent Triggering Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), shaft pits prone to water accumulation, or elevators with frequent abnormal position deviations (monthly triggering frequency ≥ 30 times), the replacement cycle should be shortened to 2–3 years. Harsh conditions and frequent use accelerate housing corrosion, mechanical part wear, and contact oxidation, significantly reducing the switch’s reliability.
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments, the replacement cycle can be extended to 5–6 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the switch’s triggering sensitivity, contact reliability, and mechanical performance are intact and consistent with original factory standards.

3. Immediate Replacement Conditions

Replace the Elevator Limit Switch DS-131 immediately if any of the following issues occur, regardless of its service life:

The switch fails to trigger when the elevator car reaches the extreme position, or triggers with a delay, failing to stop the elevator in time—posing a serious safety hazard.
The switch’s contact is poor or stuck, leading to intermittent signal transmission or failure to reset after triggering, and the fault persists after cleaning and maintenance.
The switch housing is severely damaged or corroded, the trigger lever is deformed or broken, and the internal mechanical structure is damaged (unrepairable).
The switch fails the performance test (e.g., triggering stroke deviation > 2mm, contact resistance > 10Ω), failing to meet the elevator’s extreme position protection requirements.

In conclusion, the Elevator Limit Switch DS-131 supplied by Nanjing Zhuye Elevatorparts is a high-quality, reliable safety protection component tailored for modern elevator systems. By adhering to the correct usage methods, maintenance schedules, and replacement cycles outlined above, elevator maintenance teams can effectively ensure the stable operation of the elevator’s extreme position protection system, safeguard passenger lives and property safety, and comply with relevant safety regulations. Choosing Nanjing Zhuye Elevatorparts means you not only get 100% authentic DS-131 limit switches but also access to professional technical support—including model matching guidance, on-site installation and debugging advice, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for your elevator’s safety protection needs.
